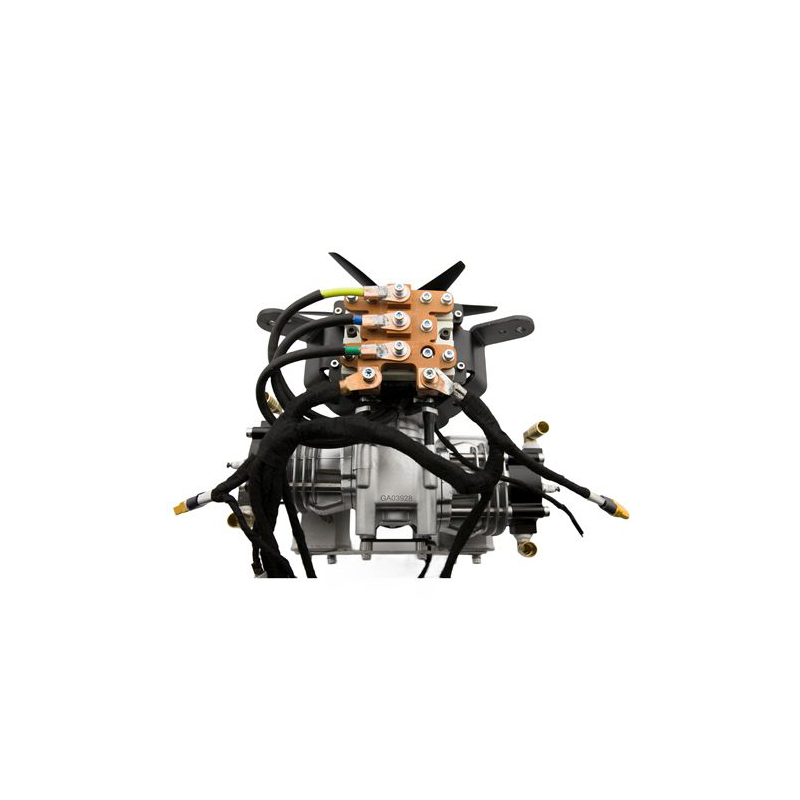

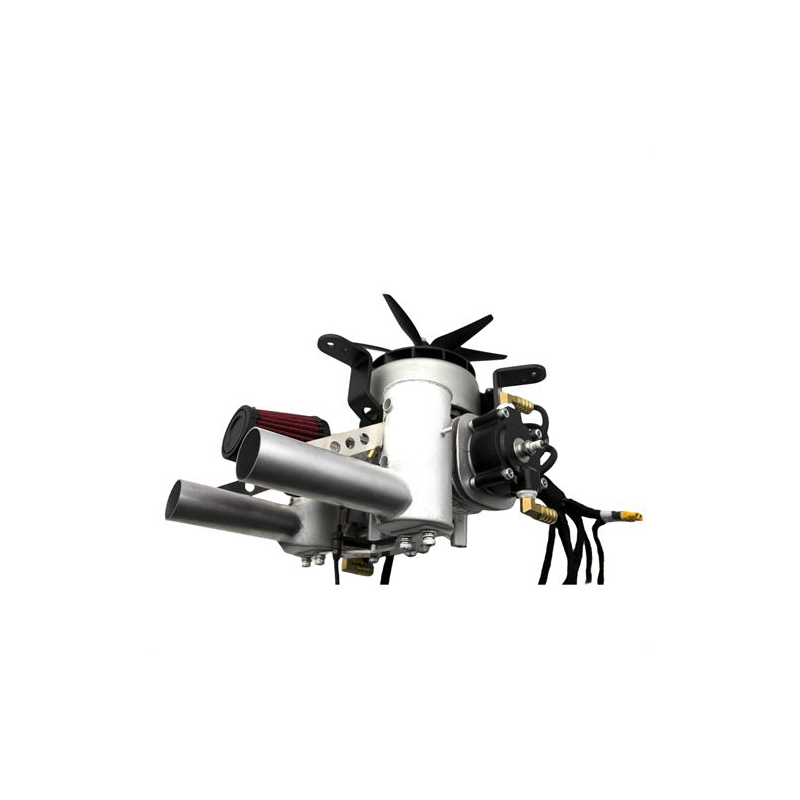

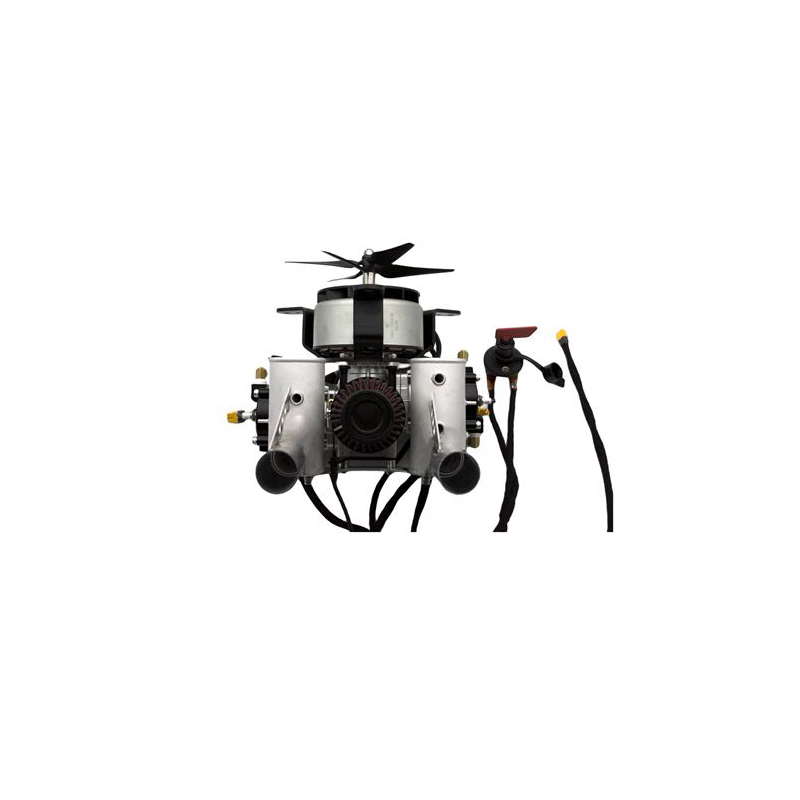

H8 Gasoline Hybrid Engine applicable to Multi rotors Helicopters and Vtols

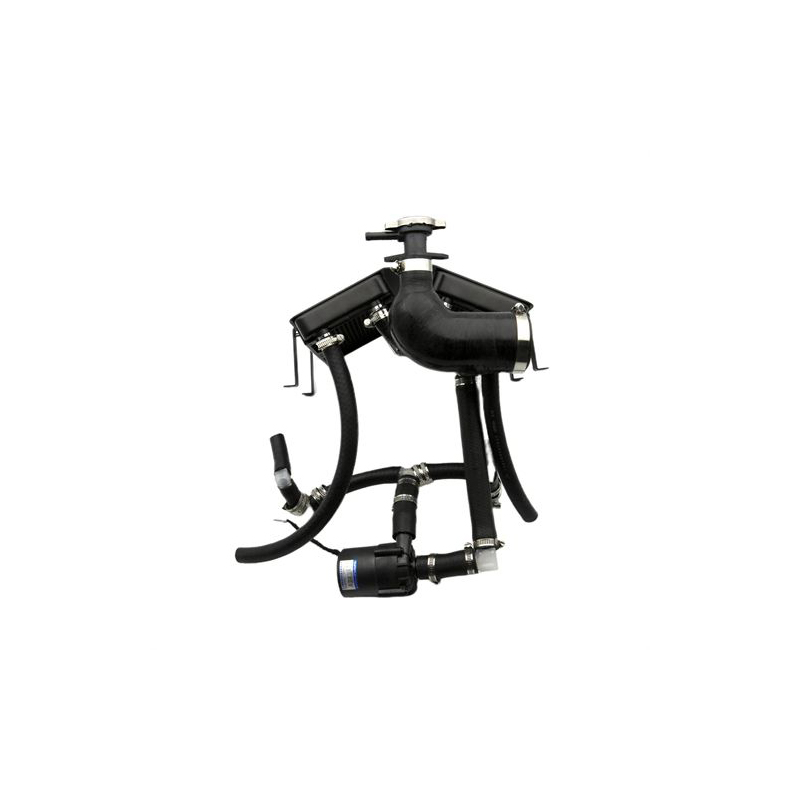

*It’s water cooled and can be set in a engine carbin.
*Up to 55 kg (120 lbs) take-off weight for Multi rotors.
*Cruise time 2+ hours.
*Environmental temperature between -20° and 40°C (-4° and 104°F). *H8 is available in extremely cold areas without preheating.

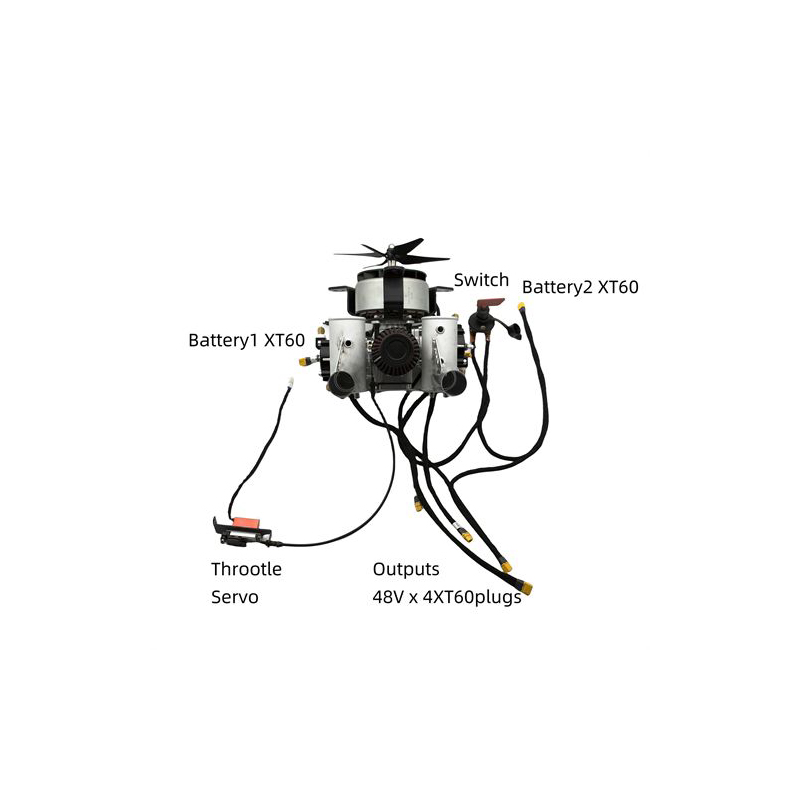

*Plug & Play. Easy to mount on to your UAVs drones only by screwing DC 48V/12S output easy as batteries.
*LOW Cost.
Weight: 13.5kg (30.0lbs) without accessories.
Power: 7.0kW (9.3hp) continuous / 8.0kW (10.7hp) maximum power.
Dimension (L×W×H): 472×390×331 mm / 18.6×15.4×13.0 in.
Applicable UAV Types: Multicopters, helicopters, VTOLs, and fixed-wing aircrafts.
Max. Take-off Weight: 55kg (120lbs) or as suggested for UAVs.
Output Voltage: 12S (49V).
Fuel consumption: 750 g/kw-h (1.5 L/h in hovering).
Service Temperature: -20~40°C / -4~104°F.
Ceiling (above the sea): 1000 m / 3280 ft.
Rotating direction: Counterclockwise (view facing the generator).
Fuel: Automotive #92 or above + 2T oil.
1×H8 Gasoline Hybrid Engine
Related products
-
Engines for Airplanes

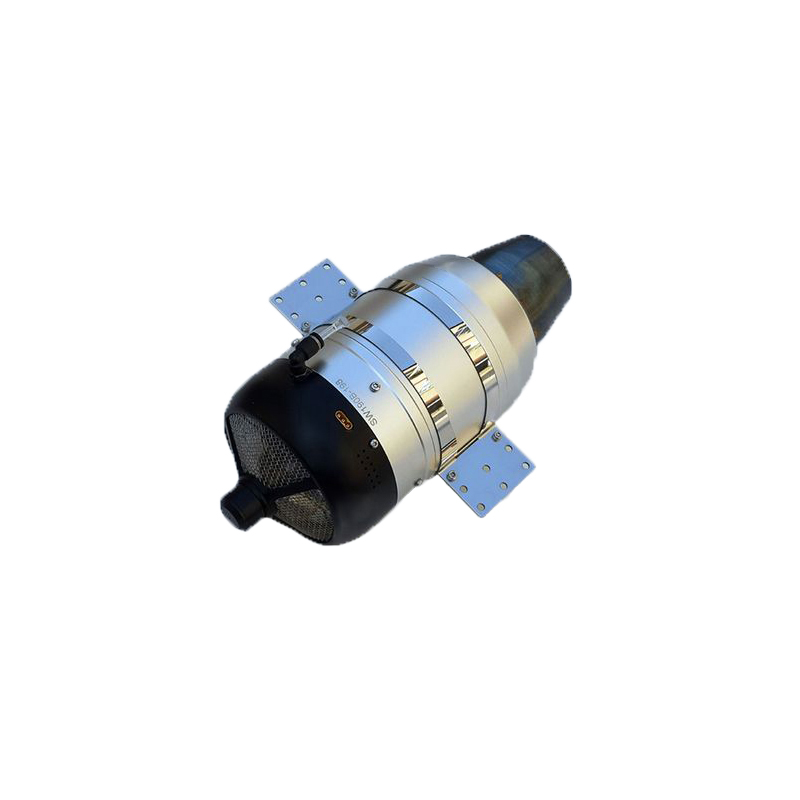

SWIWIN Thrust 19kg RC Jet Engine Turbojet SW190B RC Jet Engine
-
