HAKRC F722 40A AIO Dual USB Flight Control 4IN1 BLHELI_ S ESC 2-6S 25.5×25.5mm For DJI HD VTX CADDX CRSF FPV Racing Drone
HAKRC F722 40A AIO Dual USB Flight Control 4IN1 BLHELI_ S ESC 2-6S 25.5×25.5mm For DJI HD VTX CADDX CRSF FPV Racing Drone
1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.
2. MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance.
4. Using high-quality Japanese Murata capacitors, strong filtering performance
Size: 32* 32mm (25.5mm-26.5mm mounting hole)
Packing size: ø63*32mm
Product net weight: 7g
Package weight: 25g
Flight control parameters:
CPU: STM32F722RET6
IMU: MPU6000
OSD: AT7456E
Barometer: integrated
BEC: 5V/3A
Uart: 5
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Flight control firmware version: HAKRC F722D
Receiver: CRSF / Frsky/ Fut aba/ Flysky/TBS Crossfire/ DS MX: DS M2 receiver
ESC parameters:
Firmware support: BLHELI_ S
Protocol support: PWM, Oneshot125, Oneshot42,
Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo
Continuous current: 40A
Peak current: 50A
Current meter proportional value: 450
Firmware version: BLHELI _S (G- H-30)

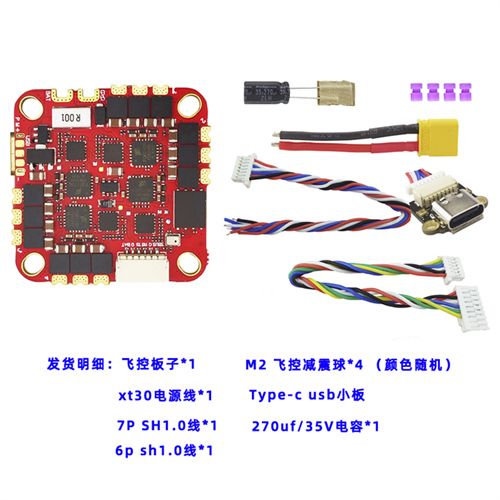

Flight control x 1
Yellow shock absorbing ball x 4
XT30 power cord x 1
Type-C USB small board x 1
80mm long SH1.0/7P single-head cable x 1
270uf/35V capacitor x 1
