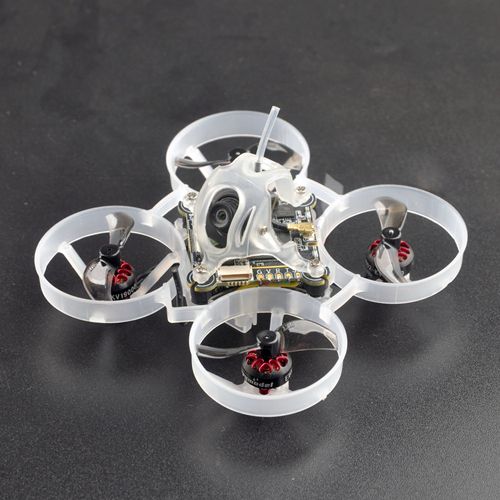

HappyModel Mobula6 HDZero SuperbeeF4 Lite Built-in SPI ELRS RX EX0802 KV19000 1S 65mm HD FPV Brushless Whoop Drone
HappyModel Mobula6 HDZero SuperbeeF4 Lite Built-in SPI ELRS RX EX0802 KV19000 1S 65mm HD FPV Brushless Whoop Drone
Introducing Mobula6 HDZero, the very first 65mm HD brushless whoop in the World, weights less than 23.5 grams only!
We have been working on innovations of Brushless Whoop for a few years. Just like many of you, we are particularly eager to have a 65mm FPV whoop carrying HD VTX. Teaming with HDZero, Runcam, Nick Burns, Mr Shutterbug, Ryan Quellet and many other enthusiasts, here the dream comes true finally!
Brand Name: Happymodel
Model: Mobula6 HDZERO
Frame wheelbase: 65mm

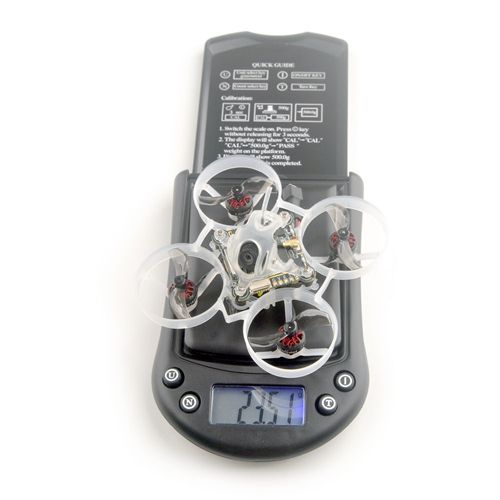

Weight: 23.5 gram without battery
Size: 80mm*80mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0

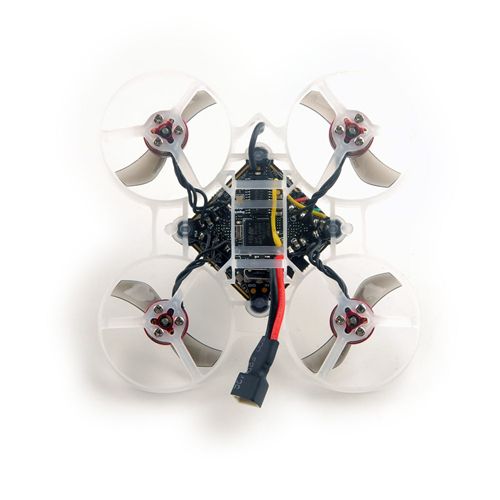

Flight controller SuperbeeF4 Lite FRSKY
• SPI ELRS version Firmware target: CrazybeeF4SX1280
• MCU:STM32F411CEU6 (100MHz, 512K FLASH)
• Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
• Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in SPI Frsky/ExpressLRS receiver
• Built-in 5V 1A BEC
• Built-in voltage detection
Onboard 4in1 ESC
• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
• Currents: 5A continuous peak 6A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver
• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHz
• Antenna plug: IPEX
• Telemetry output Power: <12dBm
• Receiver protocol: SPI ExpressLRS
• Could bind with ELRS V2.0 firmware TX module
Motor
• Mode: EX0802 19000KV
• Configu-ration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.7g
• No.of Cells(Lipo):1S only
Propeller Gemfan 1219 Bi-blades
• Weight:0.19g
• Material: PC
• Pitch:1 inch
• Props Dia:30mm
• Center Hole Dia:1mm
HDZero Nano Lite Camera
• 14x16x11 mm
• 1.5gram
• 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
• Excellent low light performance
• Fov: 4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
• 1S Input
• 25mW/200mW RF Output-SmartAudio Support
• 25.5×25.5 M2 Soft Mounting- Antenna Retention
• Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
• 4.5grams/4mm Thickness (without shielding)

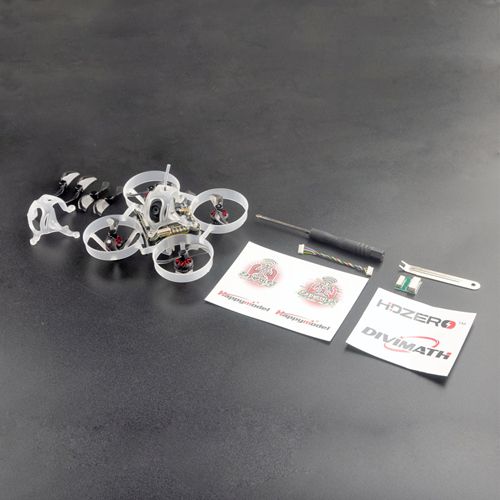

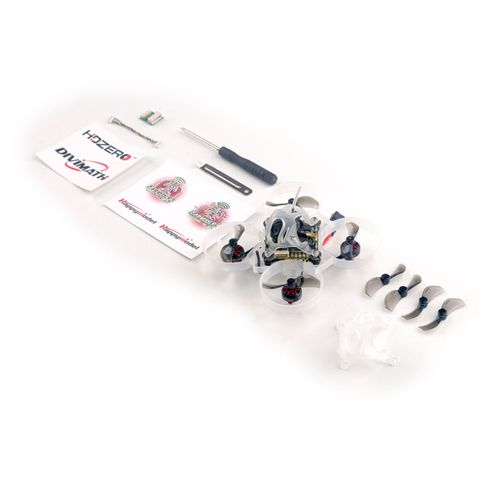

Mobula6 65mm frame+Canopy x 1
SuperbeeF4 Lite FC built-in ExpressLRS SPI RX x 1
EX0802 KV19000 Unibell brushless motor x 4
Gemfan 1210 31mm propeller(4cw+4ccw) x 1
HDZero Nano Lite Camera x1
HDZero Whoop Lite VTX x1
Spare Canopy x1
Propeller disassemble tool x1
Screw driver x 1
