Hawkeye Captain X FPV Monitor 10.2 inch 1000lux 4.9G 5.8G 6GHZ Dual receivers HDMI inpu














Hawkeye Captain X FPV Monitor 10.2 inch 1000lux 4.9G 5.8G 6GHZ Dual receivers HDMI inpu
1. Support X band. -99db high sensitivity. Auto channel search. With DVR function. Built-in Dual Receiver for best reception. Not affect by 2.4GHz R/C Radios
2. 5.8Ghz screen multi-channel receivers; No delay/anti blue screen/anti black screen, specially designed for aerial photography system.
3. 10.2 inch HD LED screen monitor high resolution 1024*600, features an HDMI input.
4. Small, light weight, durable. A key to automatic signal search, simple operation.
5. Work status OSD display: Always be aware of the device working condition.
6. Dual antenna reception can make the signal more stable. Real-time video, low latency.
Descriptions:
This is the updated DVR version of the FPV monitor. You can easily see what is going on thanks to a high resolution 10.2 inch (1024 x 600 resolution) FPV Monitor with a built-in 5.8 GHz Dual Receiver. This monitor is ideal for those who want a FPV system that is quick to setup and easy to transport.
LED Screen
Display resolution: 1280×720
Backlight: LED
Brightness: 1000 Lux
Aspect ratio: 16:9
Response time: 10ms
Color system: PAL/NTSC
Power Supply
Working voltage: DC:3S-6S battery
Current: 1.74A @3S;850MA @6S;
Input
Signal: Video(PAL/NTSC),HDMI
Output
Signal: Video
5V(input power >12V): 1A
DVR
Resolution: D1/VGA/QVGA
TF card supported: Max 64G
Specification

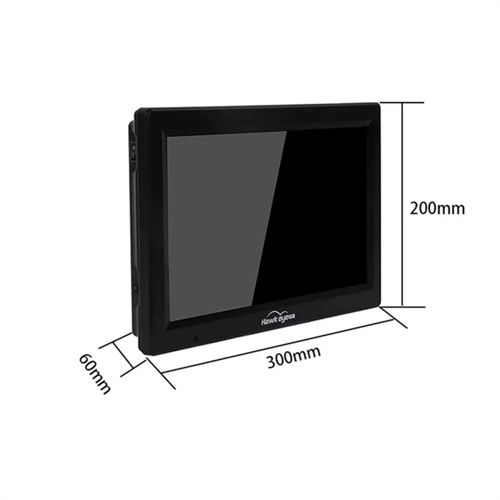

Packing size: 300mm×200mm×60mm
Monitor size: 265mm×170mm×31mm
Gross weight: 1.13kg
5.8G Sensitivity: -93dB
Matching antenna interface
interface: SMA
1 x 10.2inch Monitor
1 x Female XT60 plug to male DC Connector Cable
1 x 3.5mm Connector Cable
2 x 5.8G Antenna
1 x Bracket
