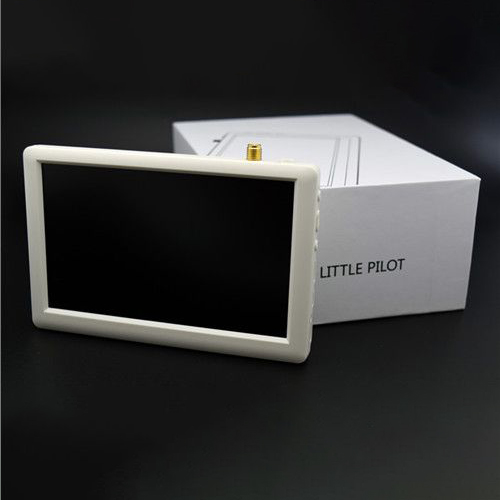

Hawkeye Little Pilot AIO 5 Inch HD high bright snow monitor built-in 5.8G receiver for FPV quadcopter
Hawkeye Little Pilot AIO 5 Inch HD high bright snow monitor built-in 5.8G receiver for FPV quadcopter

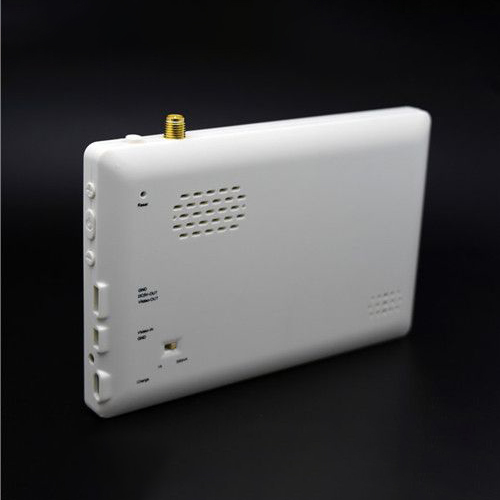

1. Mute button
2. Up Auto channel search button
3. Power Menu button
4. Down Reference scale show hide button
5.Video output port
6.Video input port
7.Battery charging status light (will turn off when the battery is fully charged)
8.Micro USB Charge port
LED Screen
– Resolution: 800×480（HD)
– Backlight: LED
– Brightness: 700 cd/m2（HD）
– Aspect ratio: 16:9
– Response time: 10ms
– Color system: PAL/NTSC
– Power Supply Battery life 2.5-3 hours
Input
– Signal: Video（PAL/NTSC）
Output
– Signal: Video
Matching antenna

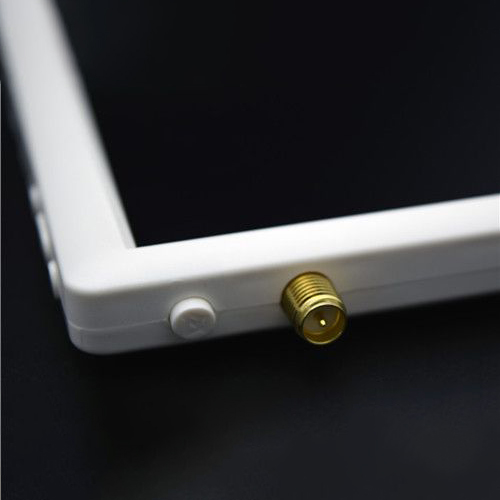

– Interface: RP-SMA
5.8G
– Sensitivity: -94db
Button Description
Button name
– Function Shortcut functionMute button Mute
Adjustment
– button(+) Item increase Auto channel search
Adjustment
– button(-) Item decrease Reference scale display
Power/Menu button
– Enter menu Turn-on/off
5.8G .32CH are covered:
A1: 5.645G B1: 5.740G C1: 5.725G D1: 5.733G
A2: 5.665G B2: 5.760G C2: 5.745G D2: 5.752G
A3: 5.865G B3: 5.780G C3: 5.765G D3: 5.771G
A4: 5.705G B4: 5.800G C4: 5.785G D4: 5.790G
A5: 5.885G B5: 5.820G C5: 5.805G D5: 5.809G
A6: 5.905G B6: 5.840G C6: 5.825G D6: 5.828G
A7: 5.925G B7: 5.860G C7: 5.845G D7: 5.847G
A8: 5.945G B8: 5.880G C8: 5.865G D8: 5.866G

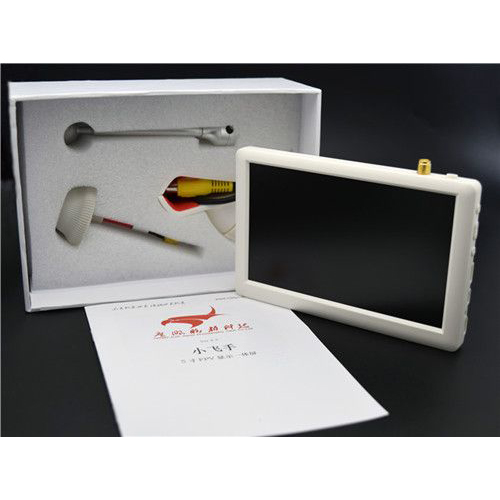

1x Monitor
1x Mounting bracket
1x Mushrooms antenna or Tomahawk antenna
Note: The mushrooms antenna have color black and white, random delivery
