Hiwonder ESP32 S3-Cam AI Vision Module ESP32-S3 Chip WiFi Real-Time Image Transmission for IoT AI Robot
Hiwonder ESP32 S3-Cam AI Vision Module ESP32-S3 Chip WiFi Real-Time Image Transmission for IoT AI Robot

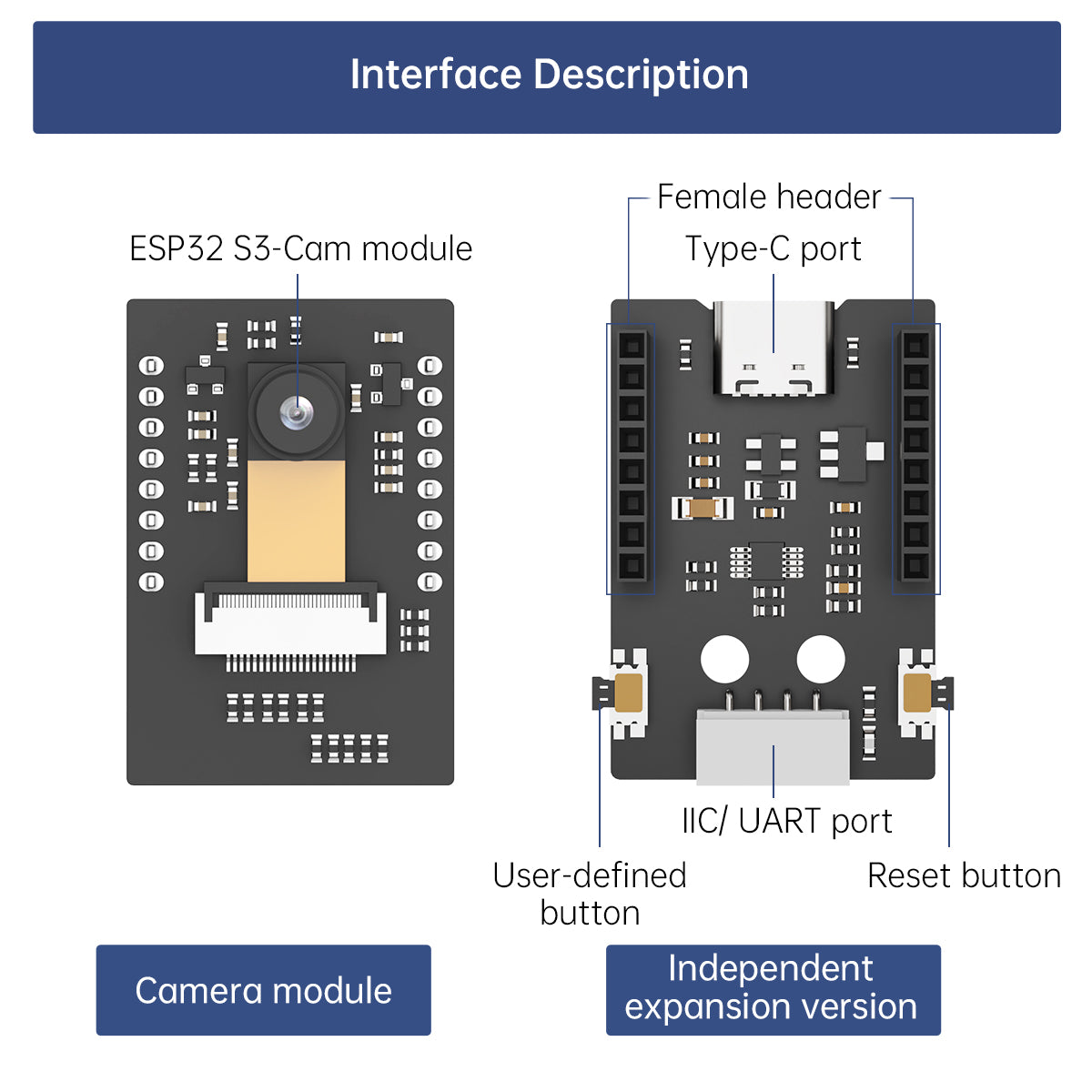

Hiwonder ESP32 S3-Cam AI vision module is compact and cost-effective. Built on the ESP32 platform, it enables WI-FI image transmission, face recognition, color recognition, and other AI functions. This module features an independent expansion board design, along with a Type-C port, IIC port, reset button, user-defined button, and more. Additionally, we provide microcontroller source code, schematics, and a camera feature development pack to support users’ development and learning. The ESP32 S3-Cam is an ideal option for a wide range of robot development projects.

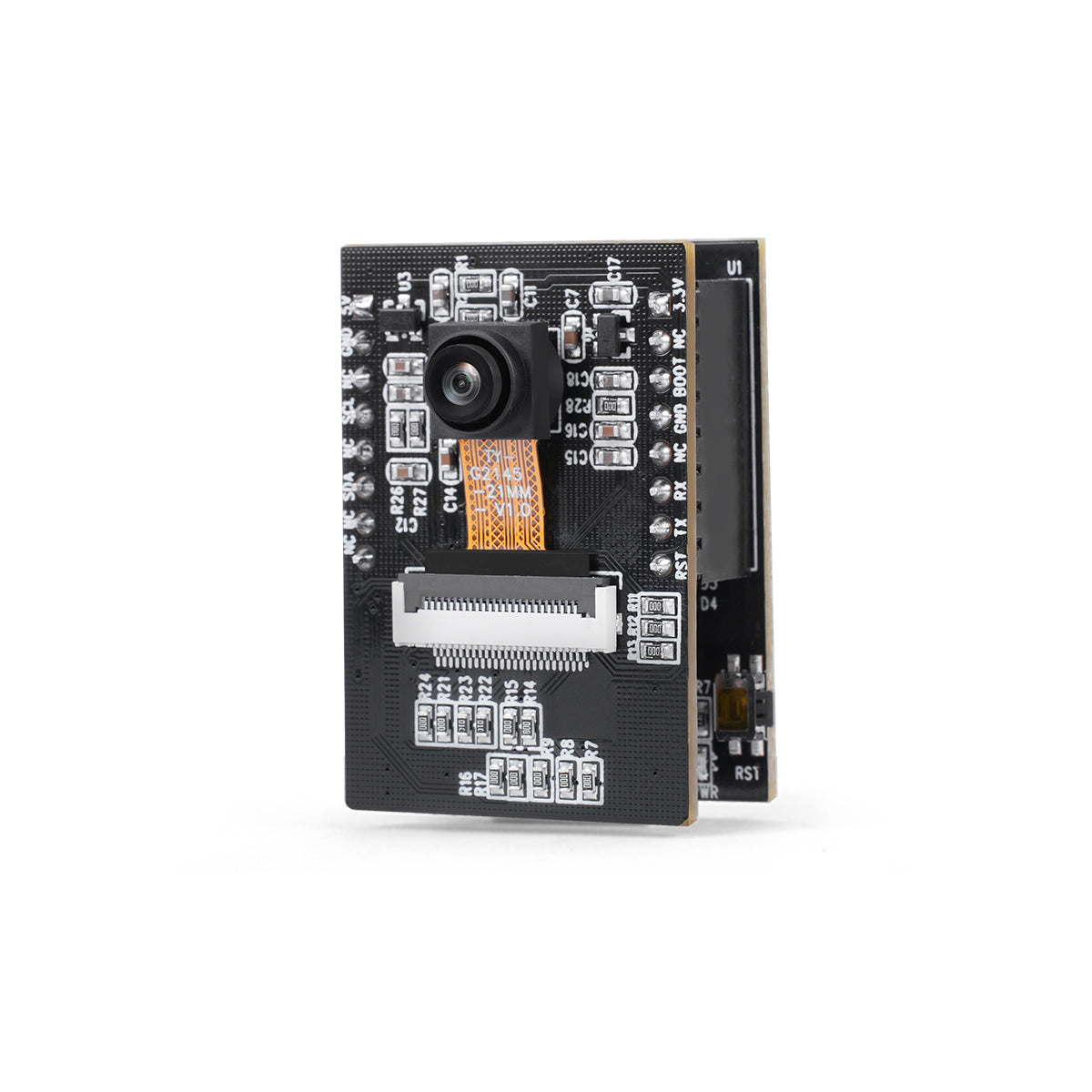

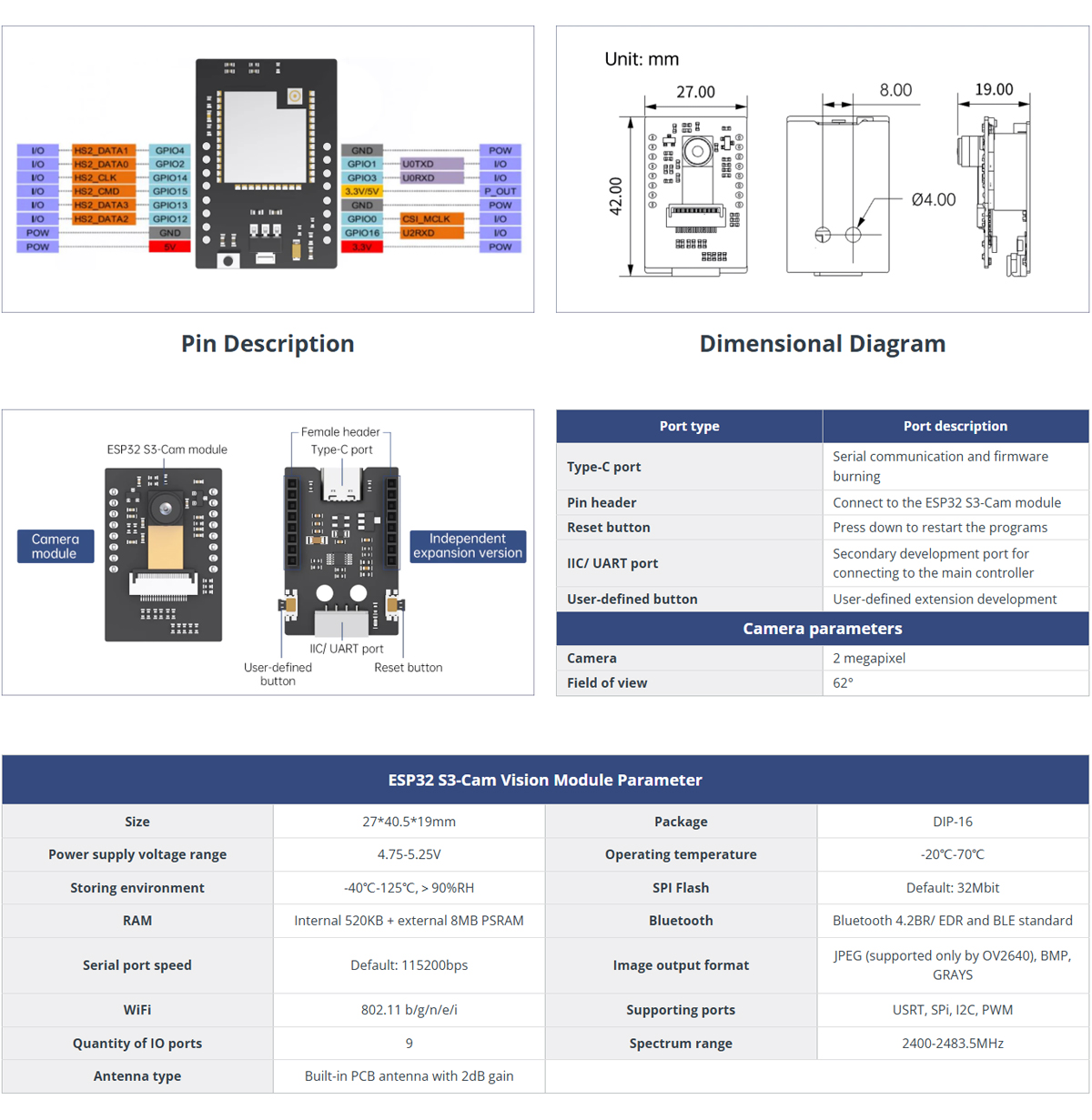

Model: ESP32 S3-Cam Vision Module

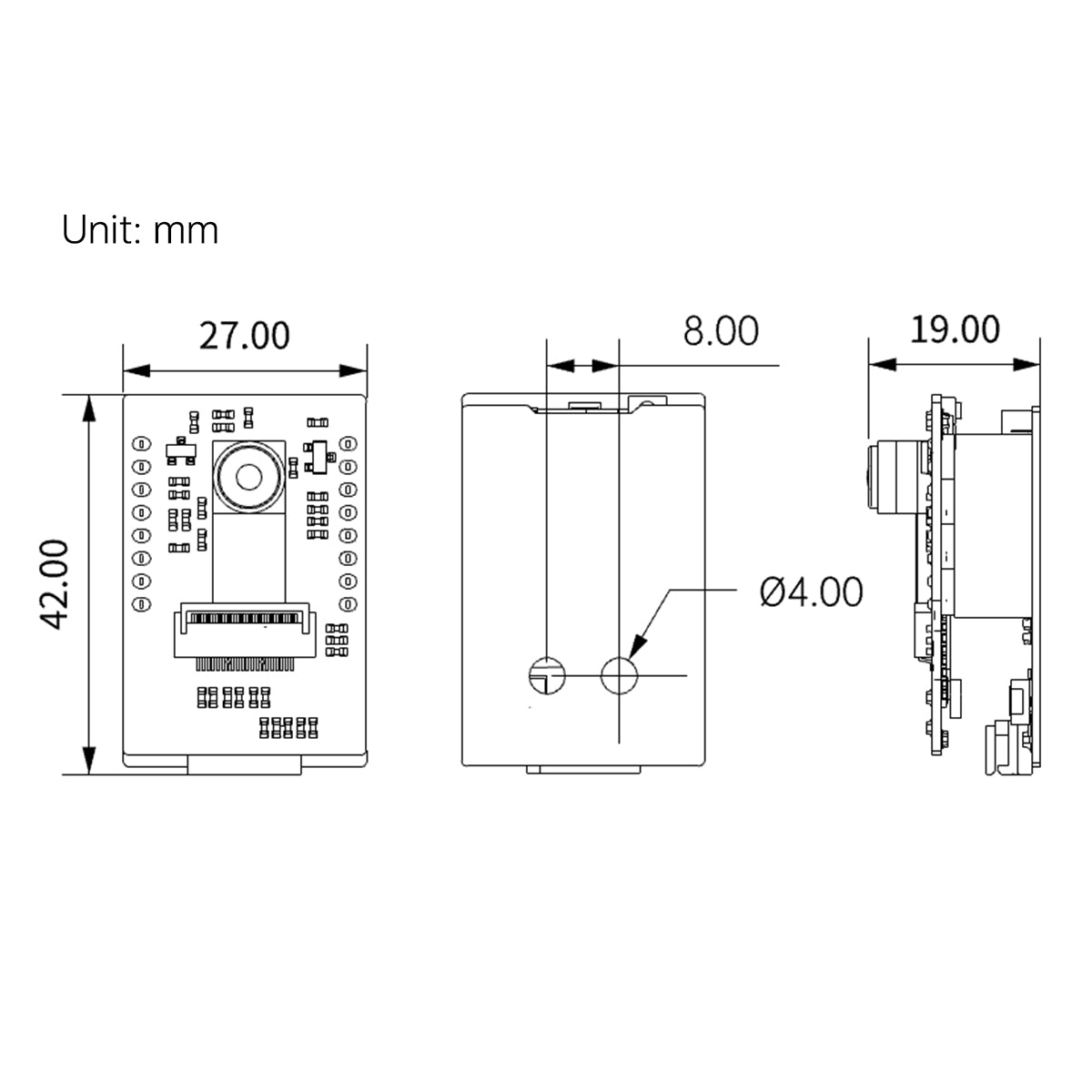

Size: 27*40.5*19mm
Package: DIP-16
Power supply voltage range: 4.75-5.25V
Operating temperature: -20℃-70℃
Storing environment: -40℃-125℃,＞90%RH
SPI Flash: Default: 32Mbit
RAM: Internal 520KB + external 8MB PSRAM
Serial port speed: Default: 115200bps
Image output format: JPEG (supported only by OV2640), BMP, GRAYS
WiFi: 802.11 b/g/n/e/i
Supporting ports: USRT, SPi, I2C, PWM
Supported TF card capacity: Maximum: 4GB
Quantity of IO ports: 9
Spectrum range: 2400-2483.5MHz
Antenna type: Built-in PCB antenna with 2dB gain

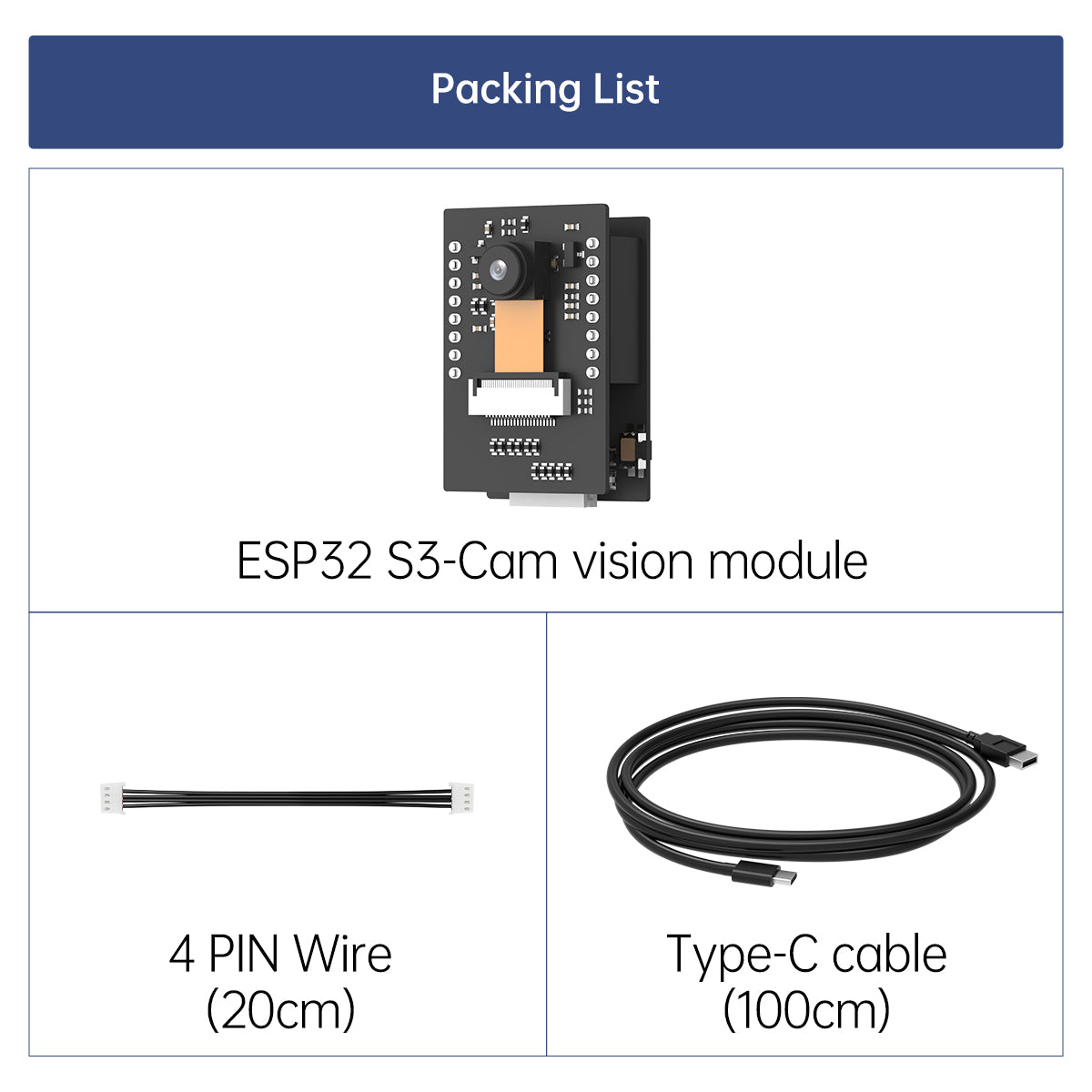

ESP32 S3-Cam Vision Module x1
