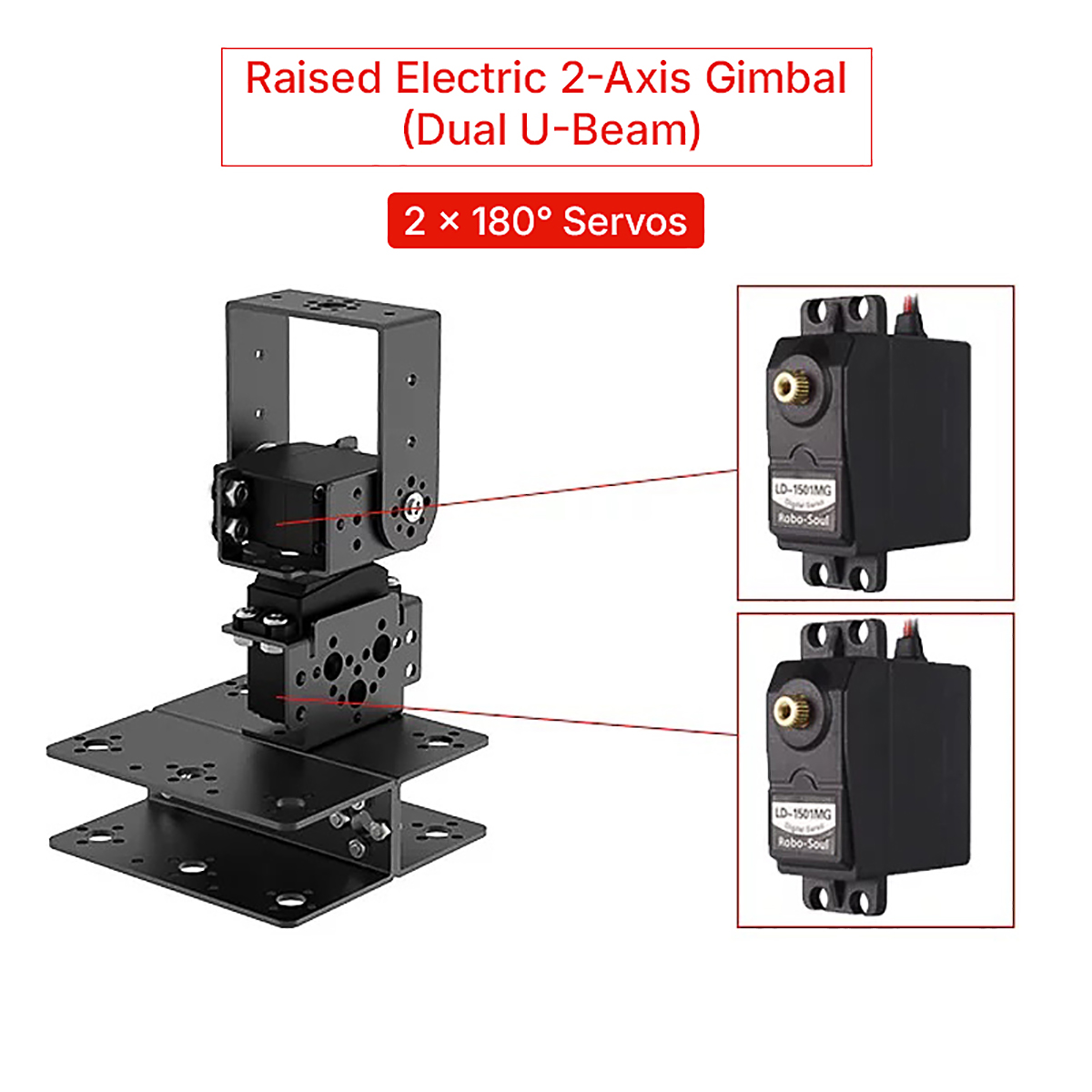

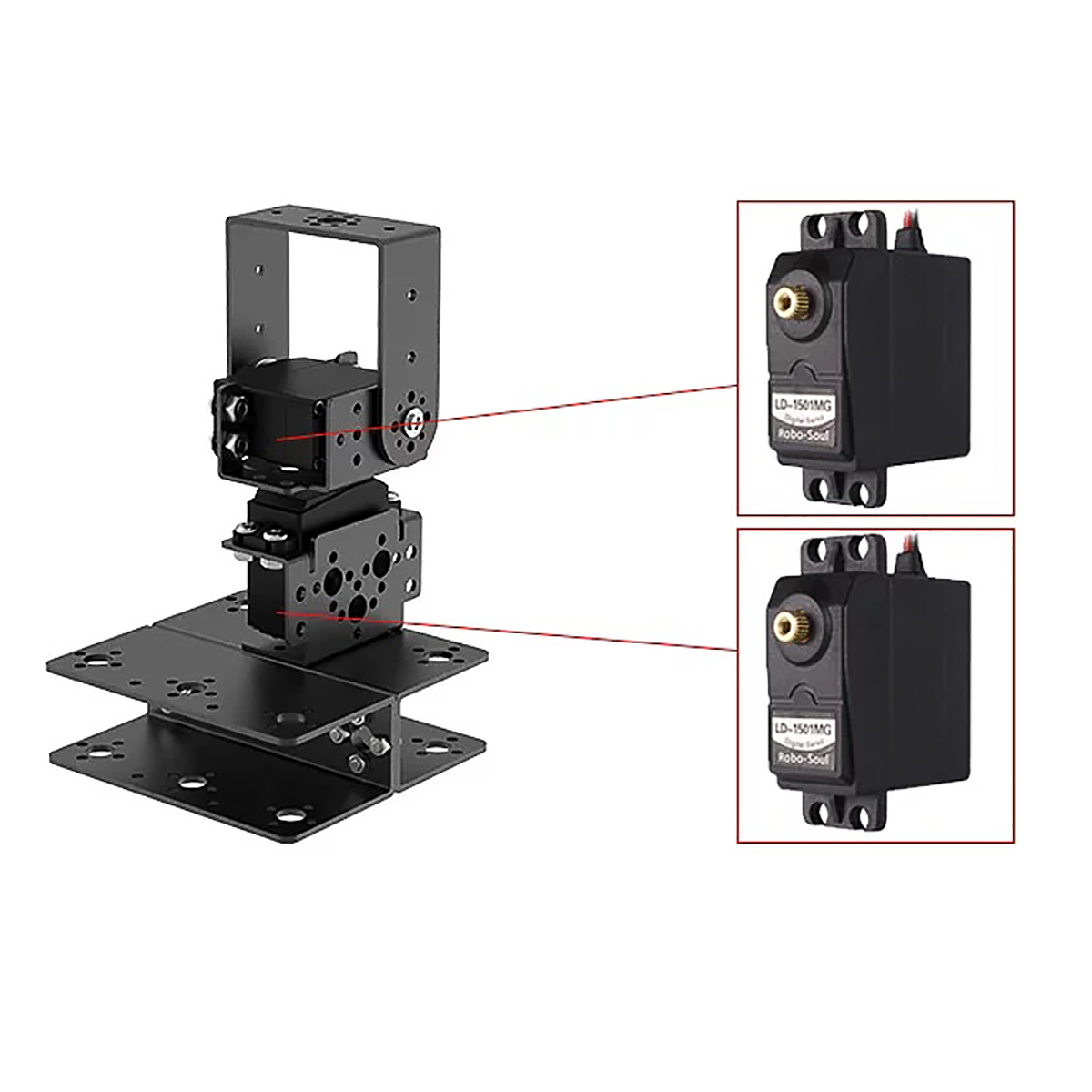

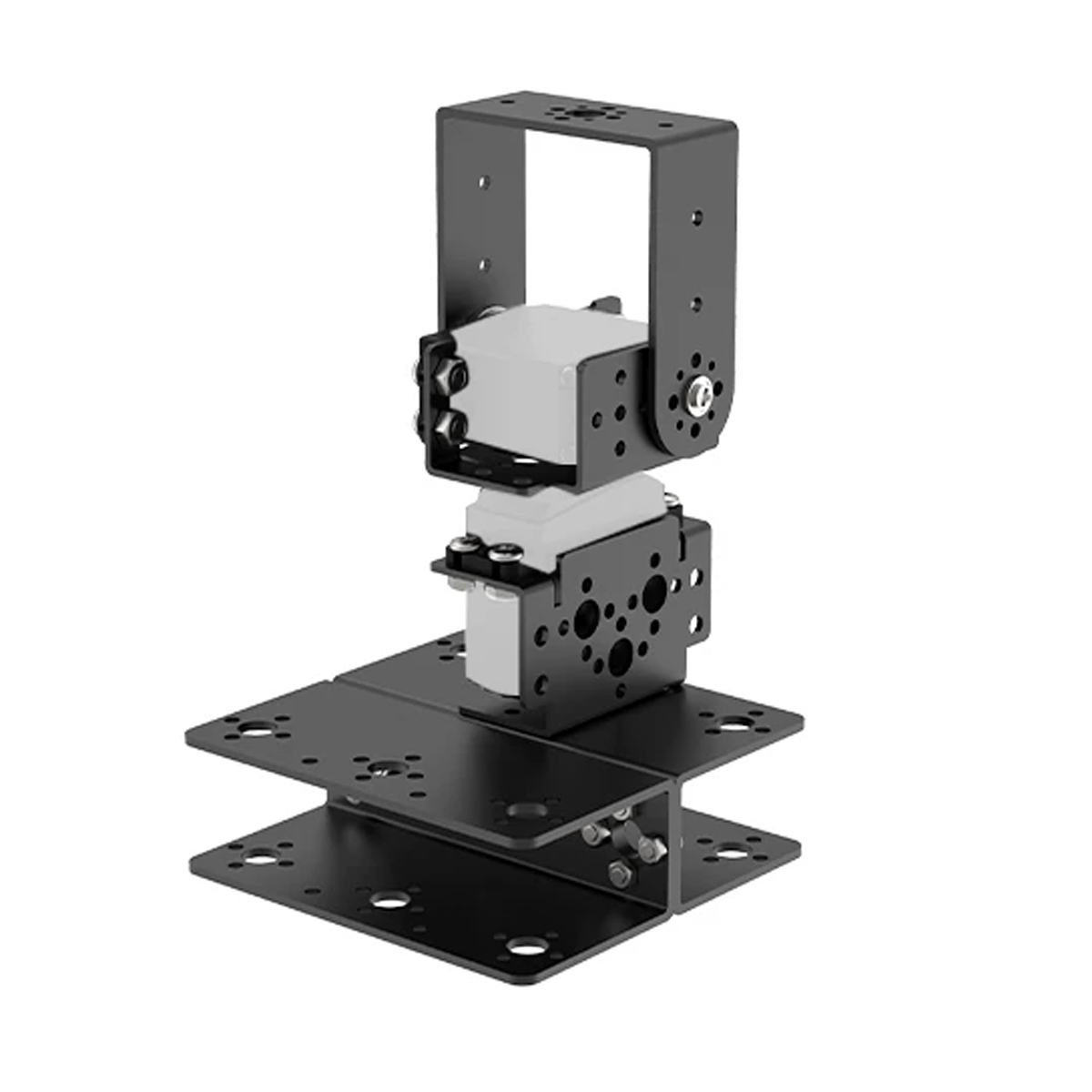

Hiwonder Raised Electric 2-Axis Gimbal Dual U-Beam with LD-1501MG Metal Gear Digital Servo for Robotic Arms
Hiwonder Raised Electric 2-Axis Gimbal Dual U-Beam with LD-1501MG Metal Gear Digital Servo for Robotic Arms
Digital Servos: Equipped with 2 LD-1501MG digital servos specially designed for robots. Faster speeds, higher torque and better holding capability than analog servos.
Move Freely: Smooth 180-degree horizontal and vertical rotation to give your robot arm broader moving space and your camera a wider vision.
Applications: Robotics projects for Arduino, Raspberry Pi and micro:bit, PTZ cameras, and other hand and robot project.
Model: Raised Electric 2-Axis Gimbal Dual U-Beam
Dimensions: 90*106*146mm
Weight: 236g
LD-1501MG Metal Digital Servo
Operating Angle: 0~180°
Working Voltage: 6-8.4V
Stall Torque: 15kg.cm @6.5V; 17kg.cm @7.4V
Operating Speed: 0.16sec/60° @7.4V
No-load Current: 100mA
Stall Current: 2.4A~3A
Control Mode: PWM Pulse Width Control
Gear Type: Metal Gear
Servo Precision: 0.3°
PWM Pulse Width Range: 500~2500us (corresponding to 0-180°)
Dimensions: 54*20*40mm
Weight: 61g
Raised Electric 2-Axis Gimbal Dual U-Beam with Digital Servo x1
