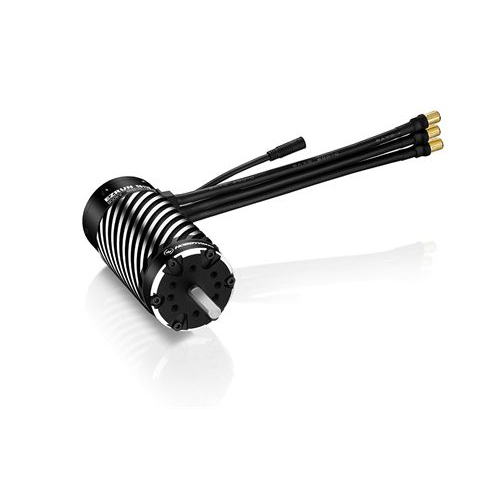

Hobbywing EzRun 56118 650KV 800KV 1100KV SD G2 Sensorless Brushless Motor For Rc car 1/5th Buggy car
Hobbywing EzRun 56118 650KV 800KV 1100KV SD G2 Sensorless Brushless Motor For Rc car 1/5th Buggy car
*Sensored mode，enhanced performance.The motor is strong, explosive, and has a stable output power with an excellent linearity at low speed to allow the vehicle to easily realize various maneuvers.The control is easy when there power is limitless be it violent start-up, straight-line high-speed, flying slopes, etc.
*Perfect match for EzRun MAX5 HV G2 ESC.The motor achieves perfect compatibility when used together with the EzRun MAX5 HV G2 ESC.The ESC/Motor combination is sensored and provides a smooth and percise control experience to the users.It is equipped with overheat thermal protection function to avoid overheating the motor.
*High protection level,all-weather operation IP67 Rating provides,excellent waterproof and dustproof performance,and can easily cope with various weather conditions and harsh environments.
*New sensor wire interface,upgraded waterproof protection.The new sensor wire interface enhances the motor protection level and solves waterproof problems faced by traditional interfaces.
*Detachable module design for easy maintenance.The motor adopts a modular detachable structure design,which is convenient for daily cleaning and maintenance,effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.
Product Name: EzRun 56118SD G2-650KV
Product Number: 30402902
Type
Scale: 1/5th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole: 4
Relevant Parameters
KV Rating: 650KV
LiPo Cells: 8-12S LIPO
No-load Current(A): 5.5A
Size & Weight
O.D.(mm): 56
Length (mm): 119.2
Shaft Diameter (mm): 8
Connectors (mm): 8.0mm (male)
Weight (g): 1272g
Front Bearing: D22*D8*T7
Rear Bearing: D19*D8*T6
Other Parameters: EZRUN MAX5 HV G2
ESC
Vehicles: 1/5th Buggy, Truck
Examples: Losi DBXL-E, Losi 5T Electrified
Product Name: EzRun 56118SD G2-800KV
Product Number: 30402901
Type
Scale: 1/5th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole: 4
Relevant Parameters
KV Rating: 800KV
LiPo Cells: 8-12S LIPO
No-load Current(A): 6.9A
Size & Weight
O.D.(mm): 56
Length (mm): 119.2
Shaft Diameter (mm): 8
Connectors (mm): 8.0mm (male)
Weight (g): 1277g
Front Bearing: D22*D8*T7
Rear Bearing: D19*D8*T6
Other Parameters
ESC
Vehicles: 1/5th Buggy, Truck
Examples: Losi DBXL-E, Losi 5T Electrified
Product Name: EzRun 56118SD G2-1100KV
Product Number: 30402903
Type
Scale: 1/5th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole: 4
Relevant Parameters
KV Rating: 1100KV
LiPo Cells: 6-8S LIPO
No-load Current(A): 8.0A
Size & Weight
O.D.(mm): 56
Length (mm): 119.2
Shaft Diameter (mm): 8
Connectors (mm): 8.0mm (male)
Weight (g): 1287g
Front Bearing: D22*D8*T7
Rear Bearing: D19*D8*T6
Other Parameters
ESC
Vehicles: 1/5th Buggy, Truck
Examples: Losi DBXL-E, Losi 5T Electrified
Hobbywing EzRun 56118 SD G2 Sensorless Brushless x1
