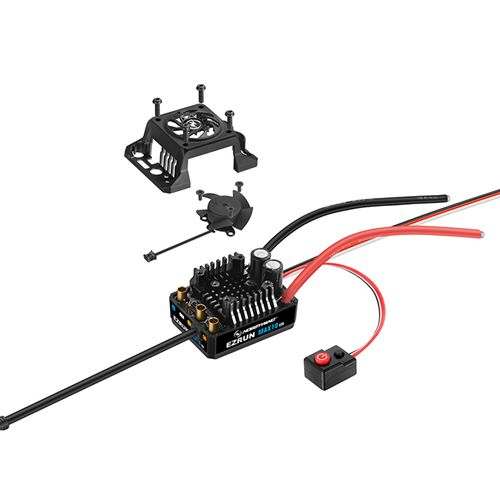

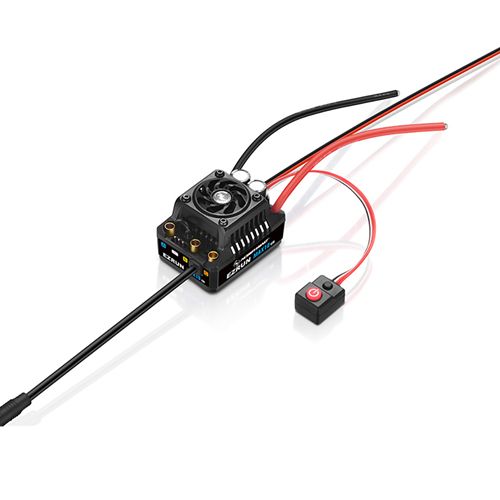

Product Name: EZRUN MAX10 G2-140A
Product Number: 30102603

Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications
Cont./Peak Current: 140A/880A
Input Voltage: 2-4S Lipo
BEC Output: 6/7.4V,5A

Wires & Connectors
Input Wires: Red-12AWG-150mm*1 Black-12AWG-150mm*1
Input Connectors: XT60
Output Connectors: 4.0mm Gold (female)

Fan
Size: 30x30x10mm
Output Wires: 5-7.4V
Input Connectors: Powered by BEC

ESC Programing via
SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supporte(G2)
OTA Programmer: Supported
Programming Port: Separate

Firmware Upgrade: Supported

Size & Weight
Size: 53mm*39.5mm*37.2mm
Weight: 120g(w/Wires)

Applications
Applications: SL BL Motors / SD BL Motors
Vehicles: 1/10th Short Course Truck,Truck and Monster Truck
KV Rating/T Count: With 3S Lipo: KV≤4000 3665 size motor; With 4S Lipo: KV≤2600 4268 size motor
