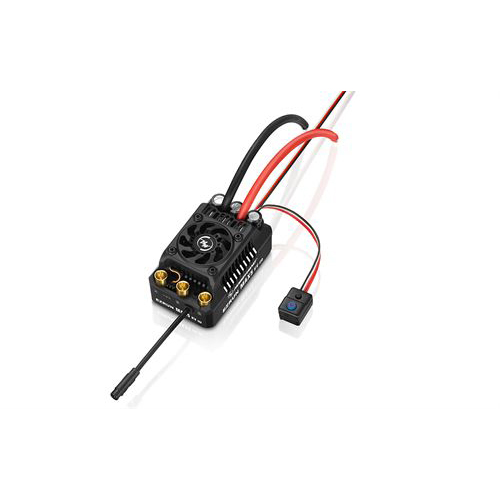

Hobbywing EZRUN Max5 HV G2 250A 6-12s Speed Controller Waterproof Brushless ESC for 1/5 RC Model Car Buggy Accessories






Hobbywing EZRUN Max5 HV G2 250A 6-12s Speed Controller Waterproof Brushless ESC for 1/5 RC Model Car Buggy Accessories
*Intelligent freewheeling technology,strong drive low temperatures.The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency.
*High protection level, all-weather operation.The IP-67 waterproof rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud,sand, ice, snow and water without damaging the power unit.
*Powerful BEC.The ESC has a built-in super BEC with a maximum output current of up to 25A.
The output voltages are switchable between 6V/7.4V/8.4V.This ensures that the ESC is able to support the demanding high-torque servos in the market.
*Built-in anti-spark design,multi-directional protection.The ESC has a built-in anti-spark circuit to protect the battery plug from damaging upon ucsing a higher voltage battery(6-12S),and avoids any injuries.
Product Name: EZRUN MAX5 HV G2
Product Number: 30104200
Product Specifications
Scale: 1/5th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Yes
Cont./Peak Current: 250A/1600A
Input Voltage: 6-12S Lipo
BEC Output: 6V/7.4V/8.4V adjustable, continuous current 8A (Switch-mode)
Input Wires: Black-8AWG-200MMmm1/Red-8AWG-200MMmm1
Input Connectors: 8.0mm Bullet Connectors (Female)
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD Program Box: Supported
OTA Programmer: Supported
Program Port: Independent programming port
Size: 45x45x10mm
Output Wires: 5-8.4V
Input Connectors: Powered by BEC
Extreme value: Supported(LCD)
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 94.5*59.4*52.1mm
Weight: 428.5g (Included input wires)
Motors: 56118 size motors
Vehicles: 1/5th Truck, Buggy
Examples: Losi DBXL-E, Losi 5T Electrified, ARRMA Kraton 8S, ARRMA Outcast 8S
HOBBYWING EZRUN MAX5 HV G2 250A ESC x1
Related products
-
RC ESC
SunnySky X300A Brushless ESC 6-14S Lipo for 60CC-120CC Class Fixed-Wing 3D Airplane
Rated 0 out of 5 -
Hobbywing BL ESC for Aircraft and Heli

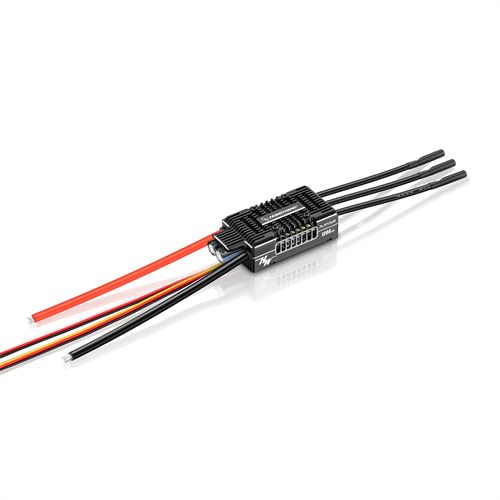

Hobbywing Platinum 120A V5 VBar Telemetry Ready Brushless ESC for RC Drone Aircraft Helicopter
