Product Name：EZRUN MAX8 G2
Product Number：30103203
Type
– Scale：1/8th
– Brushed/Brushless：BL
– Sensored/Sensorless：SD

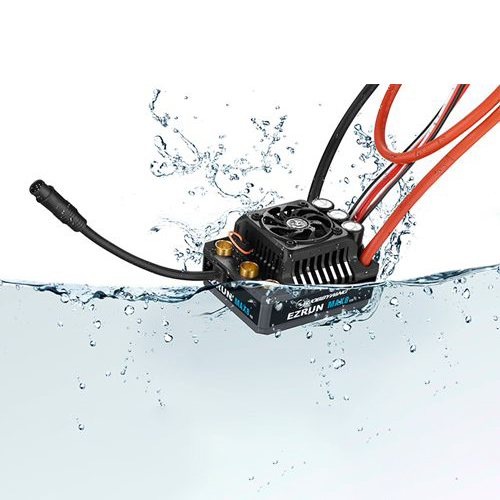

– Waterproof：Yes
Specifications
– Cont./Peak Current：160A/1050A
– Input Voltage：3-6S Lipo
– BEC Output：6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Wires & Connectors
– Input Wires：Red-10AWG-150mm*1/Black-10AWG-150mm*1/Red-10AWG-200mm*1
– Output Wires
– Input Connectors：XT90
– Output Connectors：6.5 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
– Size：30x30x10mm
– Voltage Range：6-8.4V
– Powered by：BEC
ESC Programing via
– SET Button on ESC：Not Supported
– LED Program Box：Supported
– LCD Program Box：Supported (G2)
– OTA Programmer：Supported
– Program Port：PRG/Fan Port
Firmware：
– Firmware Upgrade：Supported
Size & Weight：
– Size：60mm*48mm*40.5mm
– Weight：192g
Applications
– Motors：Sensored brushless motors / Sensorless brushless motors
– Vehicles：1/8thTruck, Monster Truck
– KV Rating/T Count：With 4S Lipo: KV≤3000;With 6S Lipo: KV≤2400 4278 size motor
