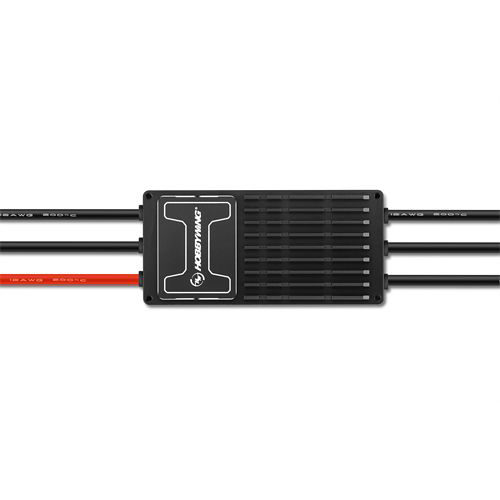

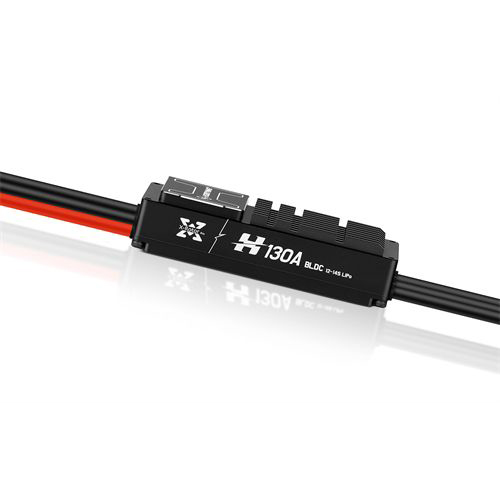

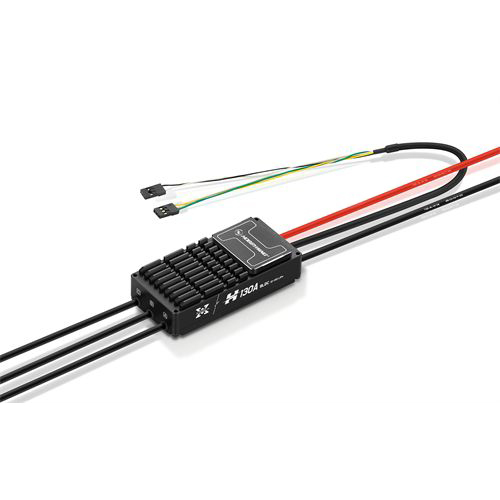

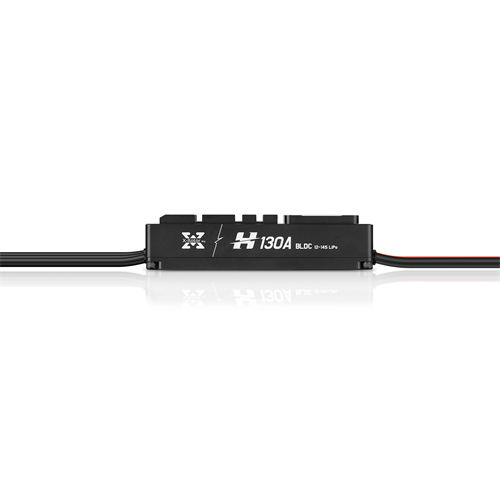

Hobbywing XRotor H130A 14S BLDC Electronic speed controller (ESC)
*Dual Communication Bus Design. The industry’s first CAN + 485 dual-bus throttle design, further enhances anti-interference and ensures safe flight.
*Independent Power Supply Real-time Wakeup. The ESC control circuit and power circuit are powered separately to ensure power supply stability and quick response.
*Compatible with low power consumption mode. Quickly enters a low-power state after activating sleep mode, and can be awakened to enter the working state at any time by external signals.
*Detailed Design，Easy Installation.New appearance, easy to install on both multi-rotor and fixed-wing drones.
*High Thermal Conductivity Materials.Strong heat dissipation, stable and reliable.
Product Name: XRotor H130A14SBLDC
Specifications:
Input Voltage: 6 – 14S (18 – 65V)
Continuous Current: 60A (Good heat dissipation)
Peak Current: 150A (3S)
Operating Temperature: -40°C – 65°C
Communication Protocol: CAN + RS485 (Custom serial port)
Isolation Mode: Throttle and communication isolation
Firmware Update: Supported
Digital Throttle: Supported (CAN)
PWM Input Signal Level: 5V/3.3V
Throttle Signal Frequency: 50 – 500Hz
Operating Pulse Width: 1100 – 1940µs
Throttle Travel Calibration: No
Double Throttle Signal: Supported (CAN and PWM)
Propeller Positioning: Optional
Fault Storage: 2 – 48 hours real-time data and fault data, real-time up to millisecond level.
Waterproof Rating: IP55 (Custom IP67)
Weight (without wire): 148g
Size: 96.5 × 46 × 23.5mm
Cable Specification:
Input: Silicone cable – 12AWG – 200mm × 2
Output: Silicone cable – 12AWG – 150mm × 3
Signal Shielded cable – 5pin – 500mm × 1, JR – 3Pin male connector × 2
Hobbywing XRotor H130A 14S BLDC x1
