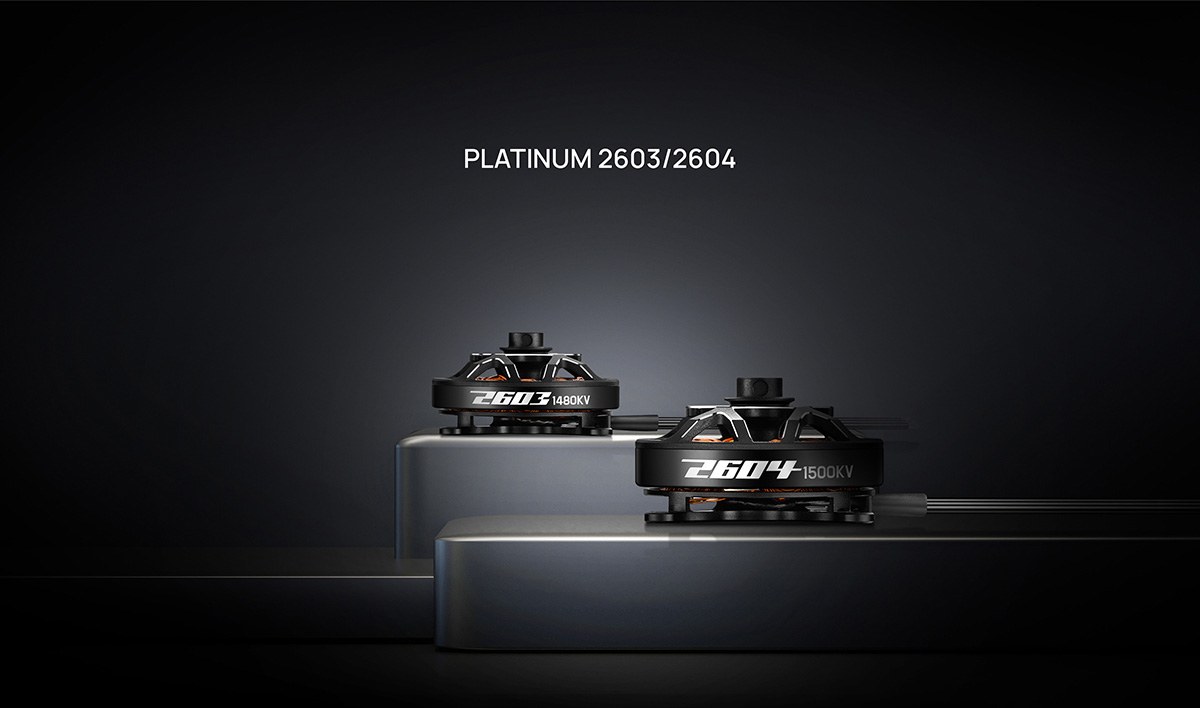

Model：Platinum 2604SL 1500KV
Motor size：Φ30*H17.2mm
Stator size：Φ26*H3.6mm

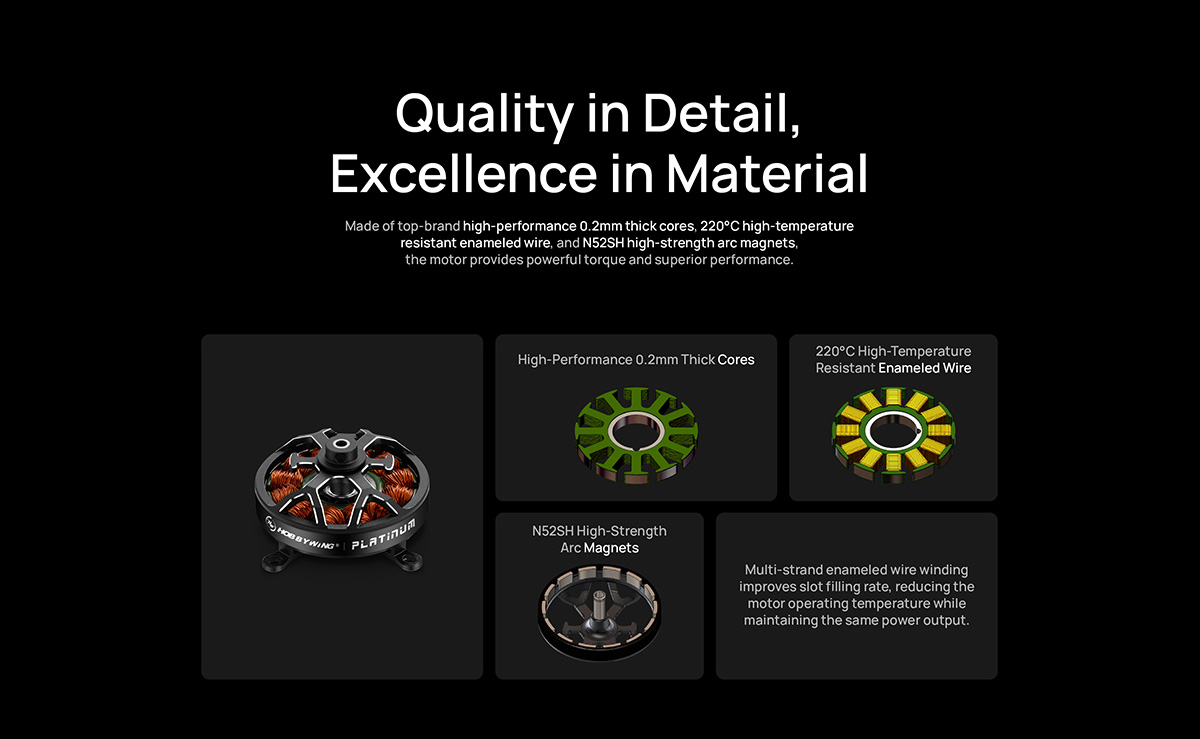

Stator process：High standard silicon steel sheet
Enamelled wire：220℃
Isolation test：500V AC high voltage resistance test
Propeller：TP8038
Slot & pole：12N14P
Dynamic balance：≤5mg
Bearing：630ZZ
Motor axle diameter：Φ5.5×t2.4mm
Shaft material：Titanium alloy

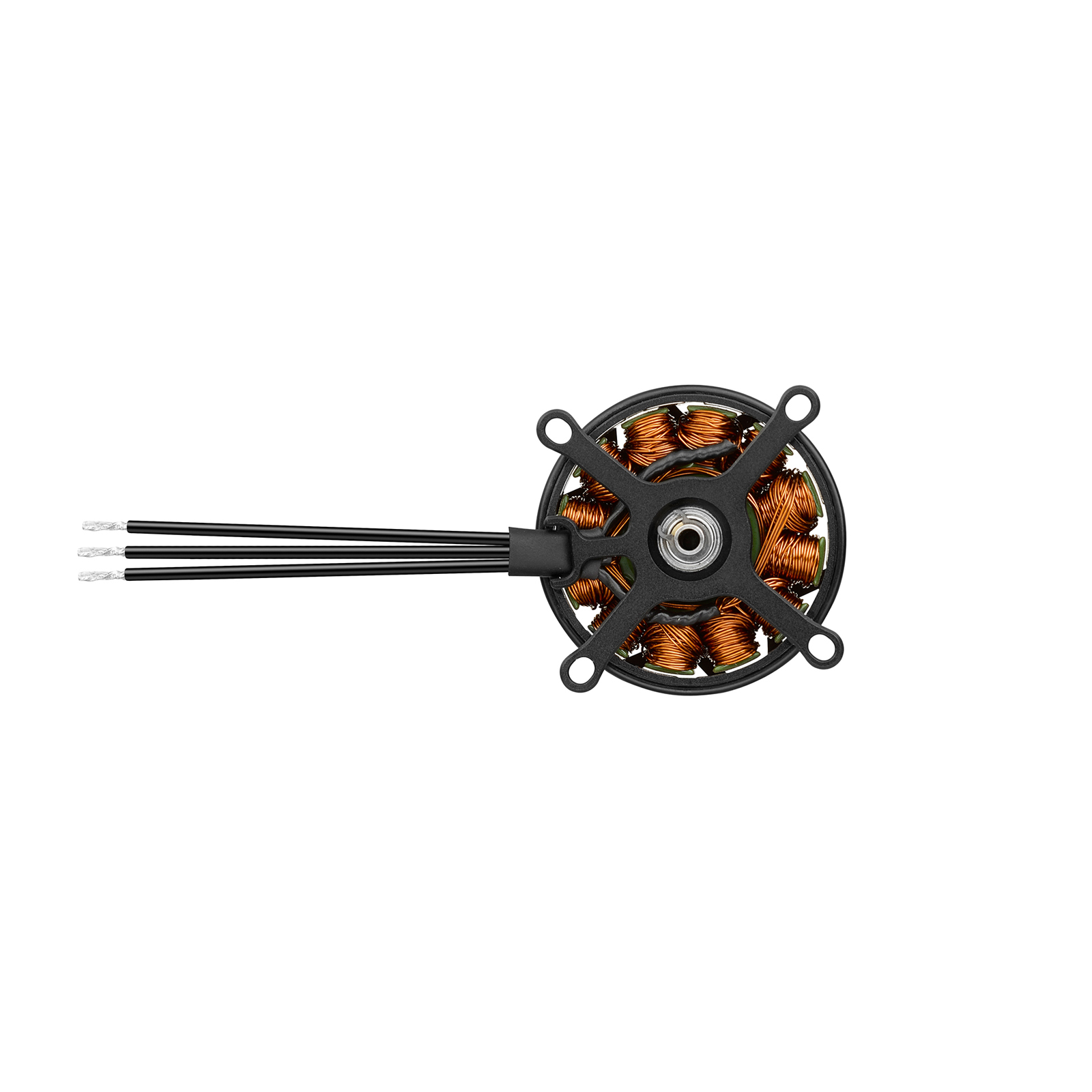

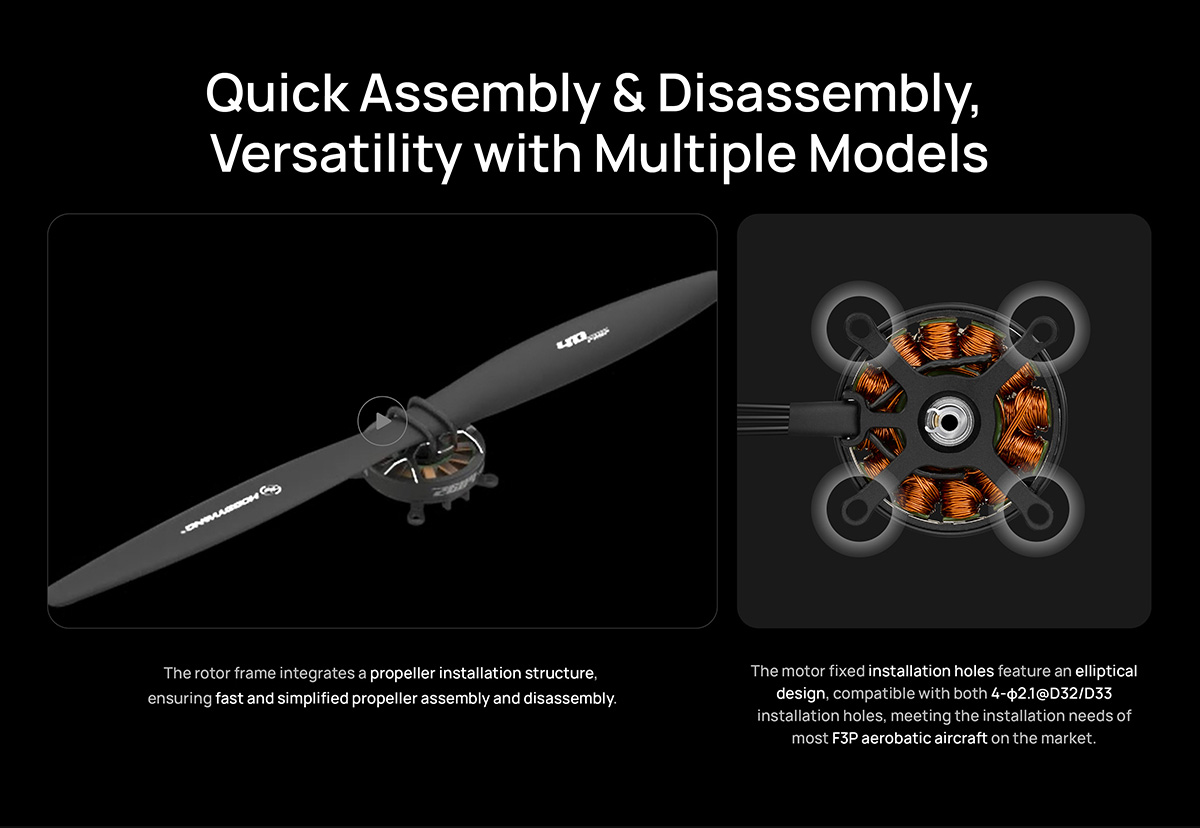

Motor mounting dimensions：4×Φ21@D33
KV：1500
Battery(LiPo)：3S Lipo
No-load current：0.6A/12V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）：19A/10s
Max power：229W/10s

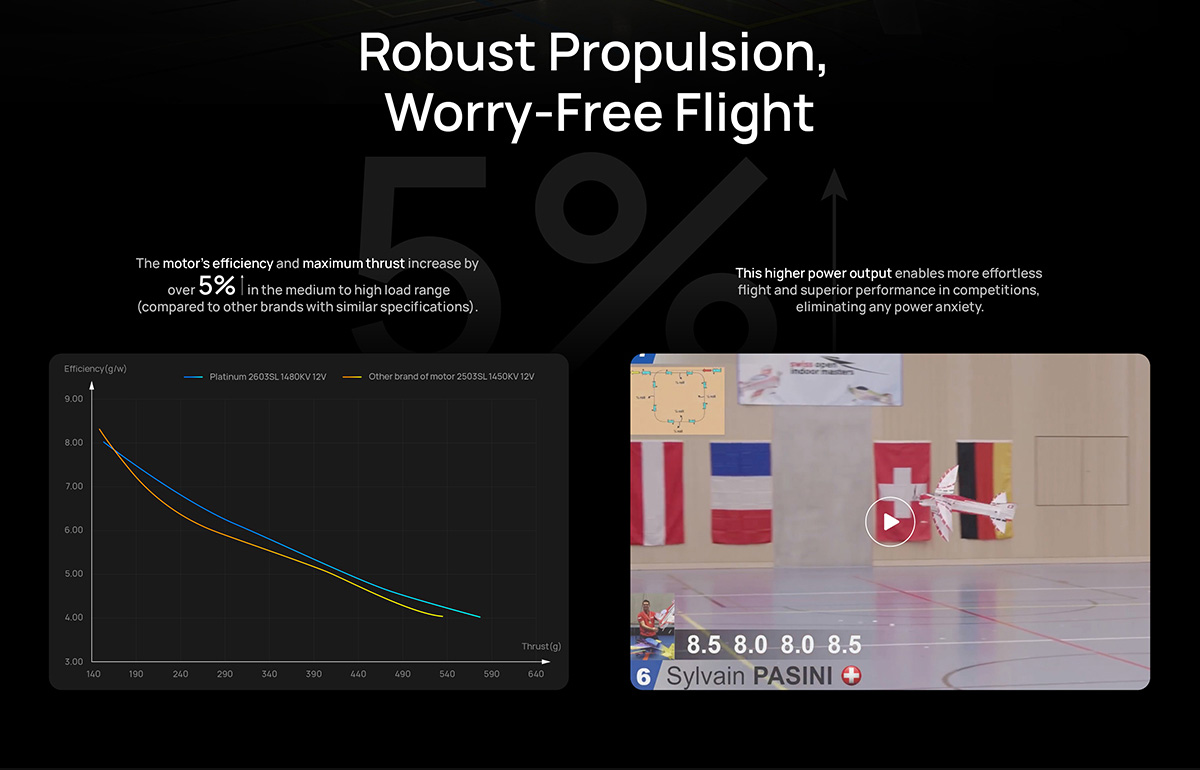

Max thrust：877g
Resistance：132mΩ
Wire Size：Enamelled Wire Outlet
Wire length：45mm

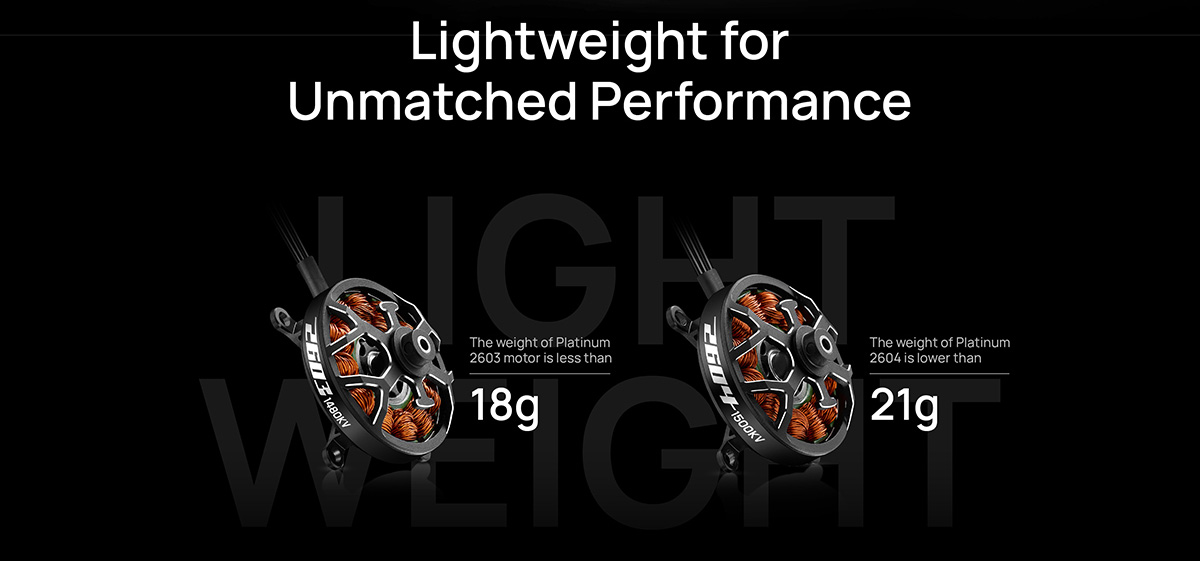

Weight (With wire)：21.5g
Recommended application combinations
Motor：Platinum 2604SL 1500KV
Propeller：UP8338,TP8038
ESC：Platinum 18A V5 F3P
Battery：3S LiPo

Model：Platinum 2604SL 1900KV
Motor size：Φ30*H17.2mm
Stator size：Φ26*H3.6mm
Stator process：High standard silicon steel sheet
Enamelled wire：220℃
Isolation test：500V AC high voltage resistance test
Propeller：TP8038
Slot & pole：12N14P
Dynamic balance：≤5mg
Bearing：630ZZ
Motor axle diameter：Φ5.5×t2.4mm
Shaft material：Titanium alloy
Motor mounting dimensions：4×Φ21@D33
KV：1900
Battery(LiPo)：2S Lipo
No-load current：0.7A/8V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）：20A/11s
Max power：159W/11s
Max thrust：693g
Resistance：80mΩ
Wire Size：Enamelled Wire Outlet
Wire length：45mm
Weight (With wire)：21.5g
Recommended application combinations
Motor：Platinum 2604SL 1900KV
Propeller：UP8338,TP8038
ESC：Platinum 18A V5 F3P
Battery：2S LiPo
