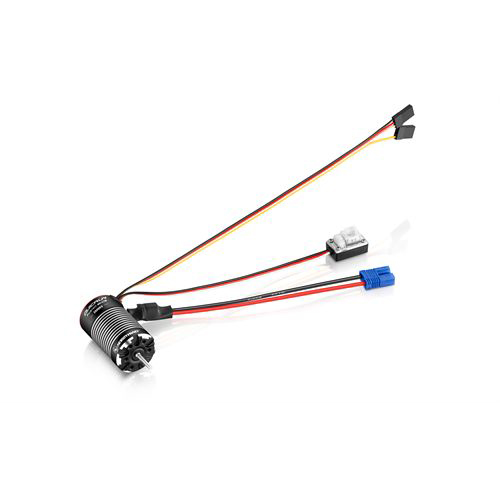

Hobbywing QuicRun Fusion Mini16 3000KV 30A Brushless Sensored Waterproof Motor ESC 2-IN-1 FOC for 1/16 1/18 RC Car Crawler
Hobbywing QuicRun Fusion Mini16 3000KV 30A Brushless Sensored Waterproof Motor ESC 2-IN-1 FOC for 1/16 1/18 RC Car Crawler
*Integrated design. The Fusion mini16 is the first commercialized FOC integrated power system suitable for 1/18 and 1/16 scale models in the industry.
The frame layout is compact 2442mm and lightweight 72g (including wires and plugs).
*The petite size of the Fusion mini16 is aesthetically beautiful and solves wiring issues for smaller crawling vehicles.
*Adjust drag brake force in real time. Connect the yellow signal wire to the open channel on the receiver to adjust the drag brake force in real time.
*Adjusting drag brake on the fly can be achieved to meet various application environments.
*The Fusion mini16 is equipped with a FOC drive method, which offers good linearity, high torque, and is nearly silent.
Product Name: QuicRun Fusion Mini16
Product Number: 30120403
Type: Scale 1/16th, 1/18th; Brushed/Brushless: Brushless; Sensored/Sensorless: Sensored; Waterproof: Waterproof
Specifications
Cont./Peak Current: 30A/80A
Input Voltage: 2 – 3S LiPo, 6 – 9 Cells NiMH
BEC BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
KV: 3000KV
Motor Poles: 4
Wires & Connectors
Input Wires: Black – 18AWG – 150mm1 Red – 18AWG – 150mm1
Input Connectors: EC2
ESC Programing via: SET Button on ESC: Not Supported; LED Program Box: Supported; LCD G2 Program Box/LCD PRO: Supported; OTA Programmer: Not Supported; Program Port: Independent programming cable
Firmware
Firmware Upgrade: Not Supported
Size & Weight
Diameter / Length of motor: 24mm/42mm
Shaft diameter / exposed shaft length: 2.3mm/13.5mm
Weight: 72g (including wires&connectors)
Applications
Vehicles: 1/16th, 1/18th Rock Crawler
Hobbywing QuicRun Fusion Mini16 x1
