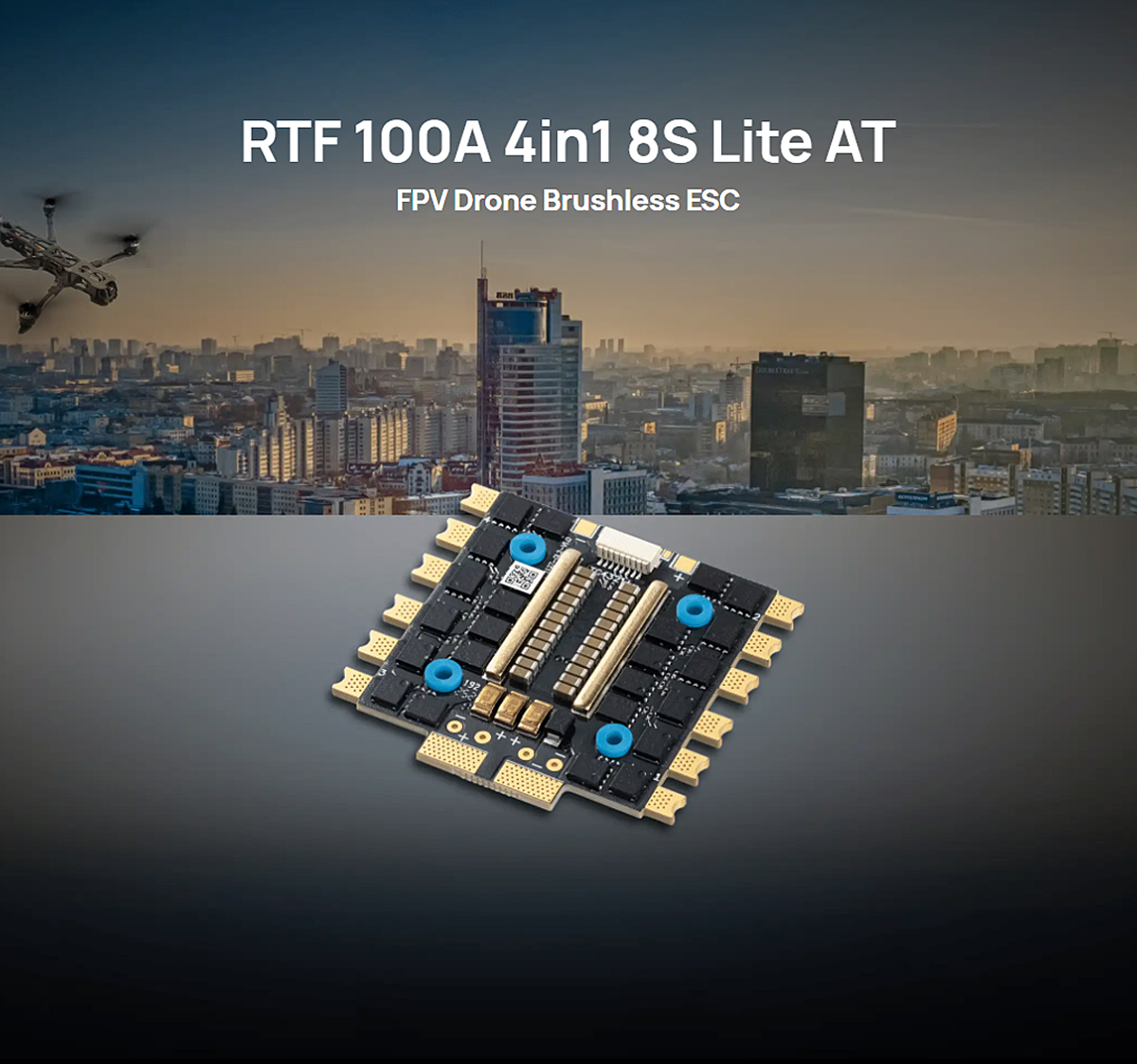

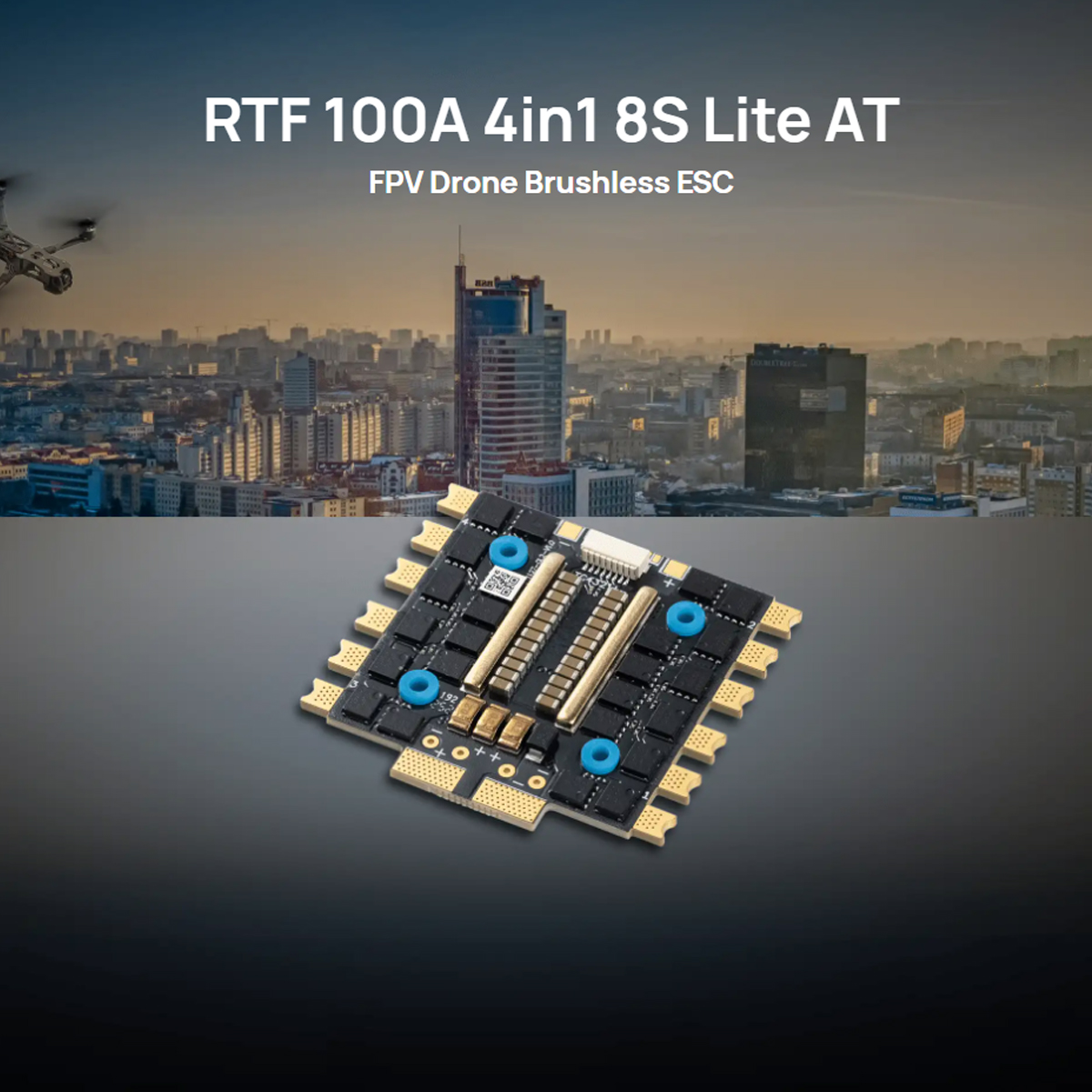

Hobbywing RTF 100A 4in1 8S Lite AT Brushless ESC High Performance for 15-18 Inch 4 Axis FPV Drone
Hobbywing RTF 100A 4in1 8S Lite AT Brushless ESC High Performance for 15-18 Inch 4 Axis FPV Drone

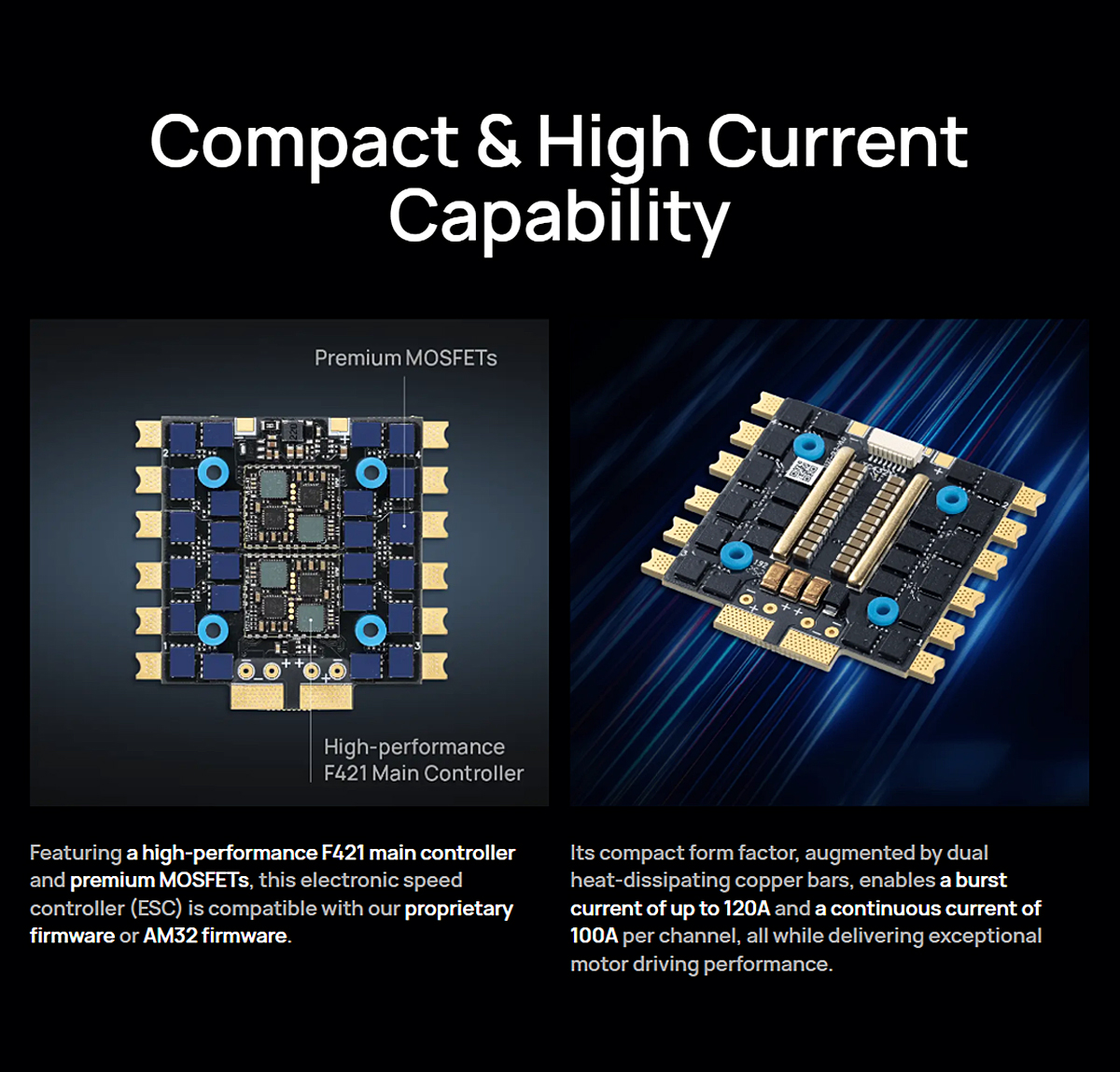

Featuring a high-performance F421 main controller and premium MOSFETs, this electronic speed controller (ESC) is compatible with our proprietary firmware or AM32 firmware.

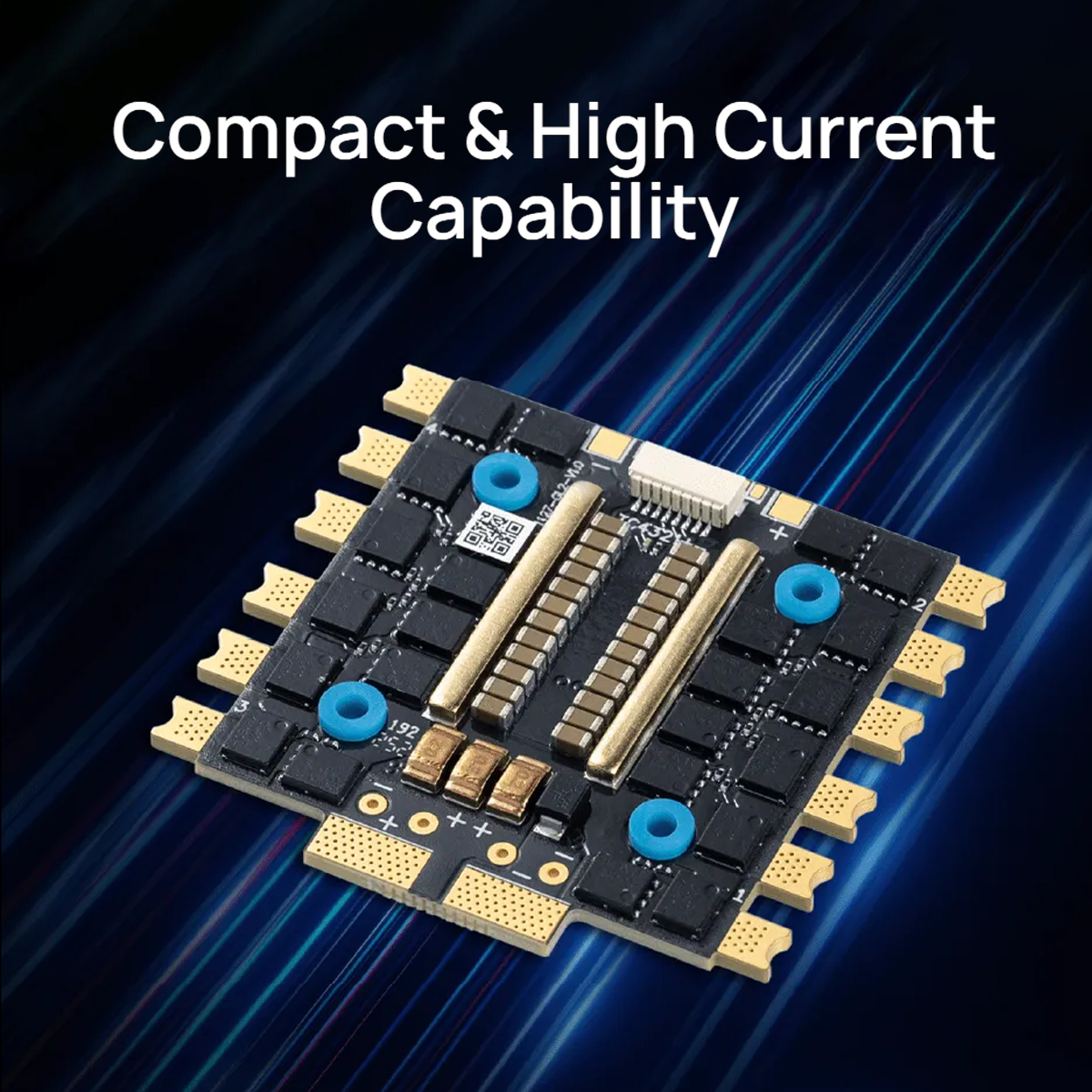

Its compact form factor, augmented by dual heat-dissipating copper bars, enables a burst current of up to 120A and a continuous current of 100A per channel, all while delivering exceptional motor driving performance.

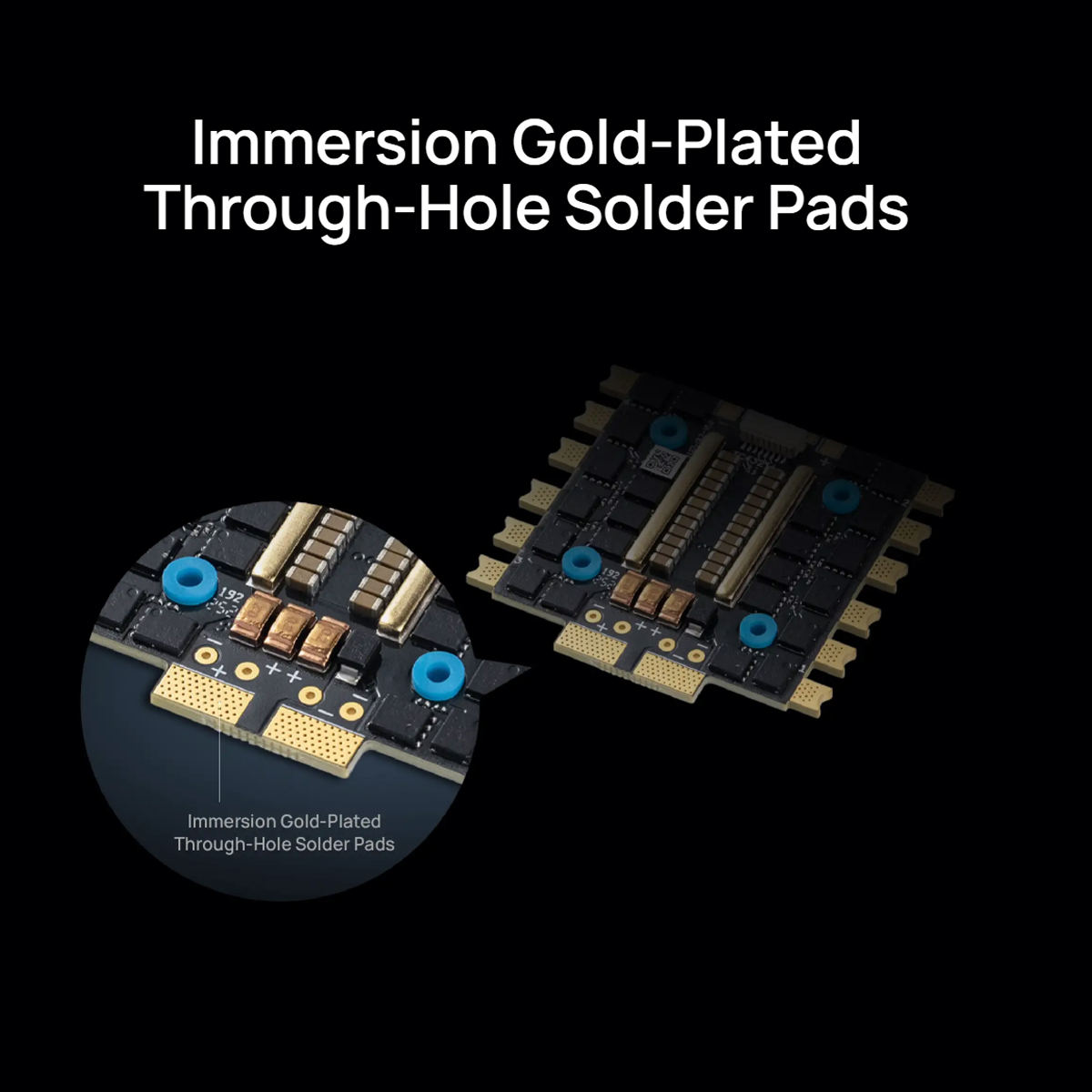

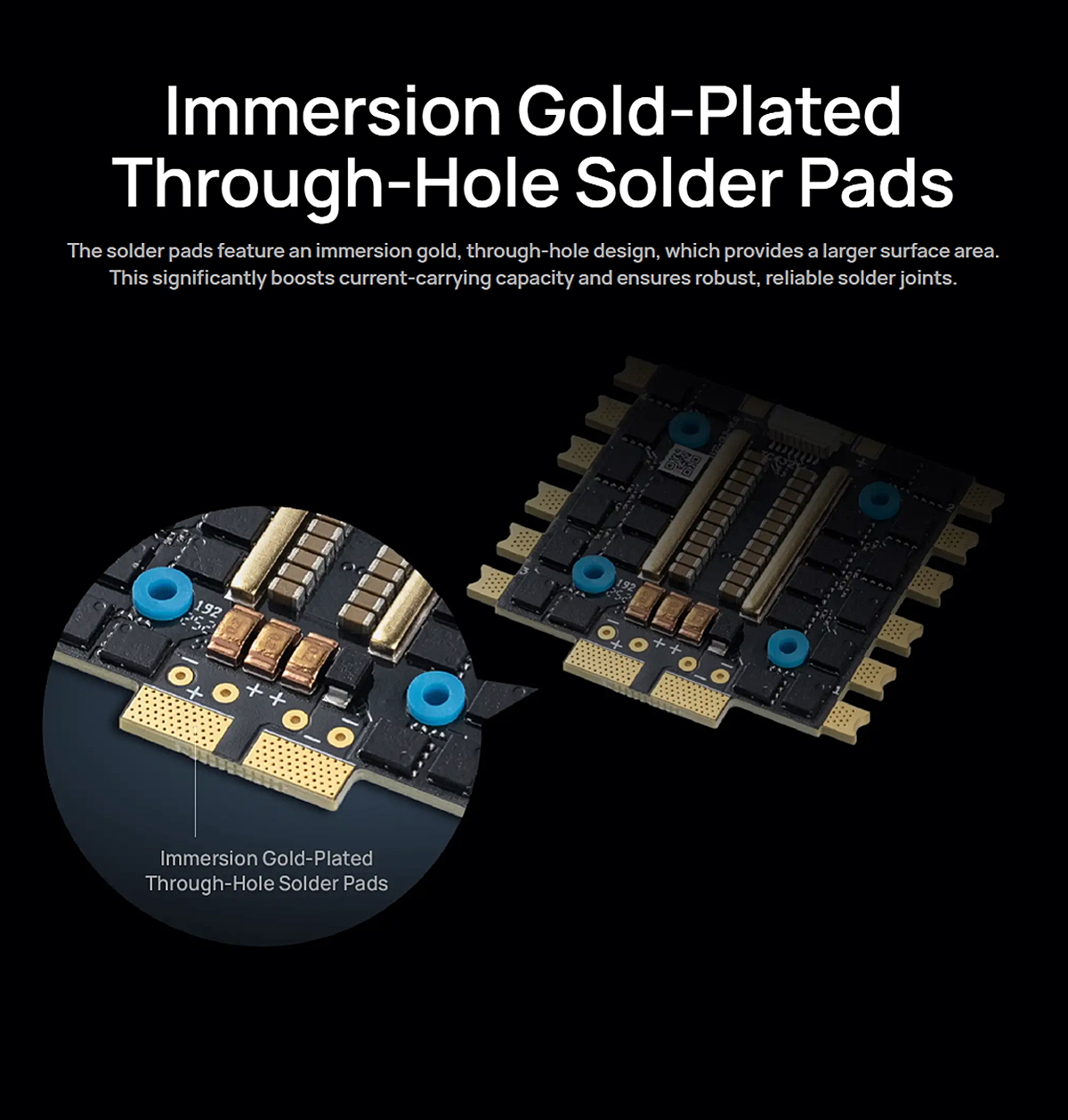

The solder pads feature an immersion gold, through-hole design, which provides a larger surface area.This significantly boosts current-carrying capacity and ensures robust, reliable solder joints.
Model: RTF 100A 4in1 8S Lite AT
Cont./Peak Current: 100Ax4/120Ax4
Input Voltage: 4-8S LiPo
Input Wires: Red-8AWG-135MMx1,Black-8AWG-135MMx1
Output Wires: No wires but solder tabs
Input Connectors: No
ESC Signal Interface: 8Pin-SH1.0
Size: 60×57×7mm
Weight: 39g
Firmware: Self-developed 32-bit ESC firmware
ESC Programming: Compatible with BLHeliSuite configuration software
Supported Throttle Signal: PWM,DSshot300/600

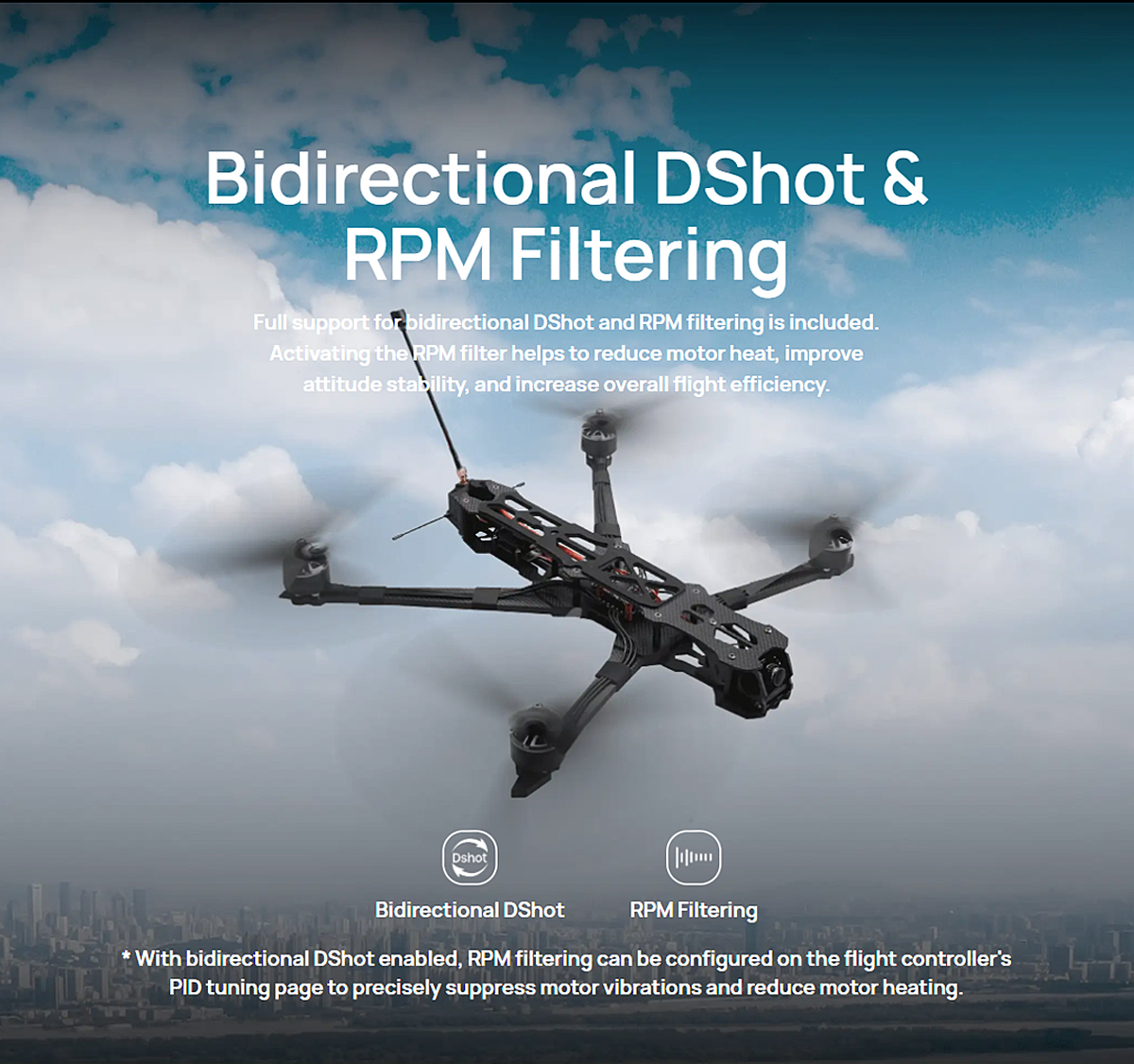

Bidirectional DShot: Supported
Motor Rotation: Supported
Driving Frequency Setting: 48kHz
Applications: 15-18 inch 4-axis FPV UAVs

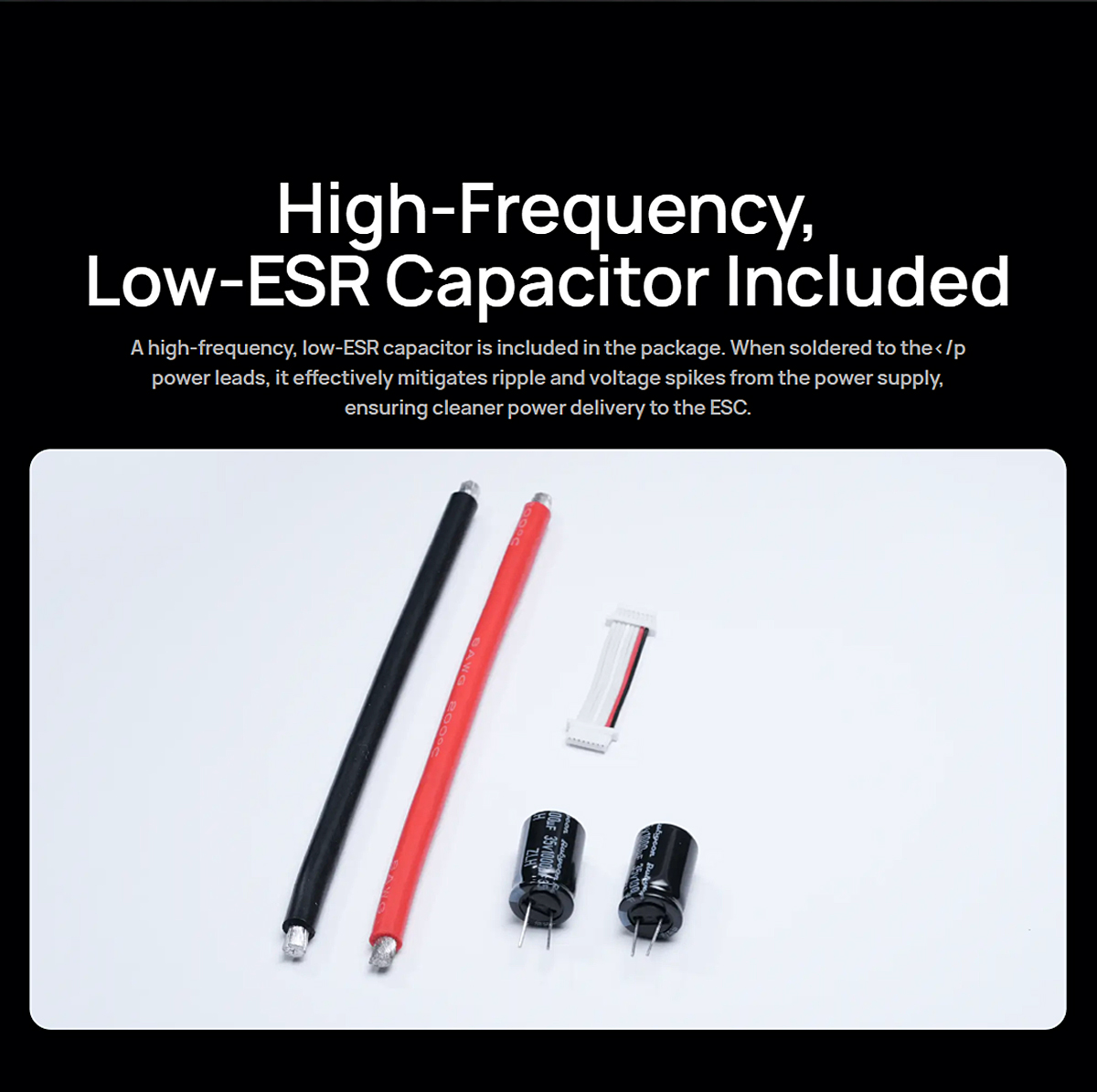

RTF 100A 4in1 8S Lite AT Brushless ESC x1
