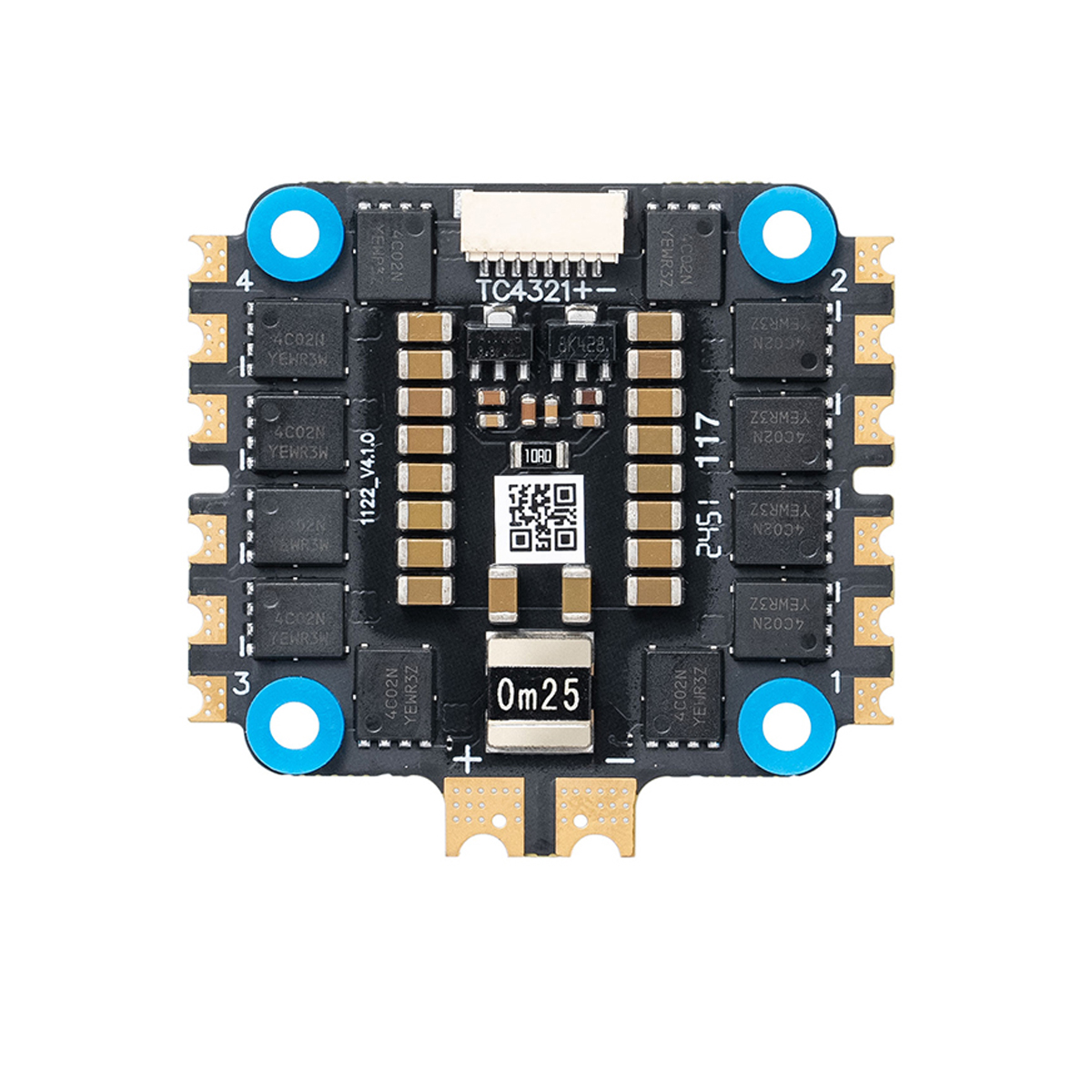

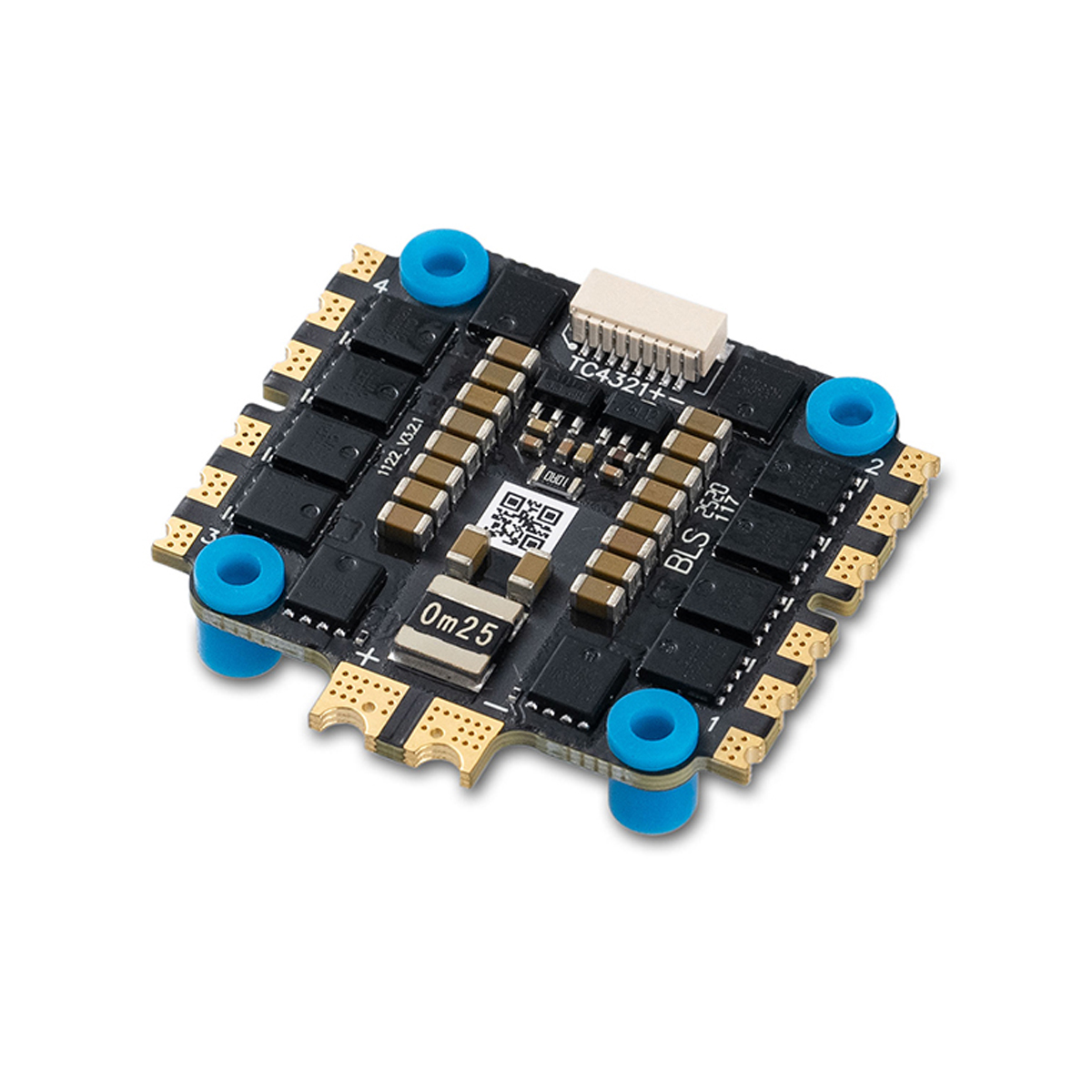

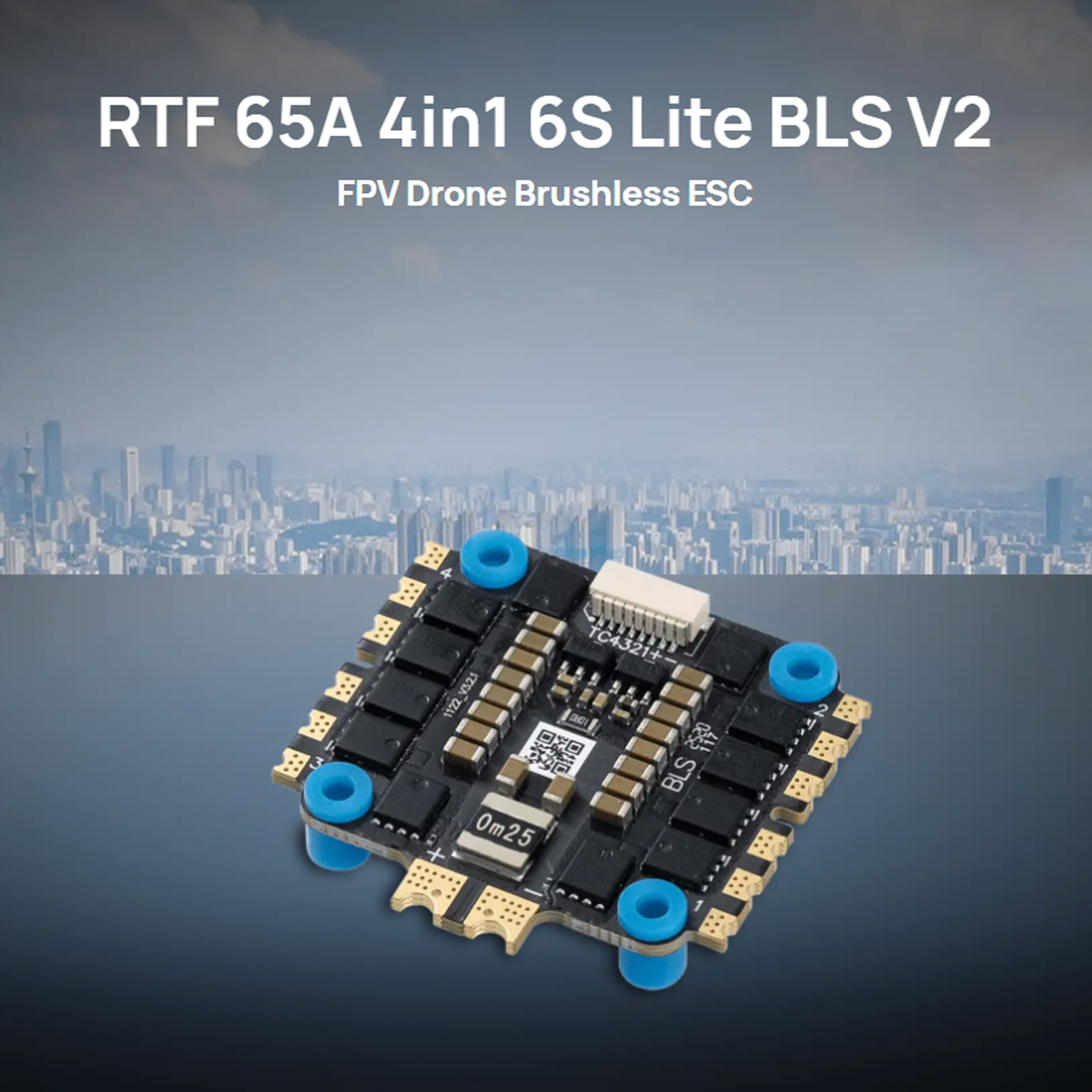

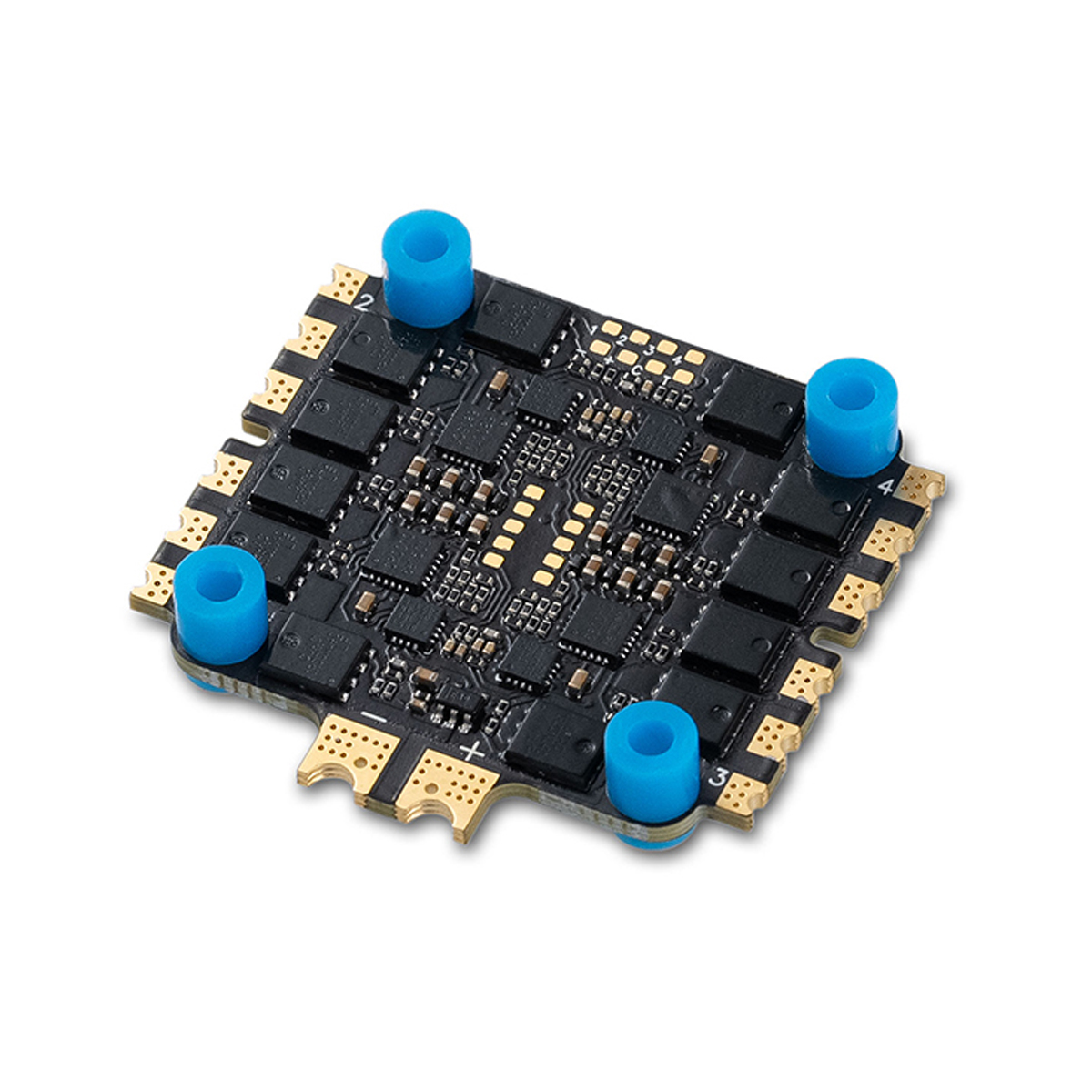

Hobbywing RTF 65A 4in1 6S Lite BLS V2 Brushless ESC BB51 Controller BLS Bluejay Firmware for FPV Drone
Hobbywing RTF 65A 4in1 6S Lite BLS V2 Brushless ESC BB51 Controller BLS Bluejay Firmware for FPV Drone

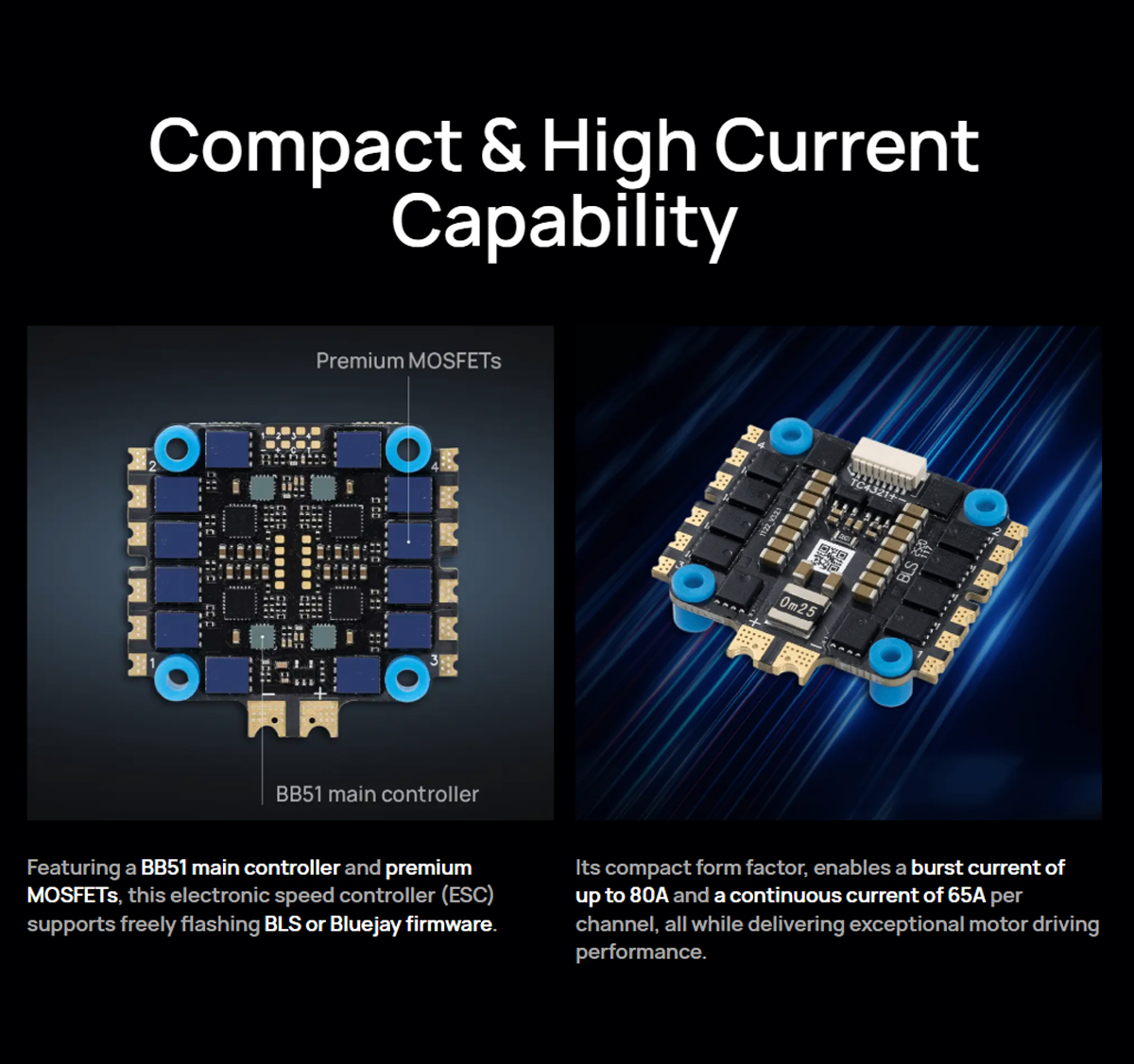

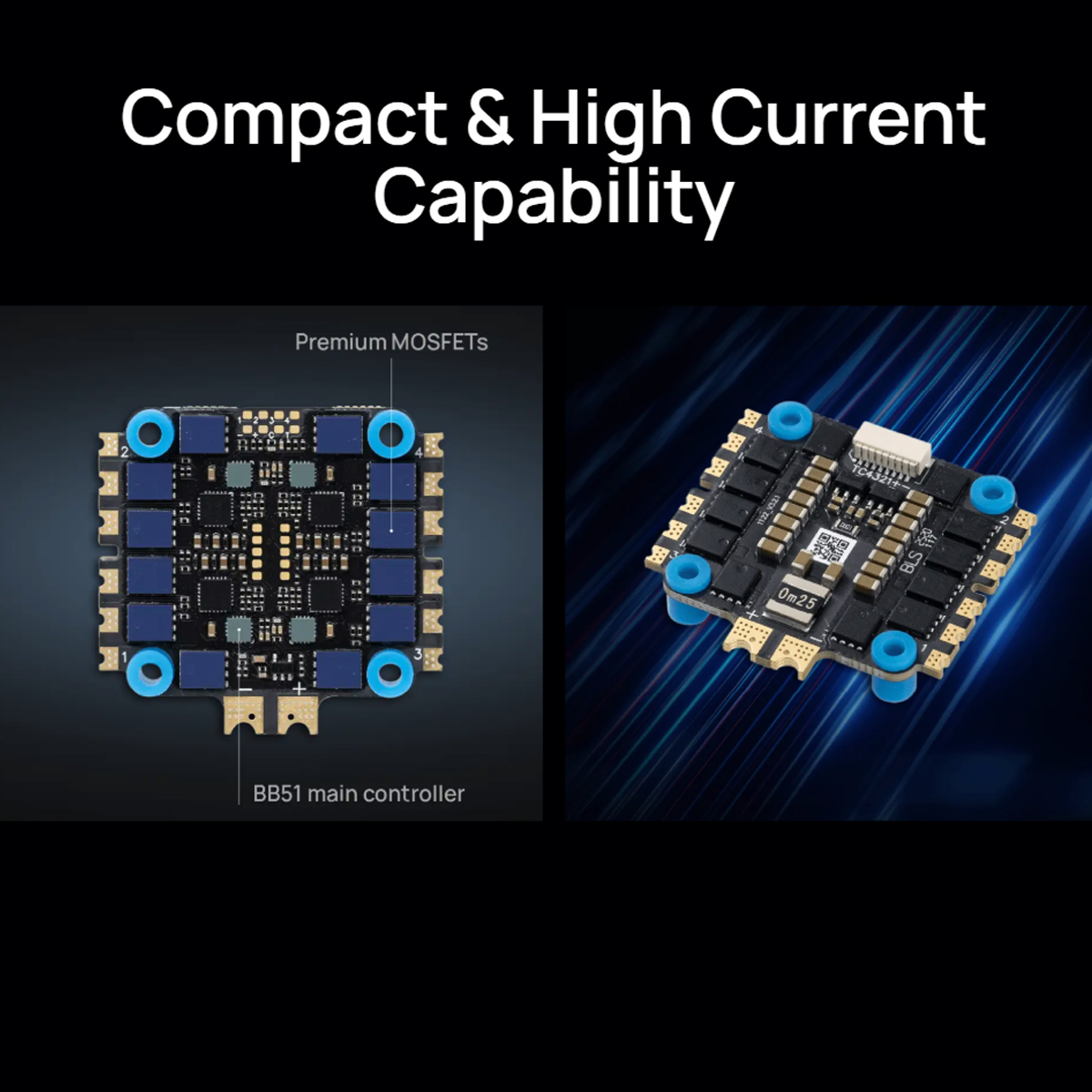

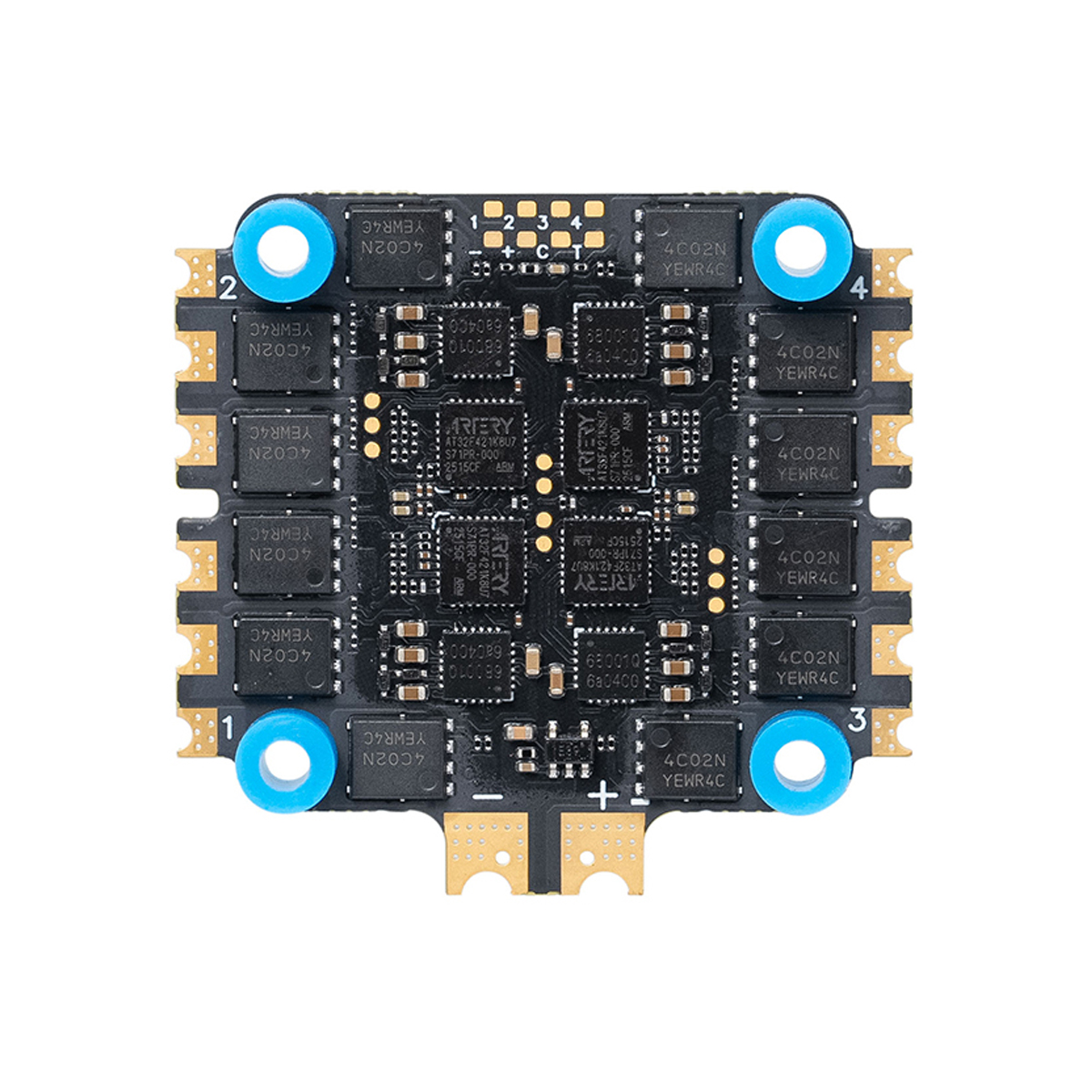

Featuring a BB51 main controller and premium MOSFETs, this electronic speed controller (ESC) supports freely flashing BLS or Bluejay firmware.
Its compact form factor, enables a burst current of up to 80A and a continuous current of 65A per channel, all while delivering exceptional motor driving performance.

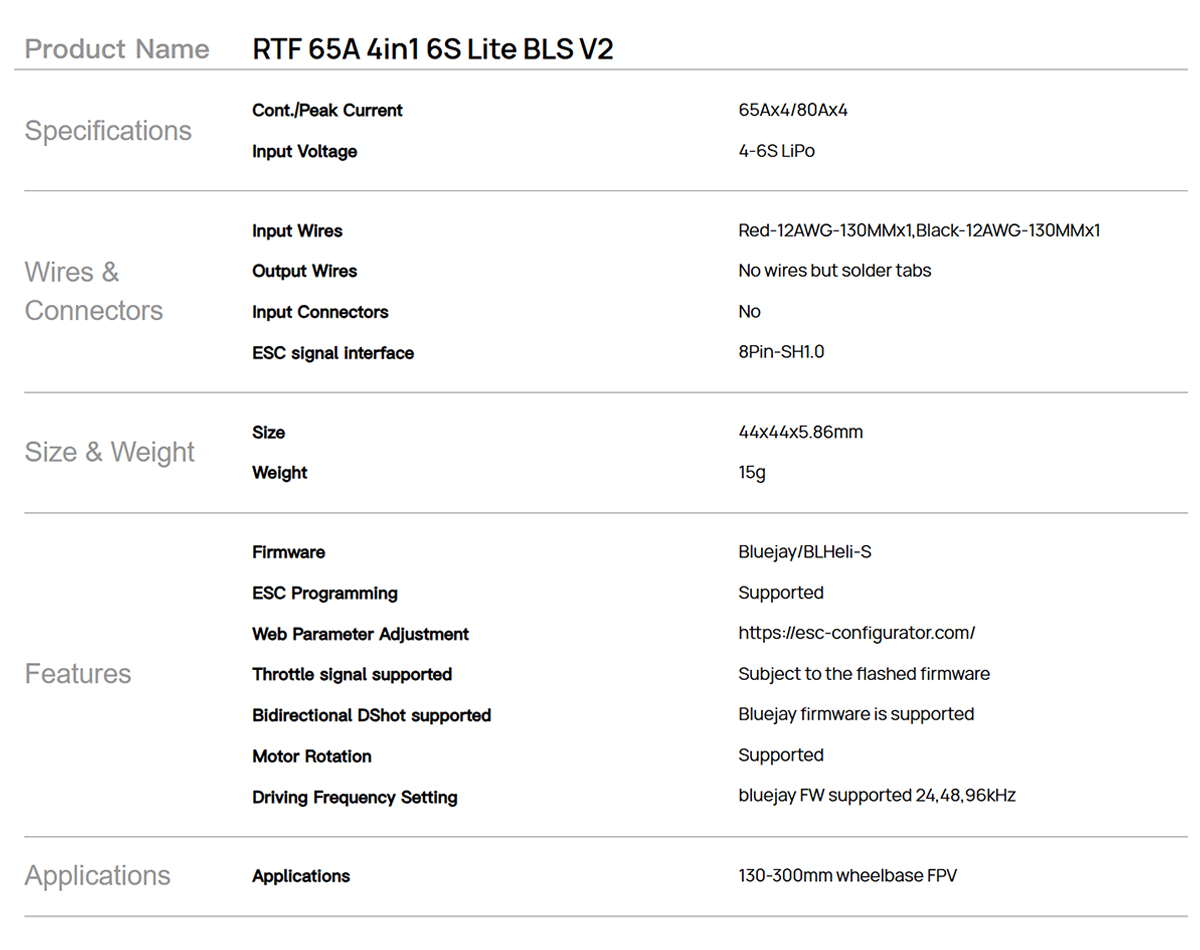

Model: RTF 65A 4in1 6S Lite BLS V2
Cont./Peak Current: 65Ax4/80Ax4
Input Voltage: 4-6S LiPo
Input Wires: Red-12AWG-130MMx1,Black-12AWG-130MMx1

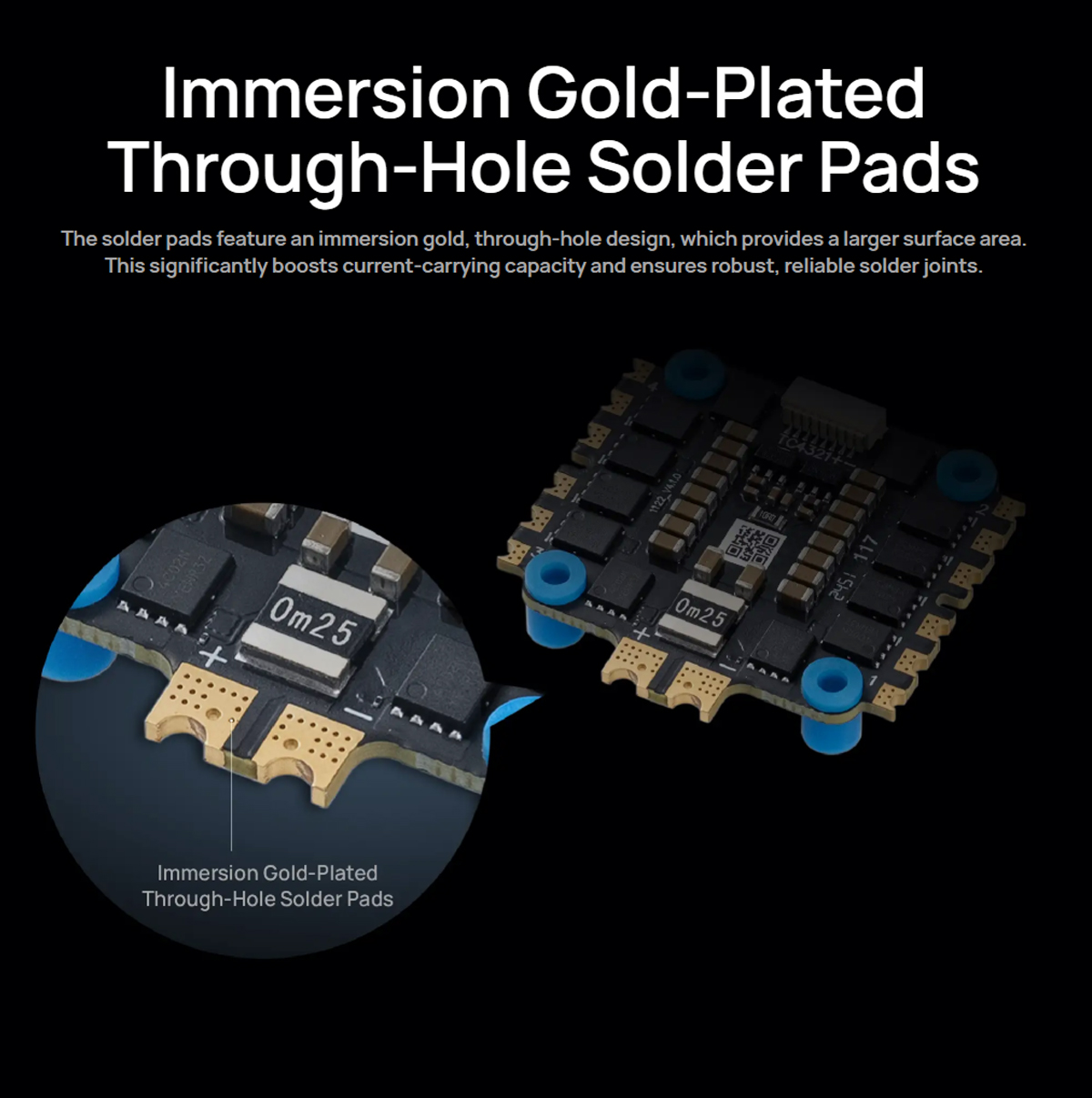

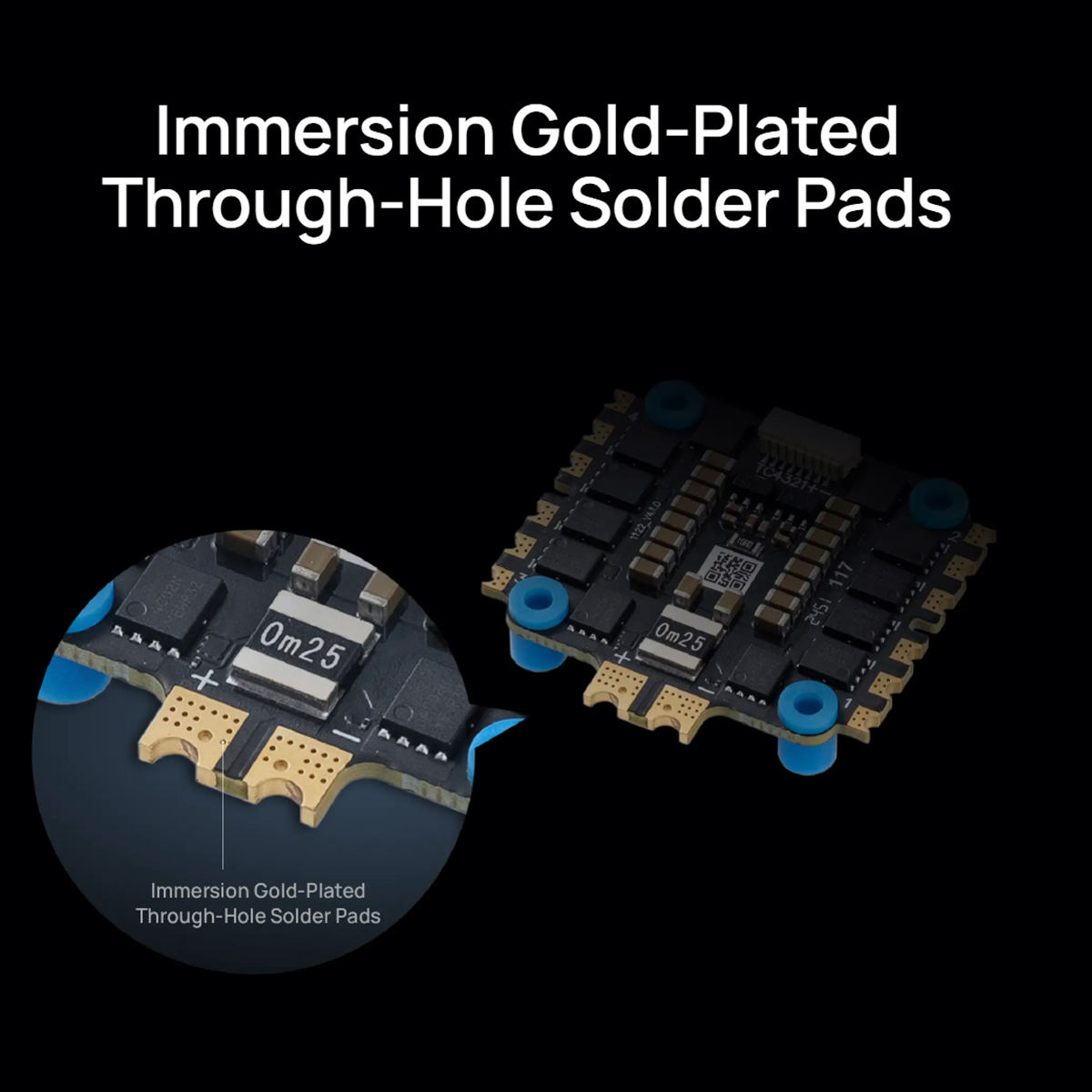

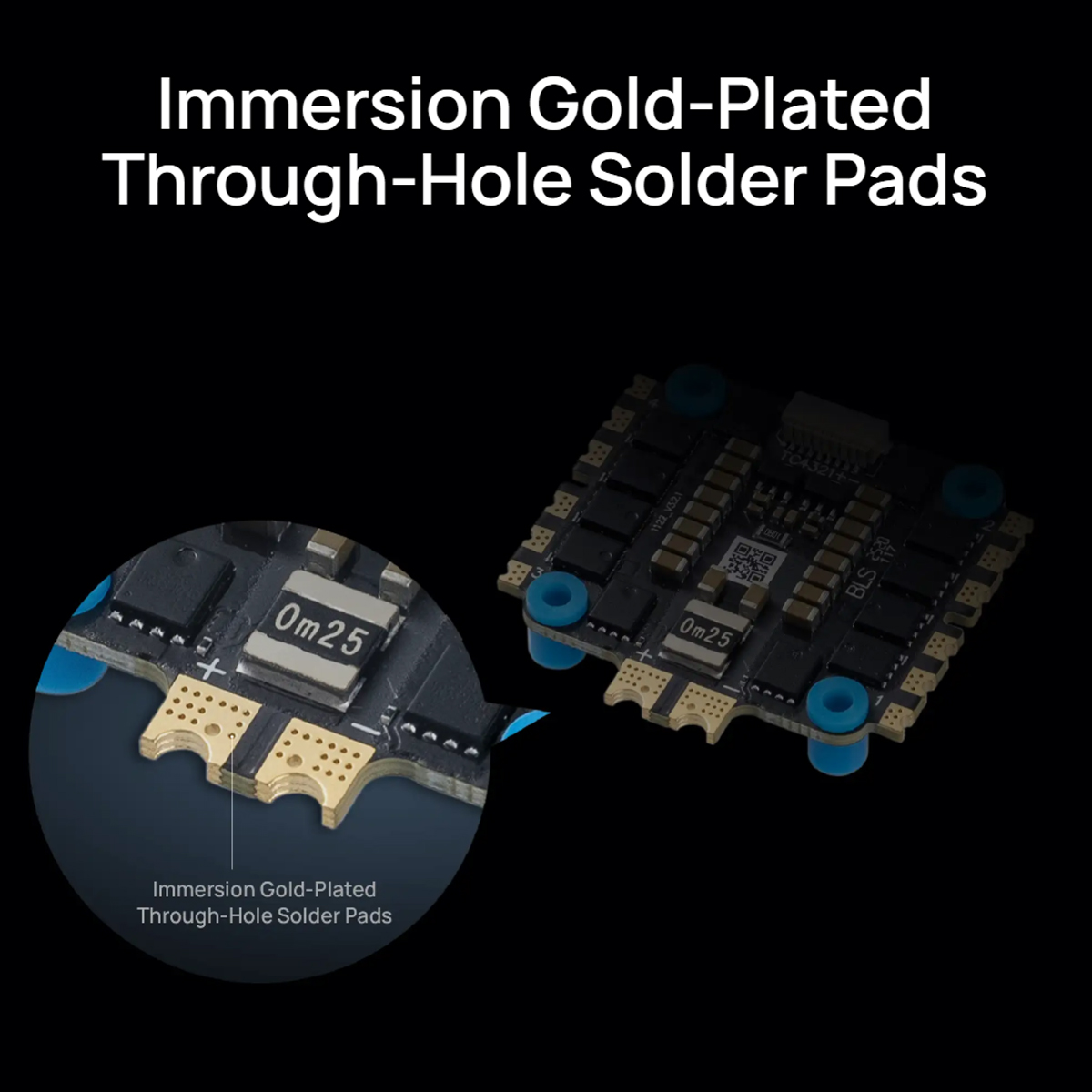

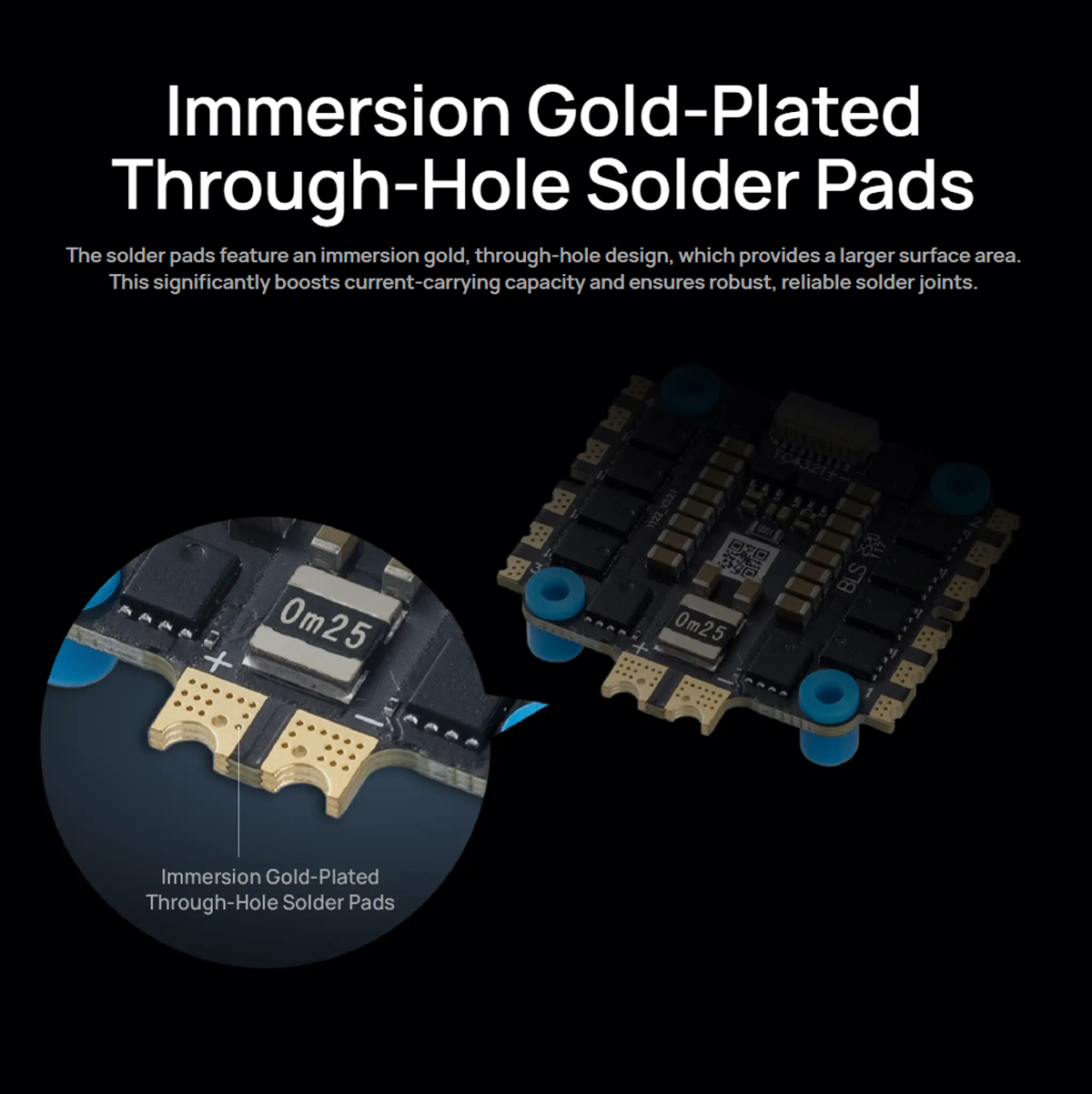

Output Wires: No wires but solder tabs
Input Connectors: None
ESC Signal Interface: 8Pin-SH1.0
Size: 44×44×5.86mm
Weight: 15g
Key Features

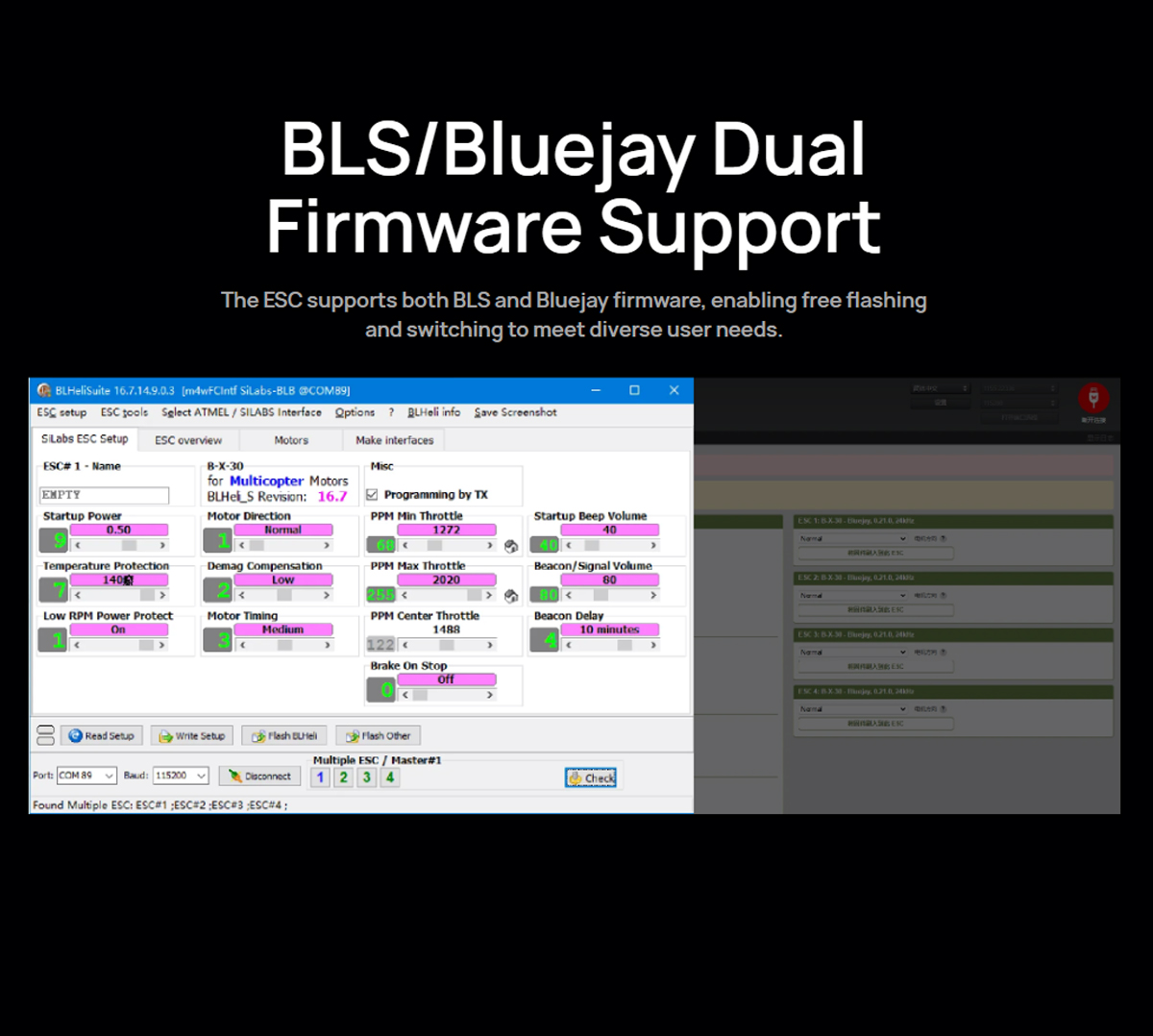

Firmware: Bluejay/BLHeli-S
ESC Programming: Supported
Supported Throttle Signal: Subject to the flashed firmware
Bidirectional DShot: Bluejay firmware is supported
Motor Rotation: Supported
Driving Frequency Setting: bluejay FW supported 24,48,96kHz
Applications: 130-300mm Wheelbase FPV Drones
RTF 65A 4in1 6S Lite BLS V2 Brushless ESC x1
