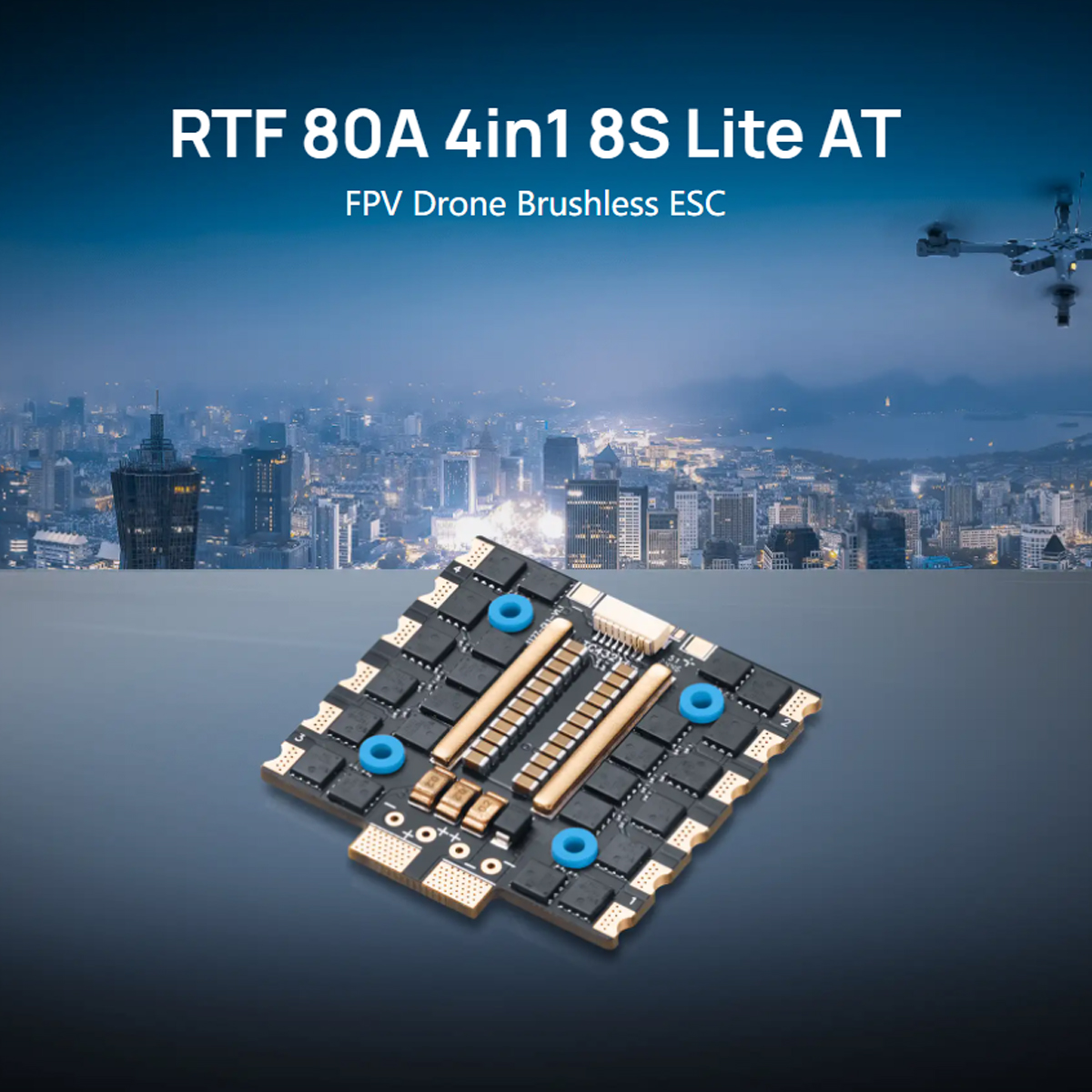

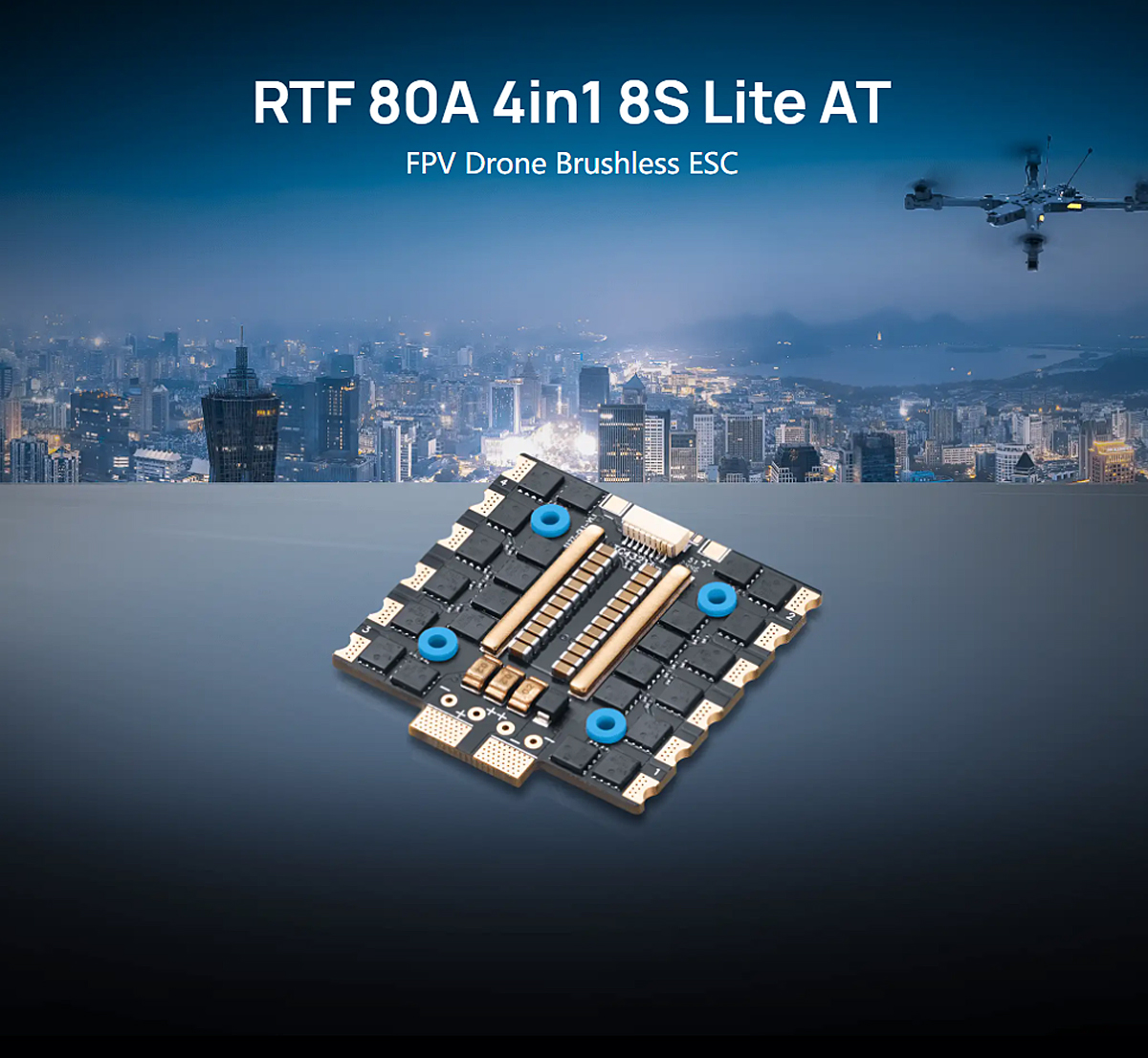

Hobbywing RTF 80A 4in1 Lite AT ESC Brushless ESC Lightweight for 15-18 Inch Quadcopter FPV Drone
Hobbywing RTF 80A 4in1 Lite AT ESC Brushless ESC Lightweight for 15-18 Inch Quadcopter FPV Drone

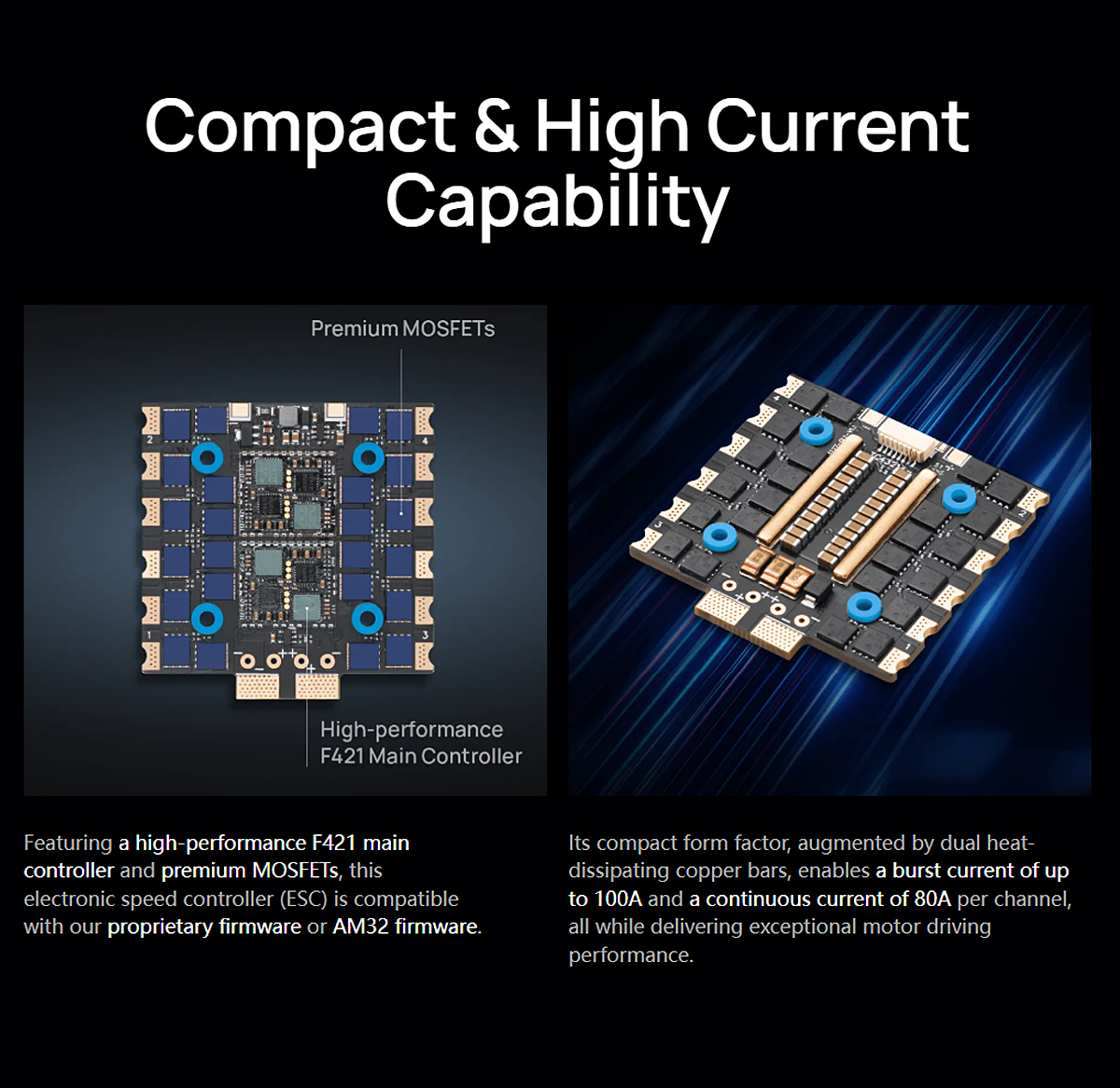

Featuring a high-performance F421 main controller and premium MOSFETs, this electronic speed controller (ESC) is compatible with our proprietary firmware or AM32 firmware.

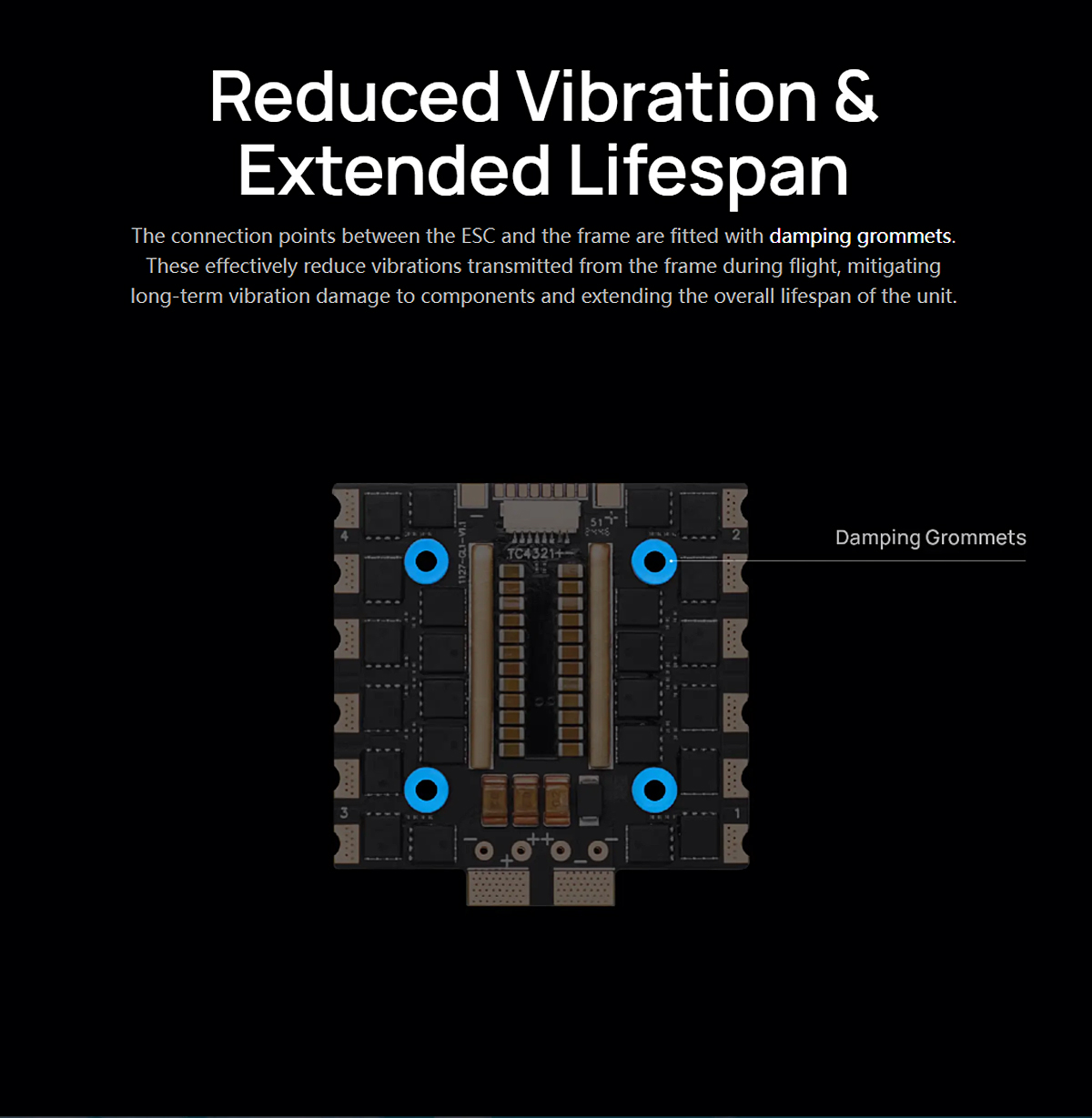

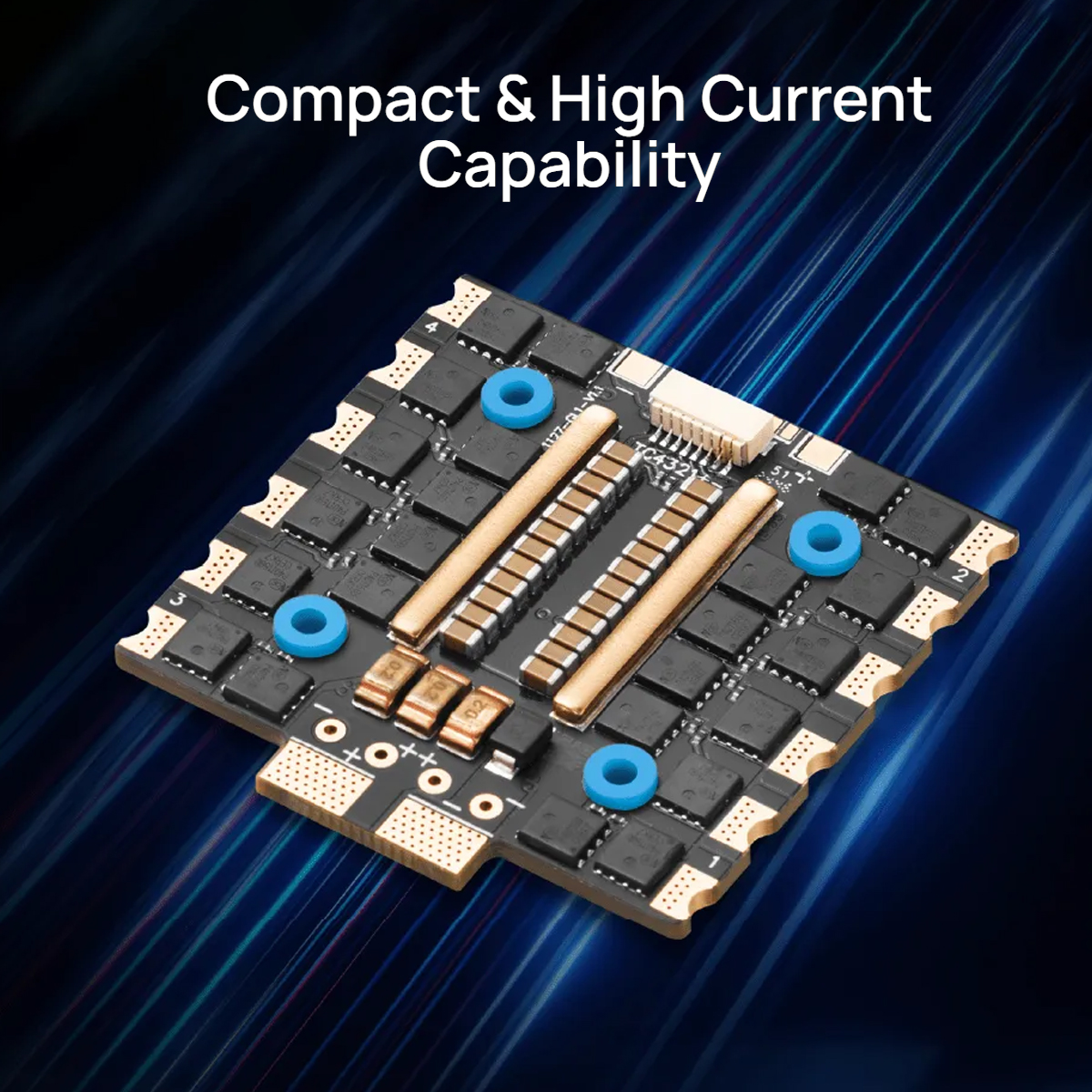

Its compact form factor, augmented by dual heat-dissipating copper bars, enables a burst current of up to 100A and a continuous current of 80A per channel, all while delivering exceptional motor driving performance.
Model: RTF 80A 4in1 8S Lite AT
Cont./Peak Current: 80Ax4/100Ax4
Input Voltage: 4-8S LiPo
Input Wires: Red-10AWG-135MMx1,Black-8AWG-135MMx1
Output Wires: No wires but solder tabs
Input Connectors: No
ESC Signal Interface: 8Pin-SH1.0
Size: 56×57×7mm
Weight: 39g
Firmware: Self-developed 32-bit ESC firmware
ESC Programming: Compatible with BLHeliSuite configuration software
Supported Throttle Signal: PWM,DShot300/600
Bidirectional DShot: Supported
Motor Rotation: Supported
Driving Frequency Setting: 48kHz
Applications: 15-18 inch 4-axis FPV UAVs
RTF 80A 4in1 8S Lite AT Brushless ESC x1
