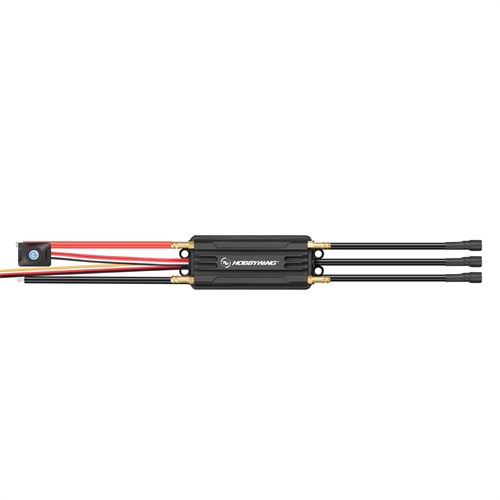

Hobbywing Seaking 160A V4 Brushless ESC Electronic Speed Controller 3-8S Lipo Built-in BEC For Applicable 120CM RC Boat
Hobbywing Seaking 160A V4 Brushless ESC Electronic Speed Controller 3-8S Lipo Built-in BEC For Applicable 120CM RC Boat
● With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities.
● It can be used immediately without any additional waterproofing treatment.
● Dual-Channel Water Cooling for Lower Temperature
● The output voltages are switchable between 6.0V / 7.4V / 8.4V
● Which can easily drive various powerful servos and high-voltage servos.
● The SeaKing 160A V4 ESC features a sleek, elongated design that is 15% narrower (7mm slimmer) than its predecessor, the SEAKING 180A V3. This streamlined profile enhances installation convenience, particularly in boats with limited space, offering greater adaptability for professional and recreational applications.
● Product Name: Seaking 160A V4
● Product Number: 30206200
● Type
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Waterproof
● Specifications
Cont./Peak Current: 160A/800A
Input Voltage: 3-8S Lipo
BEC Output: Switch mode 6V/7.4V/8.4V @8A
● Wires & Connectors
Input Wires: Red-10AWG-160mm*1,Black-10AWG-160mm*1
Output Wires: Black-12AWG-150mm*3
Input Connectors: No
Output Connectors: 6.5mm Gold female plug
● ESC Programing via
LED Program Box: Not Supported
LCD G2 Program Box: Not Supported
LCD PRO: Not Supported
OTA Programmer: Not Supported
● Data Recording
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
● Firmware
Firmware Upgrade: Supported
● Size & Weight
Size: 91*41*25.5mm
Weight: 220g(Including wire and output plug)
● Applications
Boat Applicable: ≤120CM
Seaking 160A V4 ESC x 1
