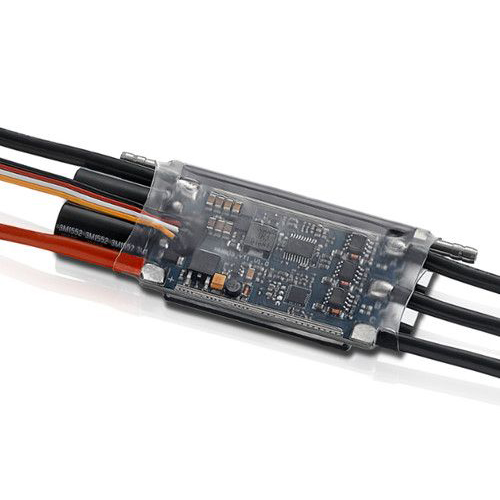

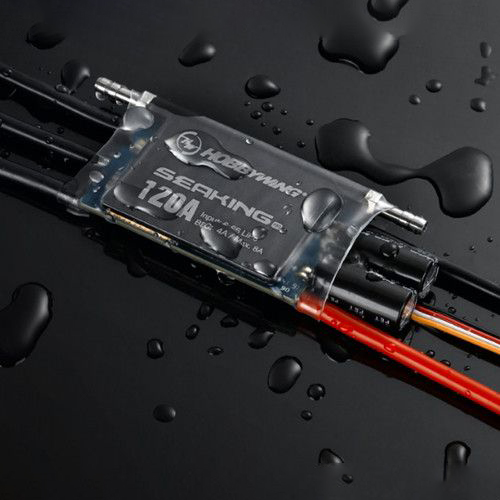

Hobbywing SEAKING Waterproof 120A pro Brushless ESC Speed Control for RC Boat
The light-weight of the Pro 120A is designed to meet the users’ requirements of a light
weight product for all marine competition which weight is a factor of speed and
endurance. The core program for top-level competition products guarantees the user
first-class control and “abundant” programmable parameter items for different
competition environments. (* The ESC is especially applicable to ECO/MONO1)
Brushed/Brushless:BL
Waterproof:Waterproof (IP55)
Cont./Peak Current:120A/760A
Input Voltage:2-6S Lipo/6-18 Cell NiMH
BEC Output:Switch Mode: 6V/7.4V,4A
Wires & Connectors
Input Wires:Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires:Black-12AWG-150mm*3
Input Connectors:No
Output Connectors:4.0mm Gold Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Transmitter:Supported
LED Program Box:Not Supported
LCD Program Box:Supported
WiFi Module:Supported
Program Port:Separate Program Wire
Size & Weight
Size:96.6×37.9×10.3mm
I.D./O.D. of the Water Cooling Pipe:Ф2.0/5.5 mm
Weight:87.5g
Applications:ECO, Mono1/Other Competition Boats (≤100cm
Hobbywing SEAKING Waterproof 120A pro Brushless ESC Speed Control for RC Boat x 1
