Hobbywing SkyWalker 130A 160A HV 14S OPTO V2 Series Brushless ESC for 60-74 inch 3D fixed wing

SKU N/A Category Tag Brand:



Hobbywing SkyWalker 130A 160A HV 14S OPTO V2 Series Brushless ESC for 60-74 inch 3D fixed wing

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Search Mode
This feature allows the pilot to activate the ESC to emit an audible beeping tone from the motor
This allows craft lost in hard to see areas a find me beacon so the pilot can recover the craft

Programmable Parameters
Programmable with the LED Program Box, or transmitter
Users can easily program the SKYWALKER V2 to their preference

Multiple Protections
SkyWalker ESCs feature multiple protection functions
including abnormal input voltage protection
low-voltage cutoff, overheat protection
and throttle signal loss protection

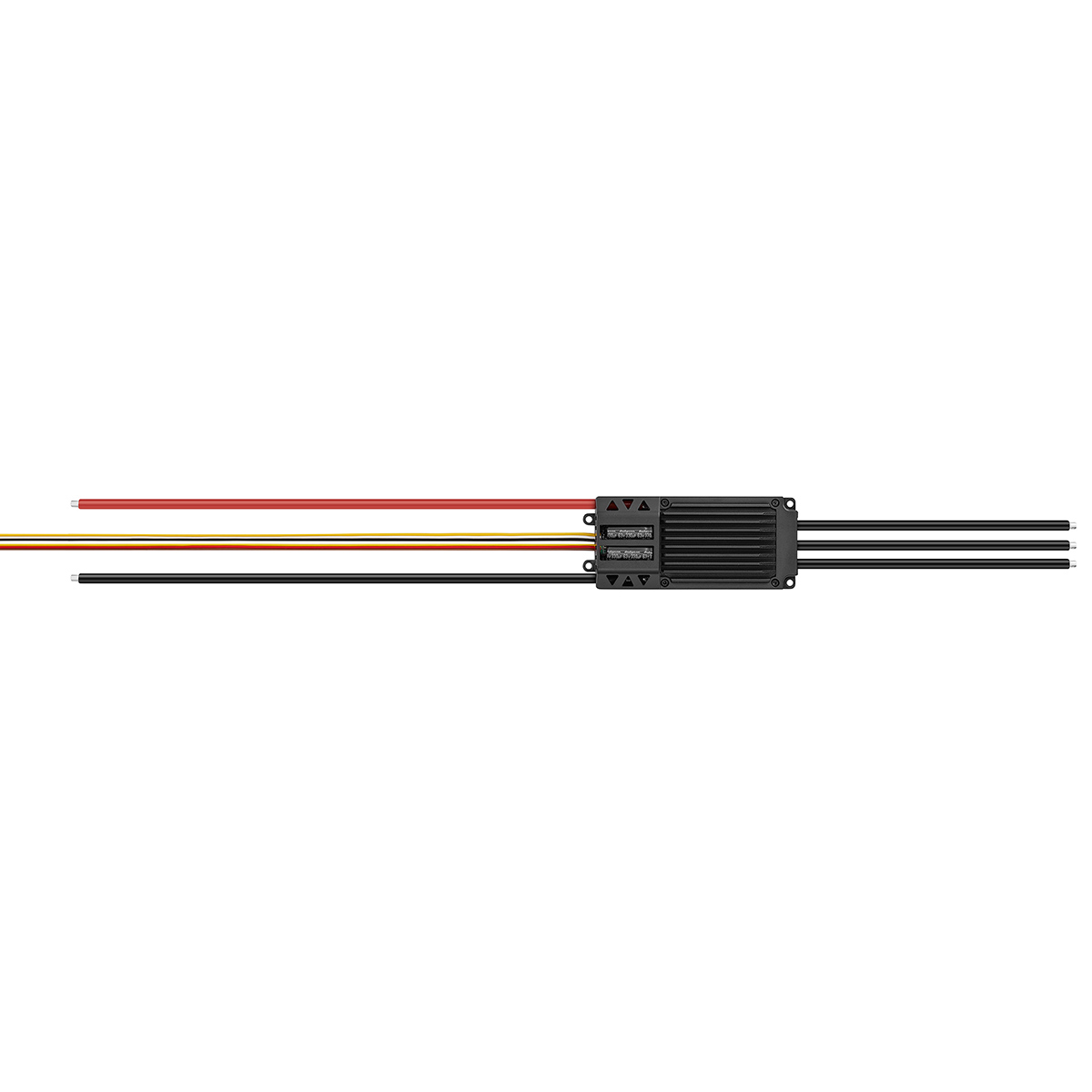

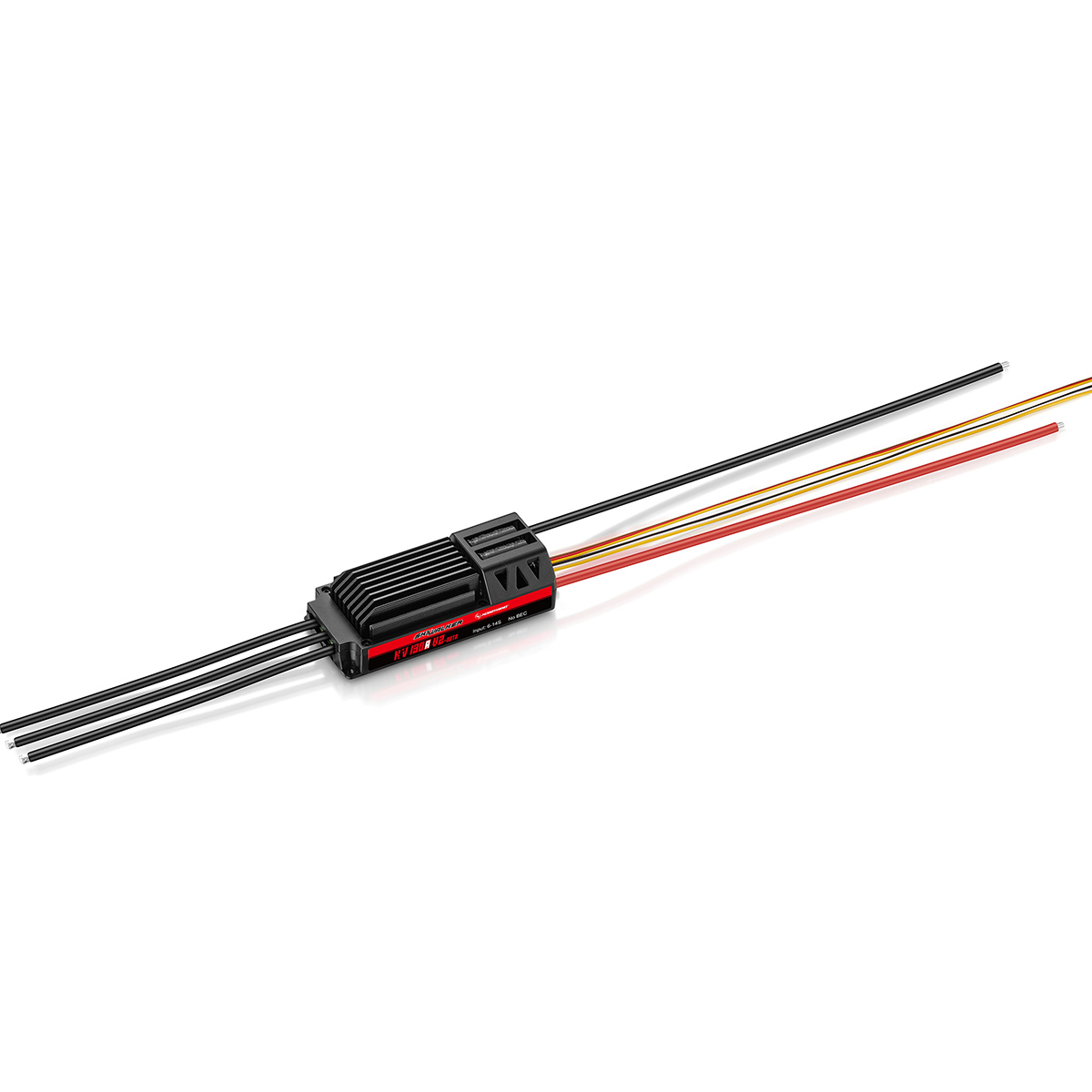

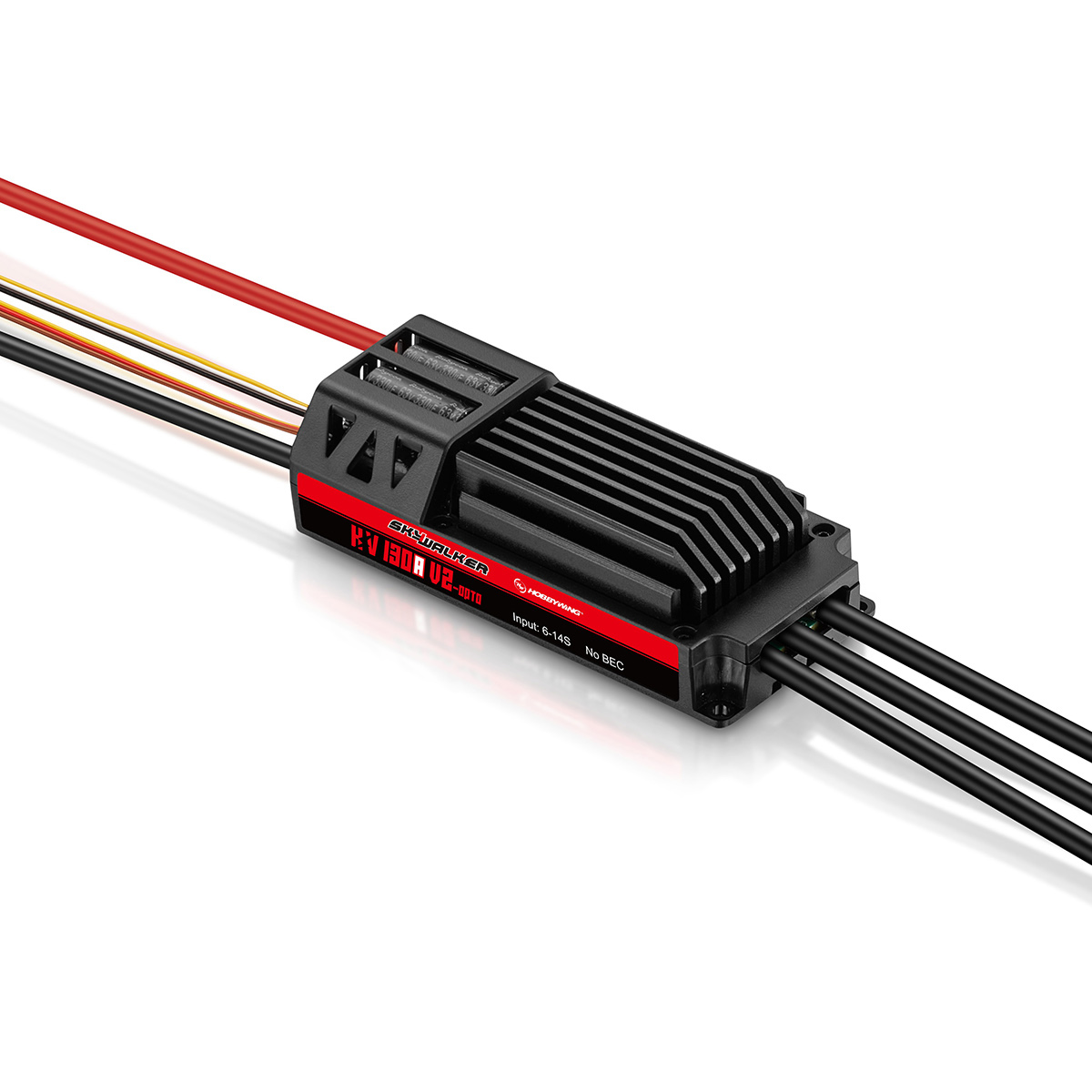

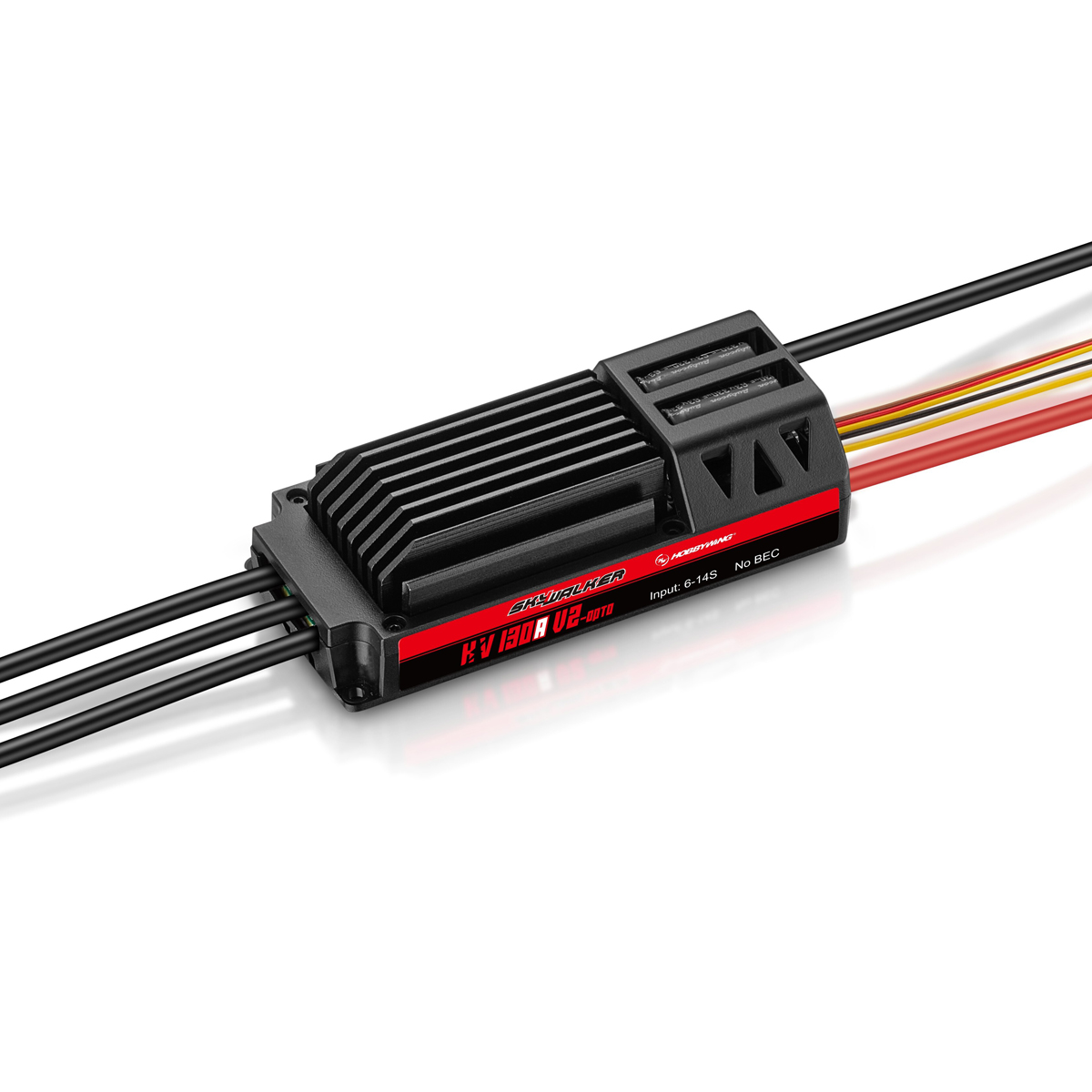

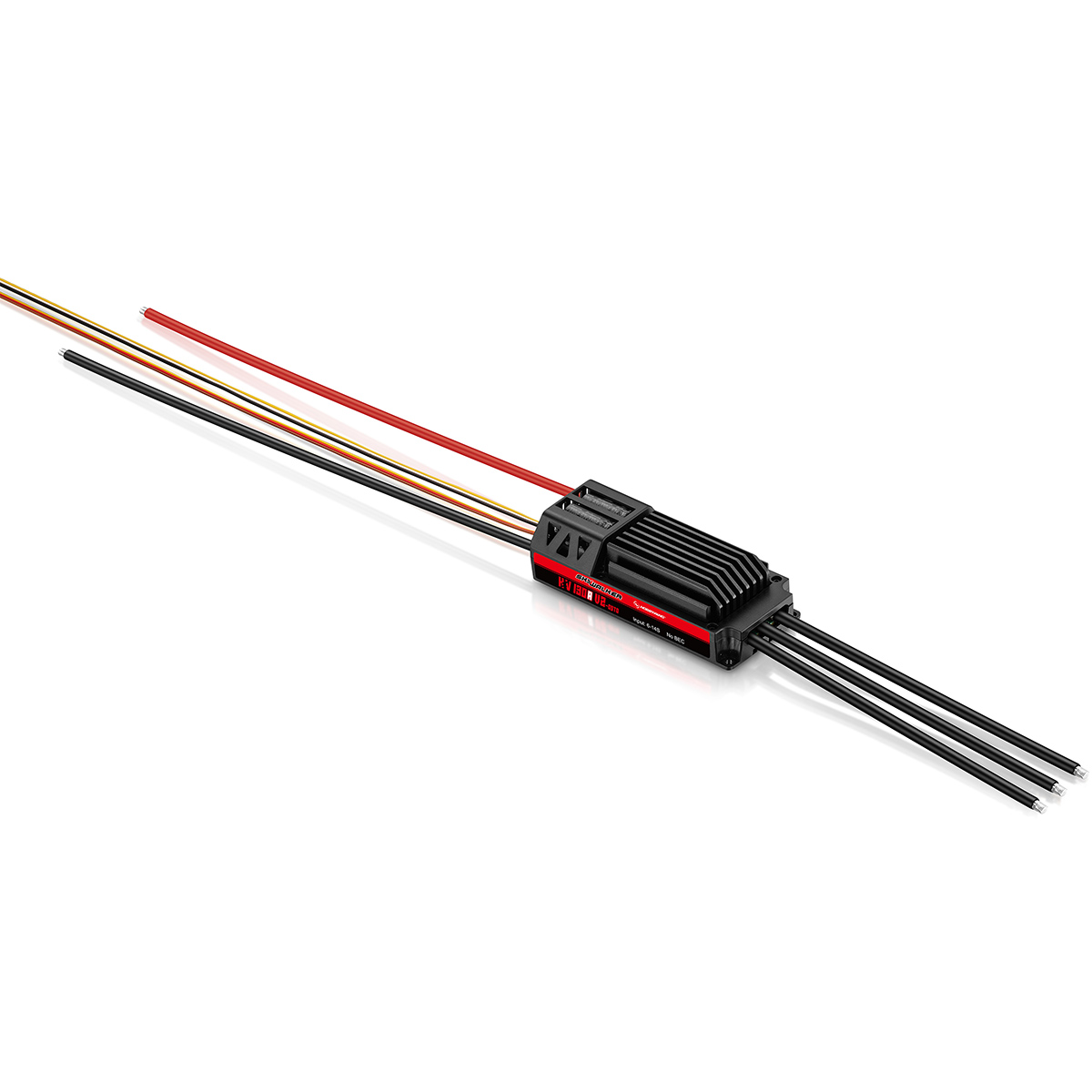

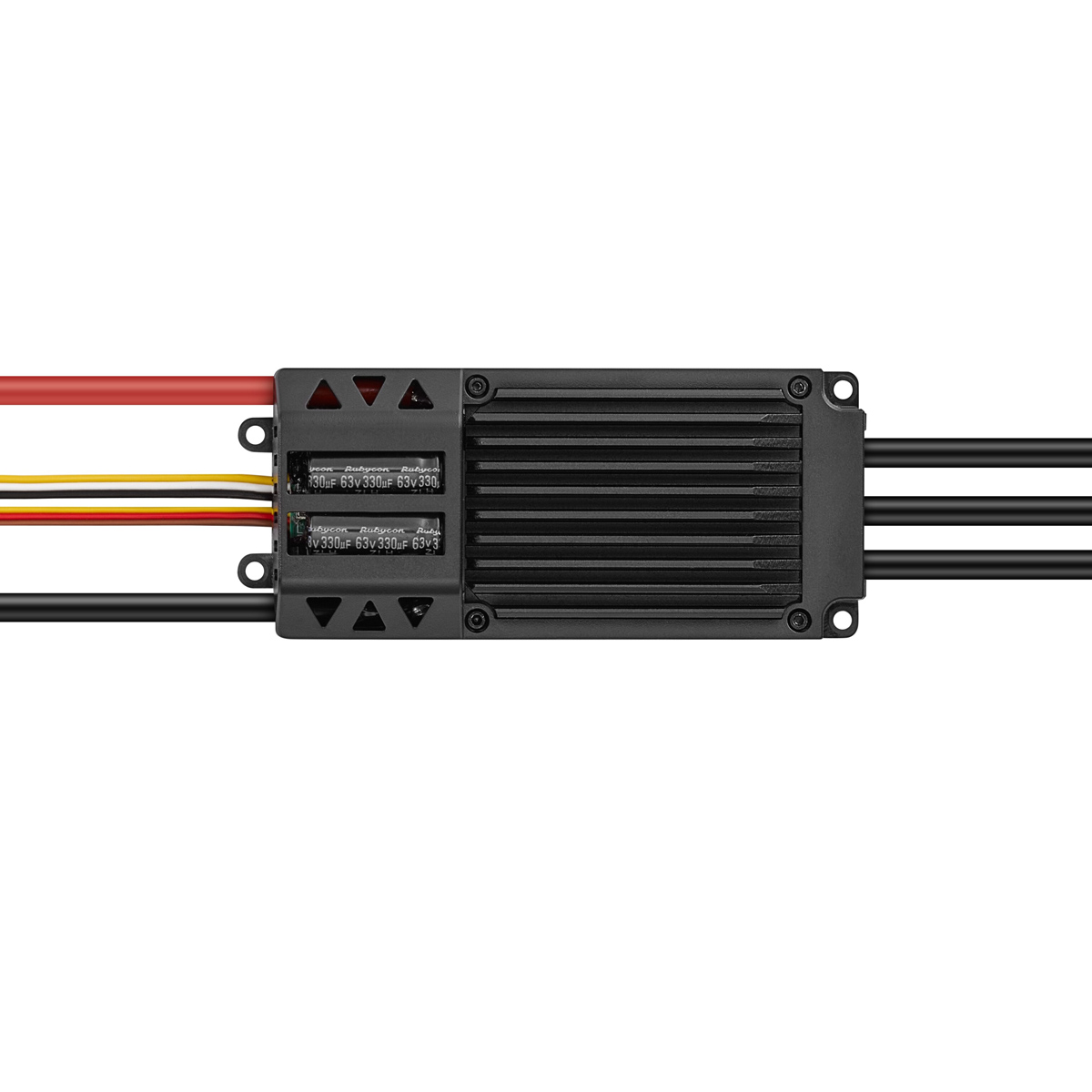

Model: Skywalker HV 130A OPTO V2
Number: 30222300
Brushed/Brushless: BL
High Voltage/Regular: High Voltage
Cont./Peak Current: 130A/160A
Input: 6-14S LiPo
BEC Output: No BEC
Input Wires: Red-10AWG-300mm*1;Black-10AWG-300mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Not Supported
Size: 104x48x29mm
Weight: 253.2g

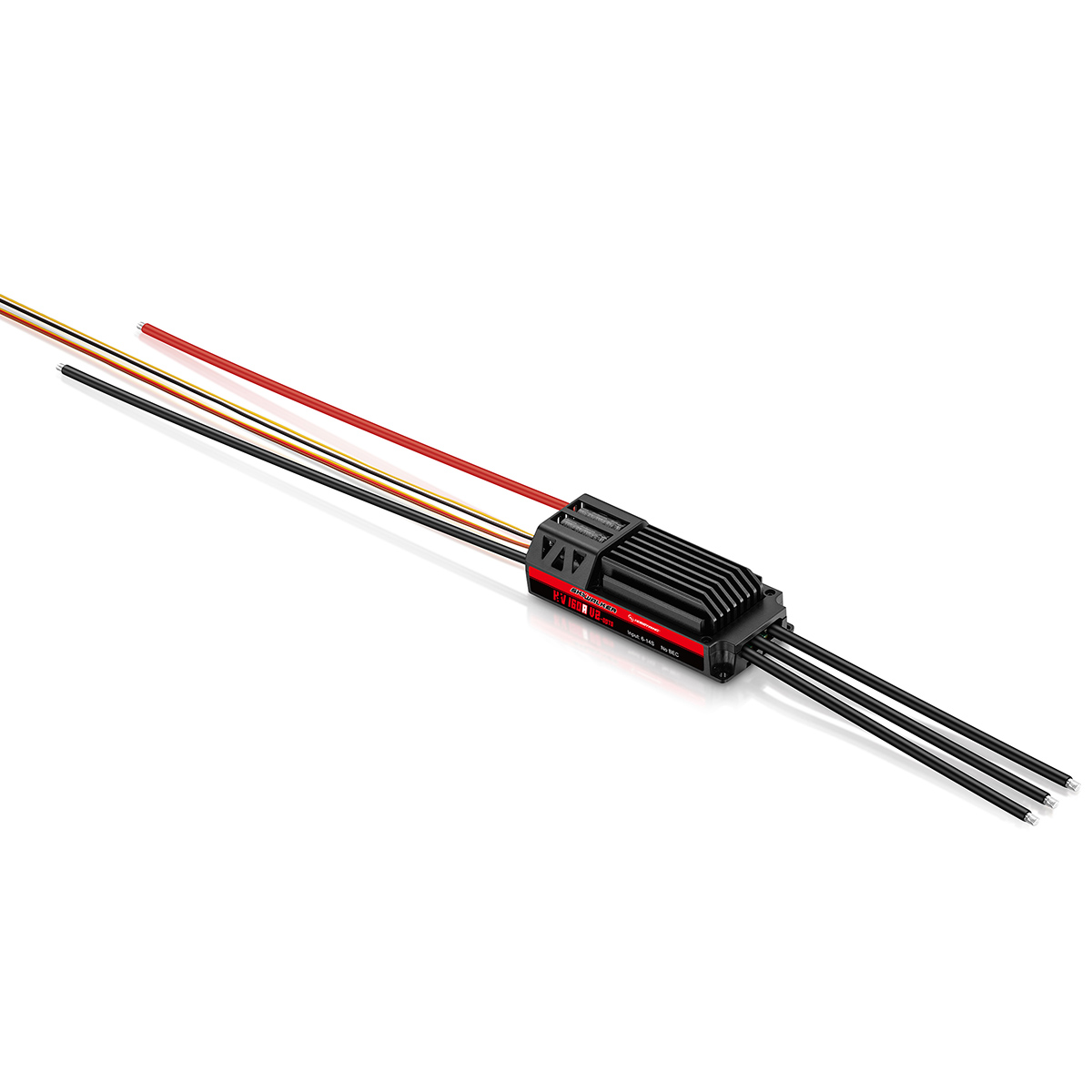

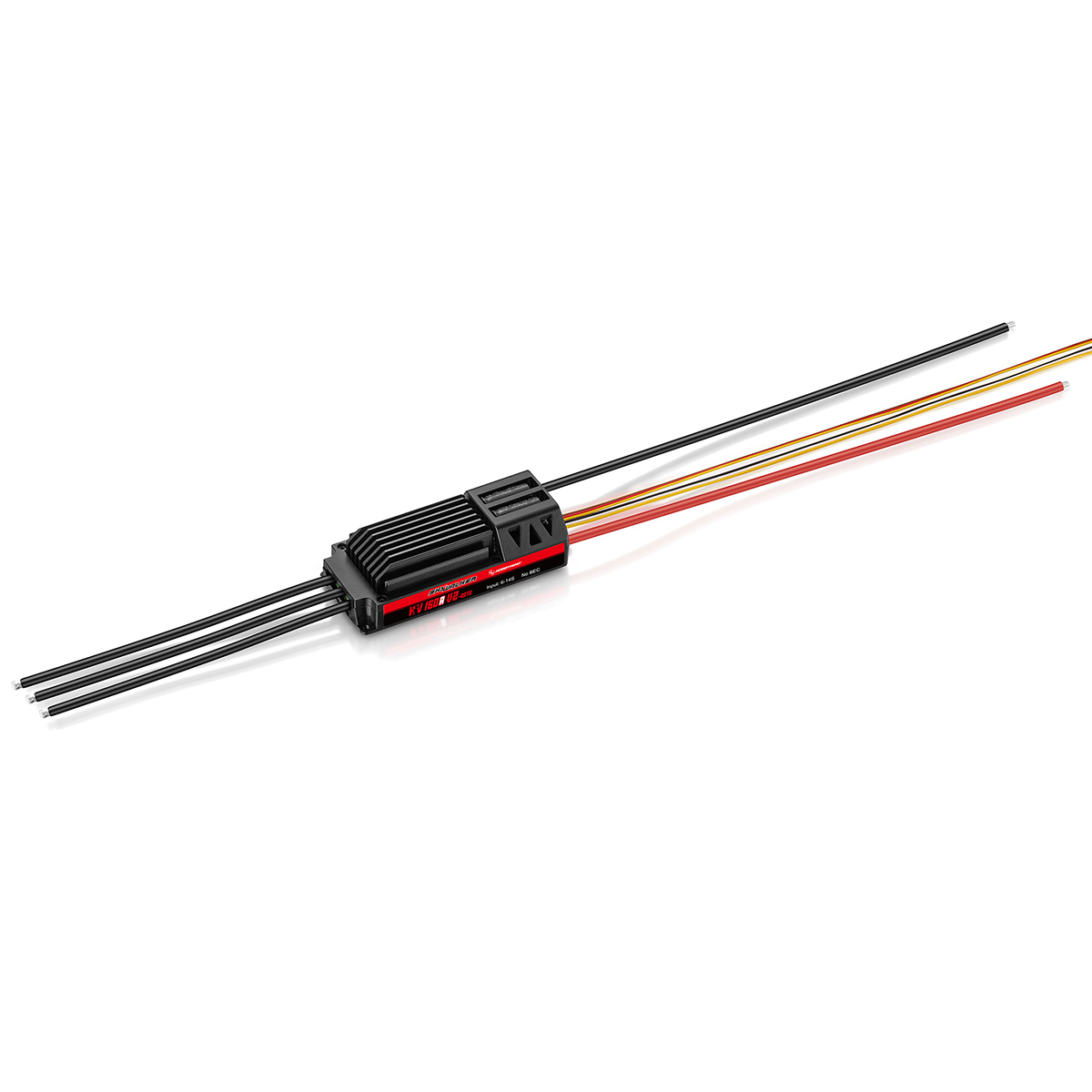

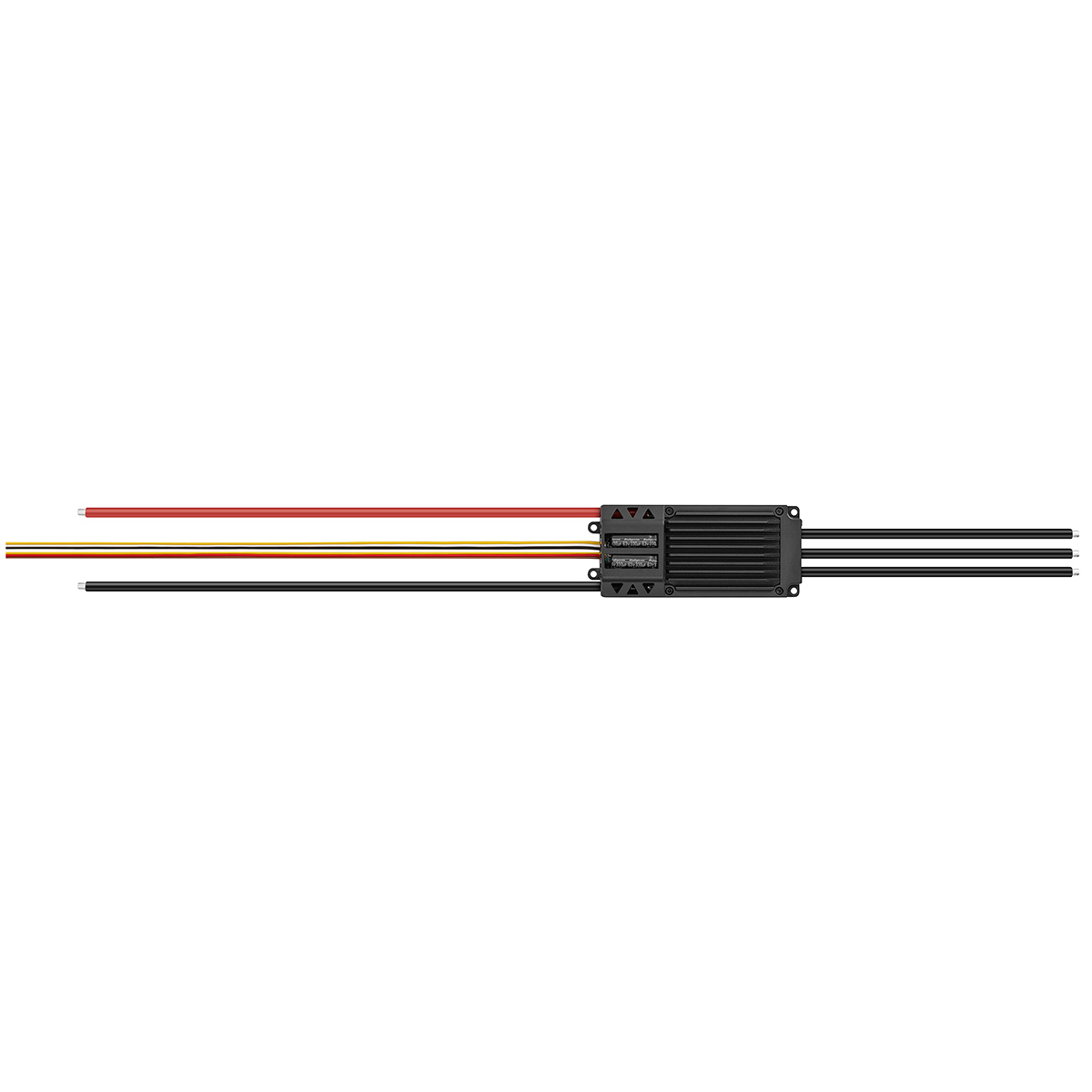

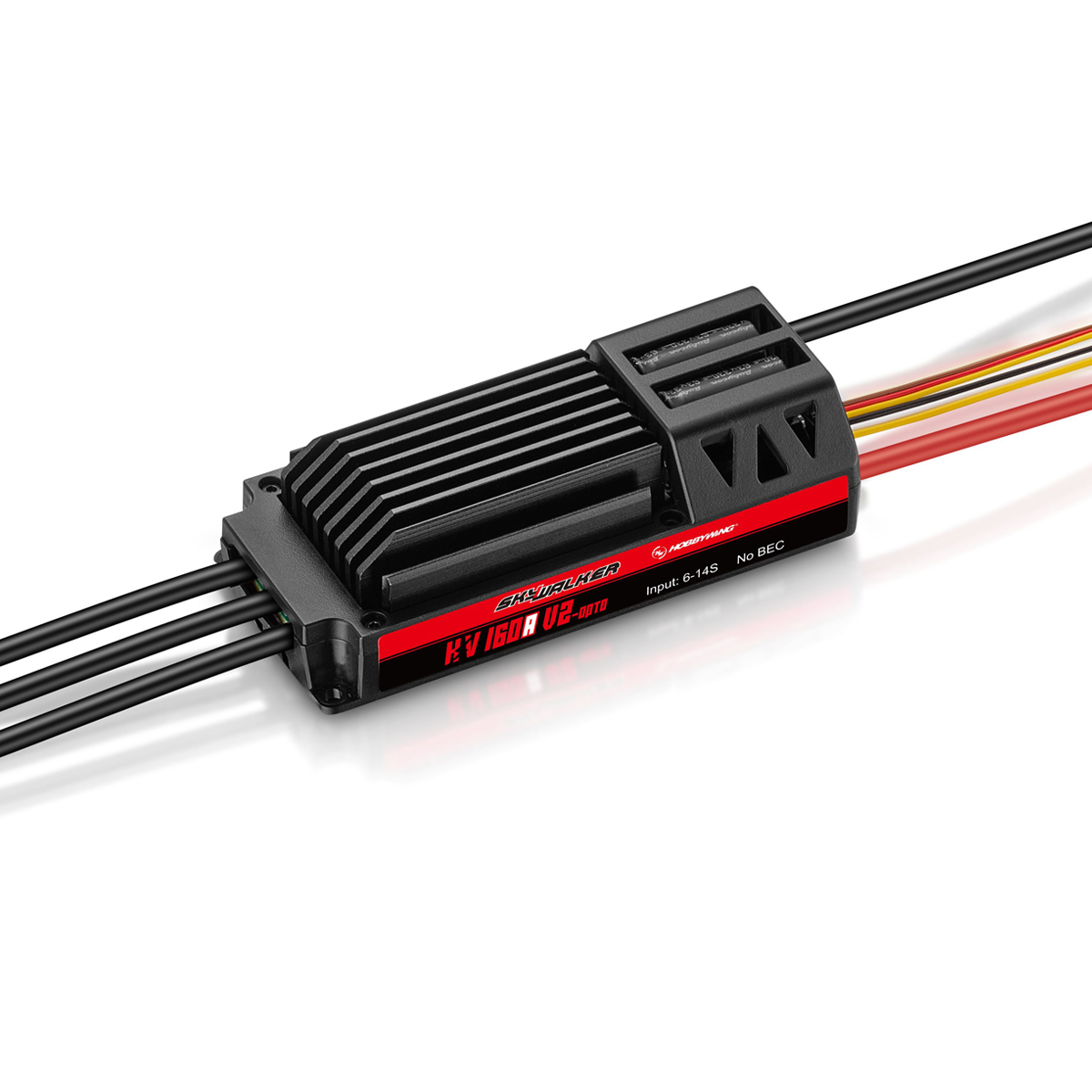

Model: Skywalker HV 160A OPTO V2
Number: 30222301
Brushed/Brushless: BL
High Voltage/Regular: High Voltage
Cont./Peak Current: 160A/200A
Input: 6-14S LiPo
BEC Output: No BEC
Input Wires: Red-8AWG-300mm*1;Black-8AWG-300mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Not Supported
Size: 104x48x29mm
Weight: 262.8g

Skywalker HV OPTO V2 ESC x1
