Hobbywing SKYWALKER Series 2-6S 60A Electric Speed Control (ESC)


Hobbywing SKYWALKER Series 2-6S 60A Electric Speed Control (ESC)
1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

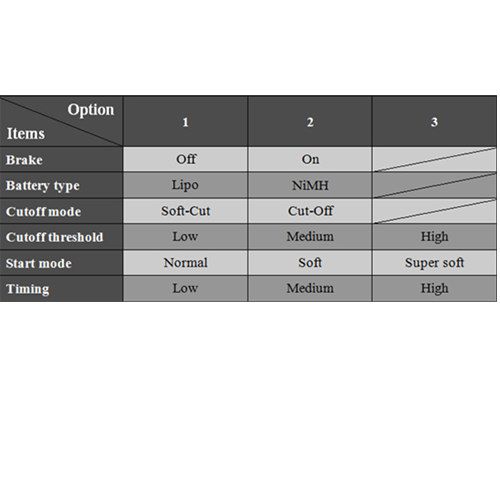

3 User programmable.
4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo and NiMH battery.
6 Timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
1 Output: Continuous 60A, Burst 80A up to 10 seconds.
2 Input Voltage: 2-6S Lipo, 5-18 cells NiMH.
3 BEC: 5A / 5V Switch mode BEC.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
6 Size: 77mm*35mm*14mm.
7 Weight: 63g.

Hobbywing SKYWALKER Series 2-6S 60A Electric Speed Control (ESC) SkyWalker-60A-UBEC x1
