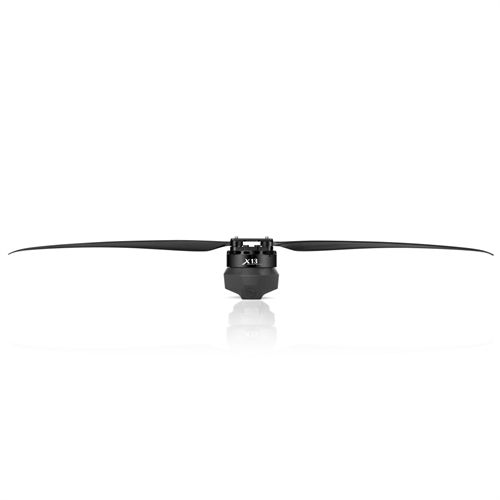

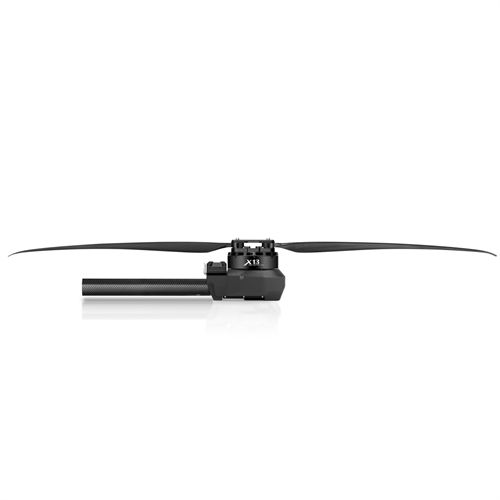

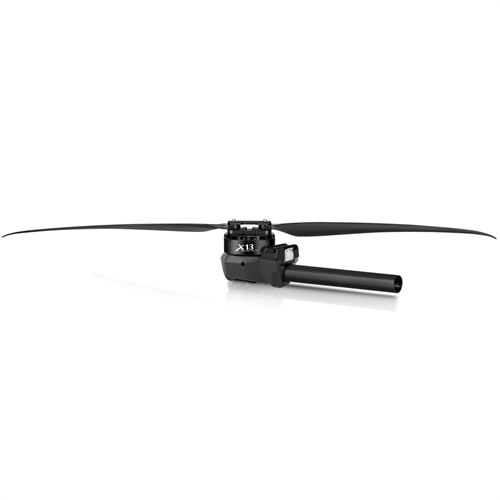

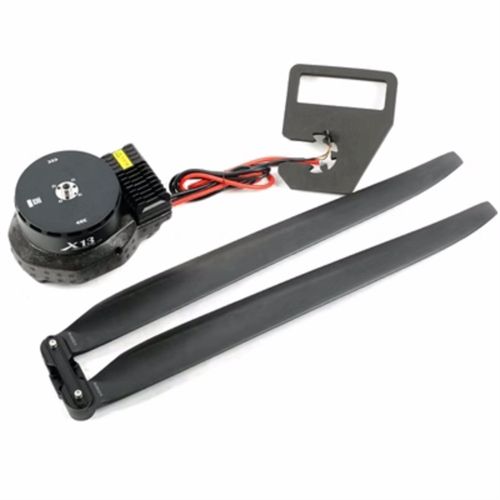

Hobbywing X13 Xrotor 18S Power System for 4-axis 50L Multirotor Large Load Plant Protection Agricultural Drone
Hobbywing X13 Xrotor 18S Power System for 4-axis 50L Multirotor Large Load Plant Protection Agricultural Drone
Hobbywing X13 Xrotor 18S Power System for 4-axis 50L Multirotor Large Load Plant Protection Agricultural Drone
Product Name ：XRotor X13-18S
Specifications
Turning: CW/CCW
Max Thrust：57kg
Recommended Takeoff Weight：25-27kg/rotor
Recommended Battery：18S( LiPo)
Operating Temperature：-20~50℃
Total Weight：4087g(Inc prop)
Ingress Protection：IPX6
Motor
KV Rating：45rpm/V
Stator Size：138*25mm
Powertrain Arm Tube Outer Diameter：50mm
Bearing：Waterproof
ESC
Recommended LiPo Battery：18S(LiPo)
PWM Input Signal Level：3.3V/5V
Throttle Signal Frequency：50-500Hz
Operating Pulse Width：1050-1950us
Max. Input Voltage: 81V
Max. Input Current (Short duration)：200A（Non-hermetic Ambient Temperature ≤60℃）
BEC：No
Propeller
Diameter×Pitch：56*20″
X13 Xrotor 18S Power System x1
