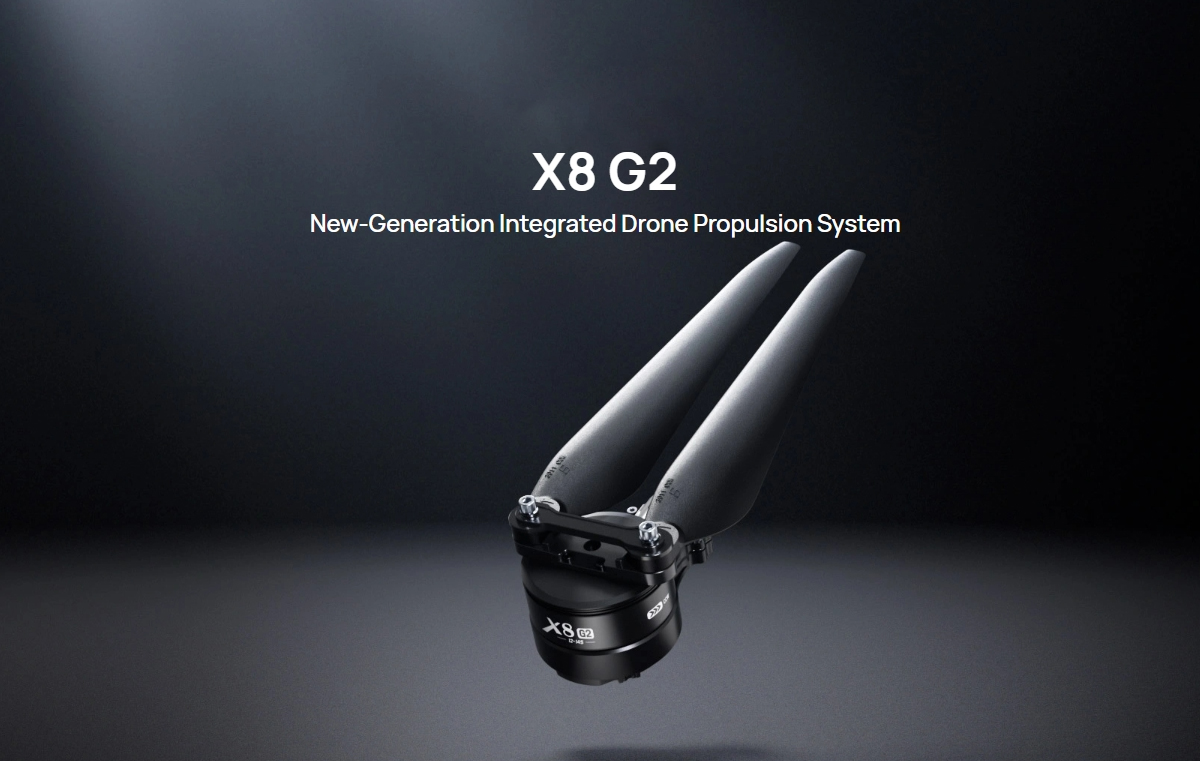

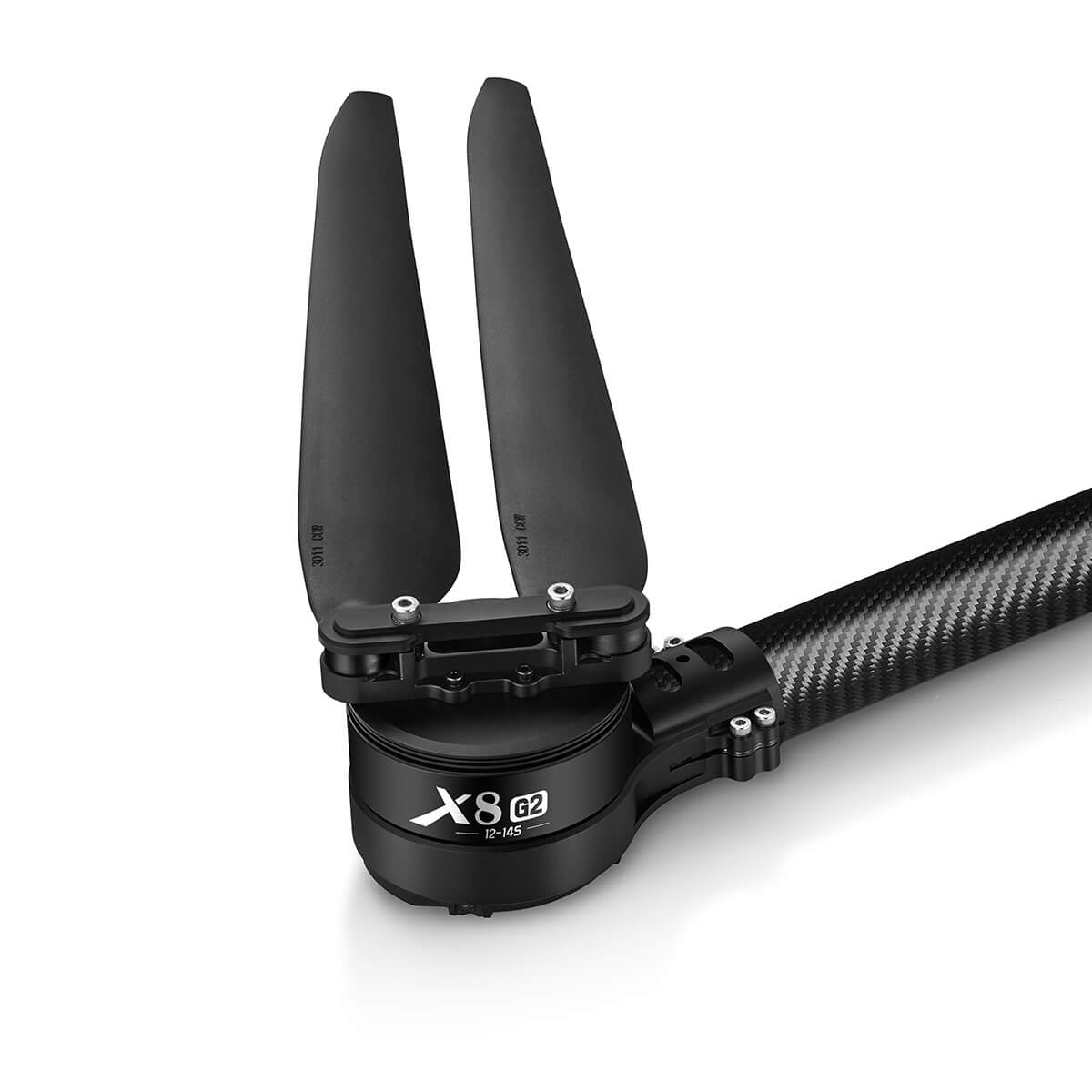

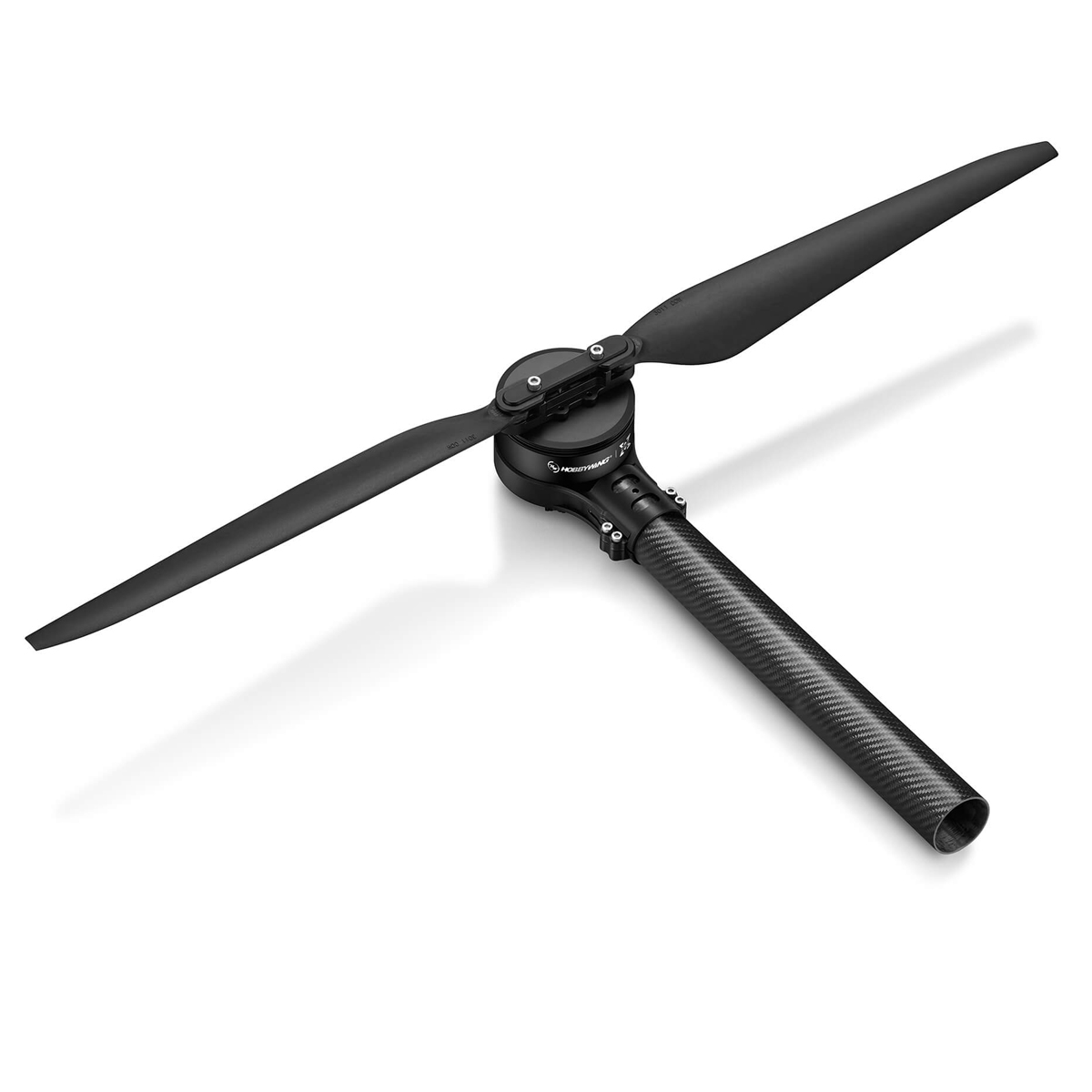

Hobbywing X8 G2 Integrated Drone Propulsion System 5-7.5kg Thrust for Agricultural Drone Axis Multicopter
Hobbywing X8 G2 Integrated Drone Propulsion System 5-7.5kg Thrust for Agricultural Drone Axis Multicopter

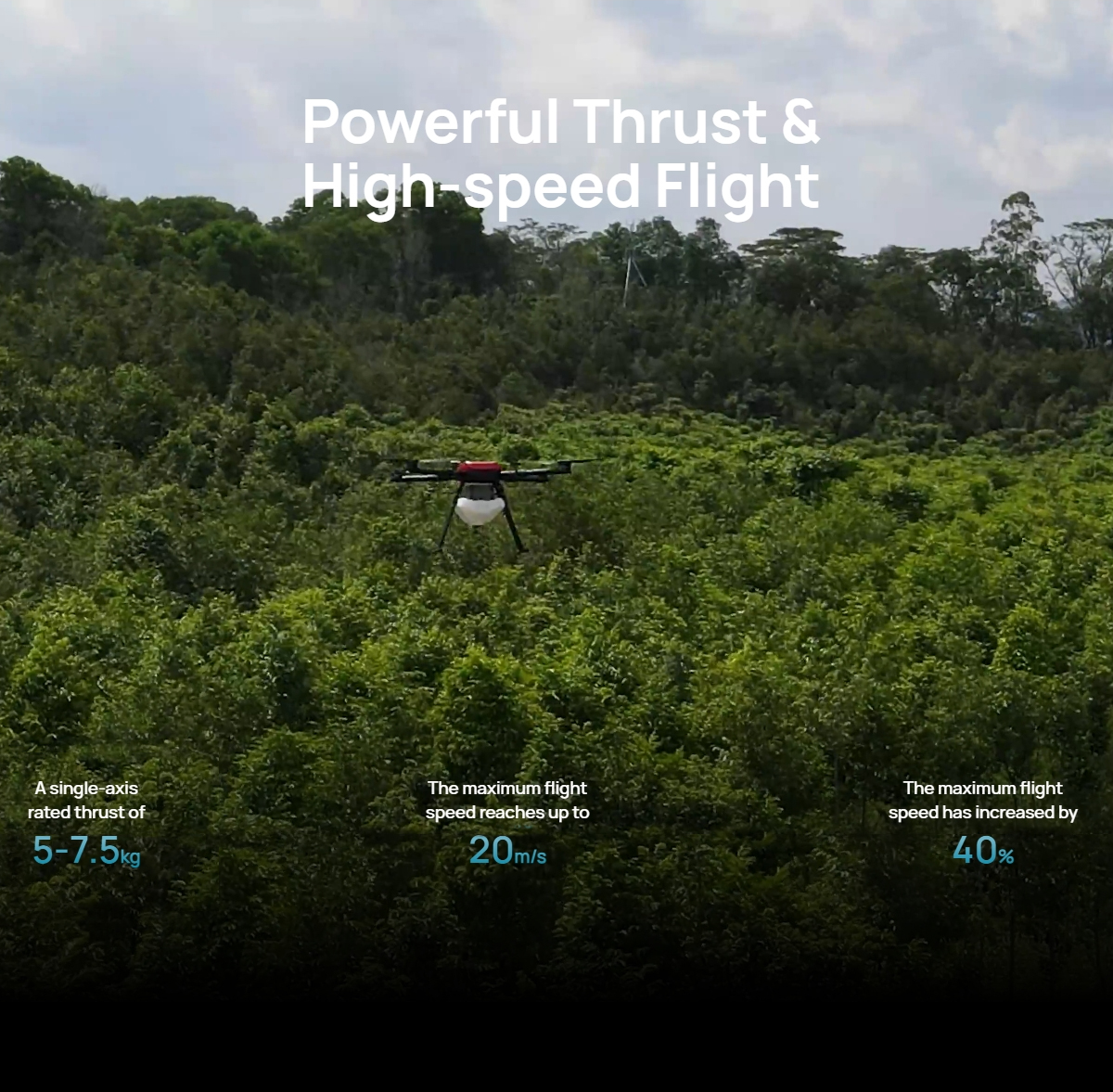

Powerful Performance: Single-axis rated thrust 5-7.5kg, max speed 20m/s (40% increase), 5% weight reduction while retaining maximum thrust;

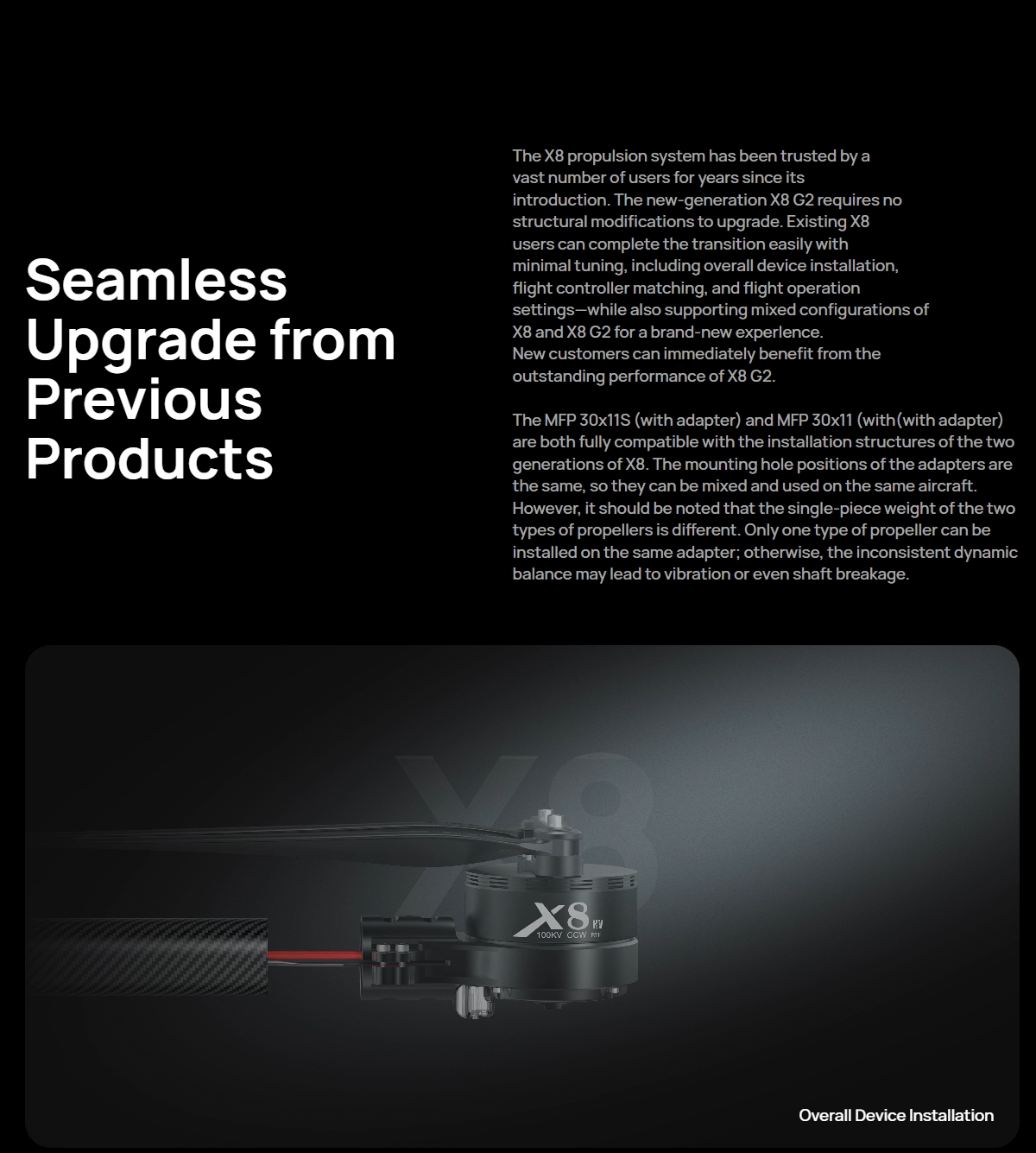

Wide Compatibility: Supports 12S-14S LiPo batteries, compatible with mainstream flight controller systems, seamless upgrade and mixed configuration of new and old products;

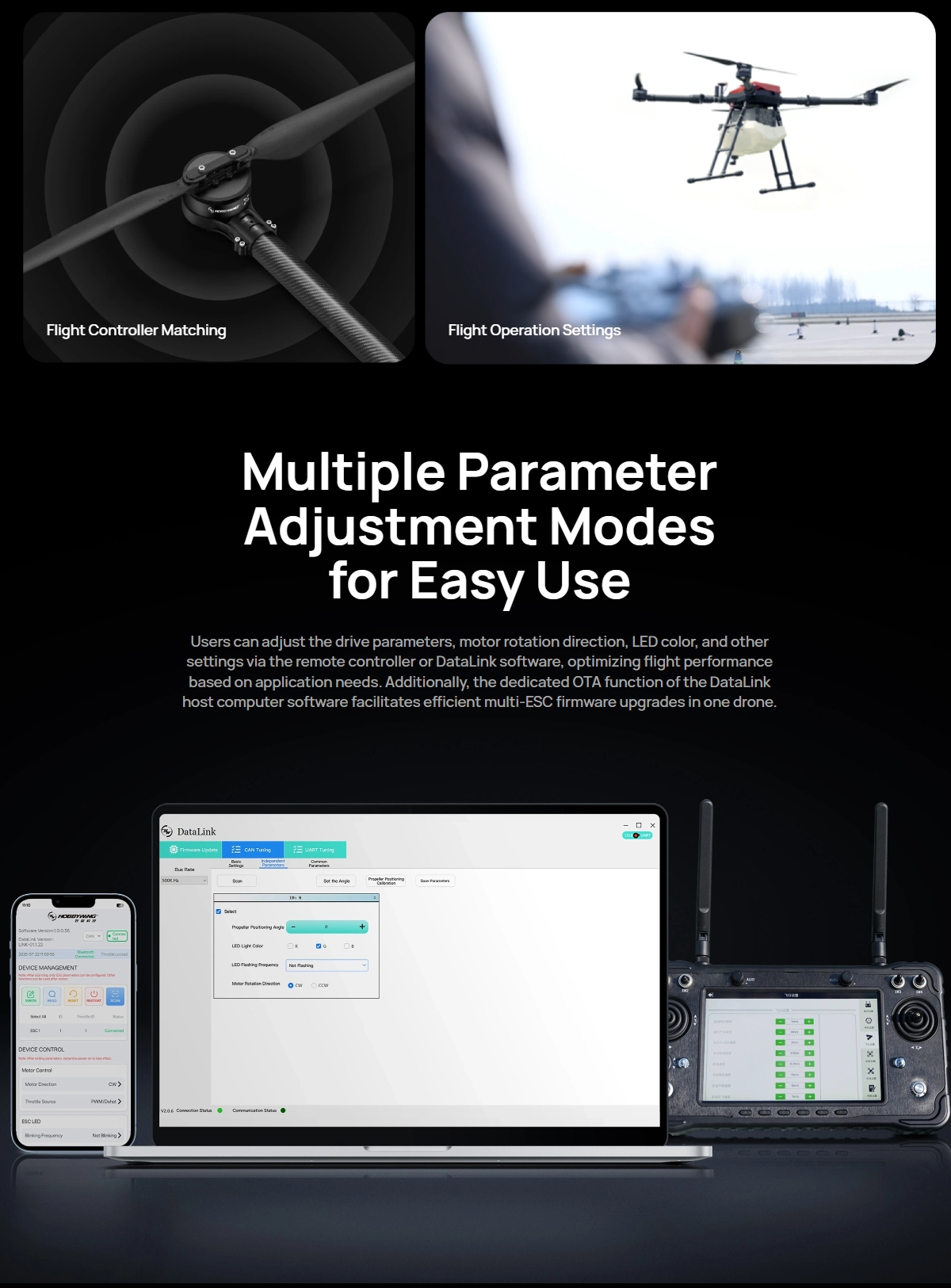

Easy Operation: Dual-mode parameter adjustment (remote control/software), OTA firmware upgrade, universal propeller adaptation;

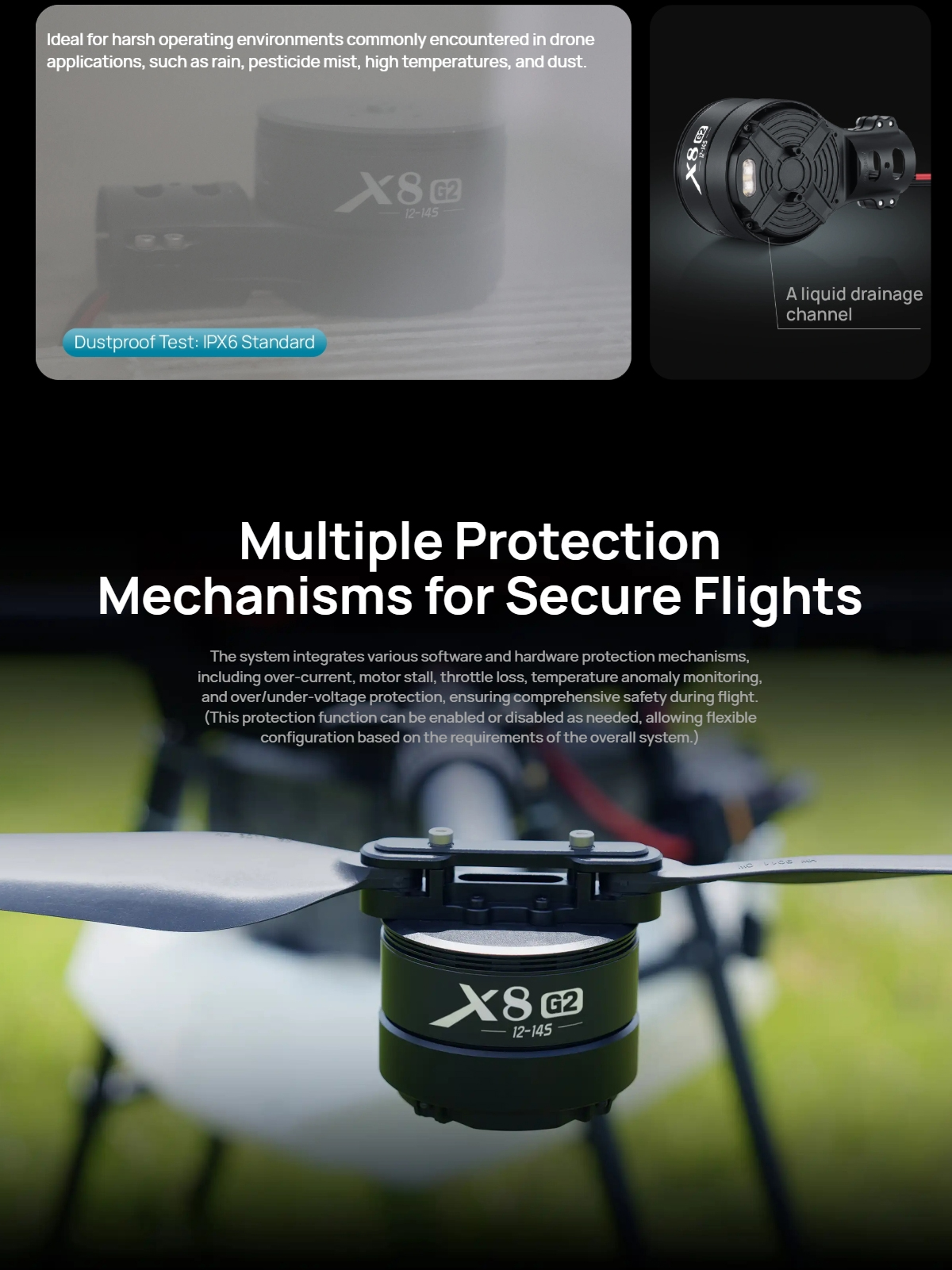

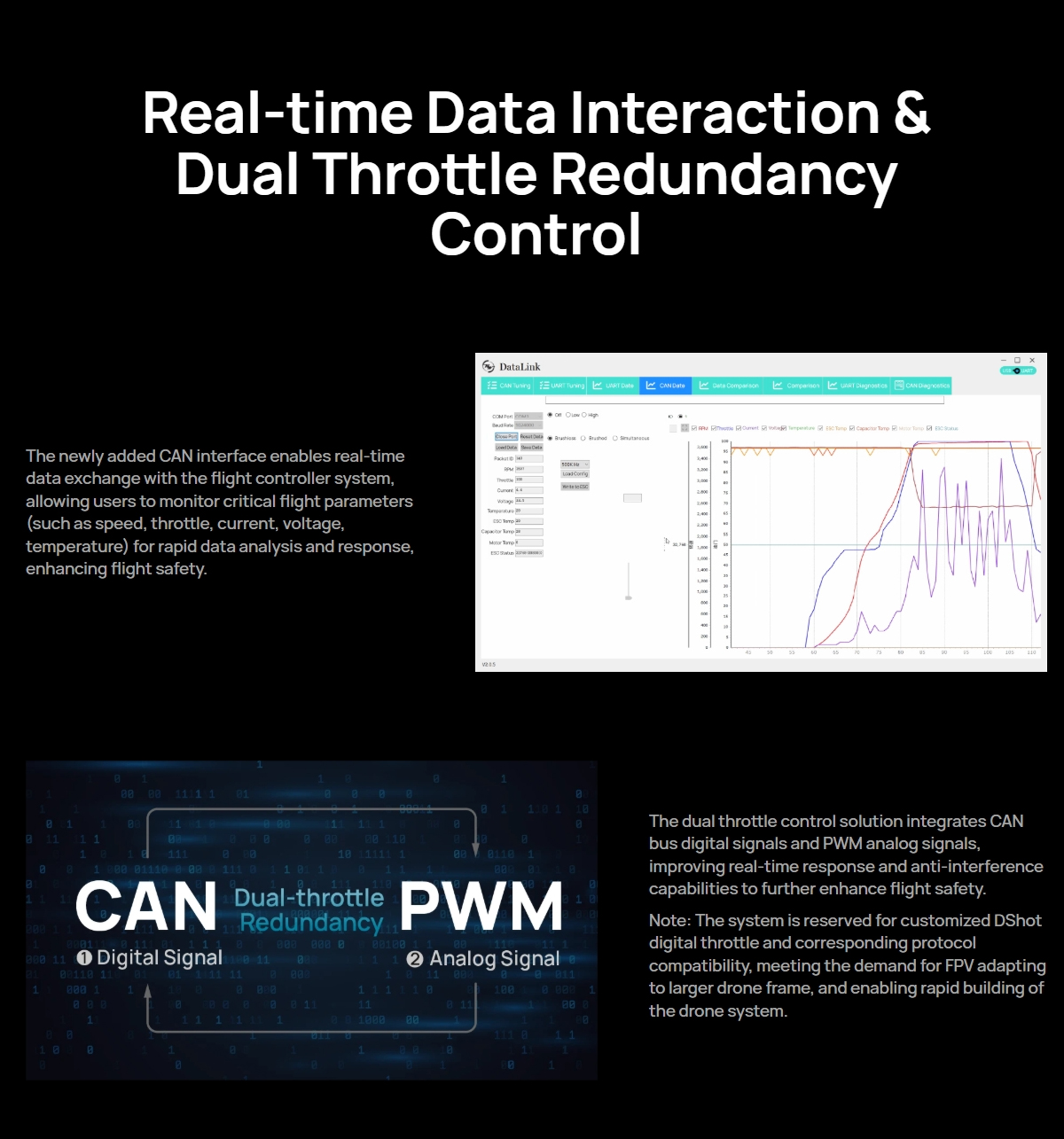

Safe & Reliable: CAN interface for real-time data interaction, dual-throttle redundancy control, IPX6 protection + multiple software/hardware protections;

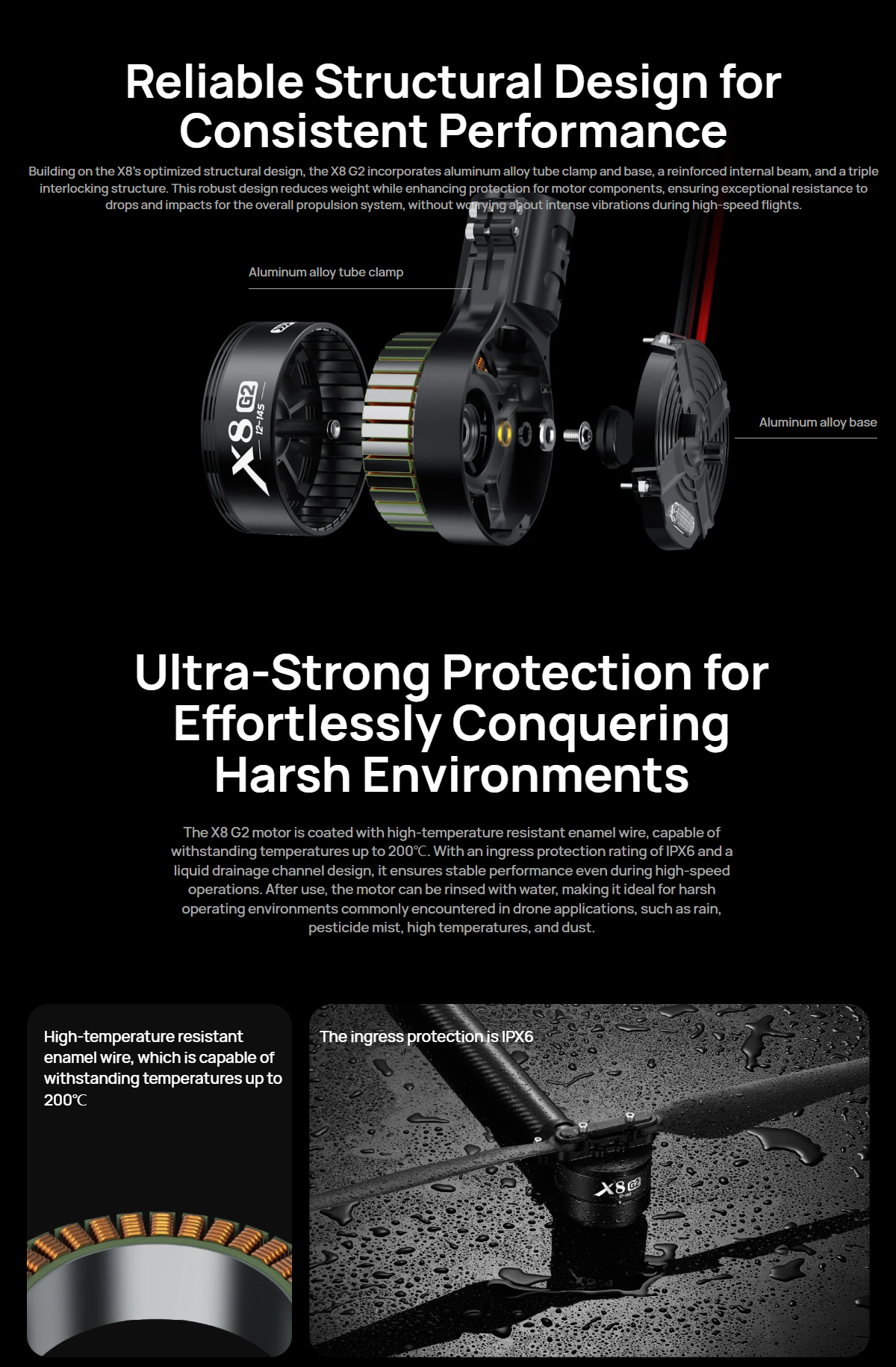

Durable & Efficient: 200℃ high-temperature resistance, 20-hour data storage (black box function), suitable for multiple industrial scenarios.

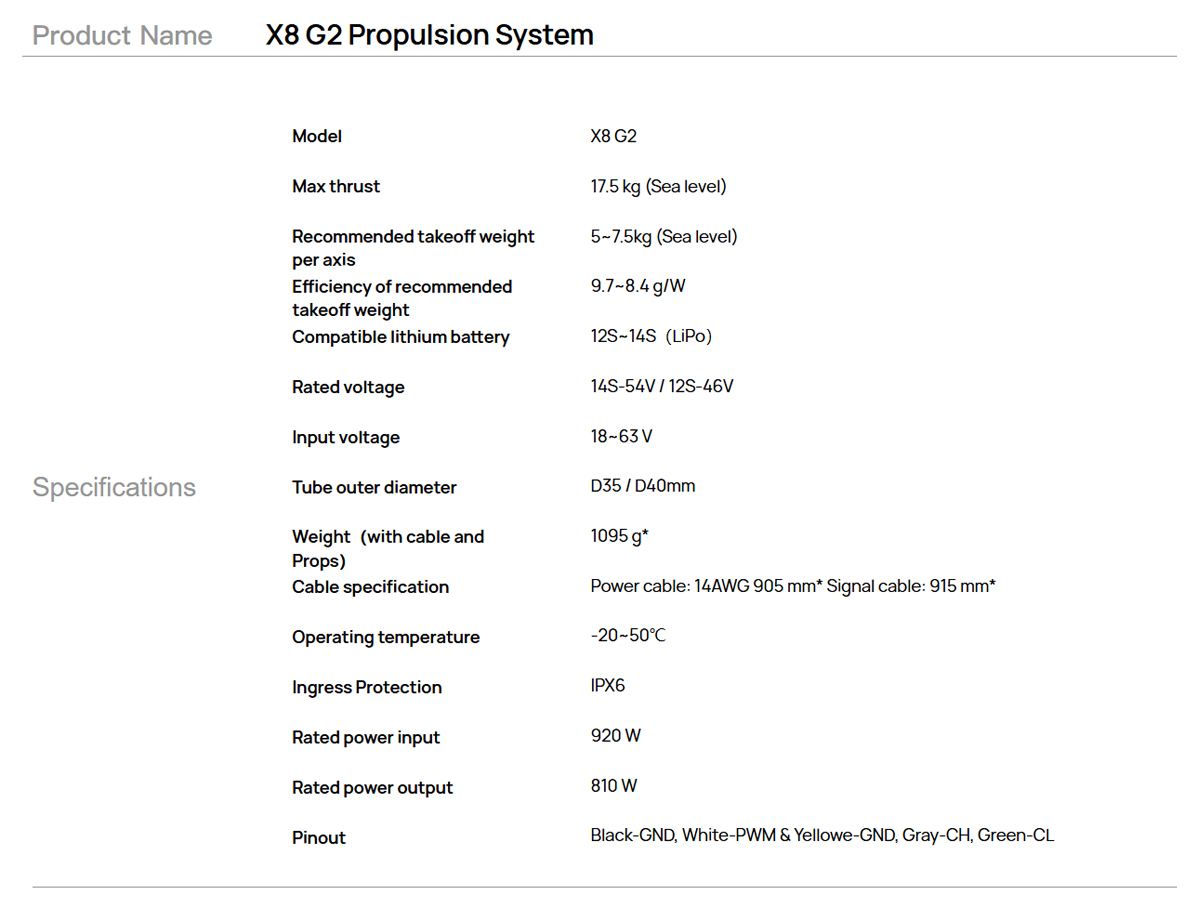

Model: X8 G2

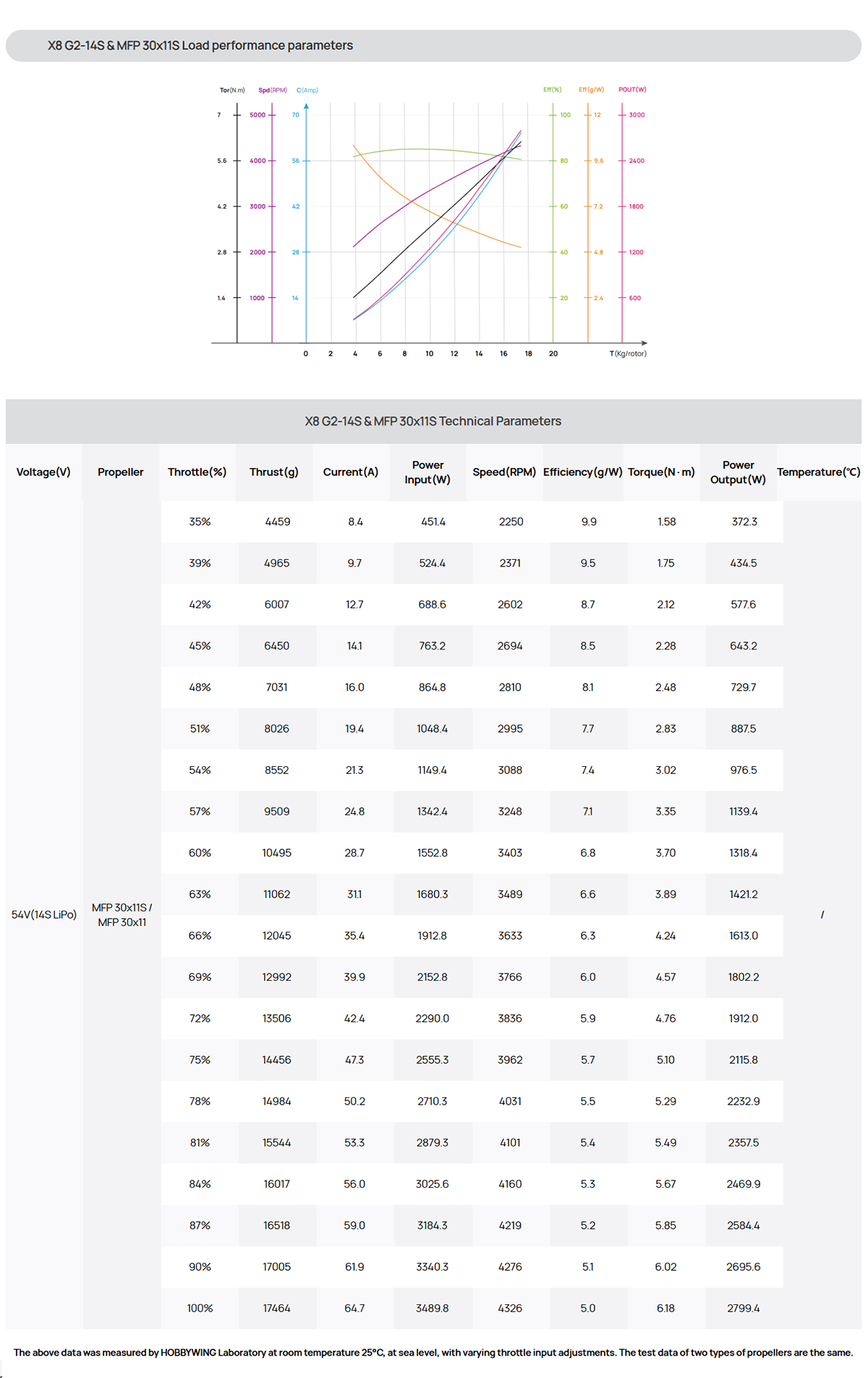

Max Thrust: 17.5 kg (Sea Level)
Recommended Takeoff Weight per Axis: 5~7.5 kg (Sea Level)

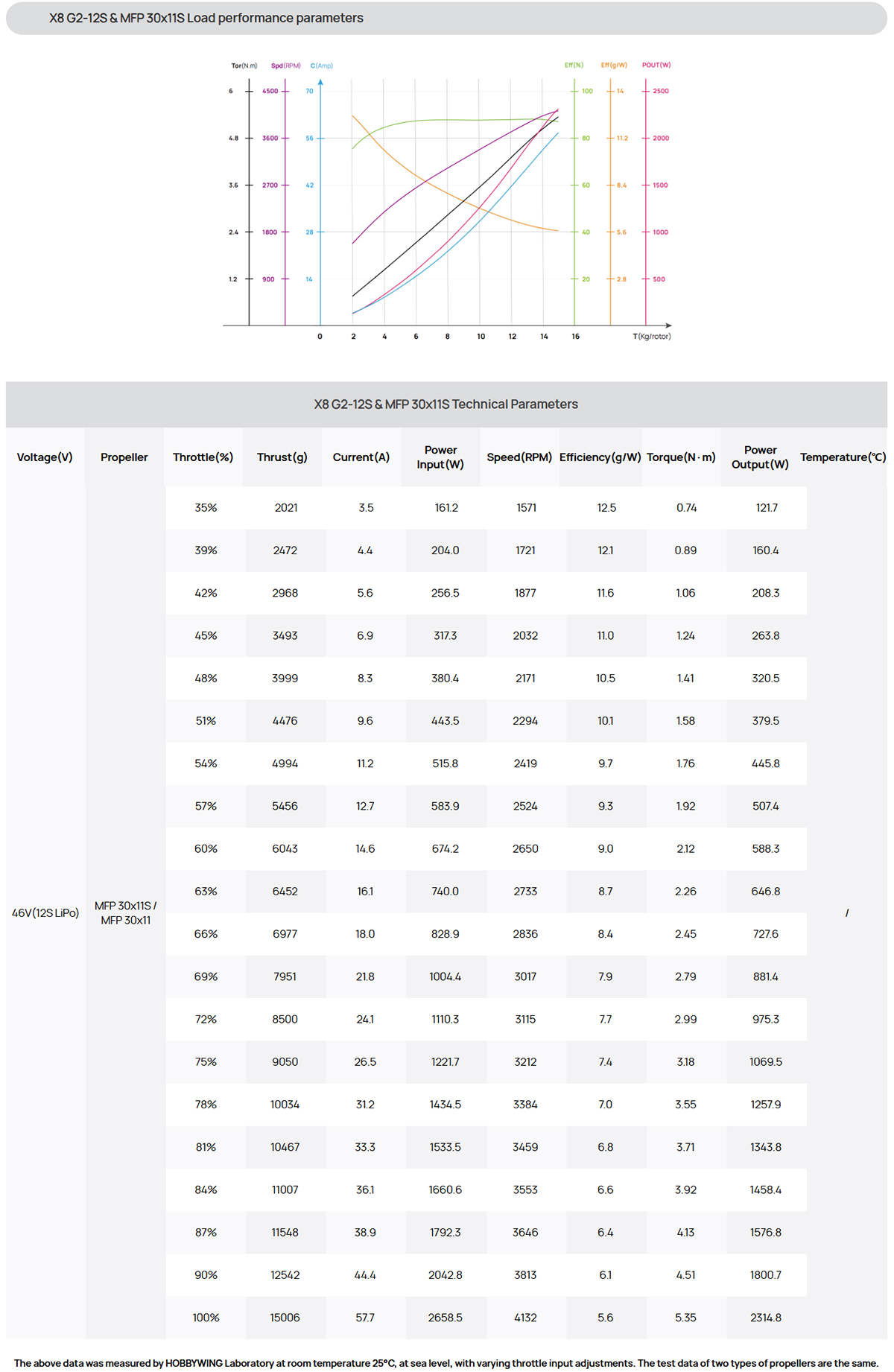

Efficiency of Recommended Takeoff Weight: 9.7~8.4 g/W
Compatible Lithium Battery: 12S~14S (LiPo)
Rated Voltage: 14S-54V / 12S-46V
Input Voltage: 18~63 V

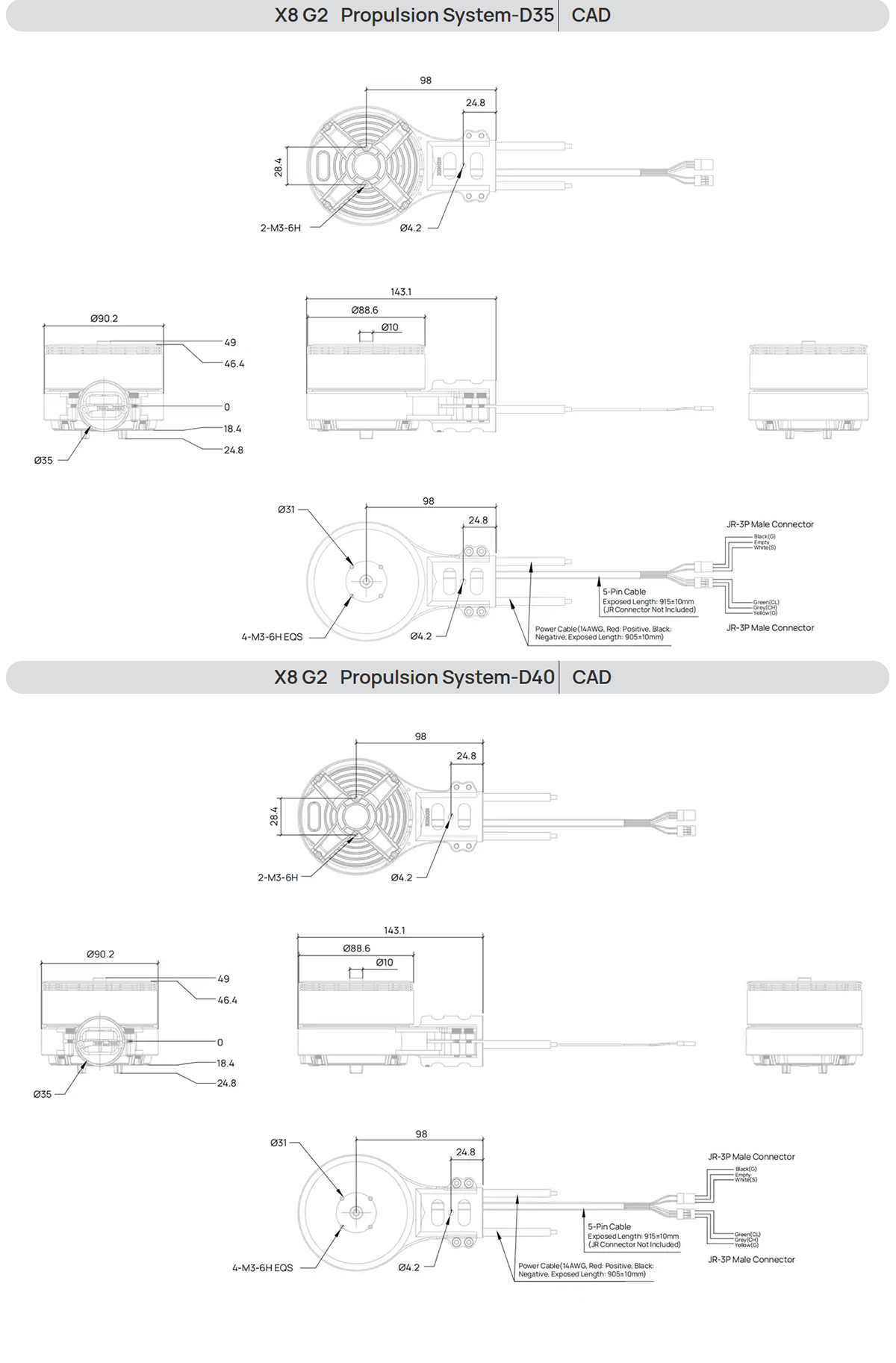

Tube Outer Diameter: D35 / D40mm
Weight (with Cable and Props): 1095 g
Cable Specification: Power cable: 14AWG 905 mm Signal cable: 915 mm
Operating Temperature: -20~50℃

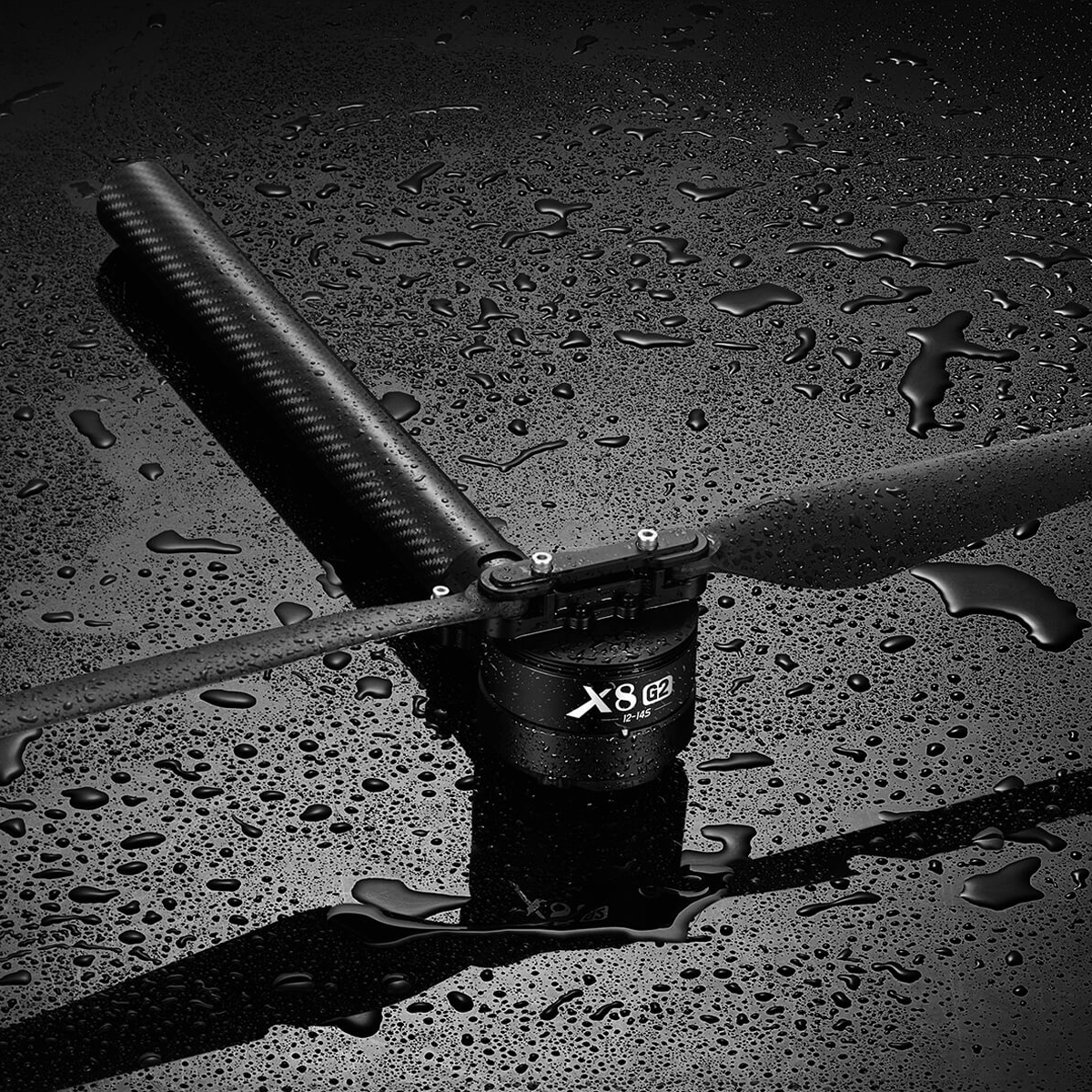

Ingress Protection: IPX6
Rated Power Input: 920 W
Rated Power Output: 810 W
Pinout: Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL

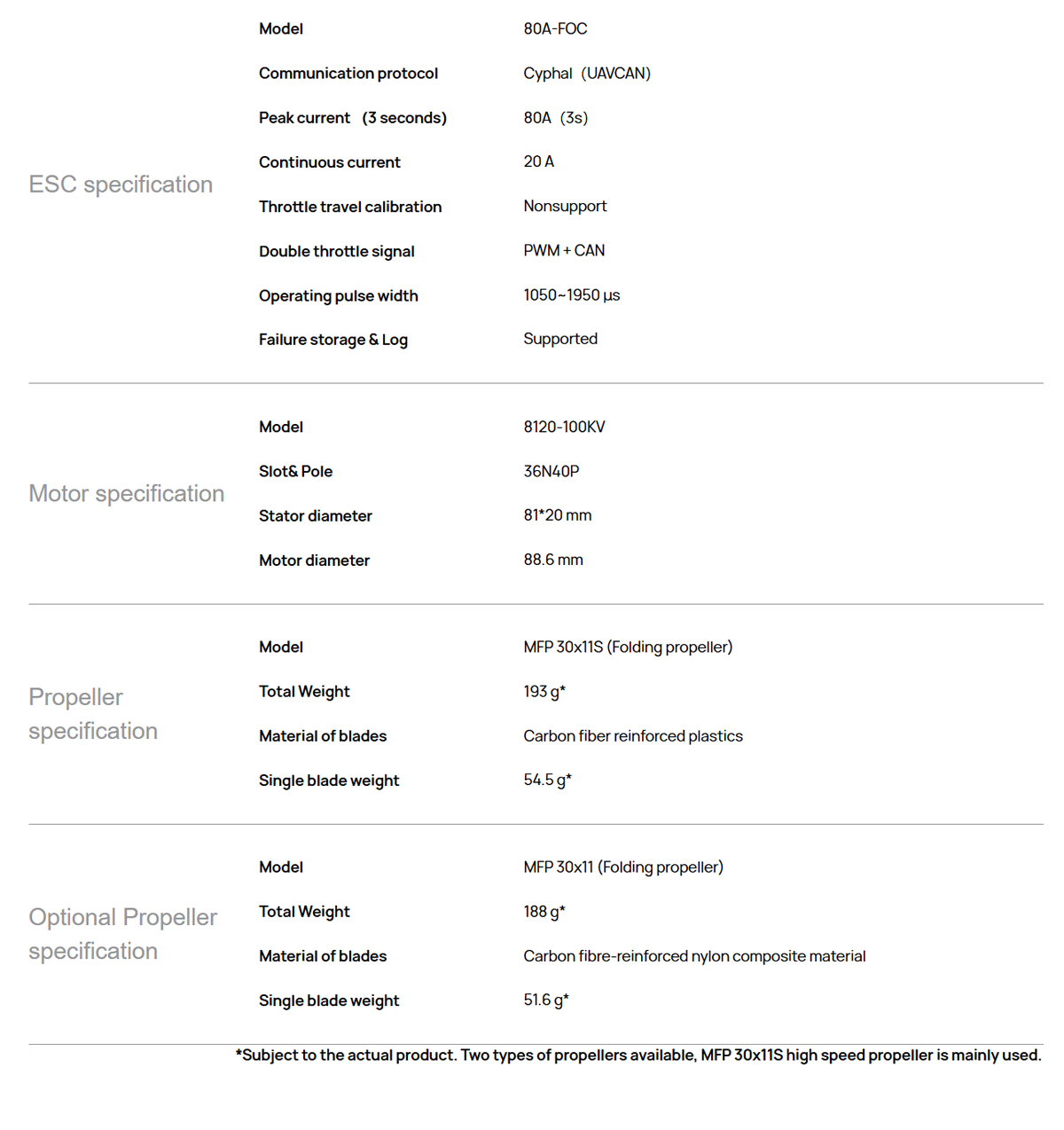

ESC Specification
Model: 80A-FOC
Communication Protocol: Cyphal（UAVCAN）
Peak Current (3 Seconds): 80A (3s)
Continuous Current: 20 A
Throttle Travel Calibration: Nonsupport
Double Throttle Signal: PWM + CAN
Operating Pulse Width: 1050~1950 μs
Failure Storage & Log: Supported

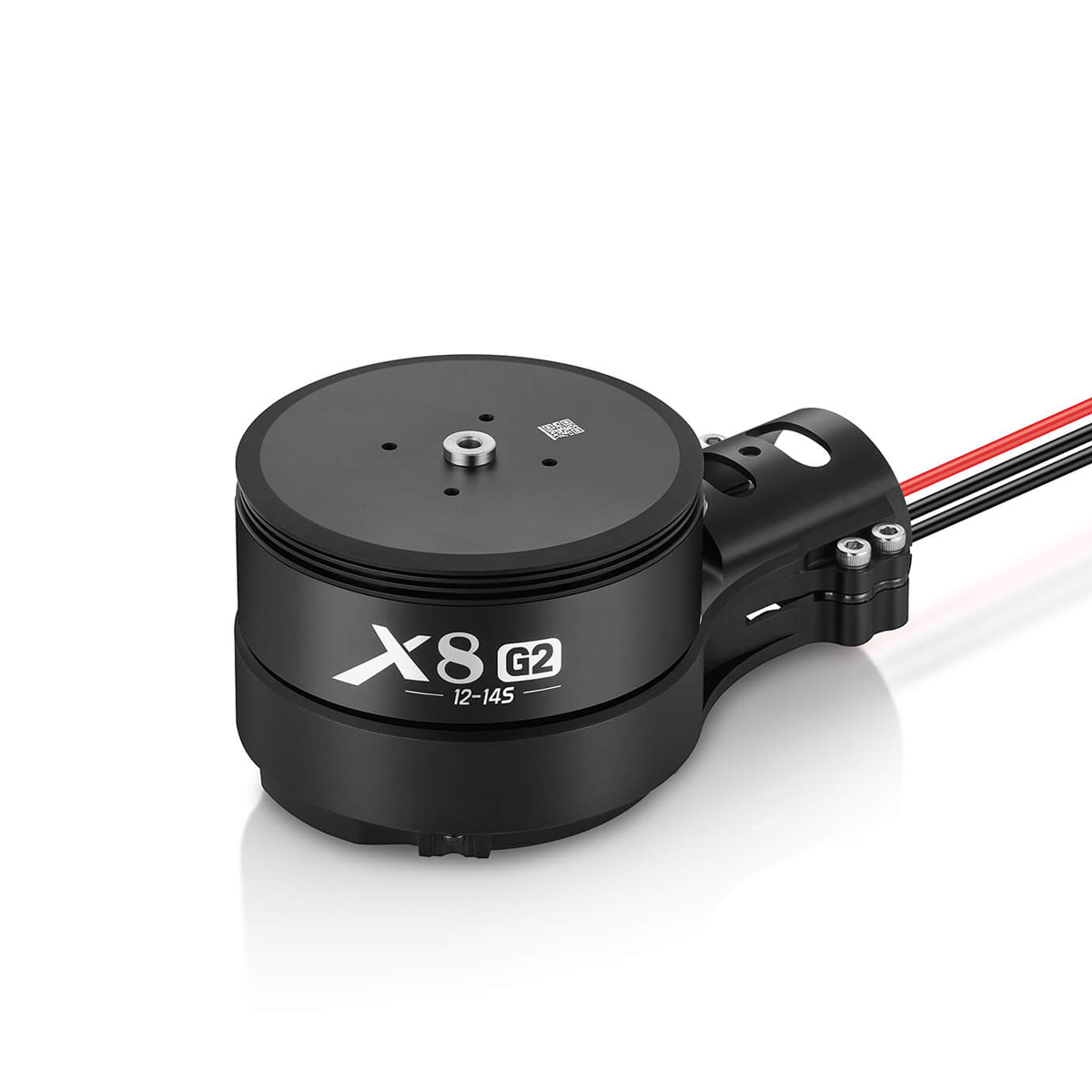

Motor Specification
Model: 8120-100KV
Slot & Pole: 36N40P
Stator Diameter: 81*20 mm
Motor Diameter: 88.6 mm
Propeller Specification

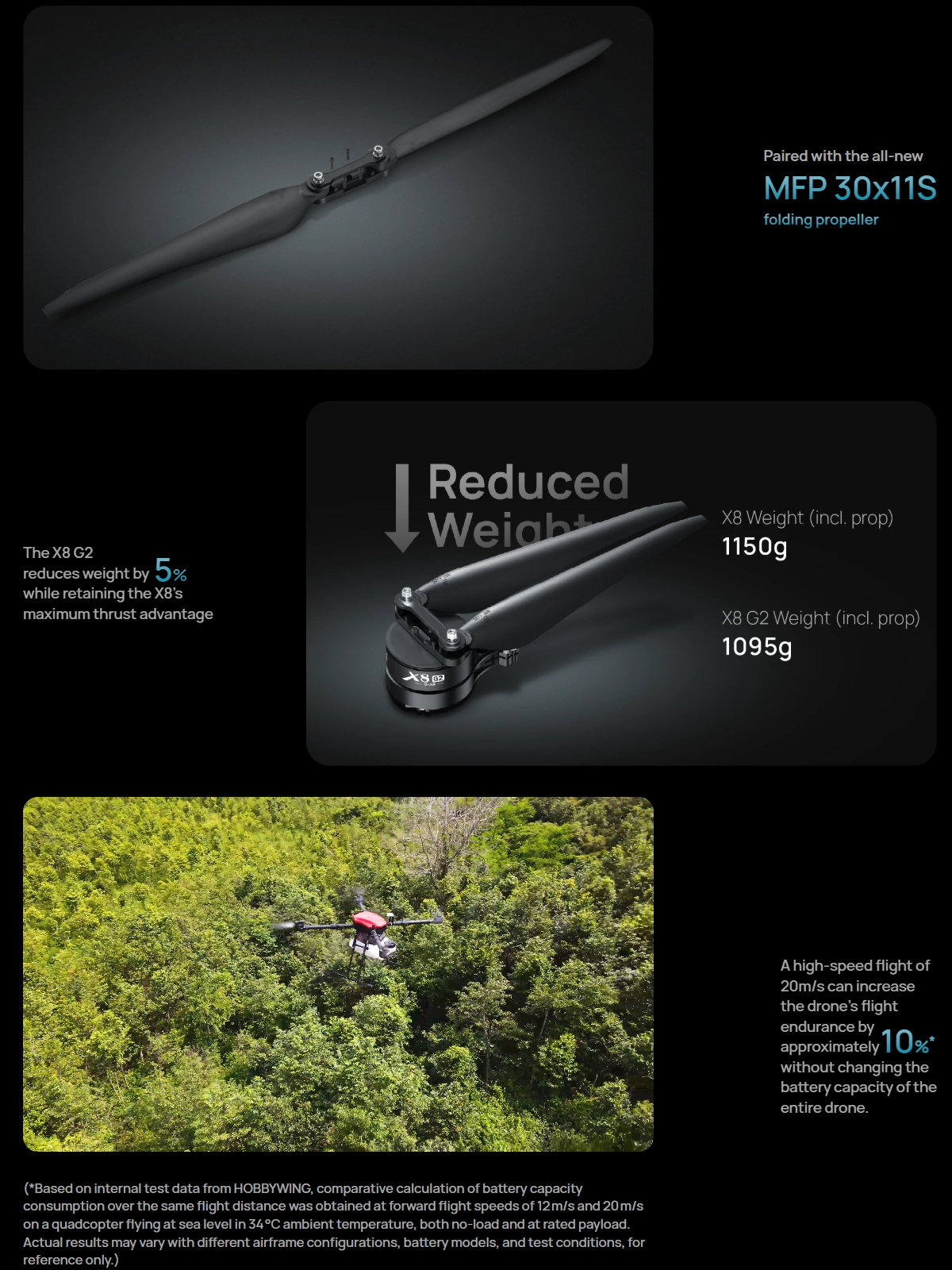

Model: MFP 30x11S (Folding Propeller)
Total Weight: 193 g
Material of Blades: Carbon Fiber Reinforced Plastics
Single Blade Weight: 54.5 g
X8 G2 Propulsion System x1
