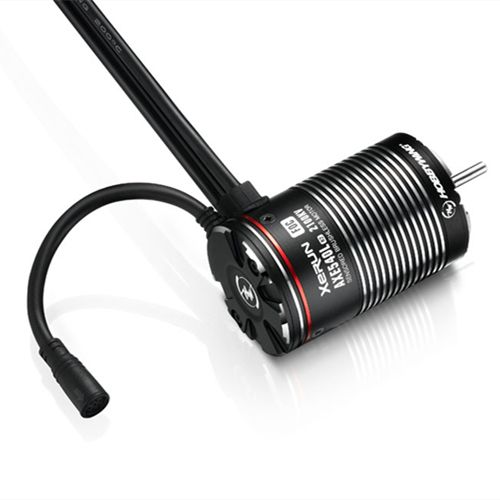

Product Name：XERUN AXE540L R2-2800KV
Product Numbe：30401255
Type
Scale：1/10th
Brushed/Brushless：BL
Sensored/Sensorless：SD
Pole Count：4
Relevant Parameters
KV Rating: 2800
LiPo Cells: 2-3S
No-load Current(A): 3.6
Size & Weight
O.D.(mm) : 36(1.42in)
Length (mm) : 57.8(2.28in)
Shaft Diameter (mm) : 3.175(0.125in)
Weight (g) : 234g
Other Parameters
Applications : 1/10th Rock Crawler

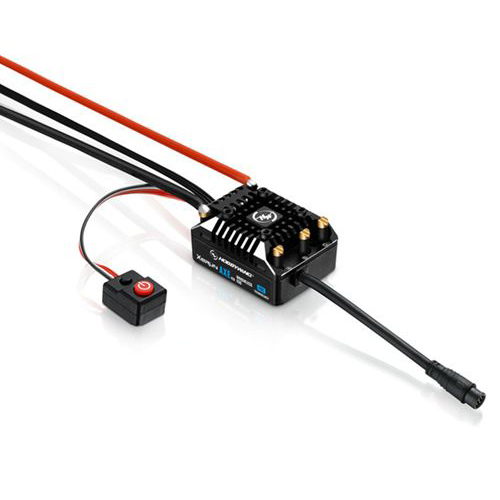

Product Name：XERUN AXE R2 Brushless ESC
Product Numbe：30112102
Type
Scale：1/10th
Brushed/Brushless：BL
Sensored/Sensorless：SD
Waterproof : YES
Specifications
Cont./Peak Current : 80A/480A
Input Voltage : 2-3S Lipo/6-9 Cell NiMH
BEC Outpu : Switch Mode:6V/7.4V@6A
Wires & Connectors
Wires & Connectors : Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires : No
Input Connectors : XT60
Output Connectors : No
SC Programing via
SET Button on ESC : Not Supported
LED Program Box : Not Supported
LCD Program Box : Not Supported
WiFi Module : Not Supported
Programming Port : Built-in bluetooth
Firmware
Firmware Upgrade : Supported
Size & Weight
Size : 47.4×36.2×26.5mm
Weight : 108g (Including the weight of input line)
Applications
Applications : Only support XERUN AXE R2 motor
Vehicles : 1/10thRock Crawler
