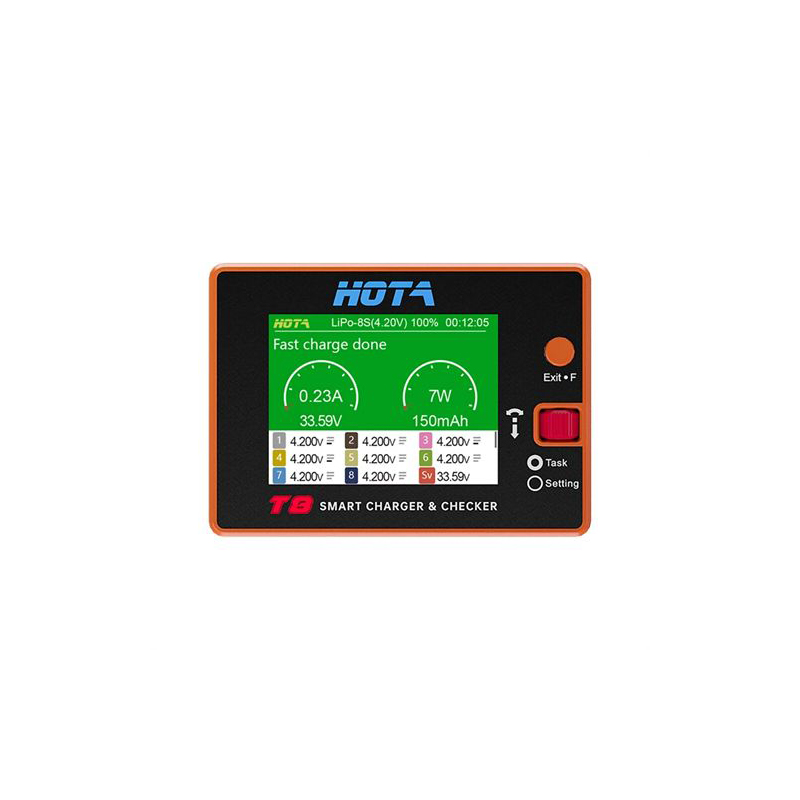

HOTA T8 650W 22A XT60 1-8S Intelligent Charger Checker
*Smart charging: The HOTA T8 charger and checker is equipped with intelligent features to ensure safe and efficient charging of your batteries.
*High power: With a maximum power output of 650W and a current of 22A, this charger can quickly charge your batteries.
*Versatile compatibility: The XT60 connector allows you to charge batteries with 1-8S cell configurations, making it suitable for a wide range of devices.
*Easy to use: The user-friendly interface and intuitive controls make it easy for both beginners and experienced users.
*Compact design: The T8 charger and checker is compact and portable, allowing you to take it with you wherever you go.
Input Voltage：DC 7.0~35.0V@MAX 27A
Power Charge：0.1-22A@650W
Discharge Power：
0.1-22A@650W Recyle External
0.1-3A@20W Normal mode
Balance Current：1000mA@4.2V
Storage Temperature：-20~60°℃
Operating Temperature：0~40°℃
Screen Size：2.8″ IPS 320×240 260000 colors
USB-A Output：5V @ 2.1A Upgrade
Battery Type：
*Smart Battery/LiHv/LiPo/LiFe/Lilon/Lixx/LTO：1~8S
*NiZn/NiCd/NiMH：1~20S
*PB：1~12S
*Eneloop：1~20S
Measurer：
PWM：880us-2200us@20-400Hz
PPM：880us-2200us*8CH@20-50Hz
SBUS：880us-2200us*16CH@20-100Hz
Voltage：1.0V-5.0V@1-8S
Internal resistance：1-99mR@1-8S
ESC：1-20A@1-35V MAX650W
Output：
PWM：500us-2500us@20-1000Hz
PPM：880us-2200us*8CH@50Hz
SBUS：880us-2200us*16CH@74Hz
Power supply：0.5-22A@1-35V mode: CC+CV
Dimensions：97mm×69.5mm×34mm
Net Weight：194g approximate
1 x HOTA T8 650W 22A XT60 1-8S Intelligent Charger Checker
