Culvert model: S-EDF90mm
Motor model: 35601550KV external converter
Total weight of power: about 320g

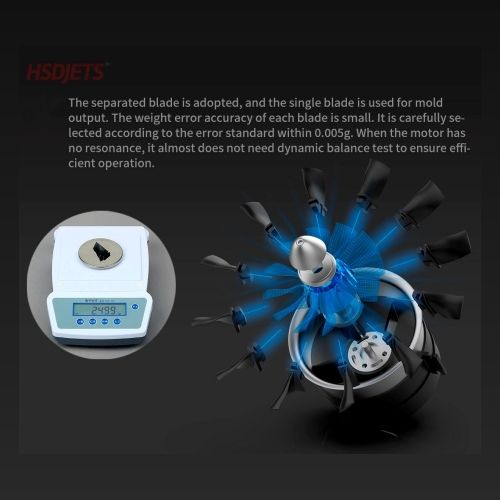

Number of fan blades: 12 blades
Fan blade type: vortex blade type
Plug model: Banana 4.0

Motor installation parameters
Motor shaft: 6mm
Motor shaft length: 15mm
Installation hole spacing: 25mm
Installation aperture: M4

Testing standards
Test battery: 6S, 5200mAh, 60C, lithium battery (fully charged)
Suggested battery: 6S, 5200mAh, 60C test current 95A
Suggested electric adjustment: 100A
Maximum thrust: 3.7kg
