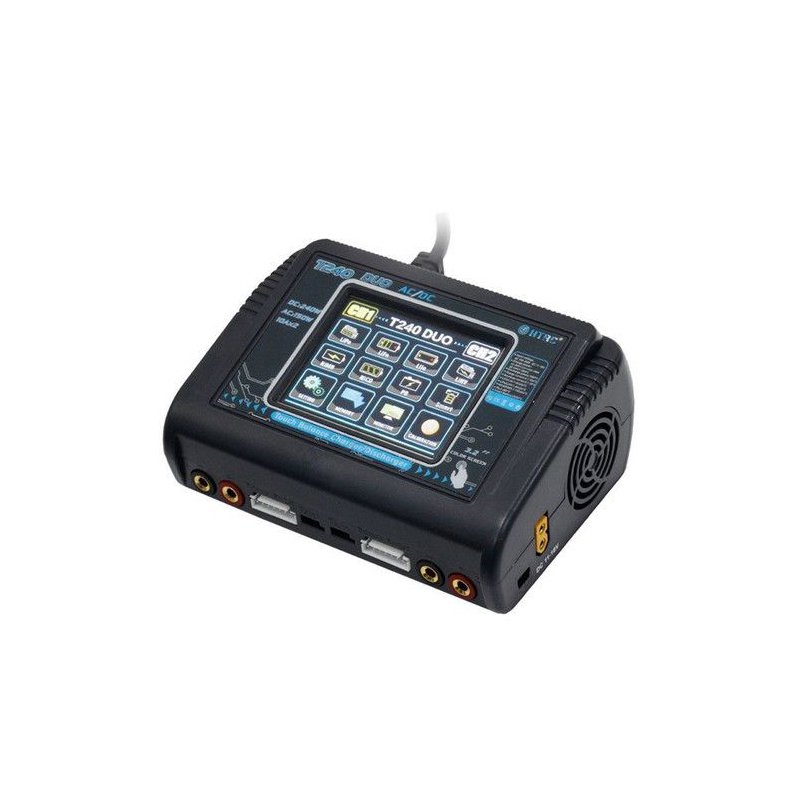

HTRC T240 DUO AC 150W DC 240W Touch Screen Dual Channel Balance Discharger For RC Models Toys Lipo Battery

SKU HR-T240 Category Tags , Brand:

HTRC T240 DUO AC 150W DC 240W Touch Screen Dual Channel Balance Discharger For RC Models Toys Lipo Battery

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

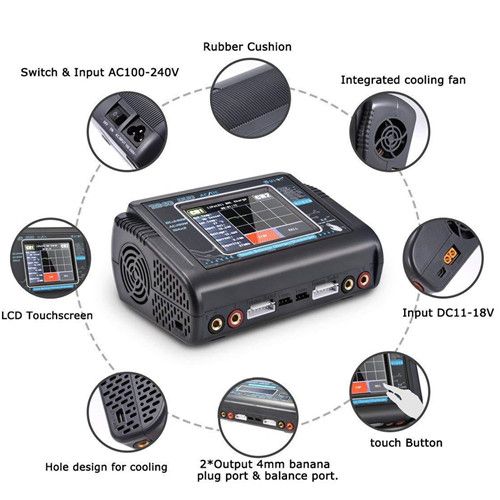

*Full plastic shell, safe, compact, beautiful.
*Twin-channel,charge two different kinds of batteries simultaneously.
*high power,single port max 150W.support power distribution.

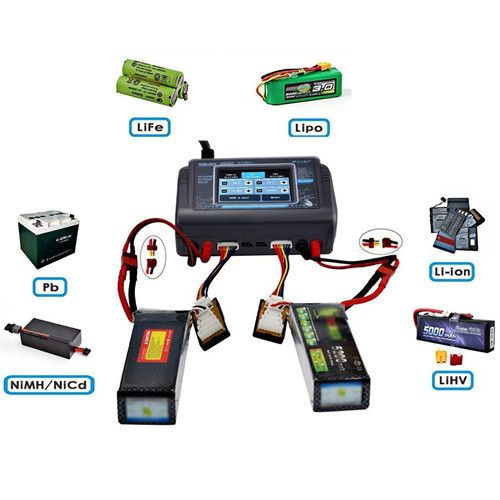

*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Li-Po batteries cells counts
*Adjustable digital DC Power.
*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.

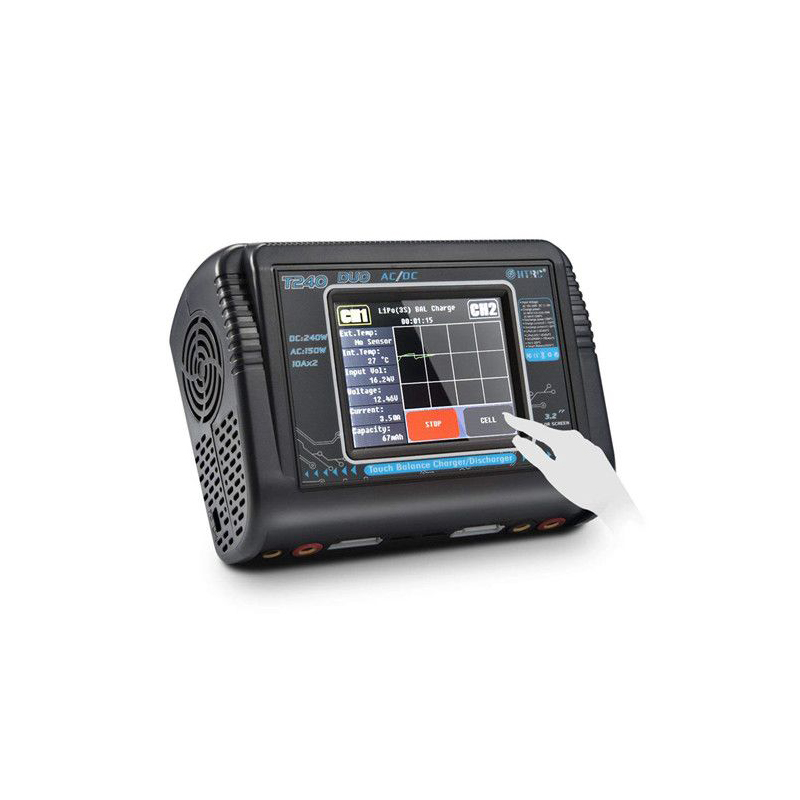

*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-function:
-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell’s  voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Calibration: cell voltage monitoring and calibration.
-Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
*Data storage and loading
*Maximum Safety:Automatic charge current limit,capacity limit, processing time limit,temperature threshold.
*Firmware update.

Model No.:HT-0099
Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power:Max 10W*2
Charge current: 0.1-10A *2
Discharge current: 0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
NiCd/NiMH battery cell count:1-15cells*2
PB Battery voltage:2-20V*2
Smart battery:I/II/III*2
Current drain for balancing:500mA/cell
Net Weight:0.48kg

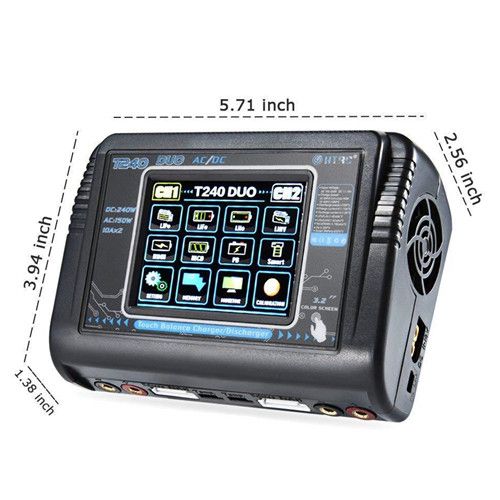

Dimension:145*105*64mm
Gross weight:0.85kg
Package size:215*155*75mm

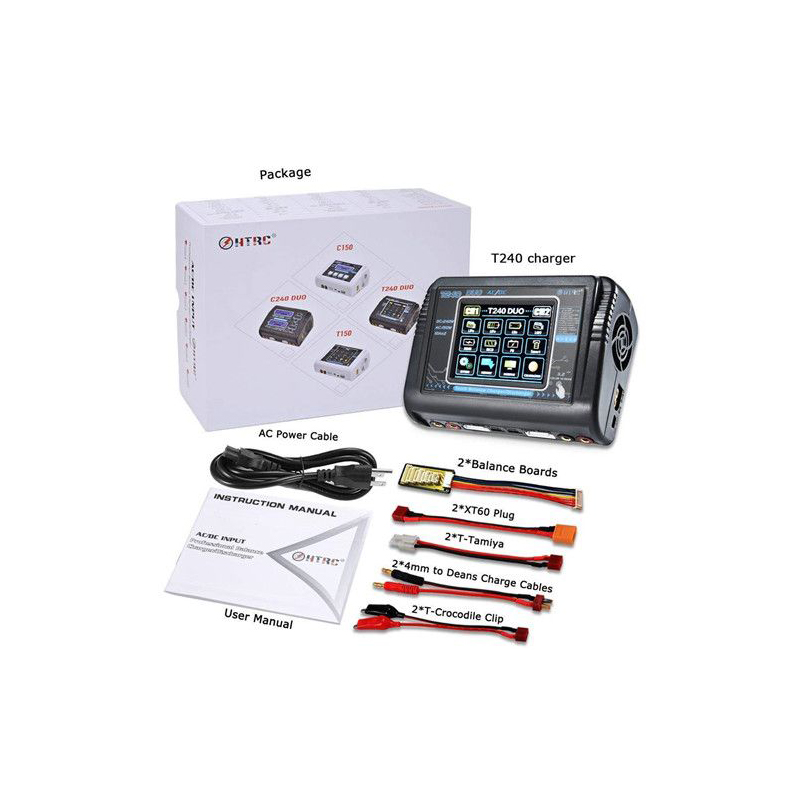

T240 charger x 1
Charge cable banana plug to T-Plug x 2
Extension charge cable T-Plug to XT60 x 2
balance board with pin cord x 2
AC Cord x 1
DC Cord x 1
Manual x 1
