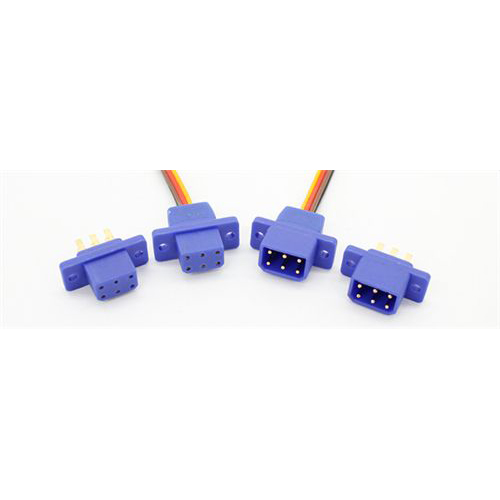

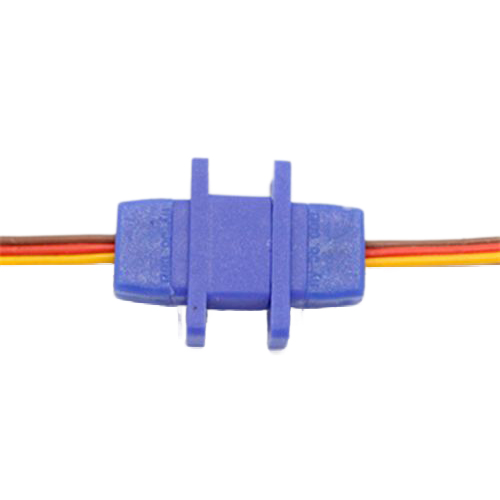

Huayue Factory DB Connector JY-6P Plug High-current Gold-plated Male and Female Pin Terminal Connectors
Huayue Factory DB Connector JY-6P Plug High-current Gold-plated Male and Female Pin Terminal Connectors
Huayue Factory DB Connector JY-6P Plug High-current Gold-plated Male and Female Pin Terminal Connectors
Product Model: JY-6P
Product Color: Blue
Metal Material: Brass Gold Plated
Insulating Material: PA
Instantaneous Current: 7A
Rated Current: 5A
Rated Voltage: DC500V
Contact Resistance: 0.3mΩ
Operating Temperature: -20°C to 120°C
Flame Retardant Level: UL94V0
Recommended Usage Times: 1000 times
Recommended Wire Gauge: 20AWG
1 × JY-6P female plug
