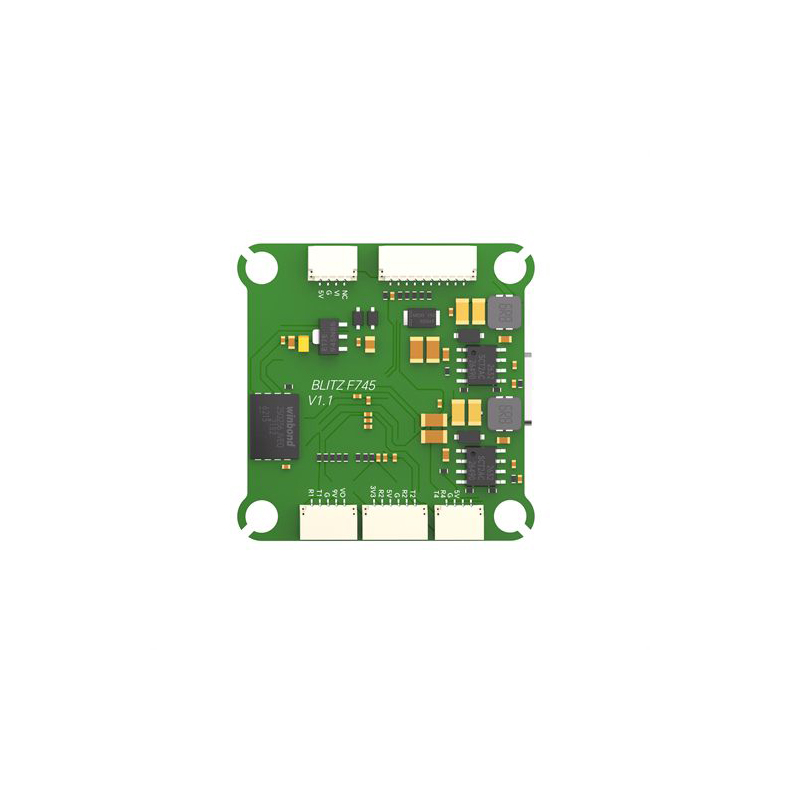

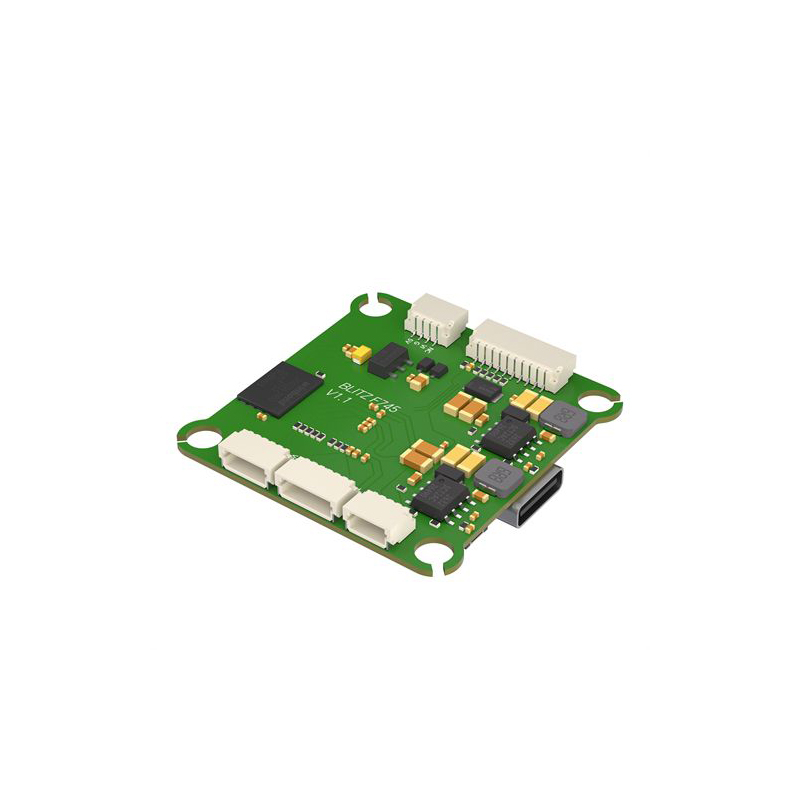

iFlight BLITZ F745 STM32F745 Flight Controller with Betaflight Ardupilot firmware for FPV Racing Freestyle Drone Accessories
iFlight BLITZ F745 STM32F745 Flight Controller with Betaflight Ardupilot firmware for FPV Racing Freestyle Drone Accessories
*Improved circuit design, better components and lower electrical noise!
*DJI HD VTX Connector (Plug-and-Play / No soldering required)
*Support Betaflight, INAV, Ardupilot firmware
*FC indicator LEDs for visual debugging
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
Output 9V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: arduplane_with_bl
1 x BLITZ F745 Flight Controller
