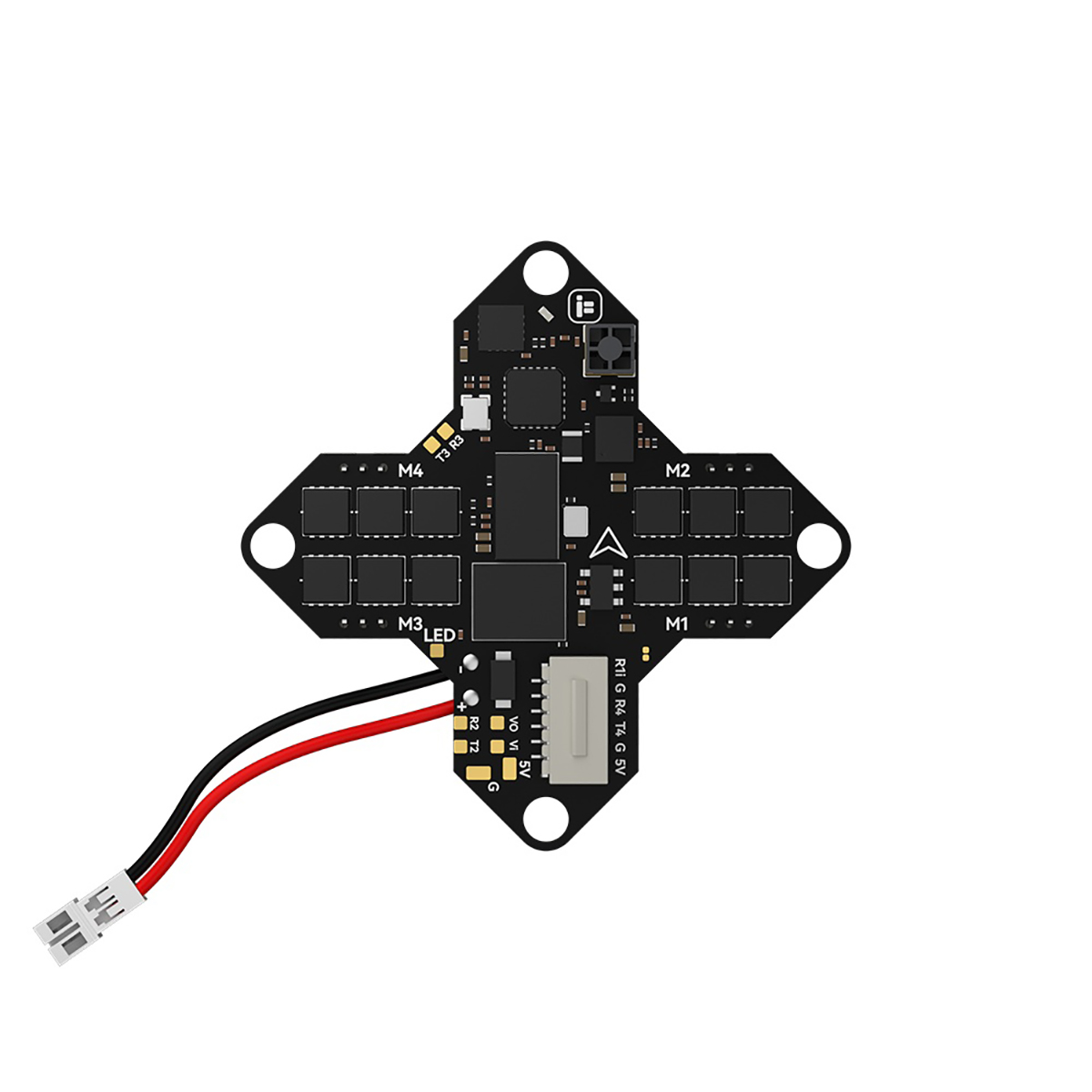

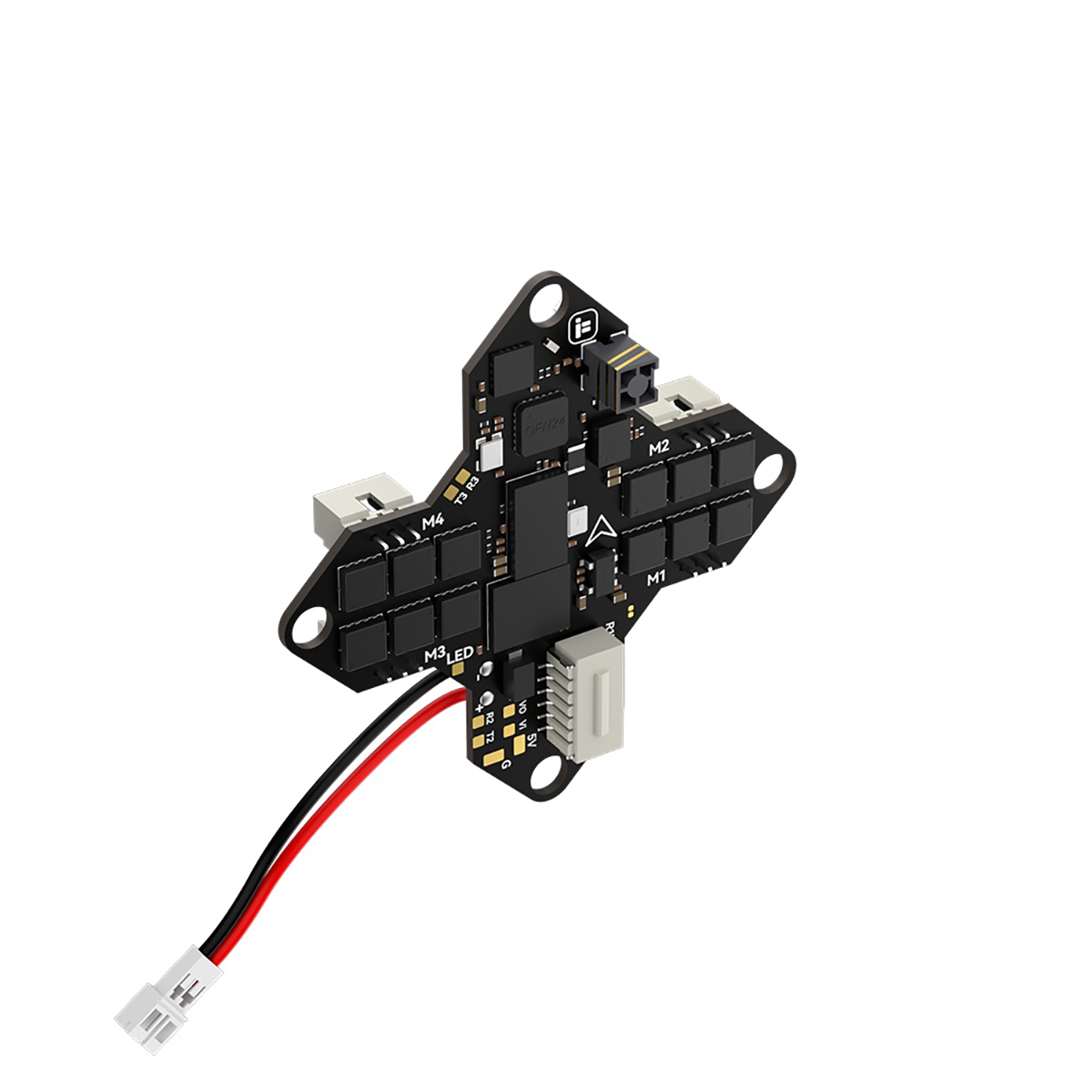

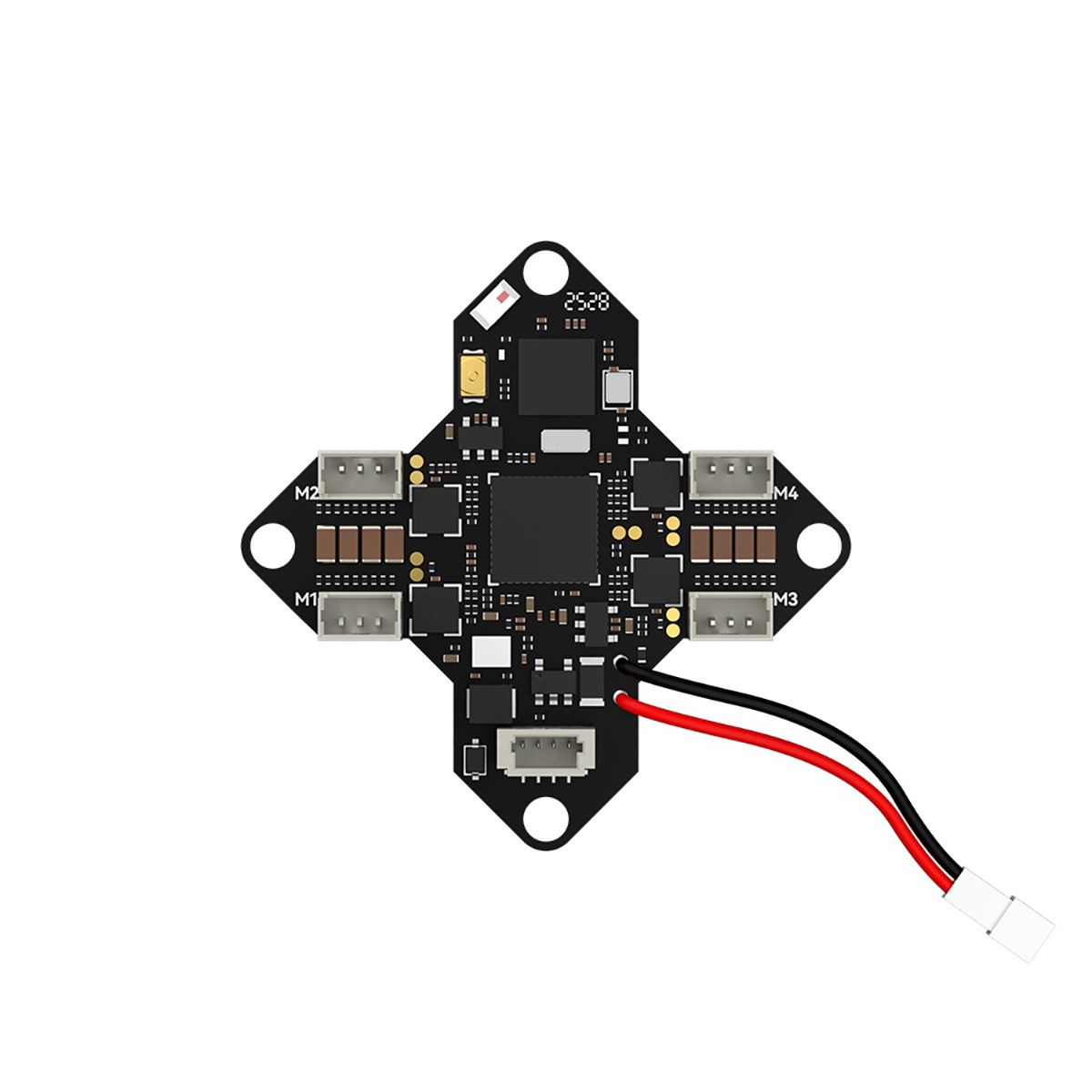

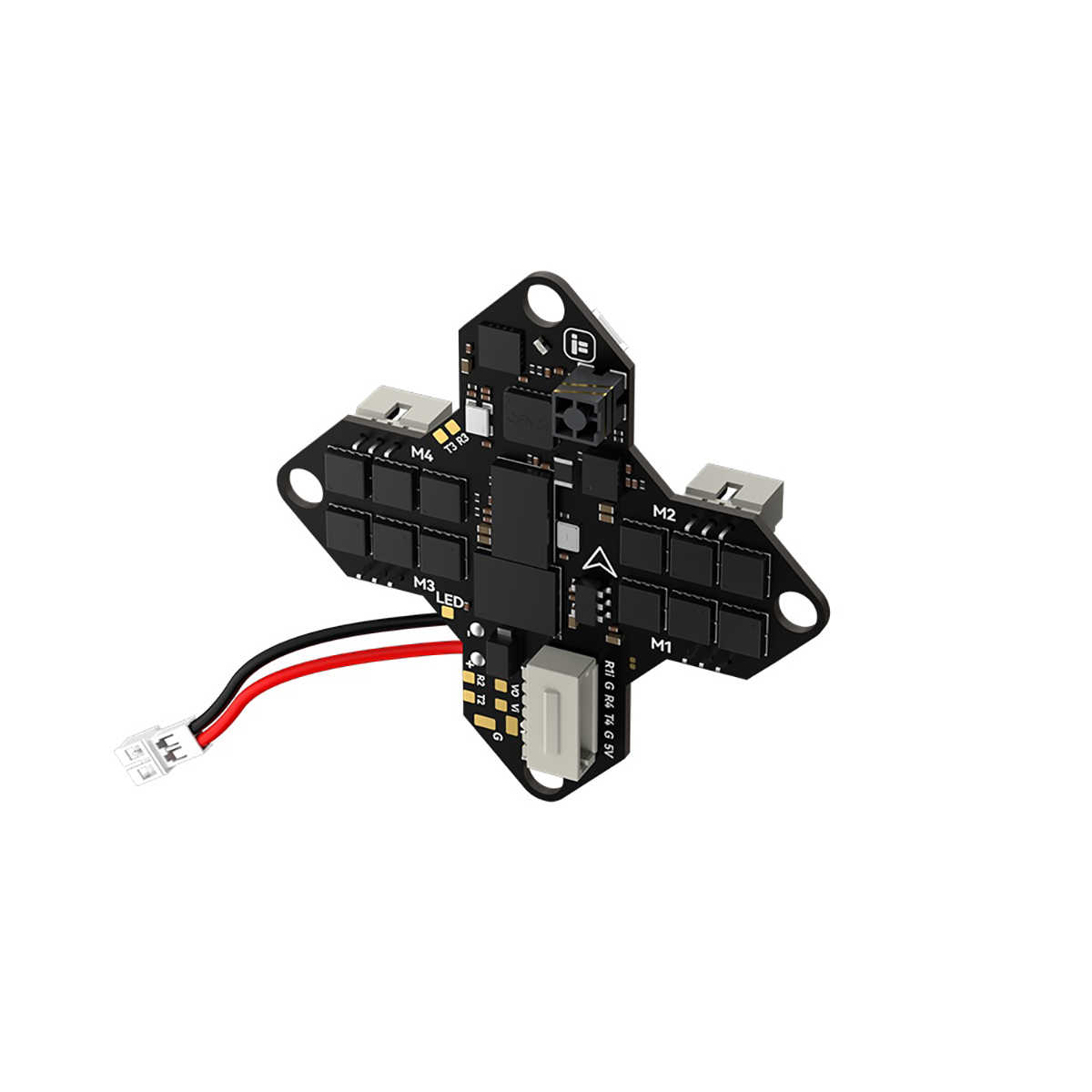

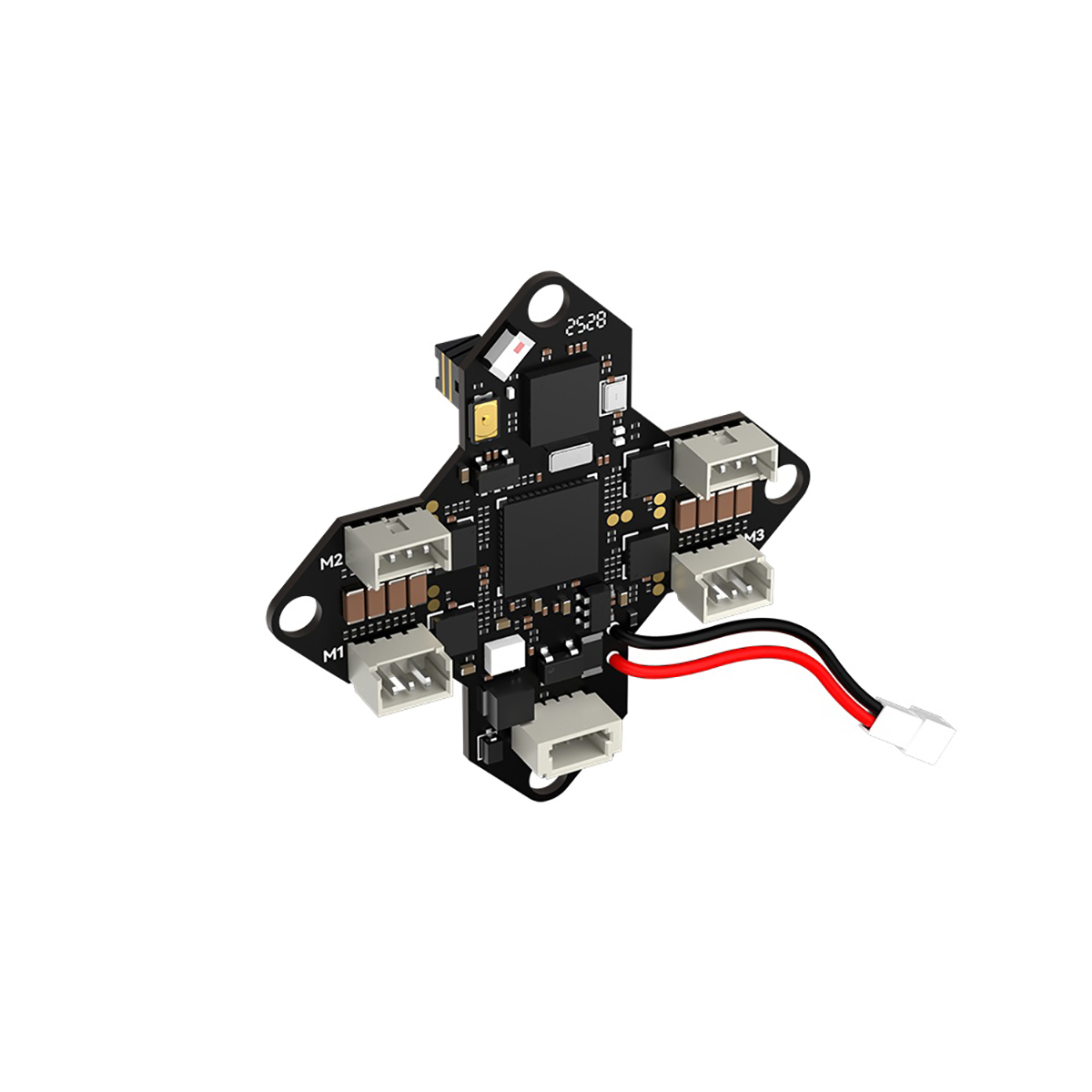

IFlight Borg G4 AIO (RX) Flight Controller ESC AIO All-in-one Integrated for 65-75mm FPV Drone

SKU BORG-G4-AIO Category Tag Brand:



IFlight Borg G4 AIO (RX) Flight Controller ESC AIO All-in-one Integrated for 65-75mm FPV Drone

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

The Borg G4 1S AIO is a cutting-edge solution designed for 65-75mm Whoop FPV Drones, featuring an onboard ELRS 2.4GHz receiver to boost functionality right out of the box. It’s designed to redefine performance and convenience in small-scale FPV flying.​
Features
Superior Integrated Design​
A compact all-in-one unit combining flight controller, ESC, and ELRS 2.4G receiver, precisely optimized for 65-75mm drones. Reduces bulk, streamlines builds, and minimizes setup hassle.​
Remarkable Performance Boost​
Powered by the STM32G473 chip, delivering 55% more computing power than the STM32F411. Ensures smoother flights, faster response, and pinpoint control in every maneuver.​
Smart Versatility​
Switchable between onboard and external receivers. Supports both analog and HD video transmission, adapting to diverse pilot preferences and setups.

FC Specifications
Input voltage: 1S; Support LIHV battery
MCU: STM32G473
Gyro: ICM42688
Barometer: N/A
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 4
Motor outputs: 4
I2C serial: Not supported
VTX protocol: Support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: N/A
FC Firmware target: IFLIGHT_BORG_G4_AIO (Betaflight)
Receiver Firmware: iFlight 2.4GHz RX (3.3.0)
Mount pattern: 25.5*25.5mm φ3
Dimensions: 30*30mm±1
Weight: 4g±0.5g
BEC: 5V 3A

ESC Specifications
Input Voltage: 1S; Support LIHV battery
Continuous Current: 12A
MCU: EFM8BB51F16
Driver: N/A
Target: C-X-5 – Bluejay, 0.19, 96kHz
Current rate: 480 (1/10mV/A)
BEC: N/A
Telemetry: Not supported
Bidirectional DSHOT: Supported
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Borg G4 AIO with Rx x1
Cable set x1
silicon grommets x4
