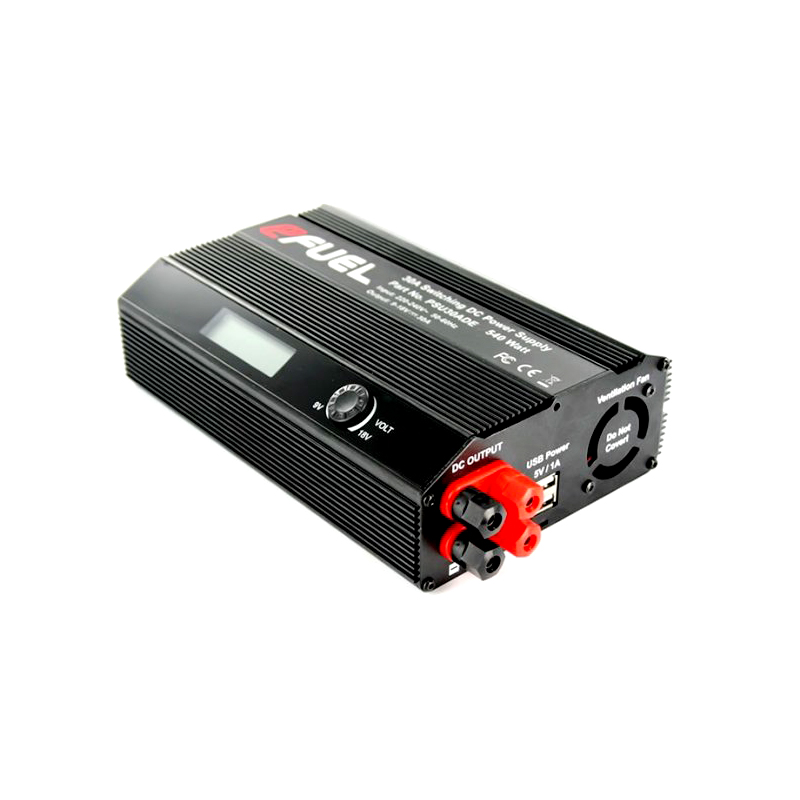

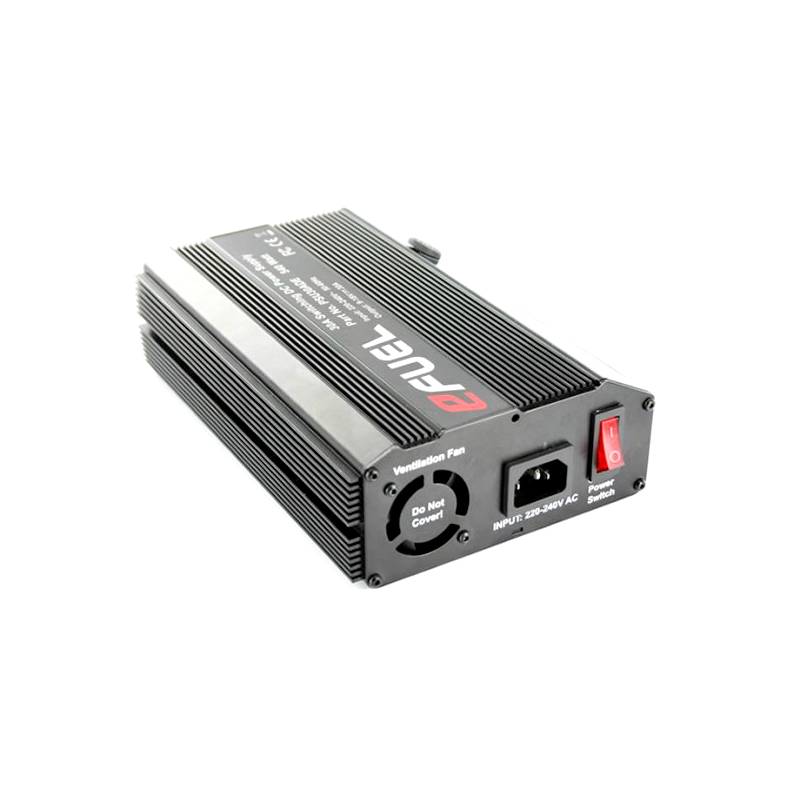

Imax 30A Switching DC Power Supply(220V AC)(PSU20ADE)
-Your eFUEL switching DC Power Supply is designed to use household AC power source to power
equipments that required DC power. The eFUEL converts standard household power 110-120V AC
or 200-240V AC to 9-18V DC power and can supply up to 30 amperes of continuous power.
If you are R/C hobbyist, technician or electronic hobbyist, you will appreciate the many uses for the power supply at your workbench or in your house. For example, power your battery chargers, checking the operation of auto sound systems before you install them into your vehicle, use your CB mobile transceiver as a base station. To top it all off, you can even power your mobile phone, digital camera or even your iPhone via the USB port.
-Voltage:110V AC (Part No.PSU30ADU,PSU30AU)
-220V AC (Part No.PSU30ADE,PSU30AE)
-Input AC Frequency:50Hz/60Hz
-Output Voltage:9-18V DC±0.5V
-Output Curren:30A±1A
-Current Overload Protection≤31A 500MS
-Input Fuse:110V AC 10A Fuse
-220V AC 5A Fuse
-LCD Display:Voltage Precision ±0.3V
-Current Precision ±0.5A
-Output Voltage Ripple:<100MV
-Power Efficiency>80%
-Power Factor>0.7
-Over Temperature Protection<100℃
-Cooling Method:Cooling Fan
-Operating Temperature:0-40℃
-Operating Humidity:0-90%
-Dimensions (L*W*H):208x139x59.5mm
-Net weight:1.50kg
-Imax 30A Switching DC Power Supply(220V AC)(PSU20ADE)
