Standard Discharge Capacity
Min : 4,000mAh
– Charge: 0.5C (2A), 4.20V, 0.05C(200mA) cut-off
– Discharge: 0.2C (800mA), 2.5V cut-off

Rated discharge capacity
Min. 3,900mAh
– Charge: 1.5C(6A), 4.20V, CCCV, 0.025C(100mA) cut-off
– Discharge: 10A , 2.5V cut-off

Nominal Voltage：3.6V
Standard Charge：CCCV, 2A, 4.2V, 200mA cut-off
Rated Charge：CCCV, 6A, 4.2V, 100mA cut-off

Charging Time
Standard charge : 180min / 200mA cut-off
Rapid charge: 70min / 100mA cut-off

Max. Continuous Discharge(Surface temperature)：35A(without temperature cut)；45A(with 80℃ temperature cut)
Discharge End-off Voltage：2.5V (End of Discharge)
Cell Weight：70.0g max.
Cycle Life
Capacity≥2,400mAh after 250 cycles
(60% of the standard capacity)
-Charge: 6A, 4.20V, CCCV 100mA cut-off
-Discharge: 35A, 2.5V cut-off

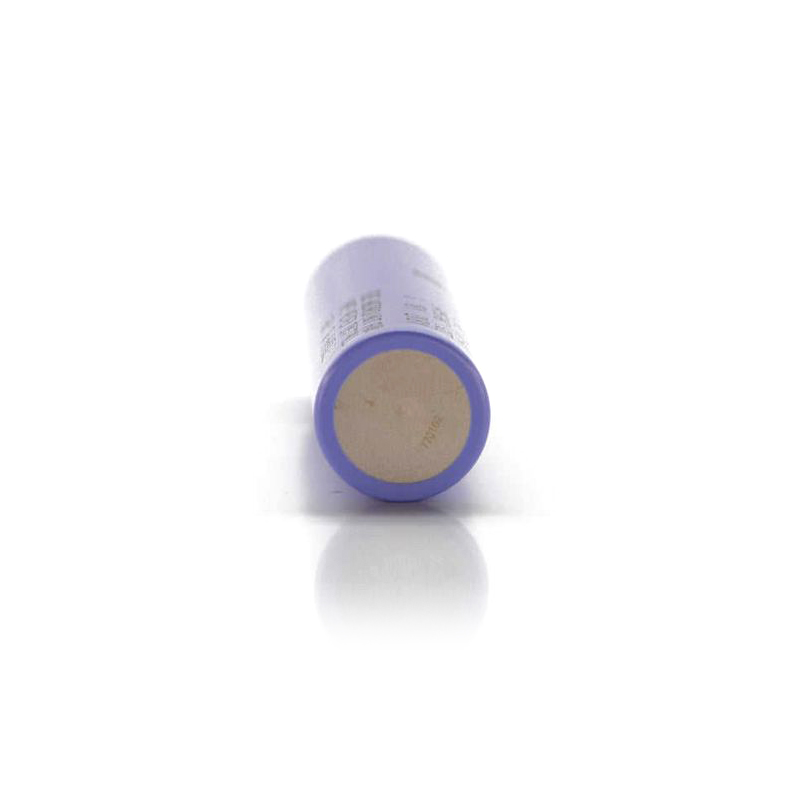

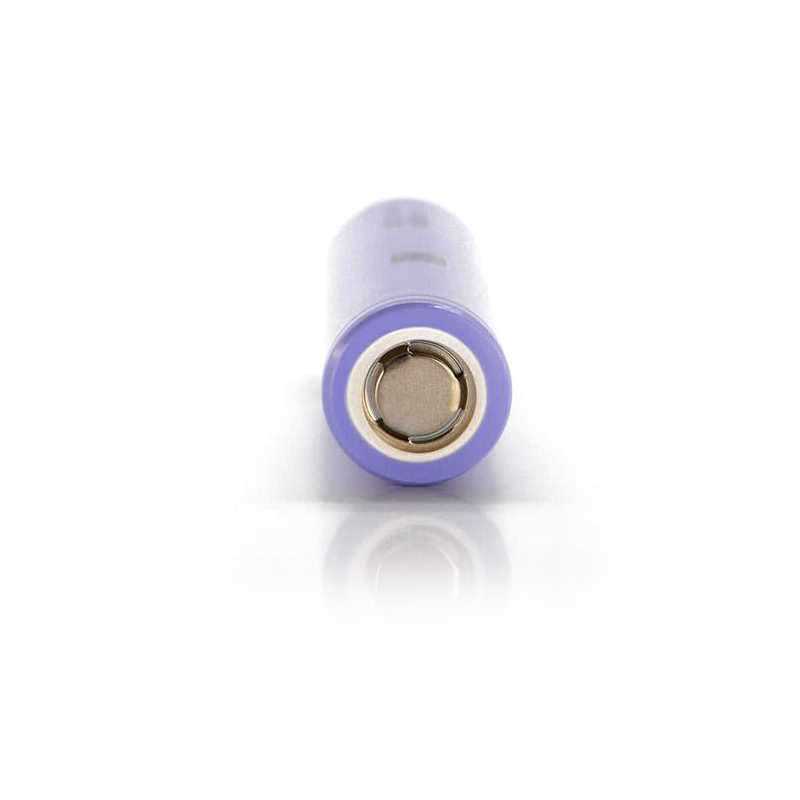

Cell Dimension
Height : Max. 70.30 mm
Diameter : Max. 21.22 mm
Operating Temperature
Charge : 0 to 45℃ (recommended recharge release < 45℃)
Discharge: -20 to 80℃ (recommended re-discharge release < 60℃)
Storage Temperature：1 year  0~25℃；3 months 0~45℃；1 month 0~60℃
