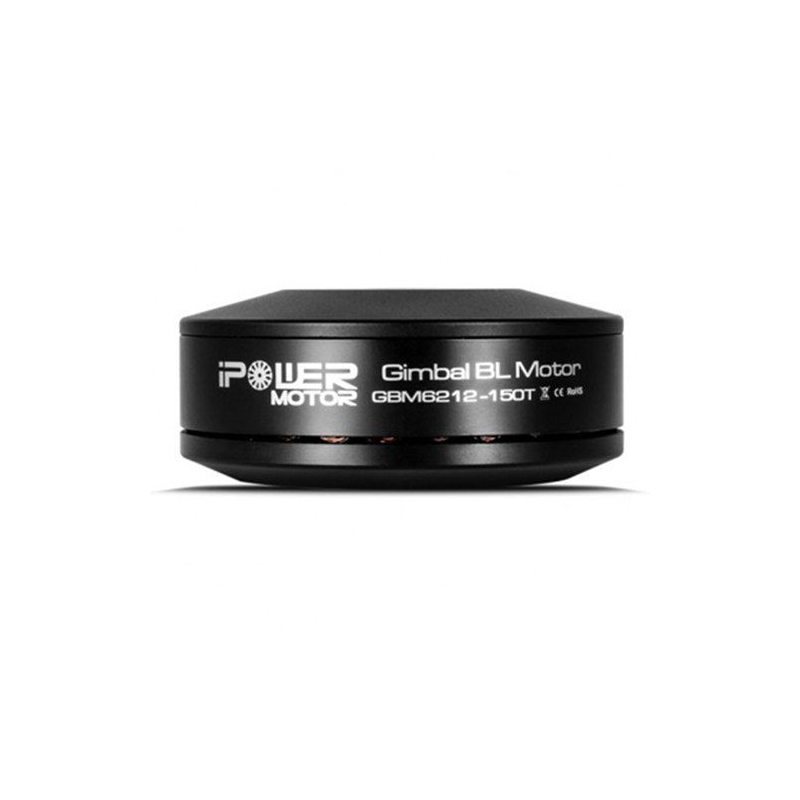

iPower Motor GBM6212H-150T Brushless Gimbal Motor
The GBM62 series motor by iPower Motors are the ultimate brushless gimbal motor for DSLR / CANON 5D MARKII,MARKIII Cameras.This motor is designed for large scale multi-rotor platforms looking to lift Red Epic & DSLR sized gear – 4KG/cm Torque.The principle of the camera stabilization using brushless direct drive motors In fact,gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.
Specs:
| Model NO. | GBM6212H-150T |
| Weight | 247g |
| Motor Dimensions | dia 68mm x hgt 28.8mm |
| Stator Dimensions | dia 62mm x hgt 12mm |
| Copper wire(OD) | 0.21mm |
| Configuration | 24N22P |
| Resistance | 15.2 ohms |
| Base center pitch | 25mm 30mm |
| Pre-wound | with 150 turns,Hollow shaft |
| Hollow Shaft Diameter | 12.7mm |
| Camera range (Torque) | 1200-2800 grams |
| Voltage | 11.1V |
| Current | 0.09A |
| Max Current | 12A |
| Rotational Speed | 212 rpm |
1 x iPower Motor GBM6212H-150T
