ISDT B80 Professional 22S 3000W High Power Smart Battery Charger 80V 40A For 8-22S LiFe, 6-18S Lipo, 6-18S LiHv RC Battery
ISDT B80 Professional 22S 3000W High Power Smart Battery Charger 80V 40A For 8-22S LiFe, 6-18S Lipo, 6-18S LiHv RC Battery

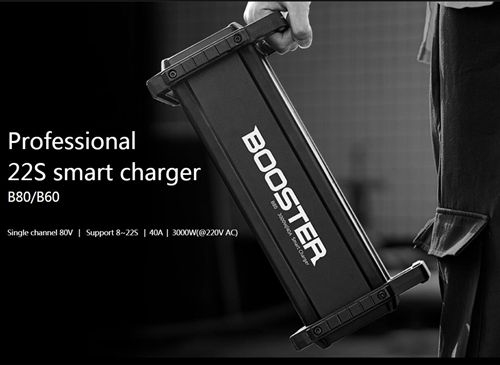

– Professional 22S smart charger，Single channel 80V | Support 8~22S |40A|3000W(@220V AC)
– Combination in one channel of 3000W max output power,80V high voltage and 40A high current，makes B80 the strong performance.

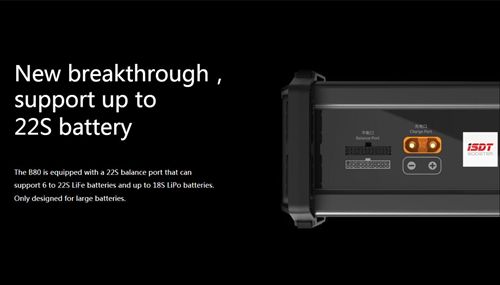

– The B80 is equipped with a 22S balance port that can，support 6 to 22S LiFe batteries and up to 18S LiPo batteries.Only designed for large batteries.

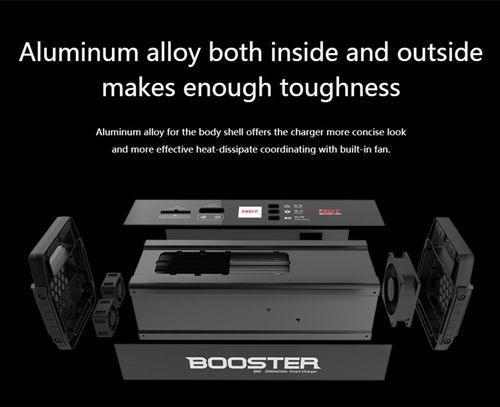

– Aluminum alloy for the body shell offers the charger more concise look and more effective heat-dissipate coordinating with built-in fan.
Model: B80
Input voltage range: AC 100~240V
Output voltage range: DC 20~80V
Maximum input current: AC 16A
Maximum charging power: 3000W (@220V AC)
1500W (@110V AC
1400W (@100V AC
Maximum discharge power: 200W
Supported battery types and cell count: LiFe (8~22S), LiPo (6~18S), LiHv (6~18S), ULiHv (6~18S)
Charging current: 1.0~40.0A (Max)
Discharging current: 0.5~5.0A (Max)
Balance current: 2A/Cell Max
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
BattAir: Support
Working temperature: 0~40℃
Storage temperature: -20~60℃
Dimension: 356 × 136.8 × 164.1 mm
Weight: About 3973g
ISDT B80 Charger x1
