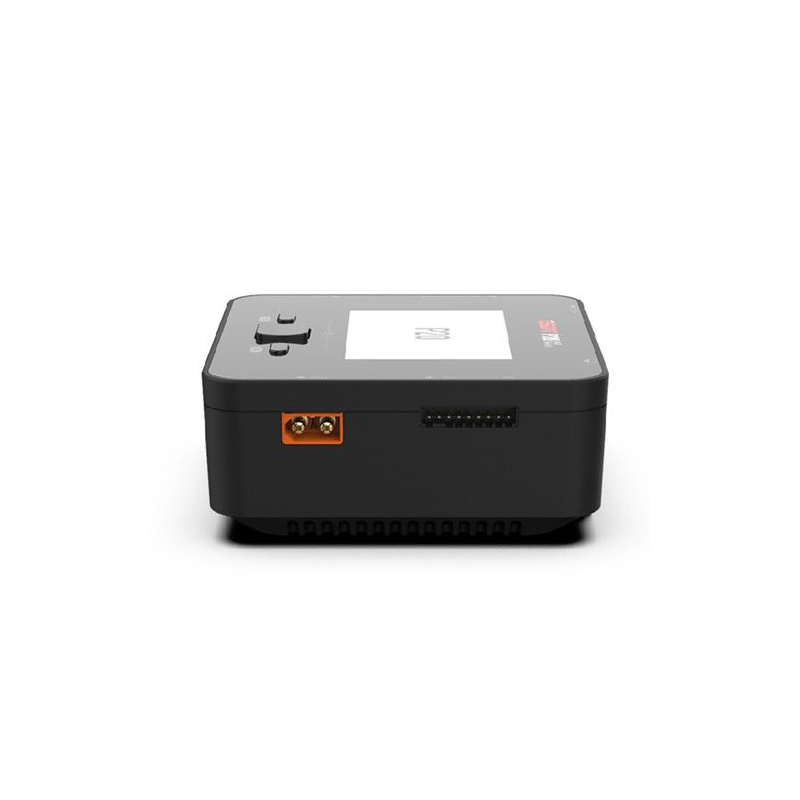

ISDT P20 500WX2 20Ax2 DC Dual Channel Smart Battery Balance Charger for LiPo LiHV 1-8S Lipo Battery
ISDT P20 500WX2 20Ax2 DC Dual Channel Smart Battery Balance Charger for LiPo LiHV 1-8S Lipo Battery
High Power Synchronous Dual Channel,
with Smart Charging.
Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 250W (P10) / 500W (P20) for single port.
Choose ISDT, Powered by Innovation.
Input voltage: DC 10~34V
Output voltage: DC 1~34V
Max. input current: 35A
Charging current: 0.2~20.0A x2
Max. charging power: 500W x2
Balance current: 1.5A/Cell Max
Discharging current: 0.2~1.5A x2
Max. discharging power: 15W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, LiIon, LiPo 1-8S ;
LiHv 1-7S ;
Pb 1-12S ; NiMH/Cd 1-16S
Parallel charging power and current: 800W/35A
Parallel discharge power and current: 30W/3A
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 105x105x47mm
Weight: About 350g
ISDT P20 Charger x 1
