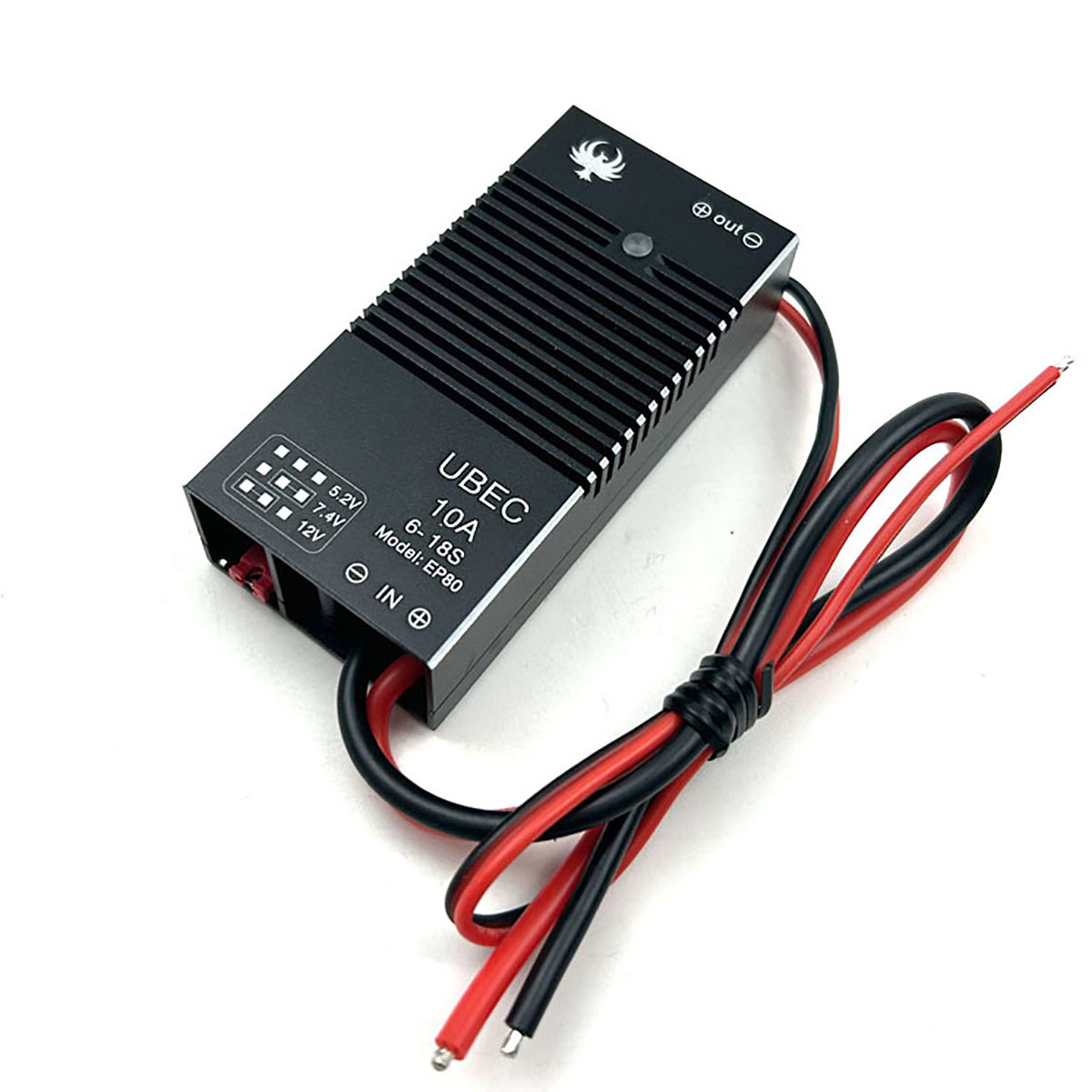

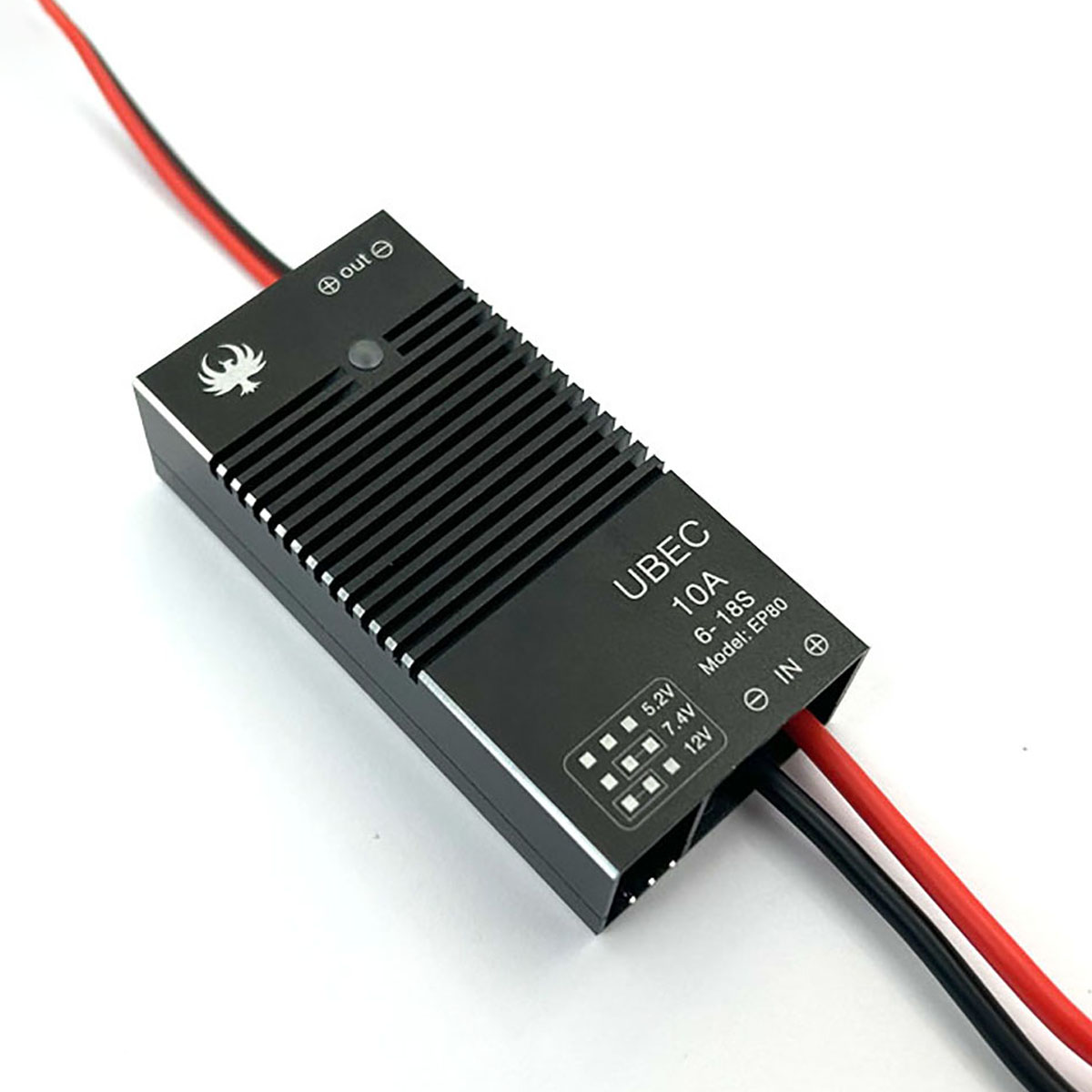

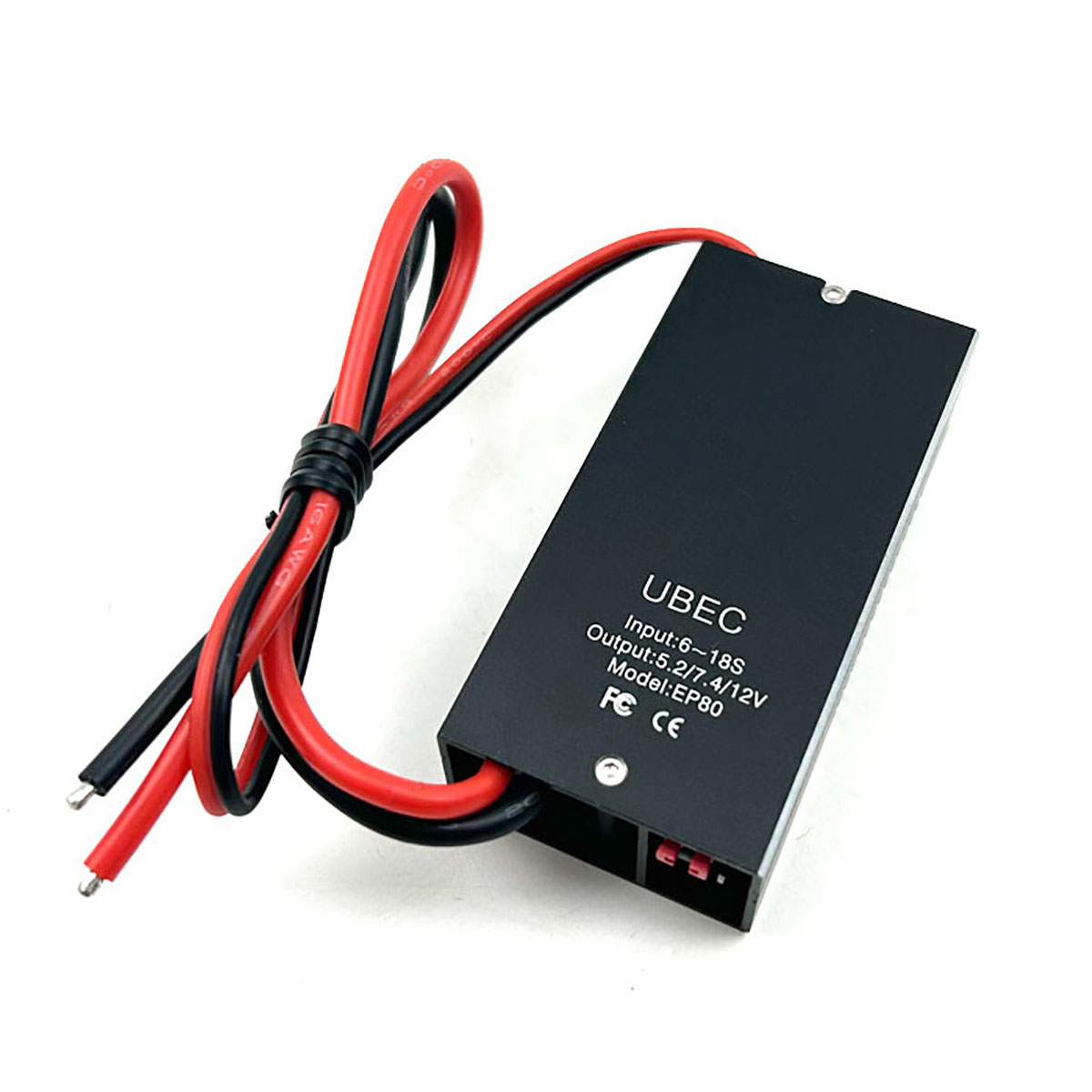

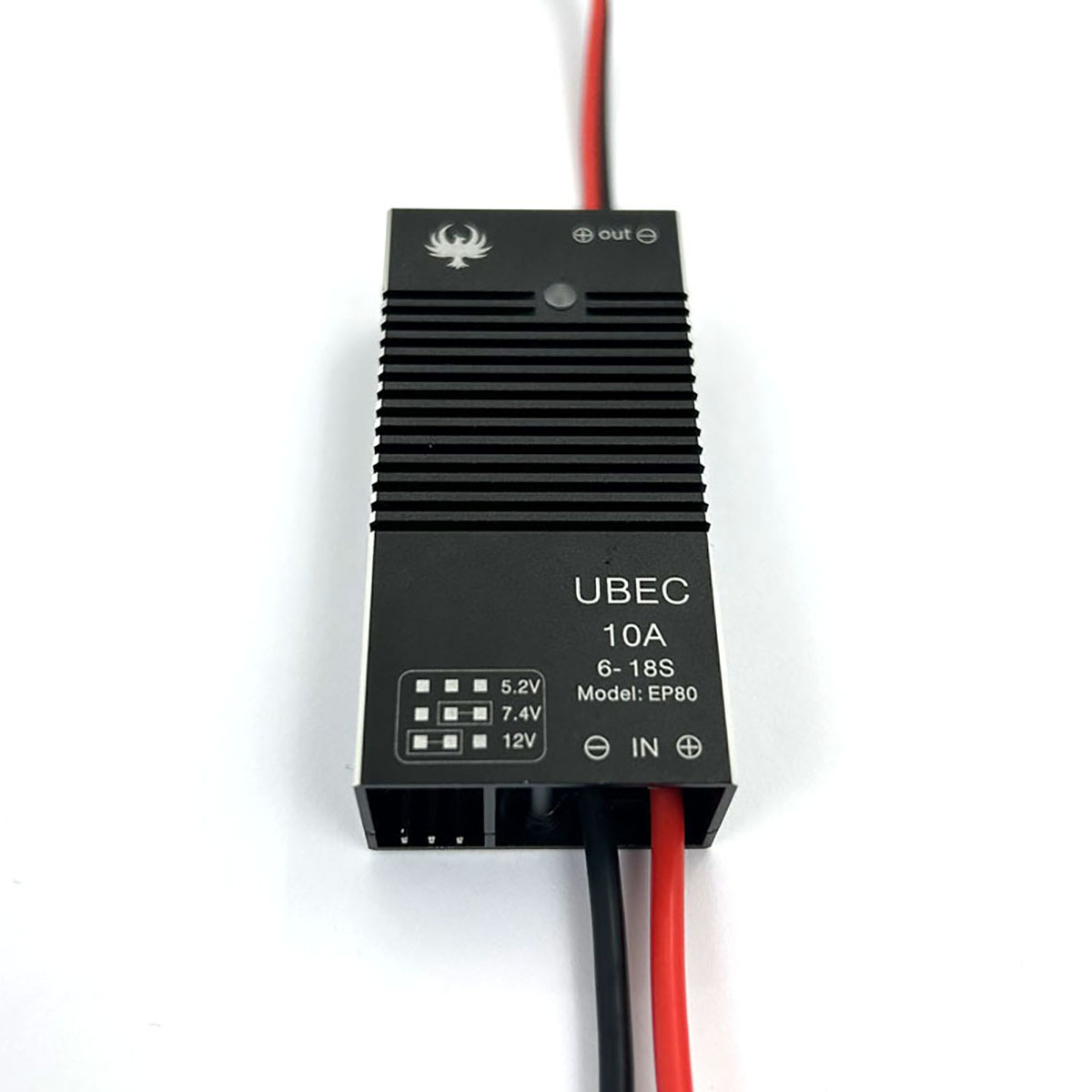

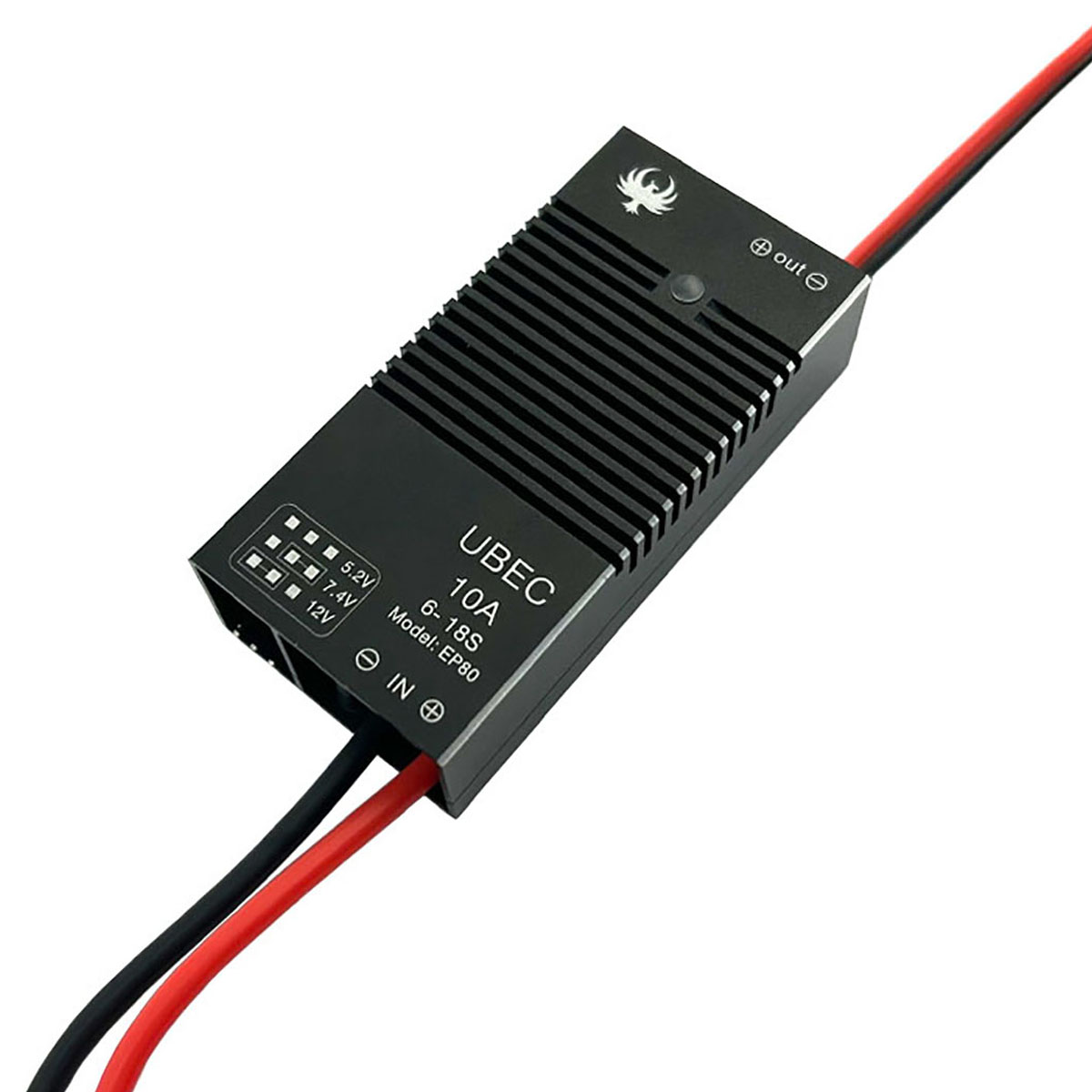

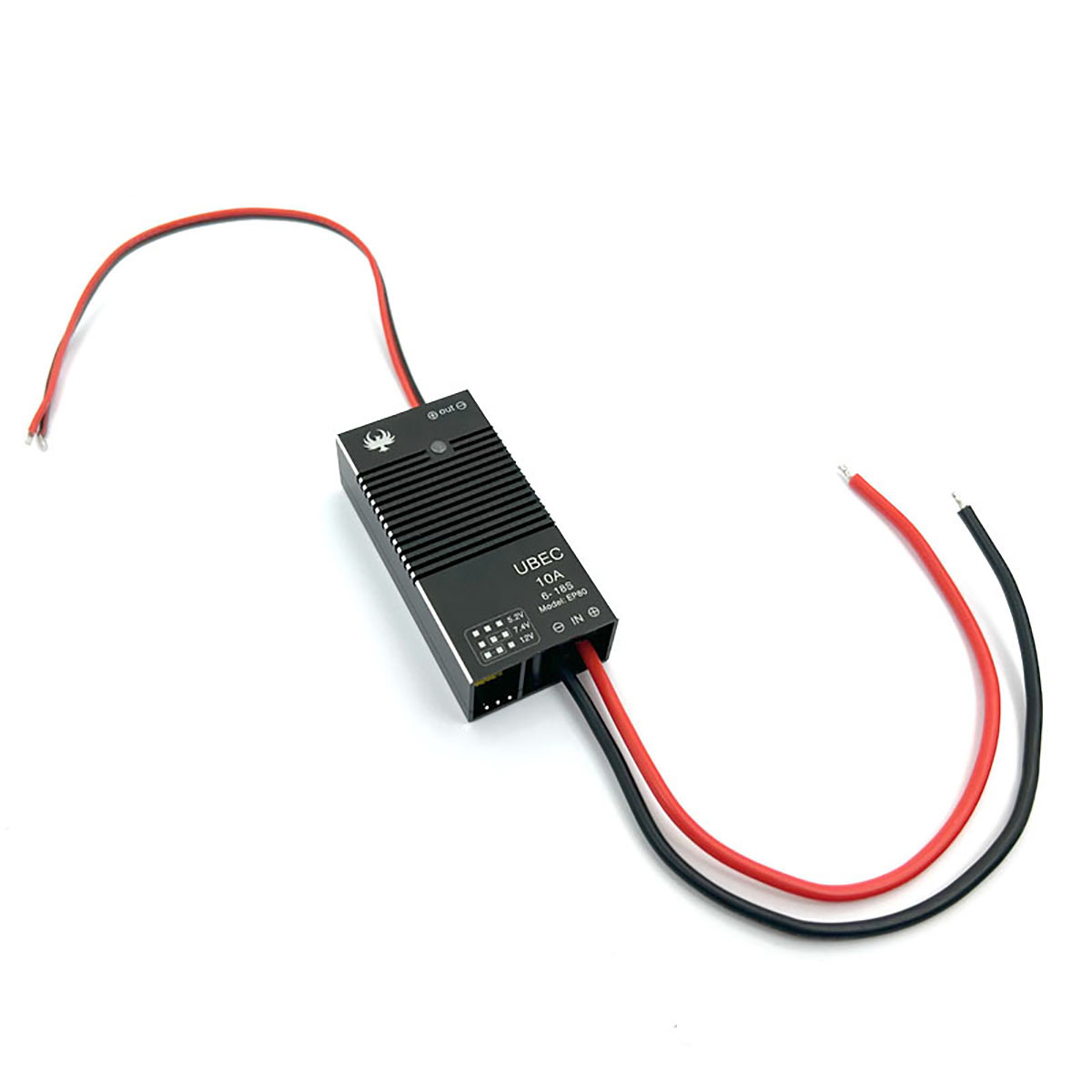

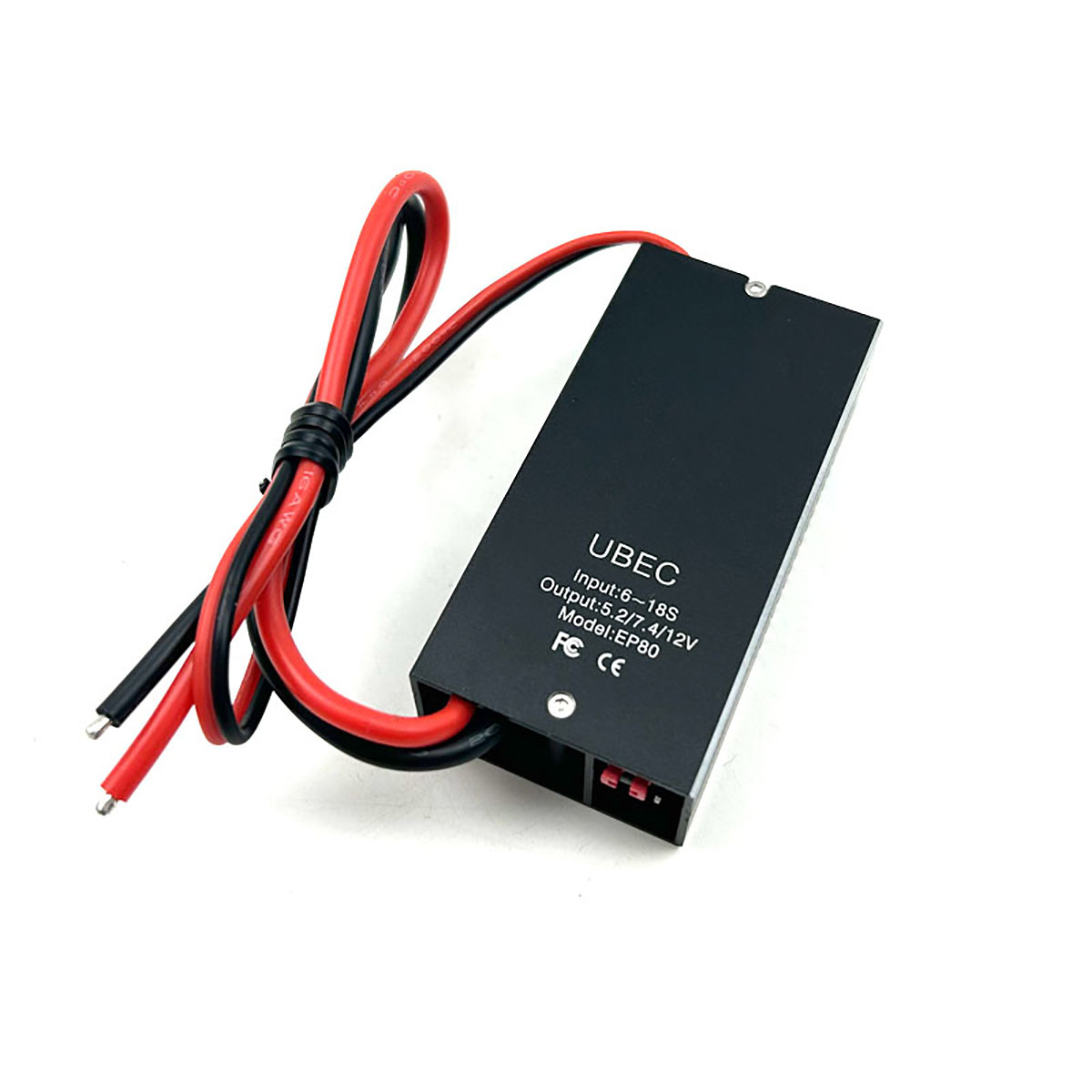

JMRRC EP80 UBEC 6-18S High Voltage 10A Voltage Regulator Module for RC Car Airplane Robot Drone
JMRRC EP80 UBEC 6-18S High Voltage 10A Voltage Regulator Module for RC Car Airplane Robot Drone
Using high performance heat dissipation MOSFET, with heat sink make it working more reliable.

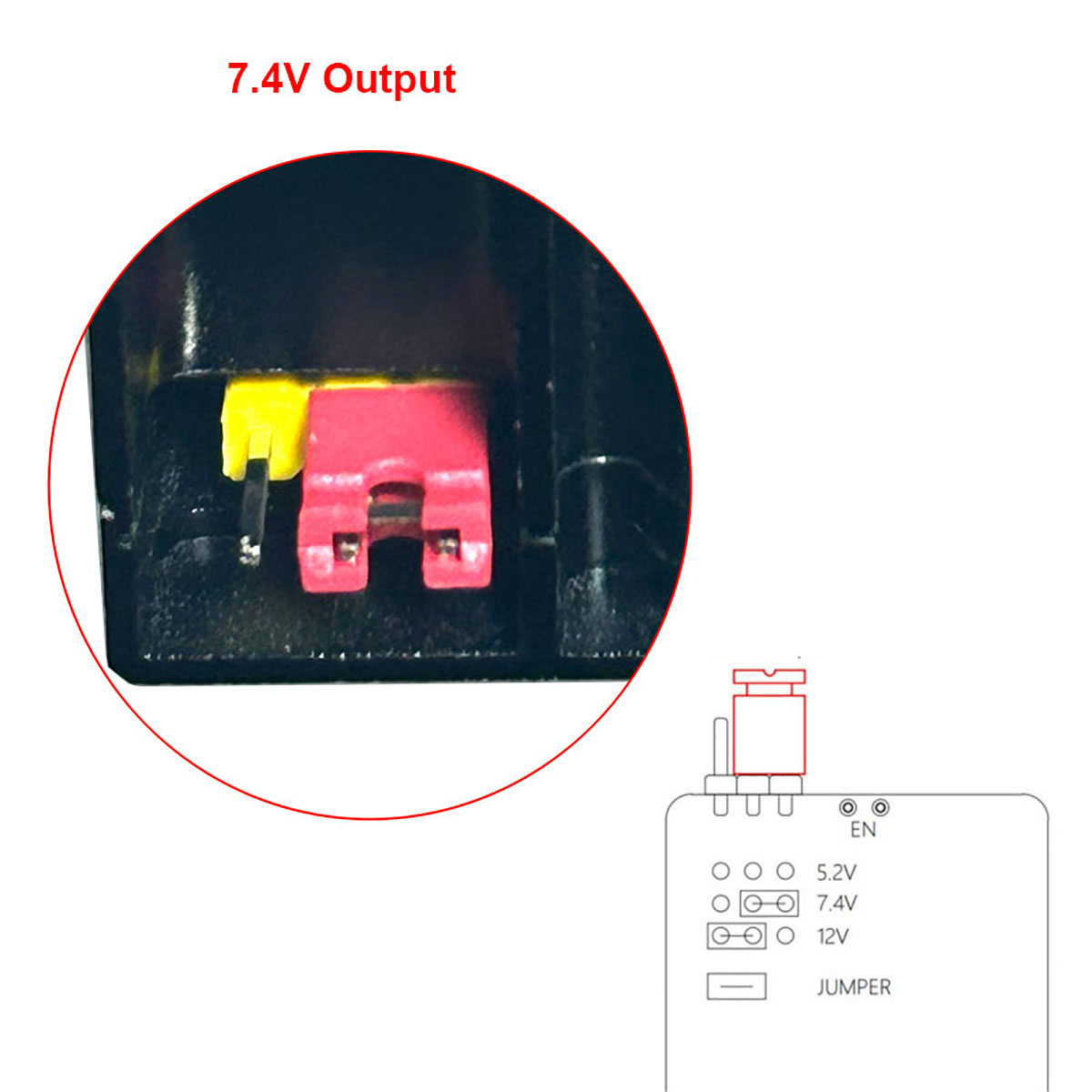

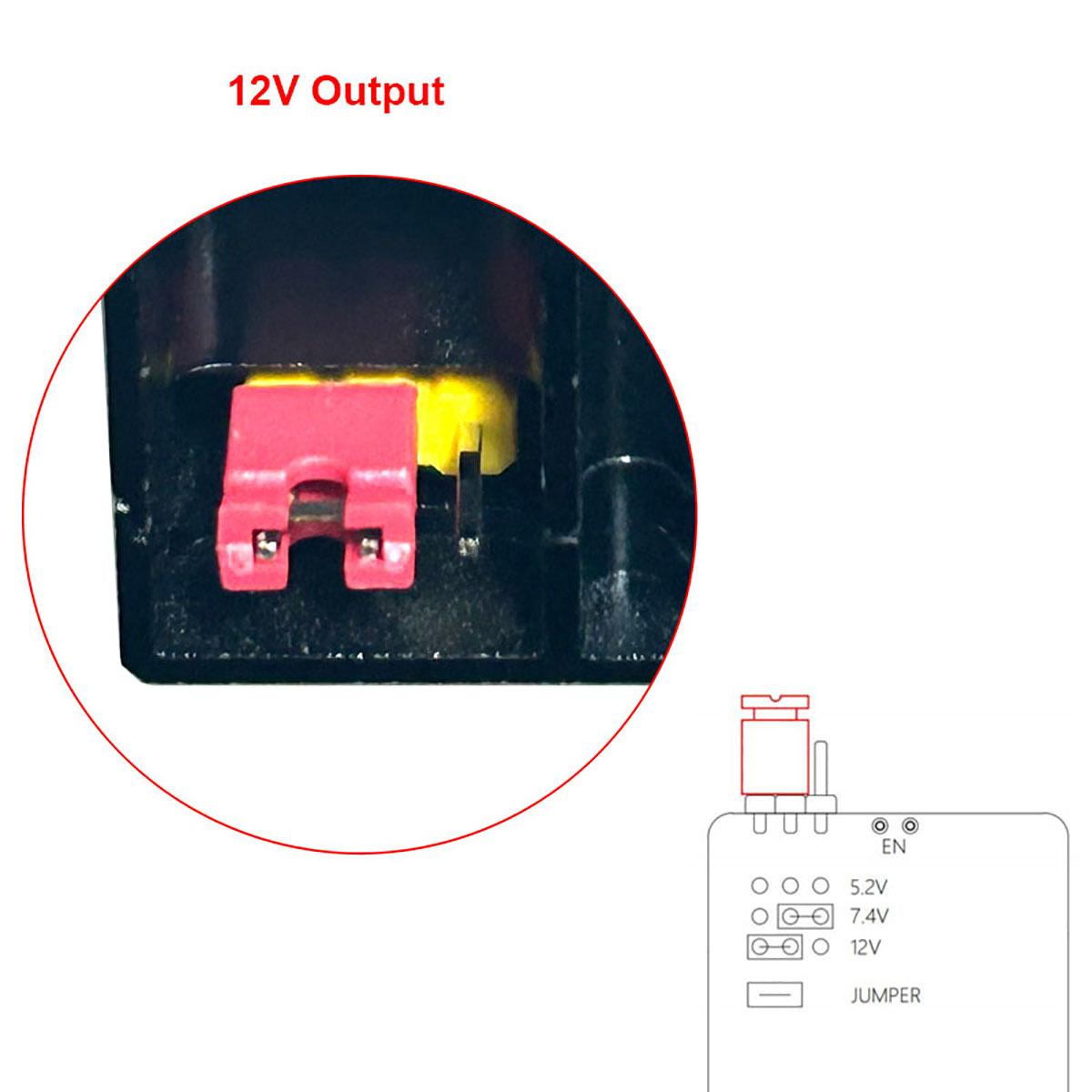

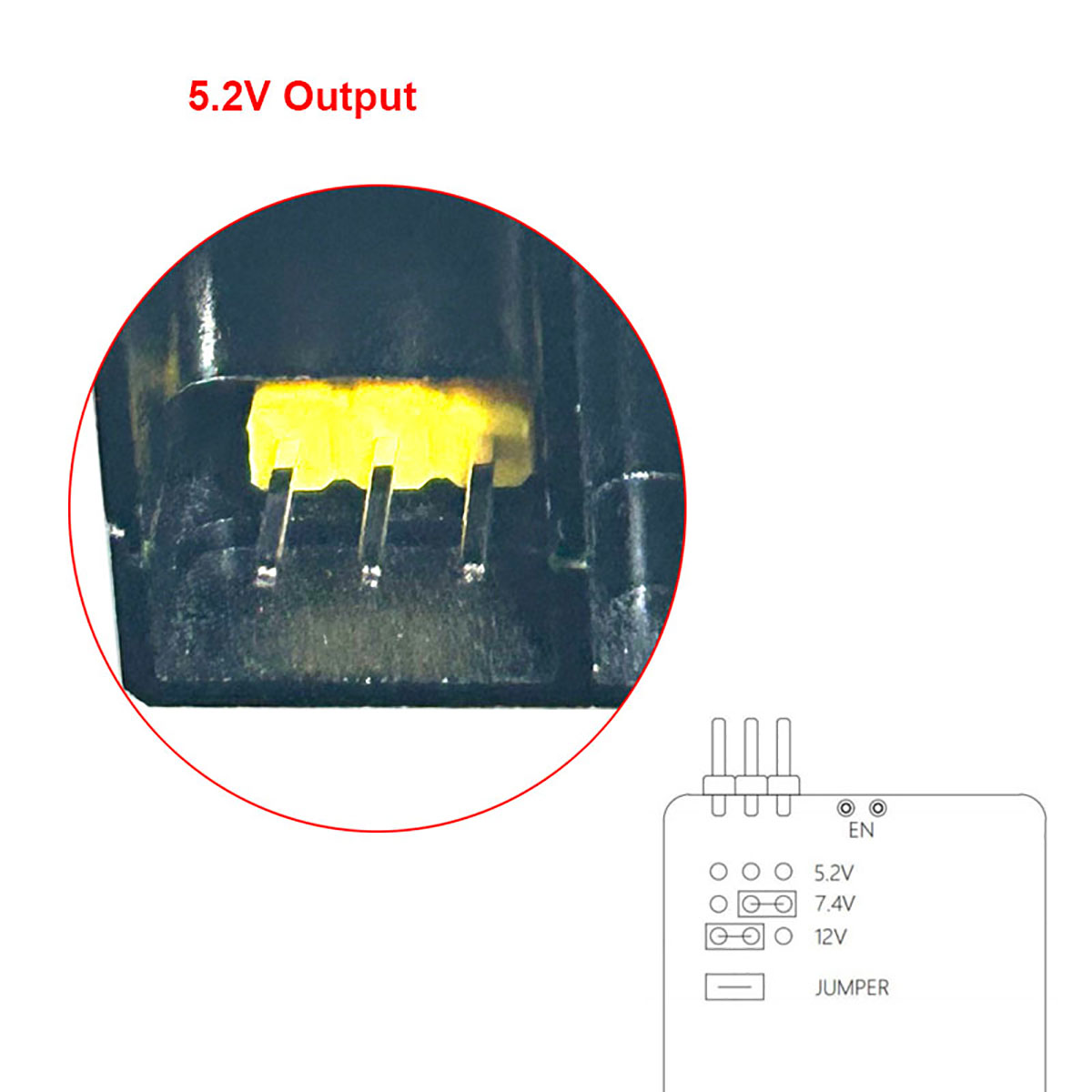

3 types of output optional with jumper. (5.2V/7.4V/12V)， you can adjust the output voltage which you need.
Cont.10A@5V . Peak Current is 13A
With small electric interference.
Input polarity reversed protection, peak voltage protection.
Model: EP80 UBEC
Working voltage: 6-18S Lipo

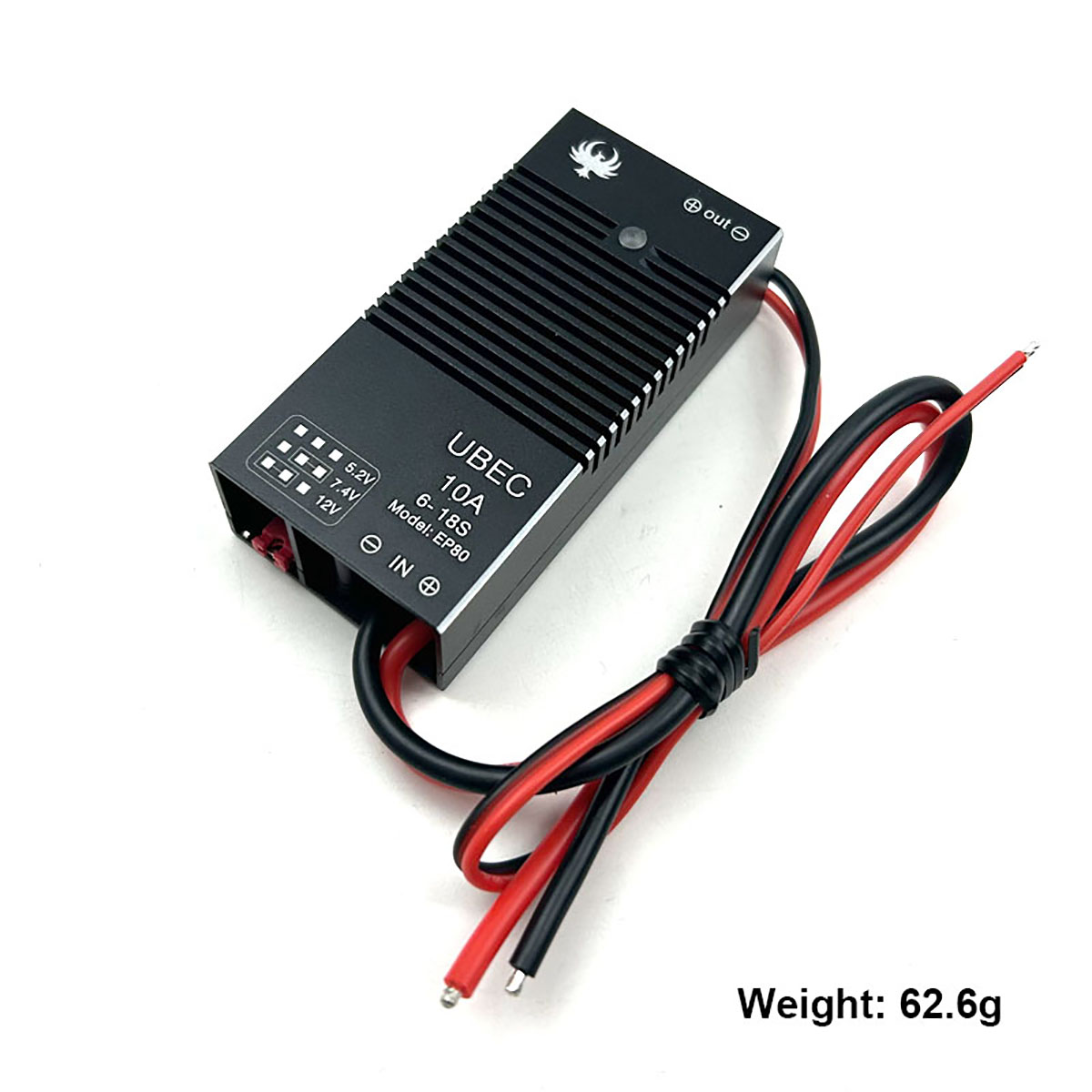

Weight: 62.6g

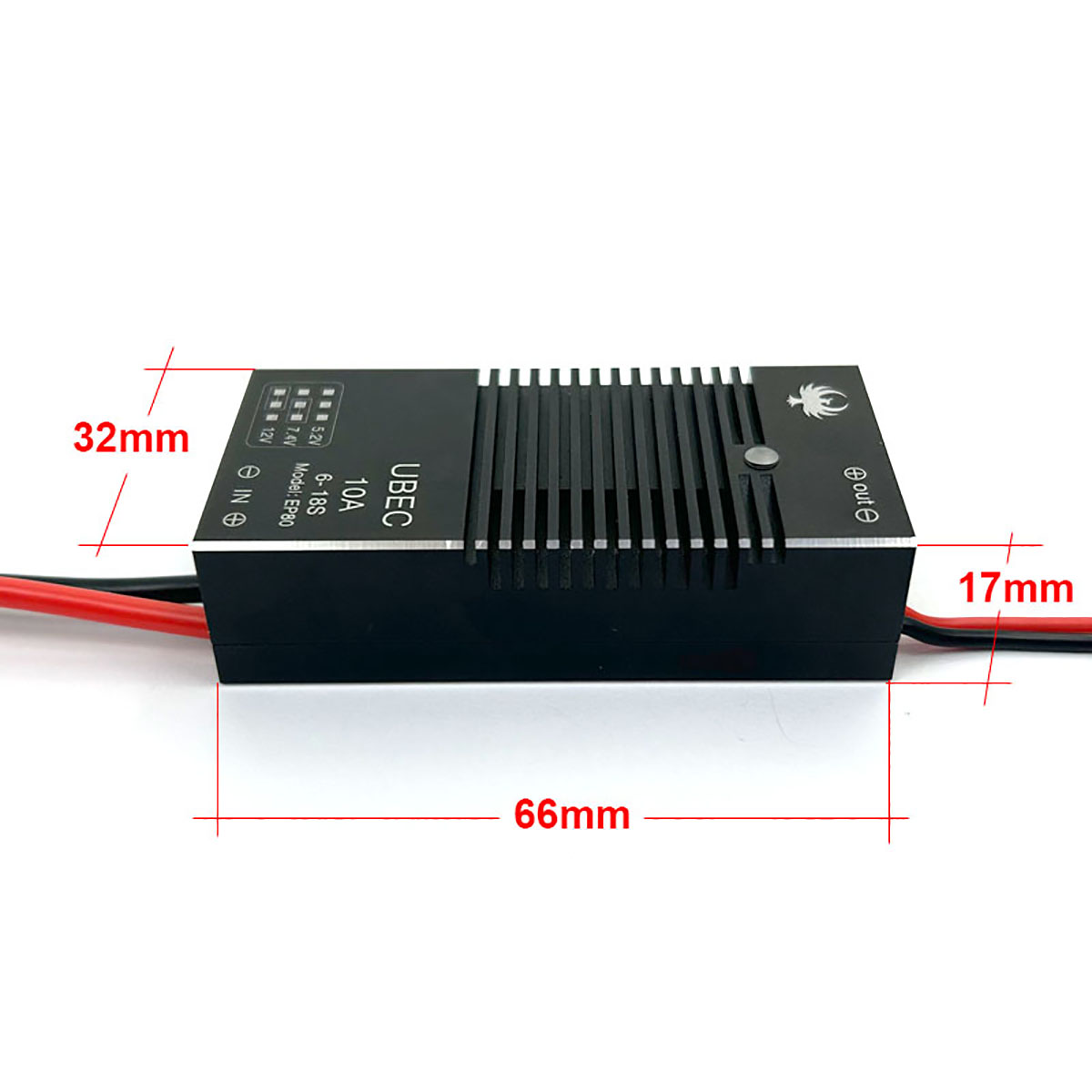

Measurement: 66mm*32mm*17mm
Continuous current: 10A@5V
Transient current: 20A

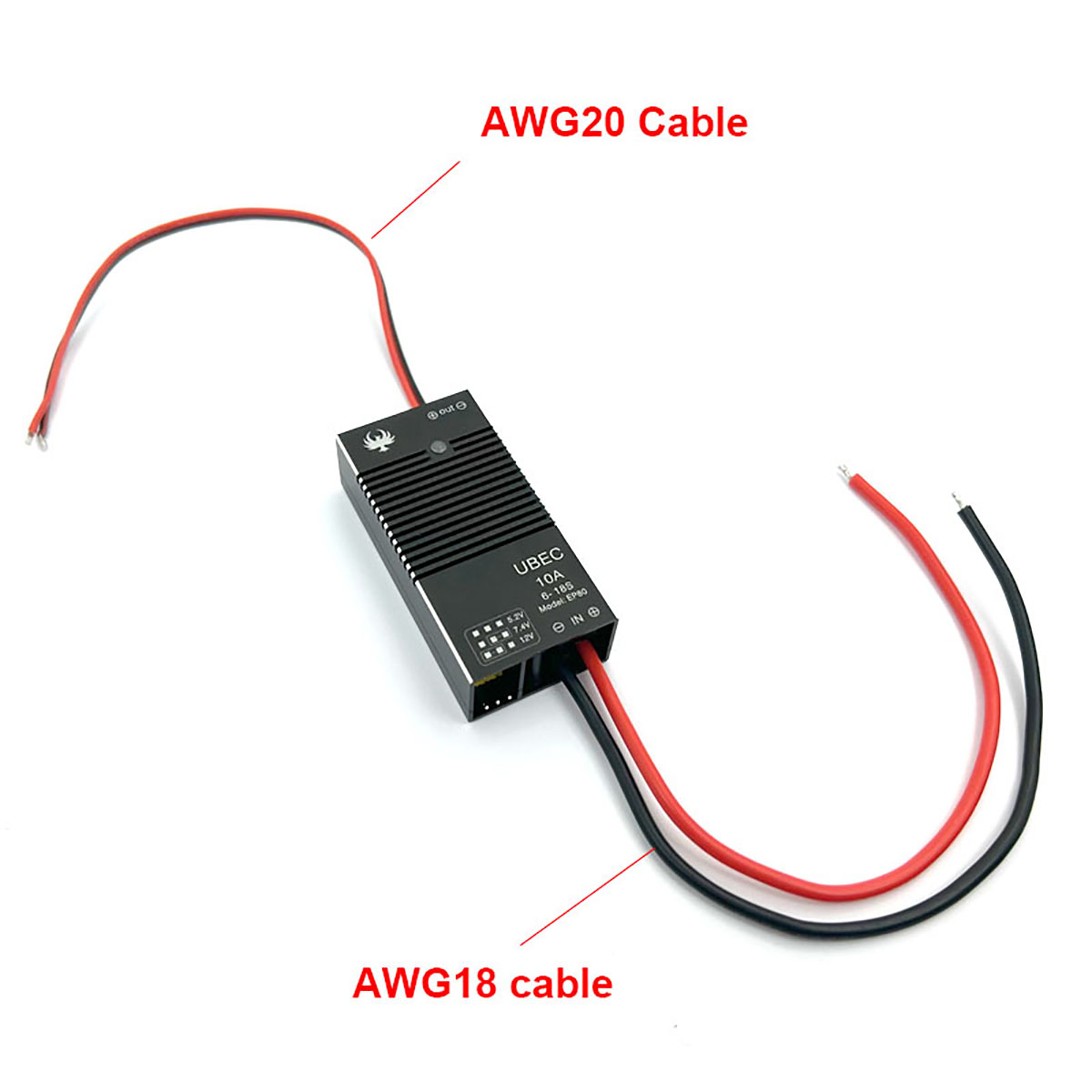

Input cables: AWG18
Output cables: AWG20
Cables Length: 20CM
EP80 UBEC x1
