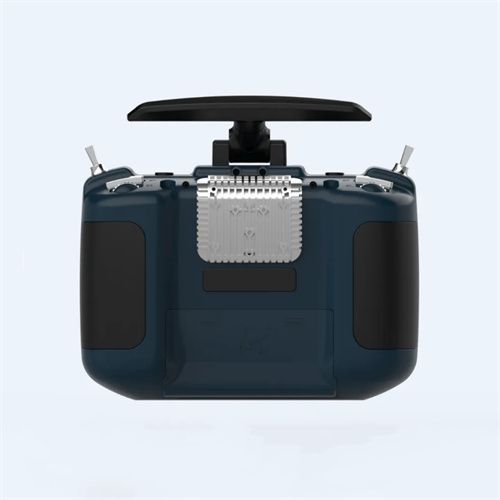

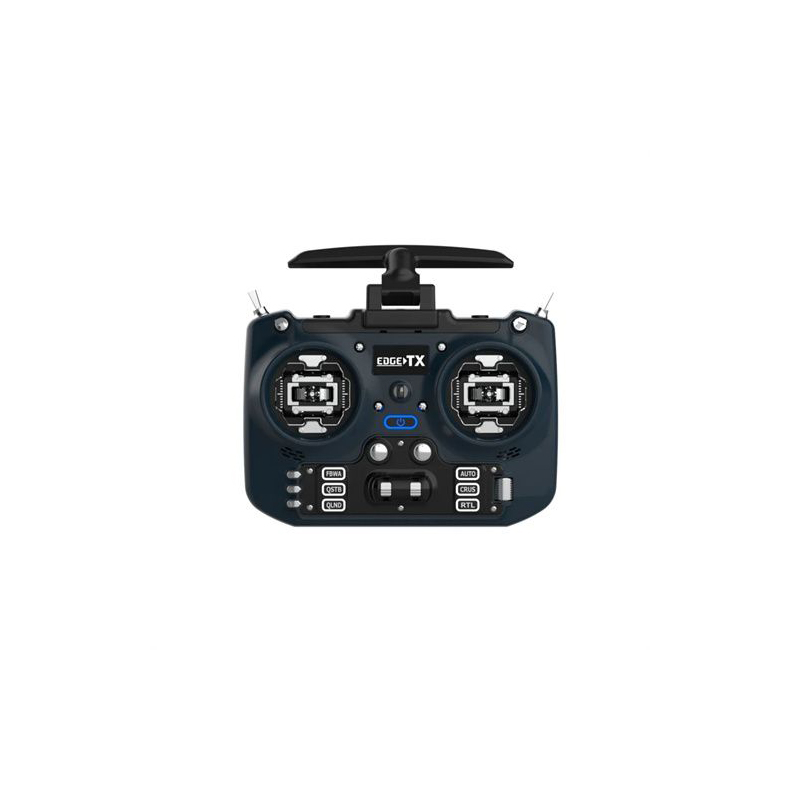

Jumper T20S RDC90 Sensor Gimbals OLED Screen Radio Controller ELRS EdgeTX Multi Protocol Transmitter for FPV RC Racer Drone Airplane
Brand: Jumper
Model: T20S
MCU: STM32F407ZET6
Screen size: 1.3″ OLED (resolution 128*64)
Voltage: 6-8.4V
Rocker Stick Size: Standard
Gimbal size: Standard full size gimbal
Gimbal sensors: RDC90
Built-in RF: ELRS 915MHz / ELRS 2.4GHz
Transmission power: max 1000mw
Antenna interface: SMA
External module interface: reserved (1.25mm-5P)
External module power supply: XT30 (2S2A output)
SD card: Chip-based internal (officially recommended by EdgeTX)
Working voltage: 6-8.4v
Battery: 21700*2 (not included)
Power Dutput: Maximum 1W
Size: 185*188*68
Weight: 448g (battery not included)
Jumper T20S ExpressLRS Transmitter x 1
