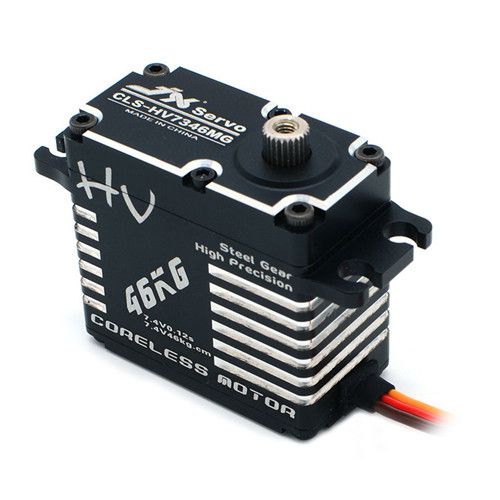

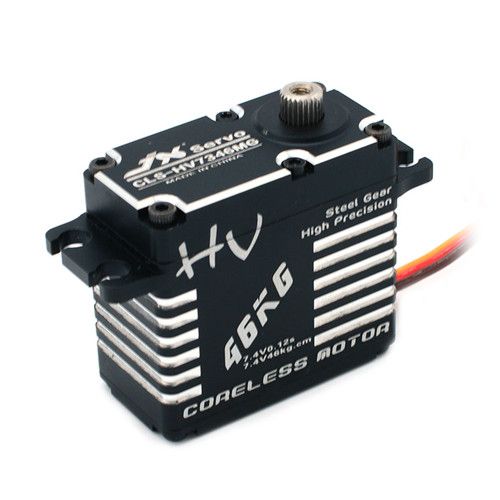

JX CLS-HV7346MG 46KG HV High Precision Steel Gear Full CNC Aluminium Shell Structure Digital Standard Servo
JX CLS-HV7346MG 46KG HV High Precision Steel Gear Full CNC Aluminium Shell Structure Digital Standard Servo
— High voltage
— High performance programmable digital coreless standard servo
— High-precision Taiwan-made steel gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12sec/60°
Stall Torque (6V): 37.5 kg.cm
Stall Torque (7.4V): 46.9kg.cm

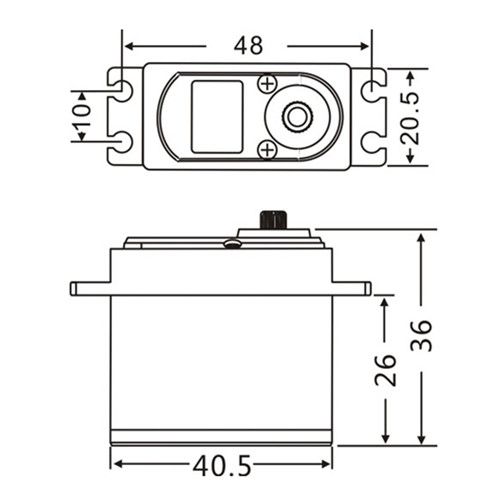

Dimensions: 40X20X37mm
Weight: 73 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
JX CLS-HV7346MG Servo x1
Reviews
There are no reviews yet.
