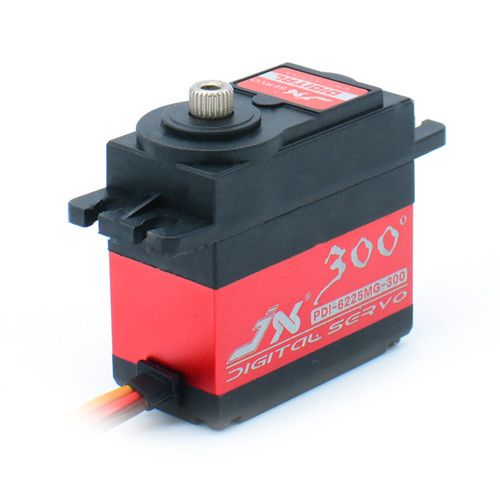

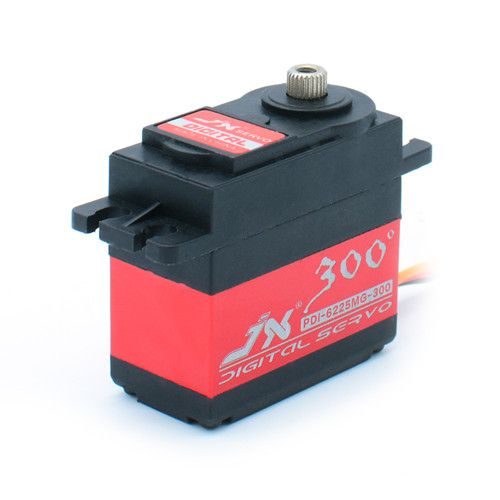

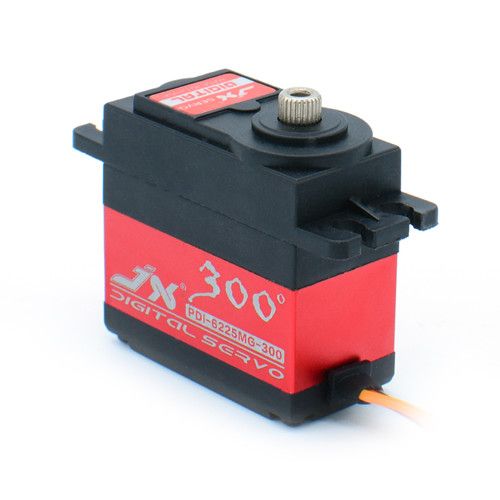

JX PDI-6225MG-300° 25KG 300° High Precision Metal Gear Digital Standard Servo
— 300° 25kg digital servo
— Servo for Robot
— High performance digital standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shel
— Dual ball bearings
Max Angle:300°
Pulse width:800-2200μs=180°
Pulse width:500-2500μs=320°
Dead band: 2μs 1520μs / 330hz
Operating Speed (4.8V): 0.25 sec/60°
Operating Speed (6V): 0.21 sec/60°
Stall Torque (4.8V): 19.9 kg.cm
Stall Torque (6V): 25.3 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 265 mm
Bearing: 2B

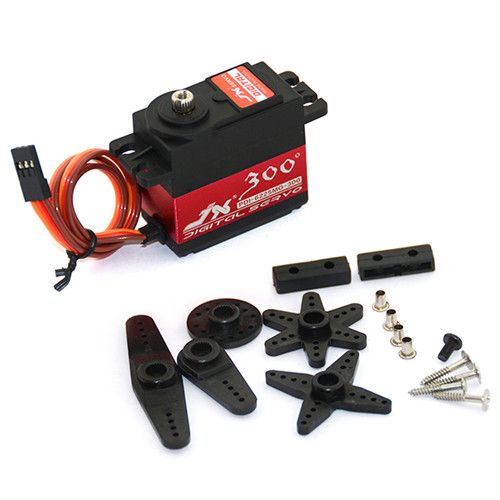

JX PDI-6225MG Servo x 1
