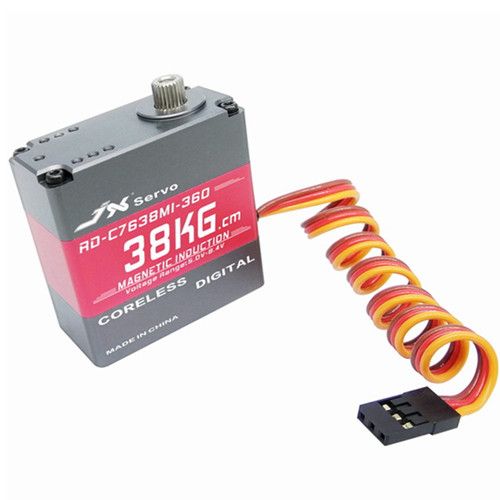

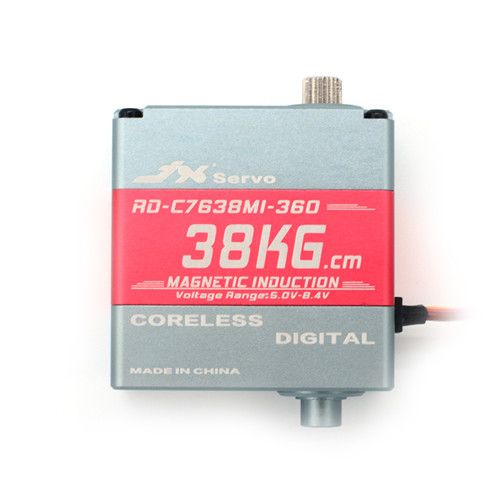

JX RD-C7638MI-360 38kg.cm 360° coreless, Magnetic induction full CNC aluminium hulls and structure Robot servo
JX RD-C7638MI-360 38kg.cm 360° coreless, Magnetic induction full CNC aluminium hulls and structure Robot servo
– Magnetic induction potentiometer
– High performance robot servo
– High-precision metal gears with hard anodizing
– Full CNC aluminium hulls and structure
– High quality coreless motor
– Dual ball bearings
Dead band: 2μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Coreless
Max angle：360°±2°
Working frequence: 330hz
Voltage：5.0V/7.2V/8.4V
Speed(5.0V/7.2V/8.4V): 0.14/0.12/0.10sec/60°
Stall torque(5.0V/7.2V/8.4V): 31/33.5/38 kg.cm
Demension: 40X20X40mm
Weight: 76 g
Connector Wire Length: JR 265mm
Spline Count: 25T

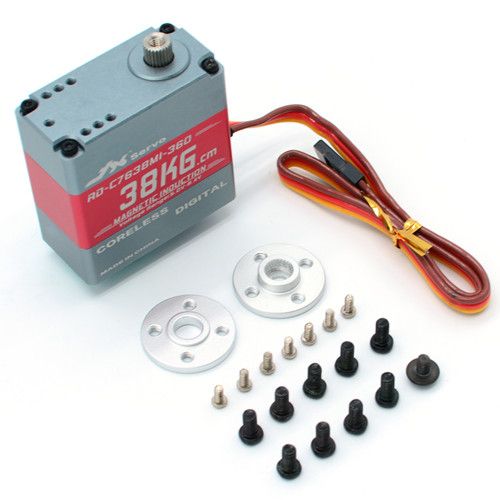

JX RD-C7638MI-360 servo x1
