JX Servo PDI-HV7232MG 31Kg 0.09sec/60° Metal Gear Coreless Motor Digital Servo for RC Car Helicopter Airplane

SKU PDI-HV7232MG Category Tag Brand:

JX Servo PDI-HV7232MG 31Kg 0.09sec/60° Metal Gear Coreless Motor Digital Servo for RC Car Helicopter Airplane

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

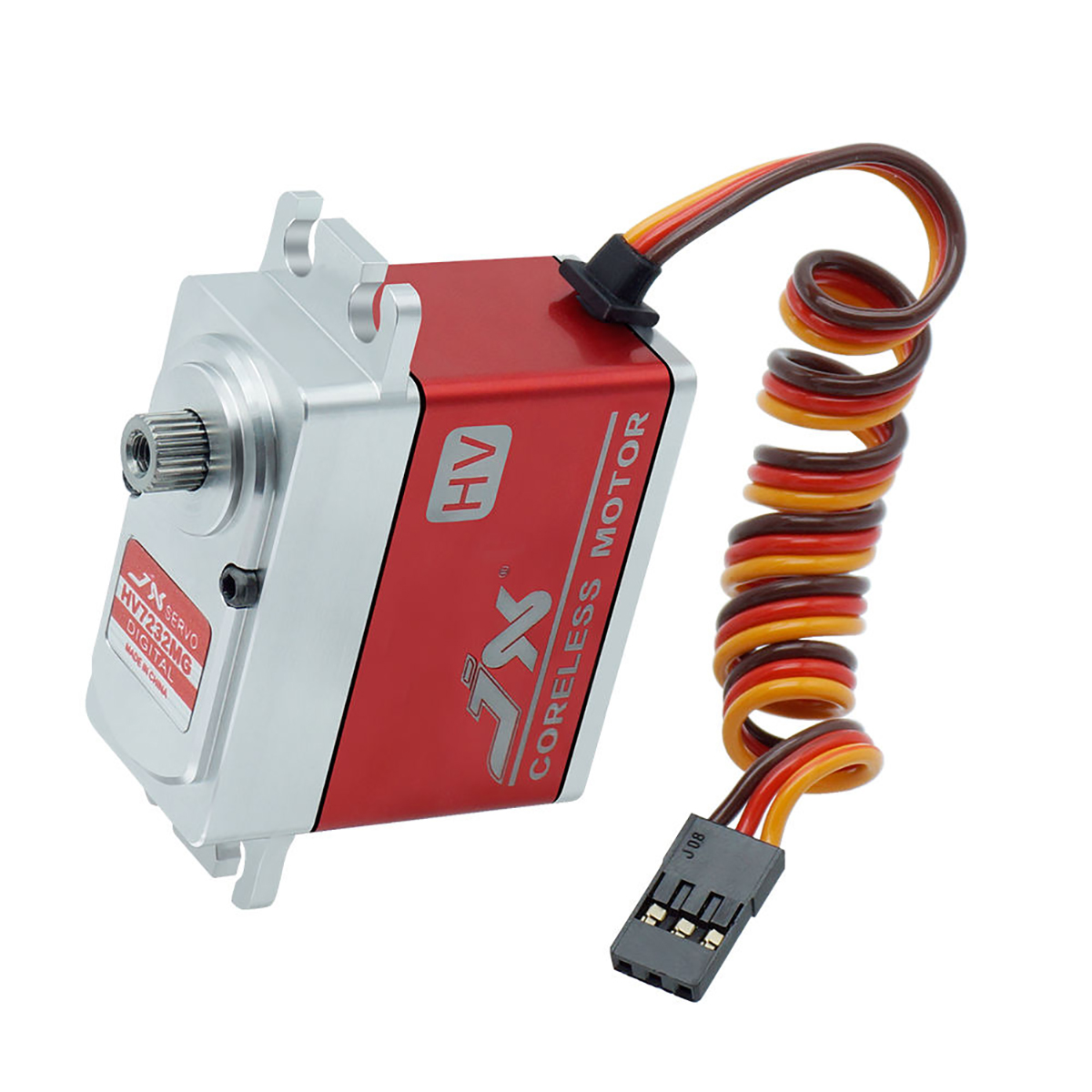

The JX Servo PDI-H7232MG analog standard servo focuses on a 72g (2.54oz) lightweight body and 31.5kg.cm torque, perfectly compatible with RC airplanes and boat models. It adopts a combined gear set of plastic and metal, which not only controls weight to avoid adding burden to the model but also ensures stable transmission, preventing operational issues caused by component wear. It can be quickly installed without complex debugging, flexibly driving key components like RC airplane wings and boat model steering to meet the basic control needs of flight and navigation. Whether for daily use or component replacement, it is a choice that balances compatibility, practicality, and cost-effectiveness.

Features:
High performance standard digital servo
High-precision metal gears Made In Taiwai
High Quality metal Motor
Coreless Motor
Dual Ball Bearings
CNC aluminium middle hull

Model: PDI-HV7232MG

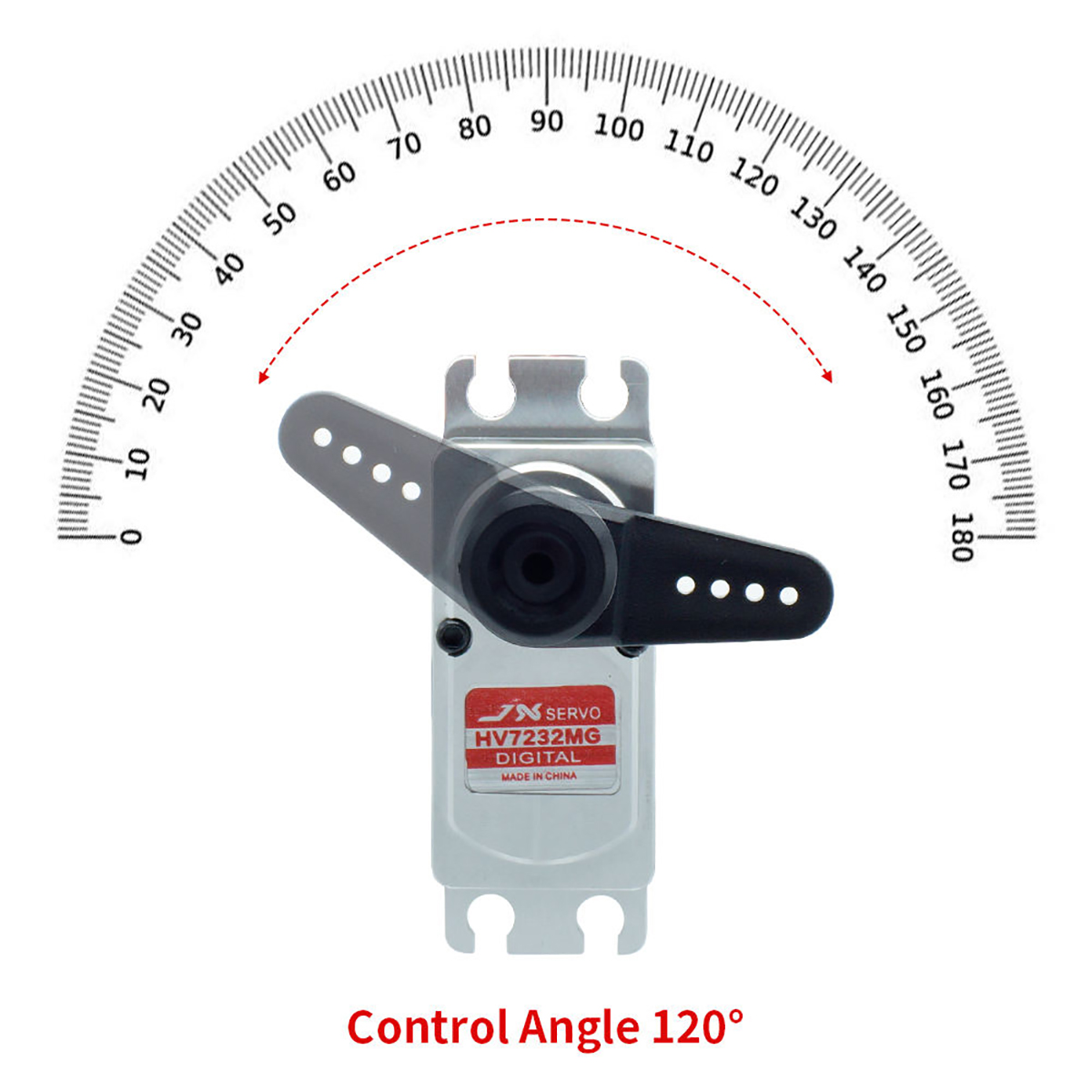

Pulse width: 1000-2000μs=90°
Pulse width: 500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: coreless motor

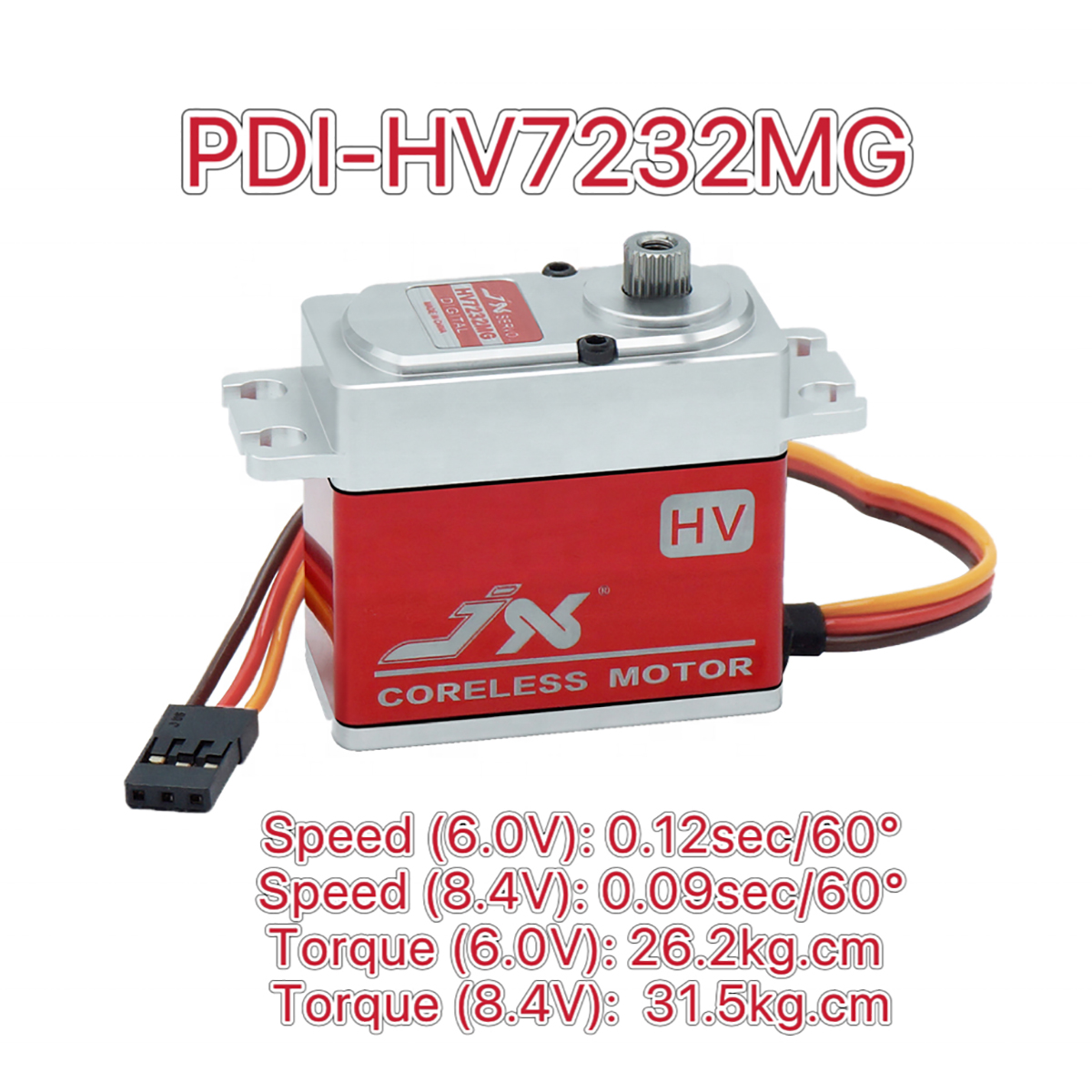

Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 26.2 kg.cm (363.83oz/in)
Stall Torque (8.4V): 31.5kg.cm 437.43 oz/in)

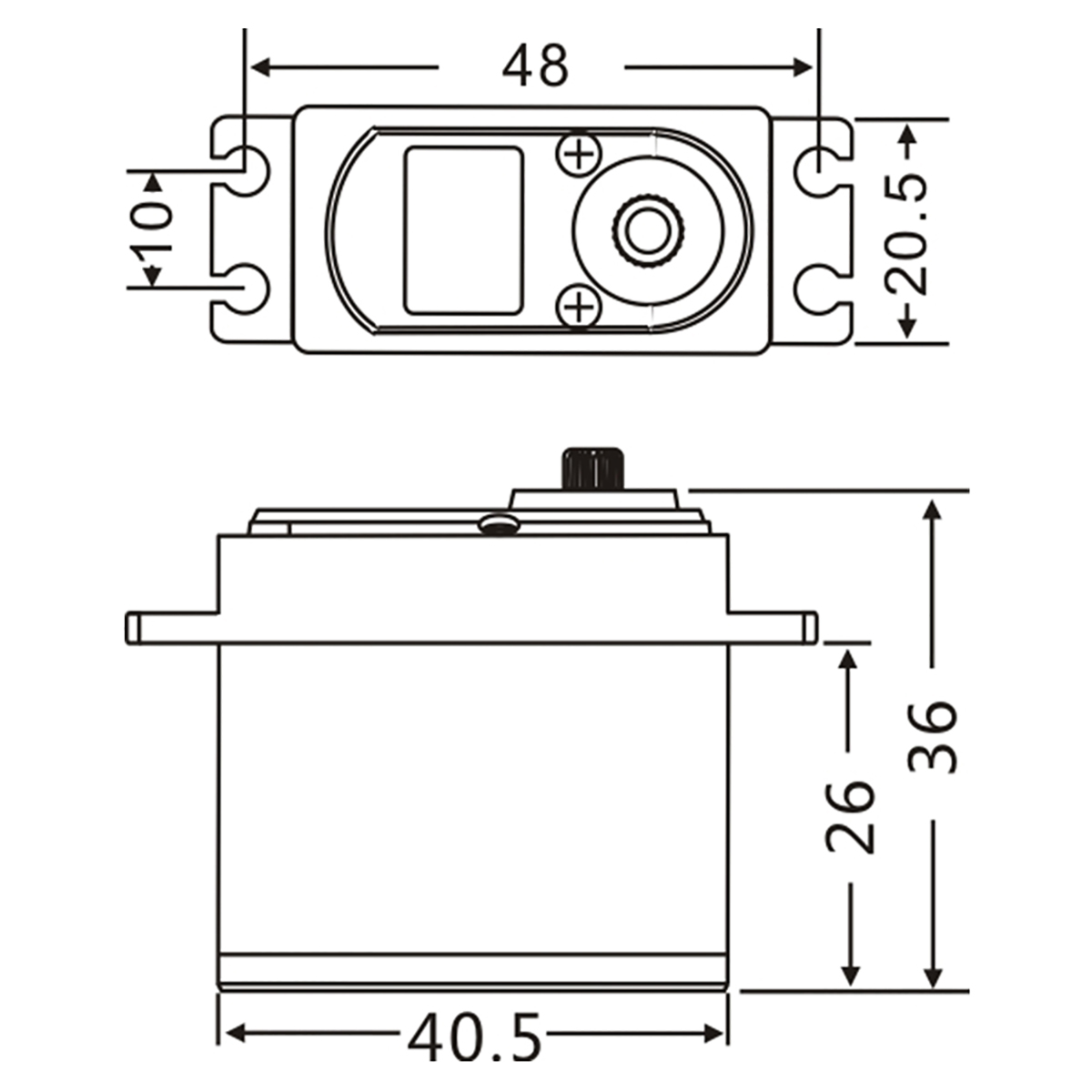

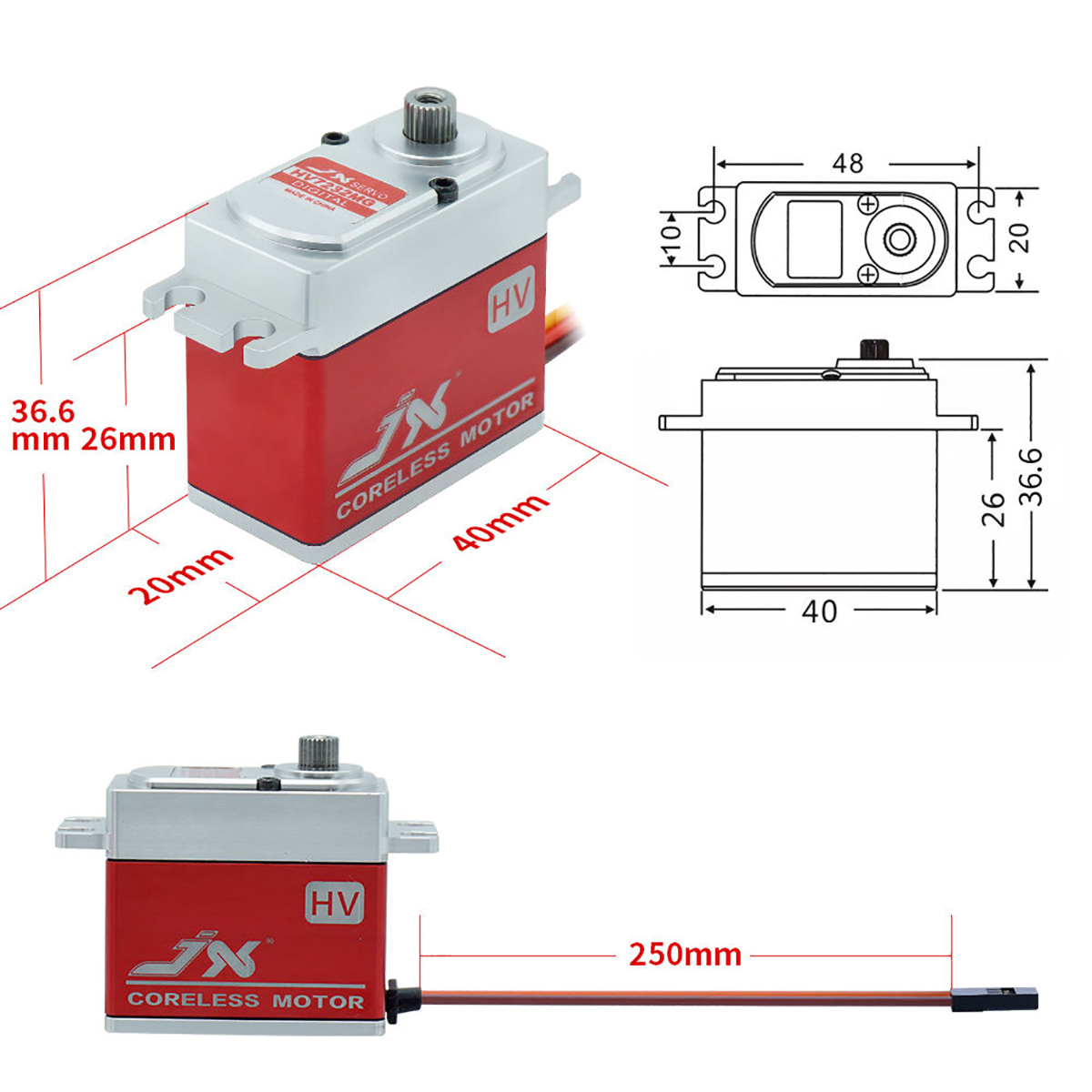

Dimensions:40.5X20.5X36mm
Weight: 72g (2.54oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

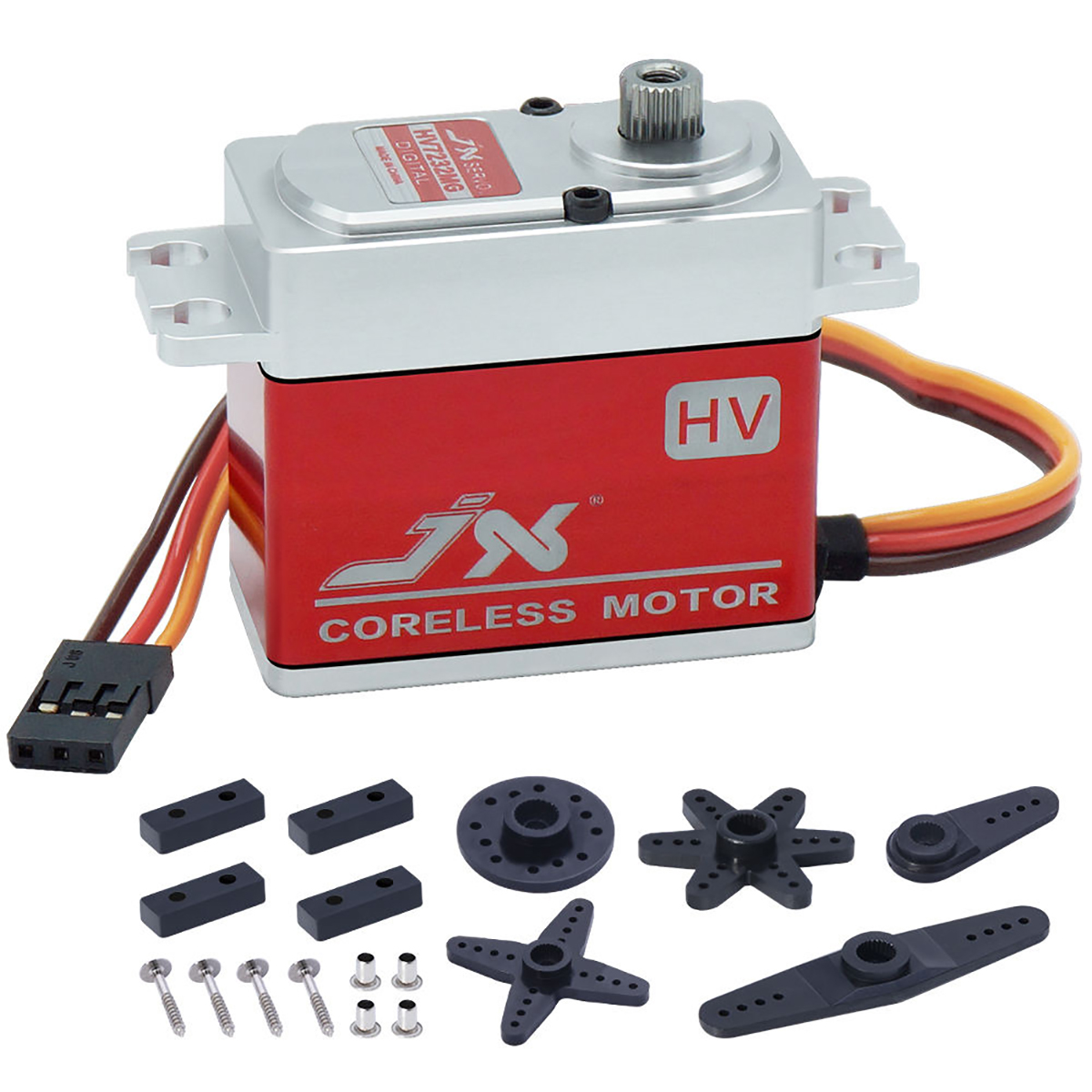

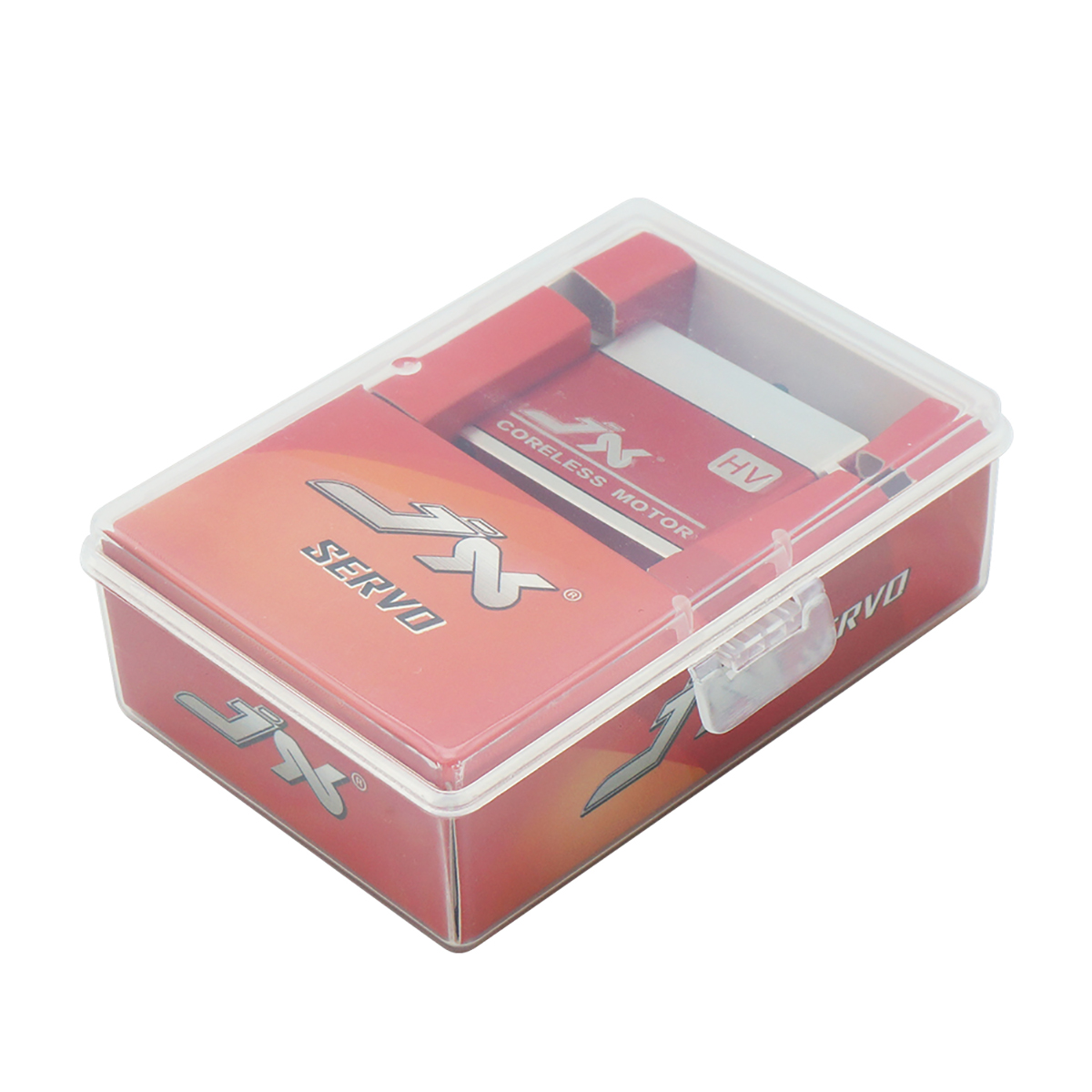

PDI-HV7232MG Servo x1
