Item：KM1970MDHV
Gear：Full metal
Spline：Exclusive
Motor：Coreless motor
Bearing：1BB
Dead band：2μs default
Waterproof：No
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃

SPECIFICATIONS:
Operating Speed(5.0V):0.22sec/60degrees
Operating Speed(6.0V):0.18sec/60degrees
Operating Speed(7.4V):0.15sec/60degrees
Operating Speed(8.4V):0.13sec/60degrees
Stall torque(7.4V):7.0kg.cm(97.23oz/in)
Maximum working torque(7.4V):4.8kg.cm(66.67oz/in)
Rated working torque(5.0V):2.0kg.cm(27.78oz/in)
Rated working torque(6.0V):2.5kg.cm(34.72oz/in)
Rated working torque(7.4V):3.0kg.cm(41.67oz/in)
Rated working torque(8.4V):3.5kg.cm(48.61oz/in)

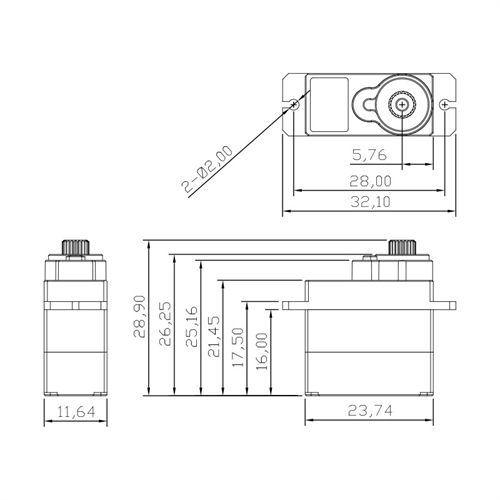

Dimensions:23.7*11.6*21.5mm/0.92X0.45X0.83in
Weight:19g(0.67oz)

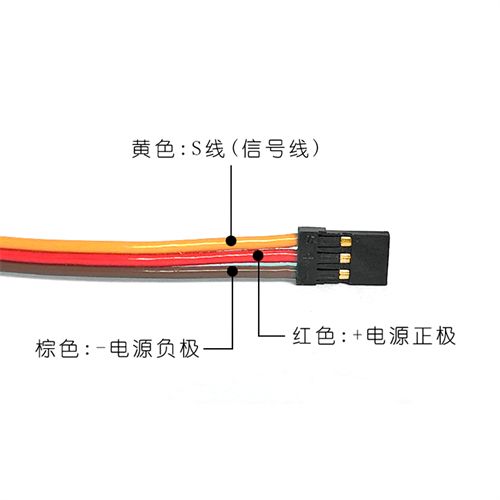

Connector Wire Length:JR310mm(12.09in)
