Item：RGD01L
Gear：Full metal
Spline：25T
Motor：DC motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±58°@900us-2100us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃

Operating Speed (5.0V):0.14sec/60 degrees
Operating Speed (6.0V):0.12sec/60 degrees
Operating Speed (7.4V):0.10sec/60 degrees
Operating Speed (8.4V):0.09sec/60 degrees
Stall Torque (5.0V):10.3kg.cm (143.06oz/in)
Stall Torque (6.0V):12.0kg.cm (166.68oz/in)
Stall Torque (7.4V):15.0kg.cm (208.35oz/in)
Stall Torque (8.4V):17.0kg.cm (236.13oz/in)

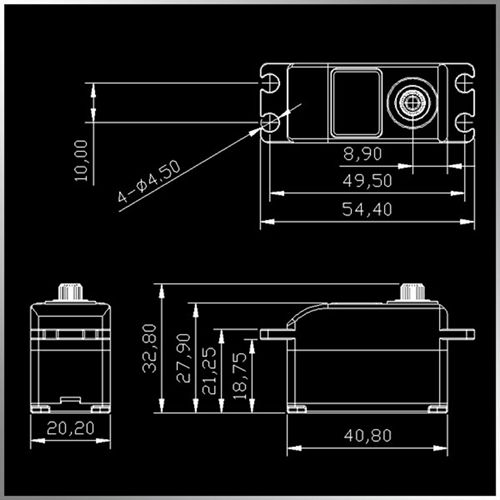

Dimensions:40X20X27.9mm /1.56X0.78X1.08in
Weight:52.5g (1.85oz)
Connector Wire Length:JR300 mm (11.70in)
Packing Detail:

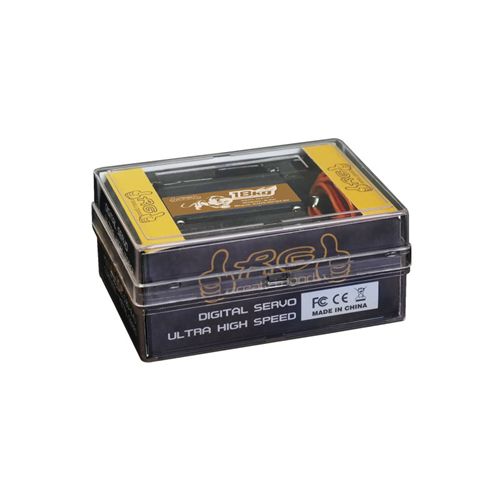

Transparency plastic box size: 83.5×63.5×37.5mm
weight: 100.5g
Carton box size: 43×26.5×20.5cm 100sets/1CTN
Cross weight: 10.5kg
