Item：S30M
Gear：Steel gear
Spline：25T
Motor：Coreless motor
Bearing：2BB
Dead band：2μs default
Waterproof：No
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃

SPECIFICATIONS:
Operating Speed(5.0V):0.15sec/60degrees
Operating Speed(6.0V):0.13sec/60degrees
Operating Speed(7.4V):0.10sec/60degrees
Operating Speed(8.4V):0.09sec/60degrees
Stall torque(7.4V):30.0kg.cm(416.70oz/in)
Rated working torque(5.0V):8.80kg.cm(122.23oz/in)
Rated working torque(6.0V):9.30kg.cm(129.17oz/in)
Rated working torque(7.4V):11.0kg.cm(152.79oz/in)
Rated working torque(8.4V):12.0kg.cm(166.68oz/in)

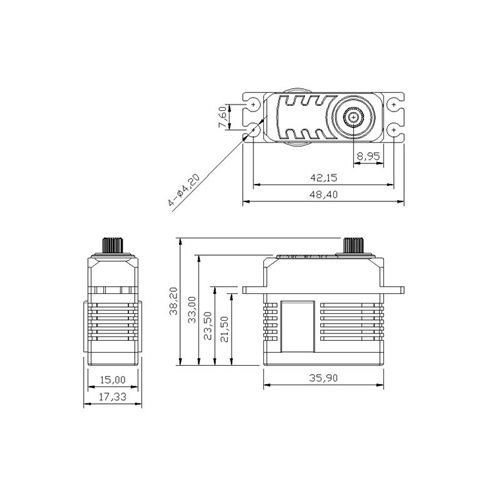

Dimensions(L*W*H):36*15*33mm/1.40X0.58X1.28in
Weight:50.5g(1.78oz)
Connector Wire Length:JR220mm(8.58in)

Packing Detail:
Transparency plastic box size: 83.5mmx63.5mmx37.5mm   weight: 102.5g
Carton box   size: 43×26.5×20.5cm   100sets/1CTN   Cross weight:10.25kg
