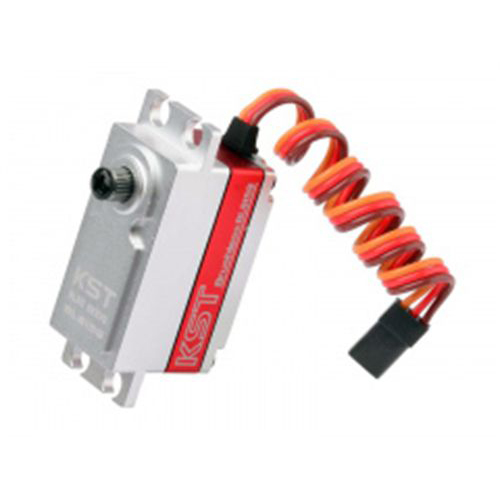

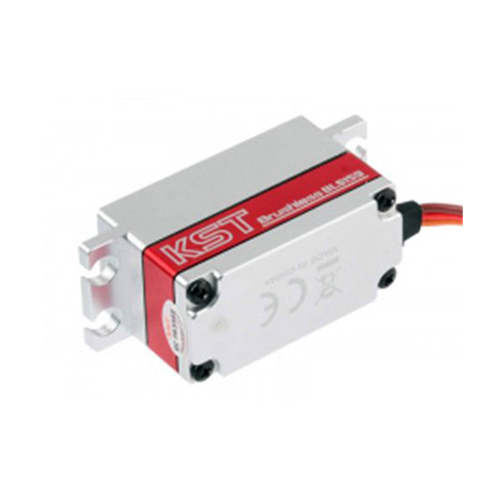

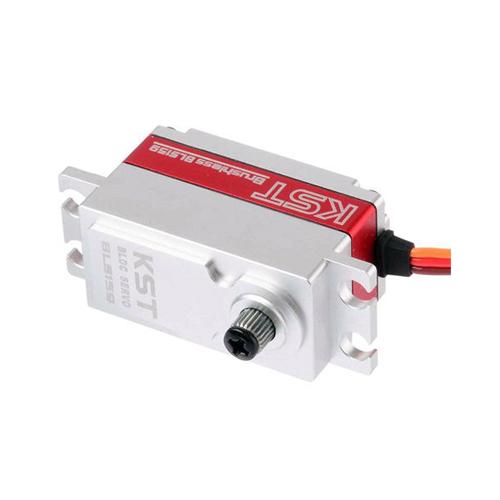

KST BLS159 V8.0 Servo 0.10sec Coreless HV Digital Servo Motor for UAV RC Car Boat Robot Arm Helicopter Airplane
KST BLS159 V8.0 Servo 0.10sec Coreless HV Digital Servo Motor for UAV RC Car Boat Robot Arm Helicopter Airplane
*Torque ranging from 2kg*cm to 700kg*cm
*Travel speeds from 0.03s to 0.5s
*Travel angles: from 40deg to 360deg
*Communication protocols such as TTL. RS232, i2C, RS485 or PWM Servo positioning and current feedback
*Gear materials from plastics to titanium
*Voltage ranges are also customizable from 4.8v to 28v
*Size, Shape and design can be customized to your needs
*A variety or motor options such as brushed, coreless & brushless
*We can offer Potentiometer or magnetic induction control
Operating Voltage:DC6V-8.4V
Size: 40.50*20*25.40mm
Torque:
12Kg.cm 6.0V
15Kg.cm 7.4V
17Kg.cm 8.4V
Speed:
0.13sec/60° 6V; 0.11sec/60° 7.4.0V
0.10sec/60° 8.4.0V
Weight: 55 g
Working Frequency: 1520us/333Hz, 900us-2100us
Motor: Brushless
Ball Bearing: 2BB
KST BLS159 V8.0 Servo x1
