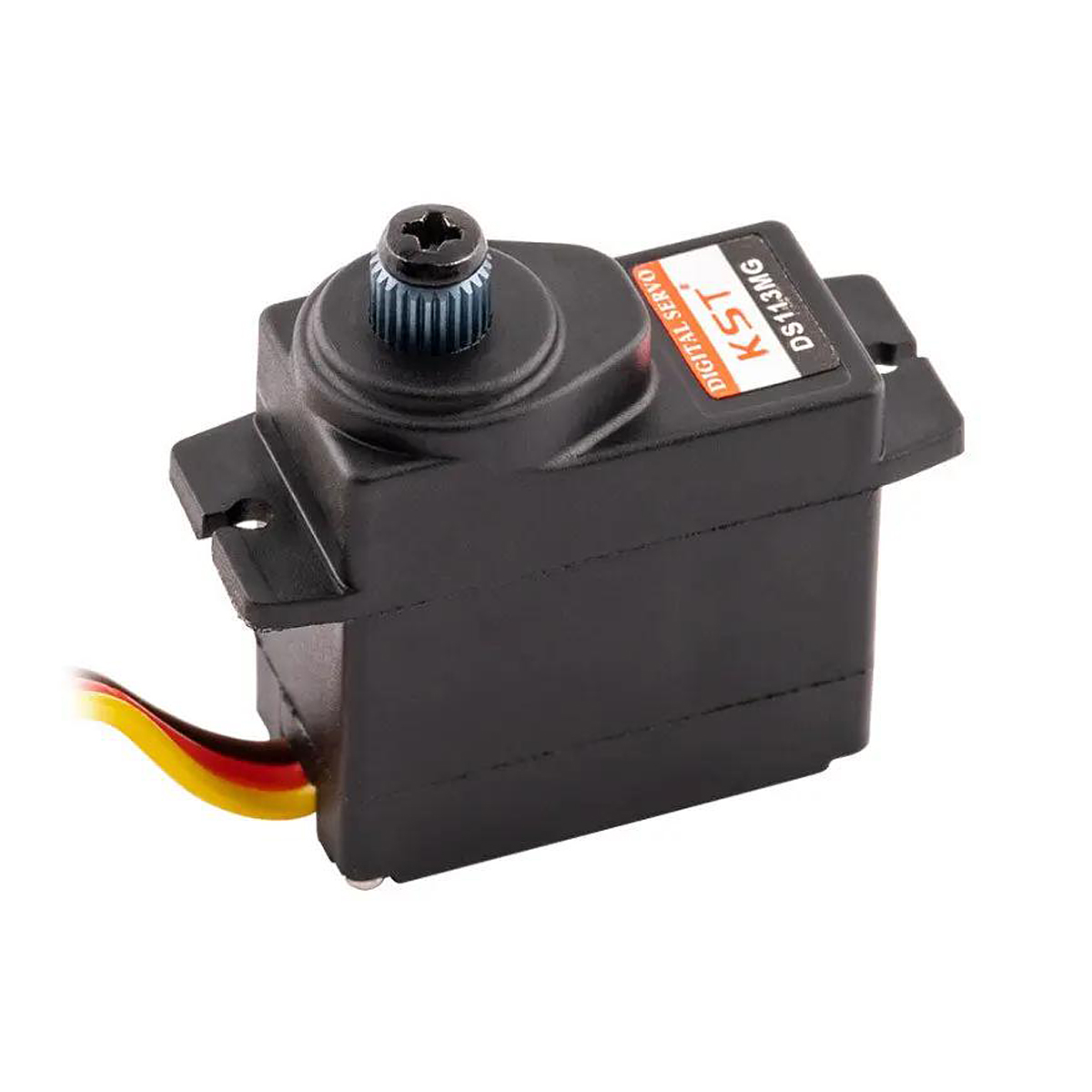

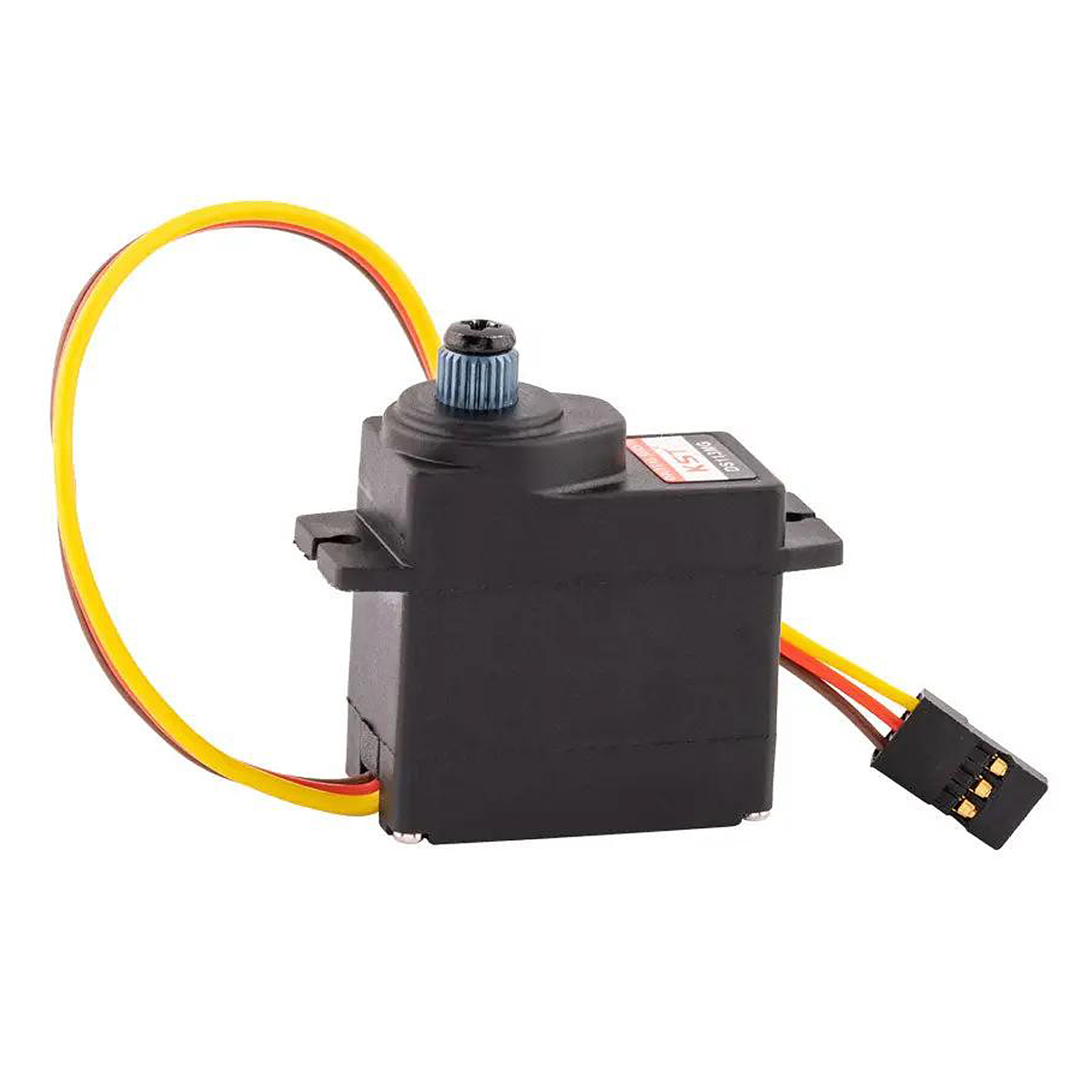

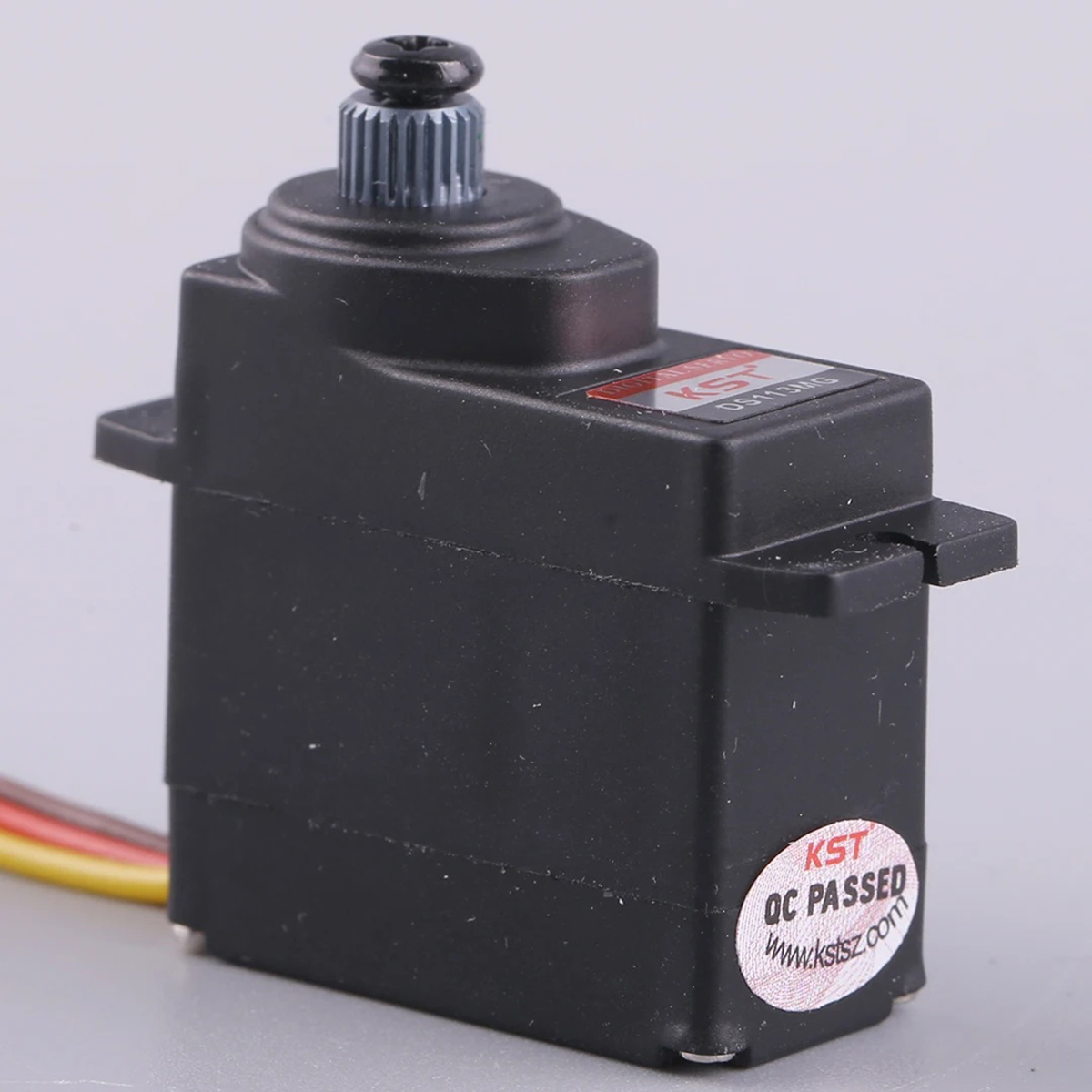

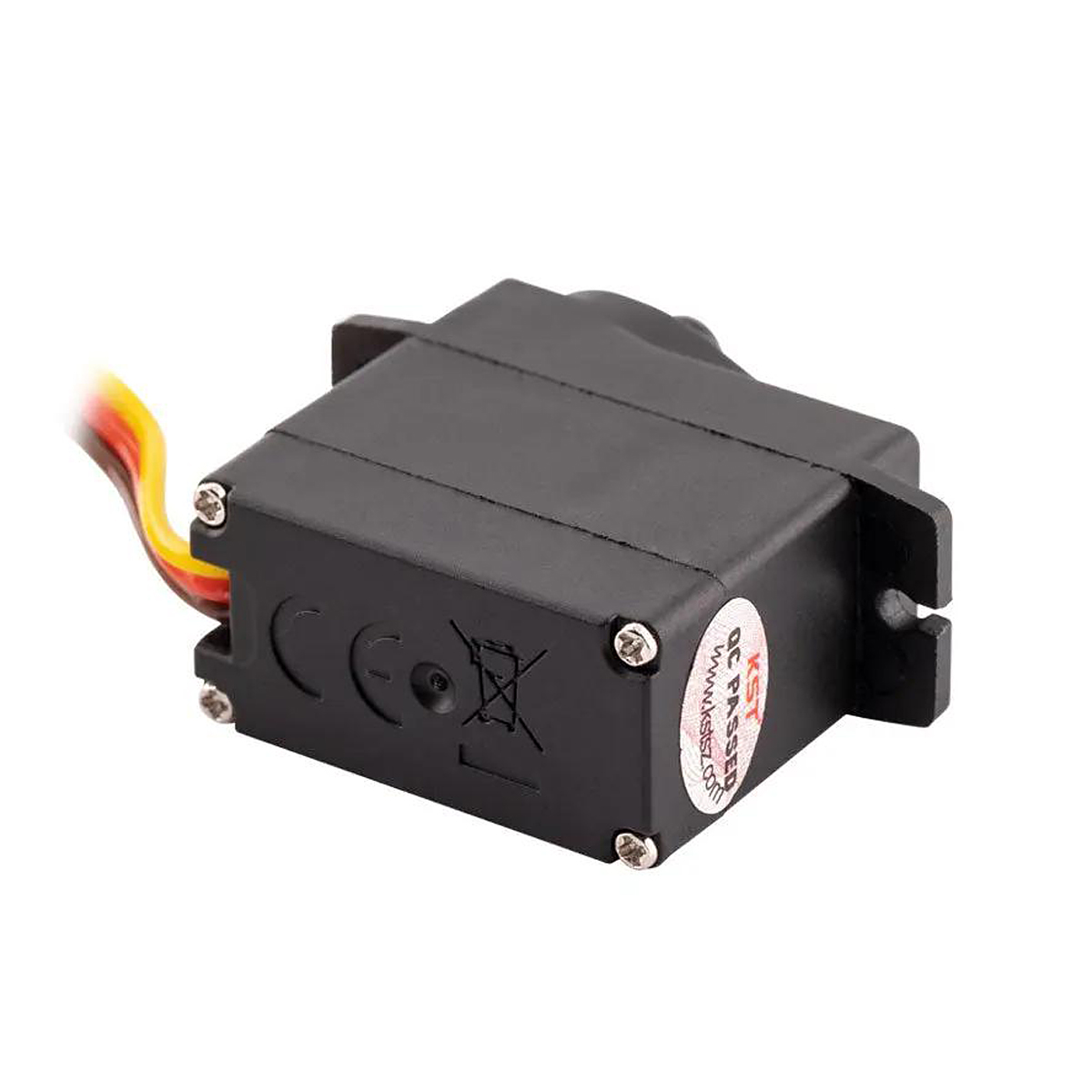

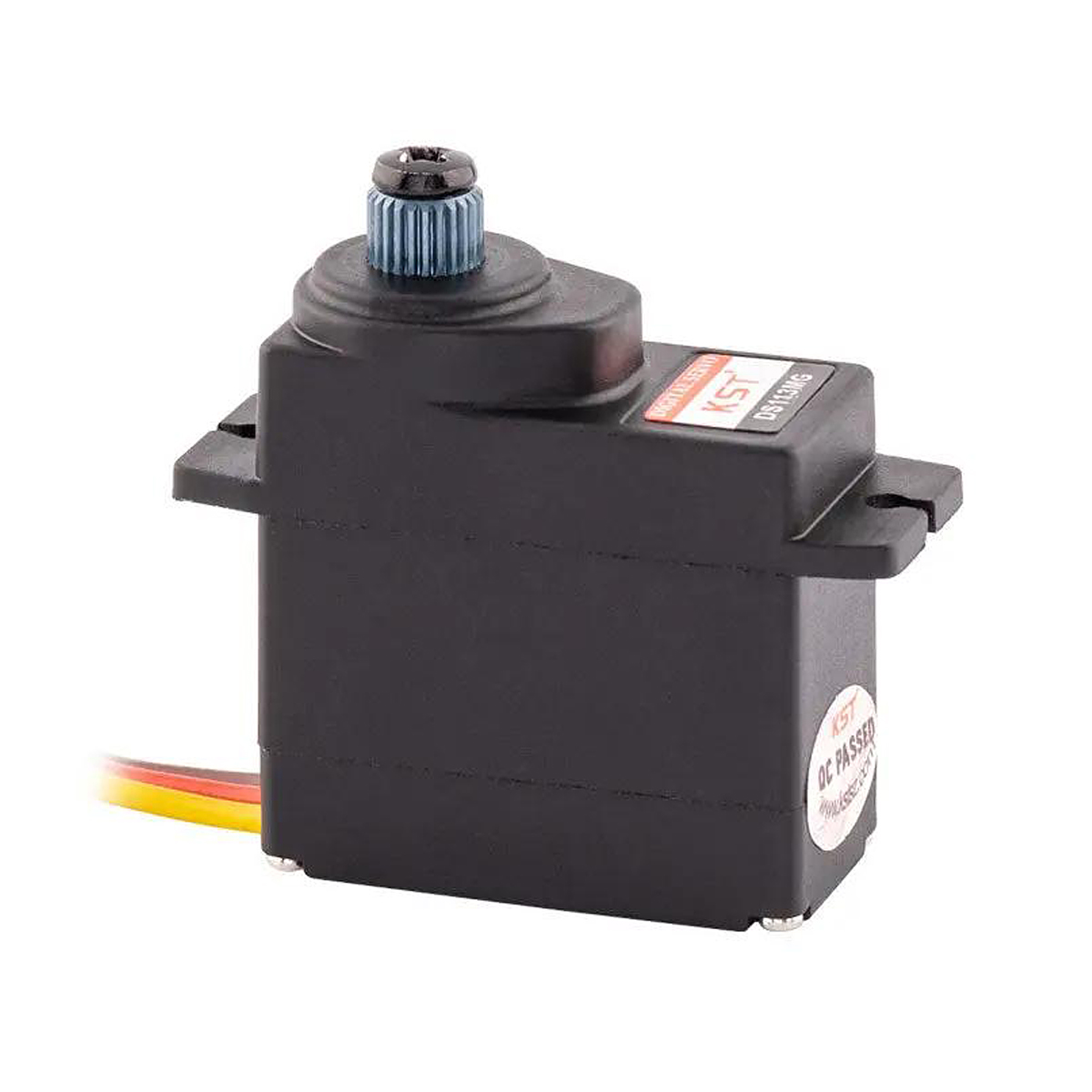

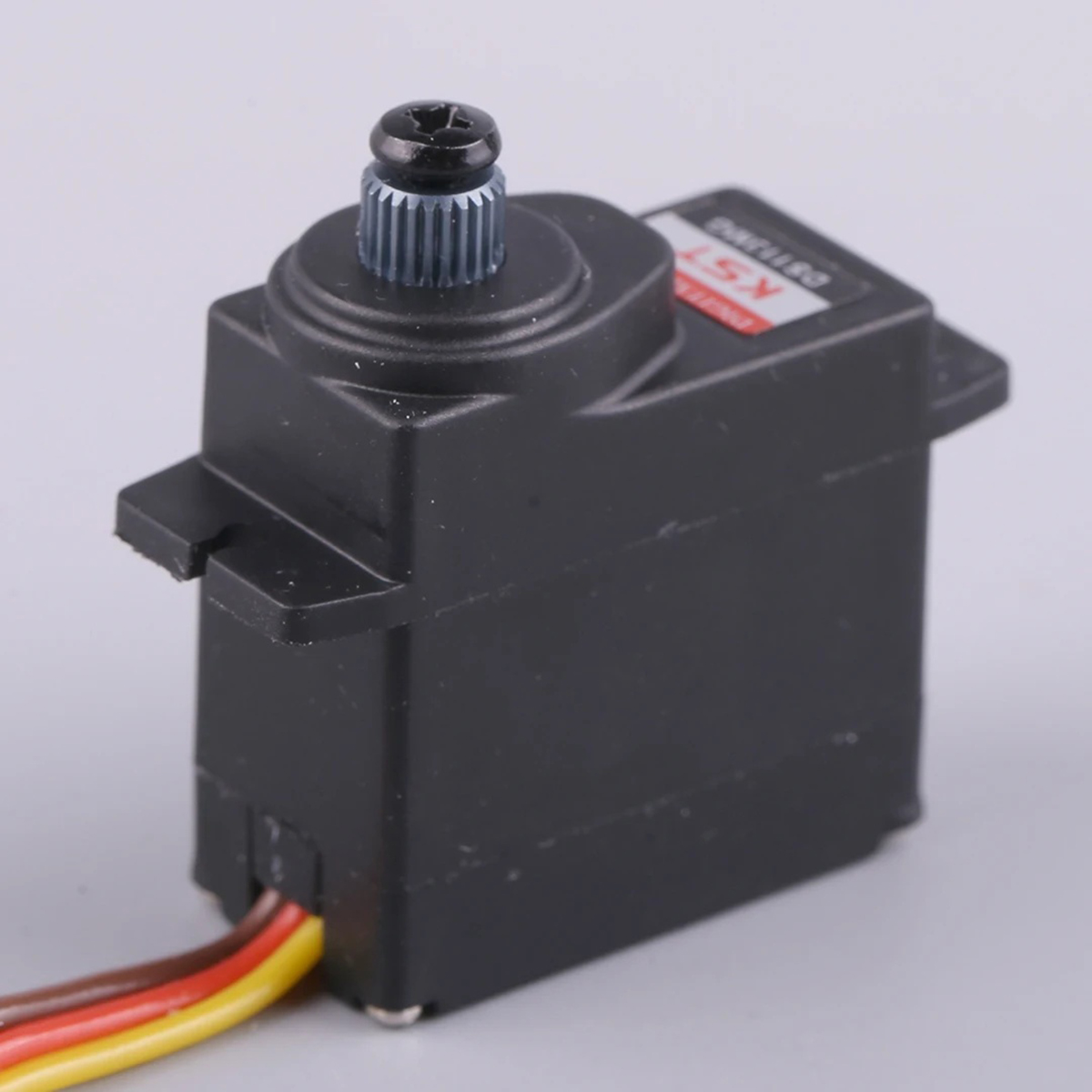

KST DS113MG V6.0 Metal Gear Micro Digital Servo 3.5kg 0.09sec for Small Size Electric RC Plane Glider
KST DS113MG V6.0 Metal Gear Micro Digital Servo 3.5kg 0.09sec for Small Size Electric RC Plane Glider
DS113MG V6.0 digital servo power with powerful torque and amazing speed in compact and lightweight design, make it excellent for small-size electric RC plane and glider fuselage. DS113MG V6.0 servo can boast a brilliant 3.5kgf.cm torque and and super fast 0.09sec/60° speed at 8.4V with great precision and reliability.
Weighing only 12g makes DS113MG V6.0 a great servo for small-size electric RC plane and glider fuselage use. The DS113MG V6.0 servo is designed for use with a 2S LiFe or 2S LiPo battery and it can run directly from a 2S LiPo without needing a regulator. Additionally, the newly added program feature can improve your flight experience to the next level. The DS113MG V6.0 is the high voltage replacement of the original DS113MG servo.
Features
High Quality and Competitive Price
Support for 4.8V-8.4V Voltages
Programmable
Excellent Heat Dissipation
Compact and Lightweight Design
Ultra High Torque & Excellent Speed
Ideal for Small-size Electric RC Plane and Glider Fuselage

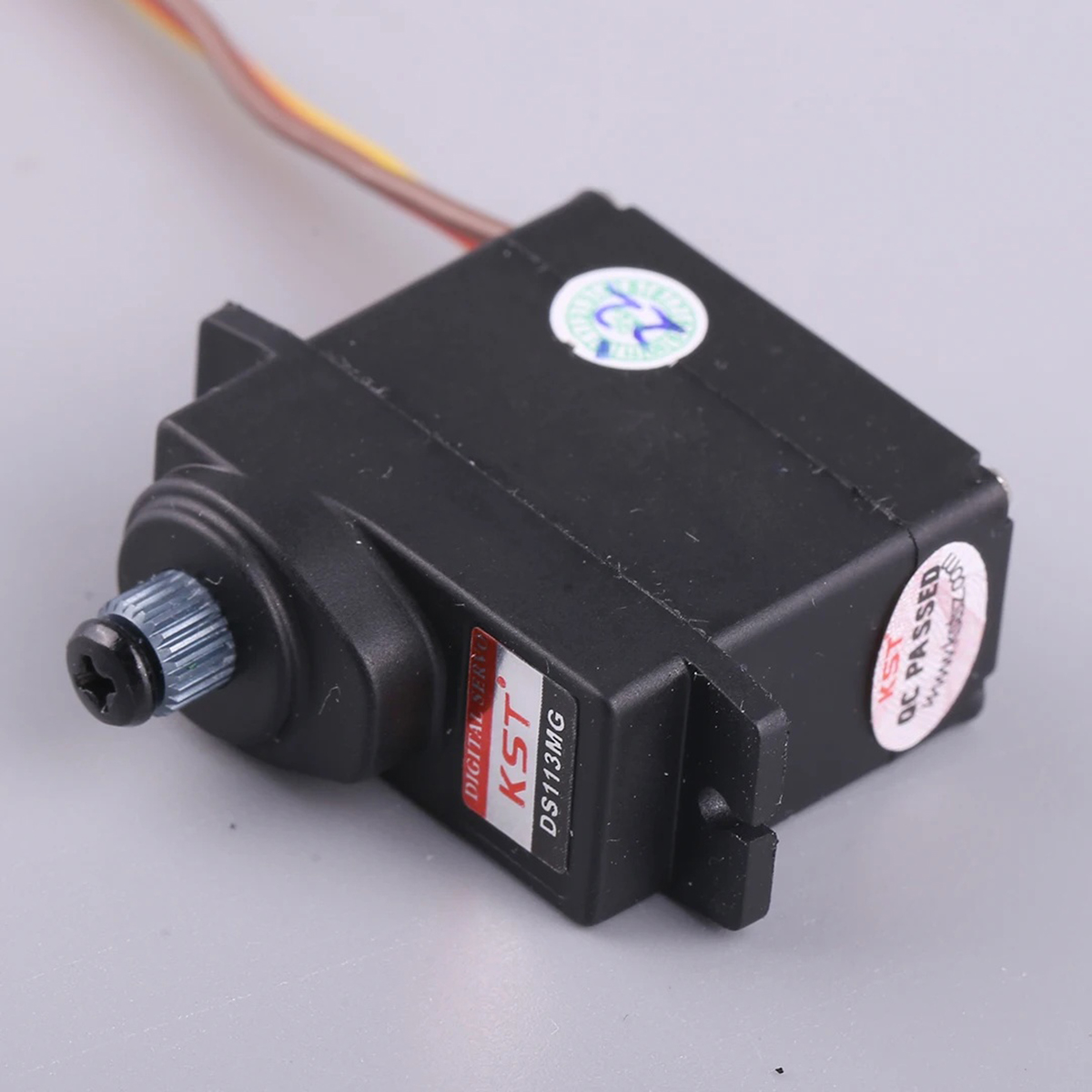

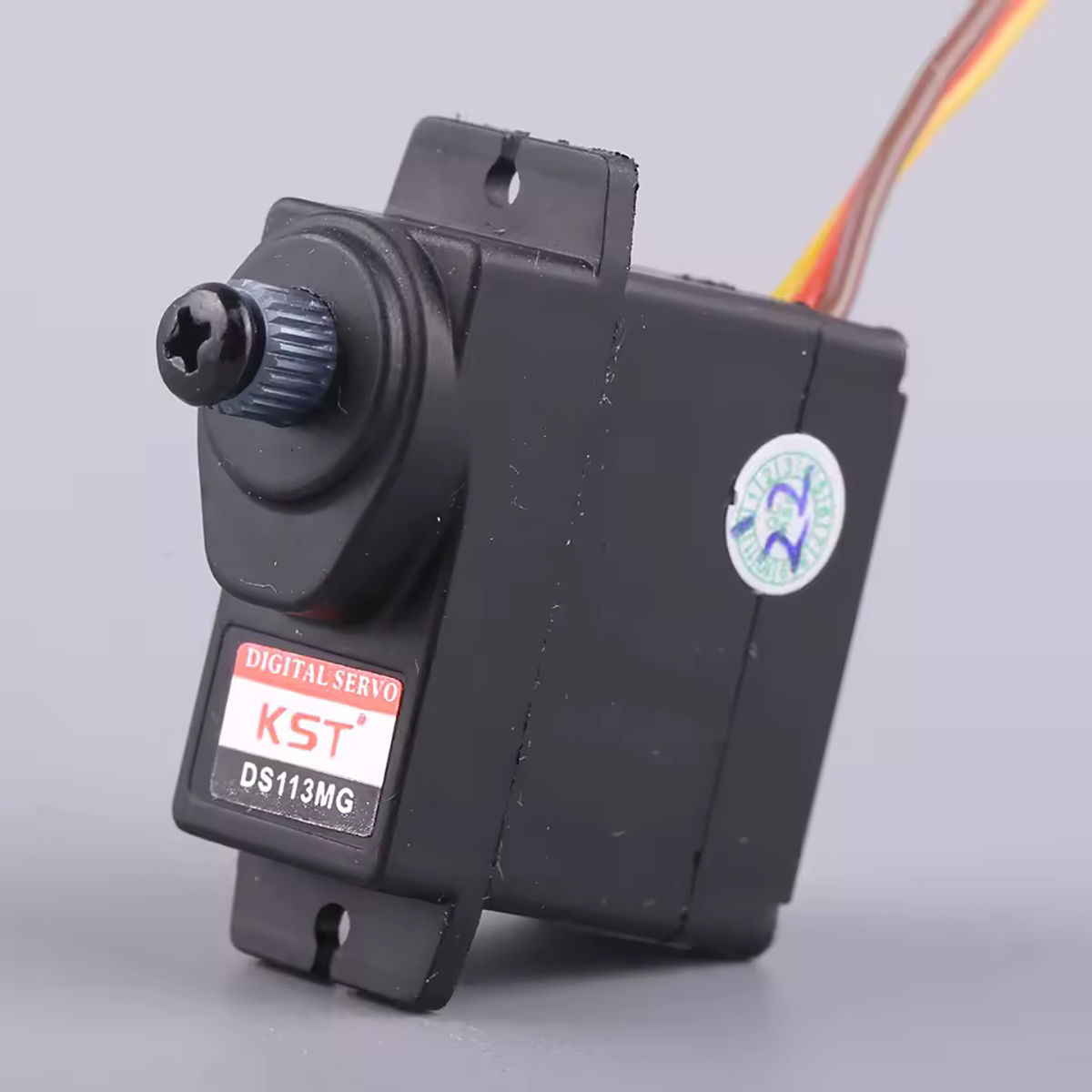

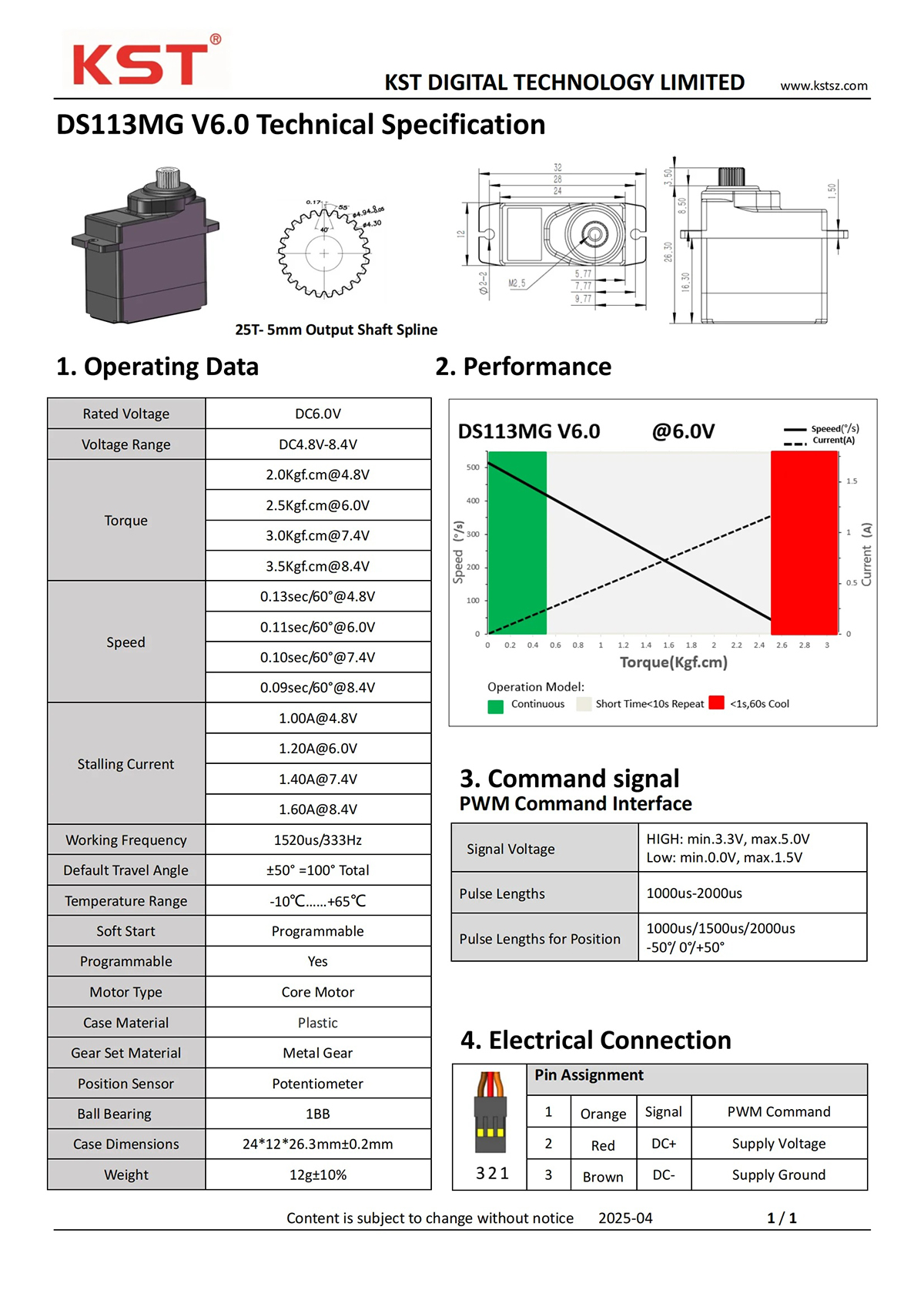

Model: DS113MG V6.0 Digital Metal Gear Servo
Rated Voltage: DC6.0V
Voltage Range: DC4.8V-8.4V
Torque: 2.0Kgf.cm@4.8V / 2.5Kgf.cm@6.0V / 3.0Kgf.cm@7.4V / 3.5Kgf.cm@8.4V
Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
Stalling Current: 1.00A@4.8V / 1.20A@6.0V / 1.40A@7.4V / 1.60A@8.4V
Working Frequency: 1520μs/333Hz

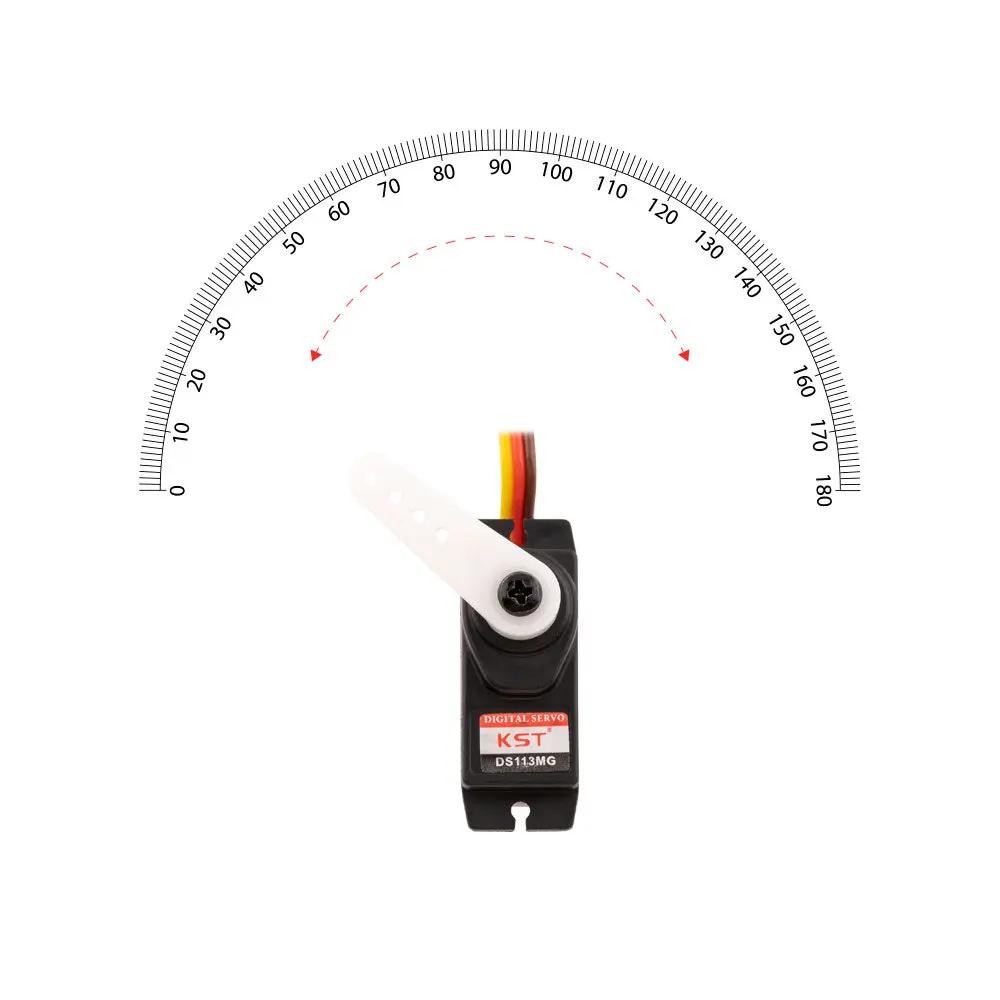

Default Travel Angle: ±50°=100° Total
Temperature Range: -10℃…….+65℃
Soft Start: Programmable
Programmable: Yes
Motor Type: Core Motor
Case Material: Plastic

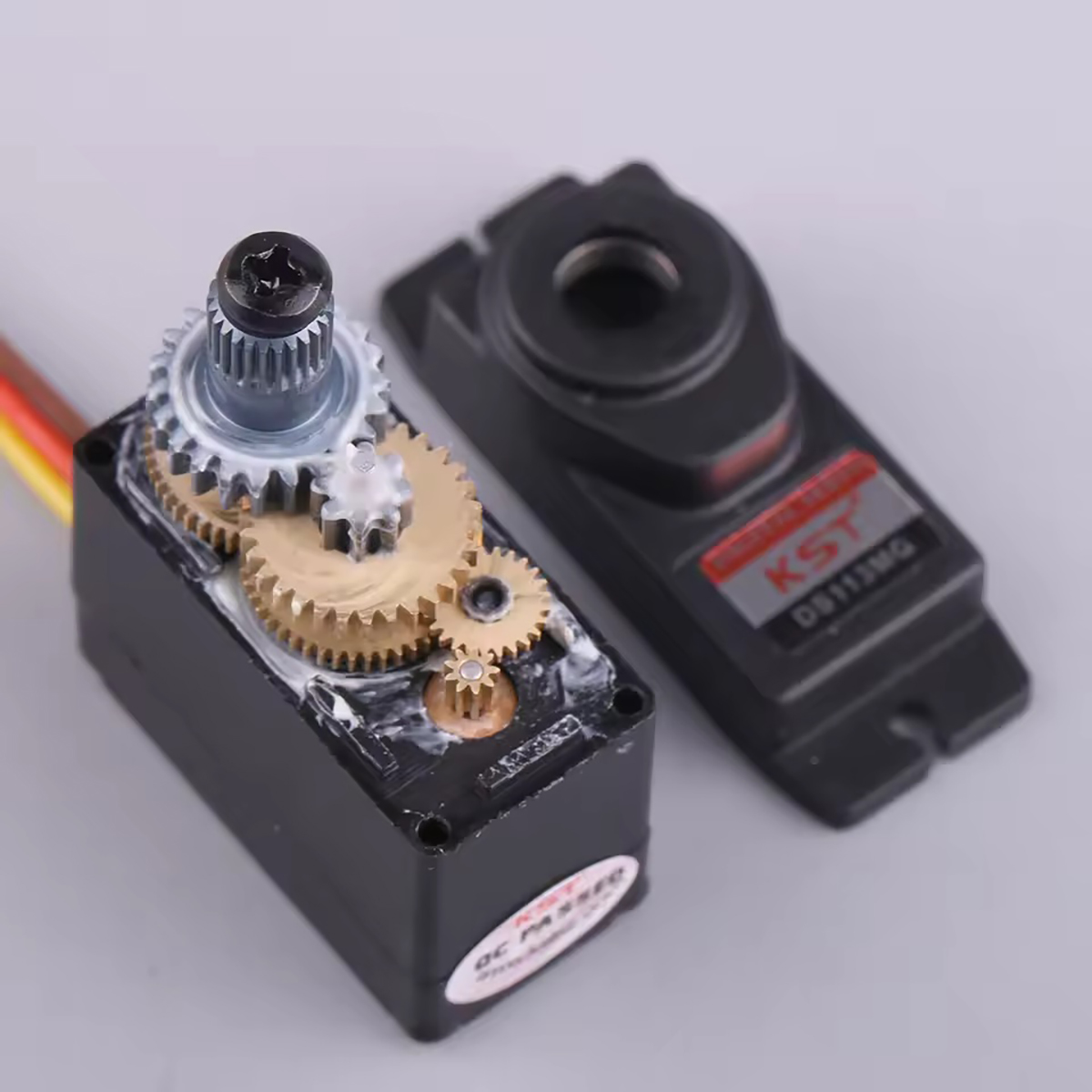

Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 1BB

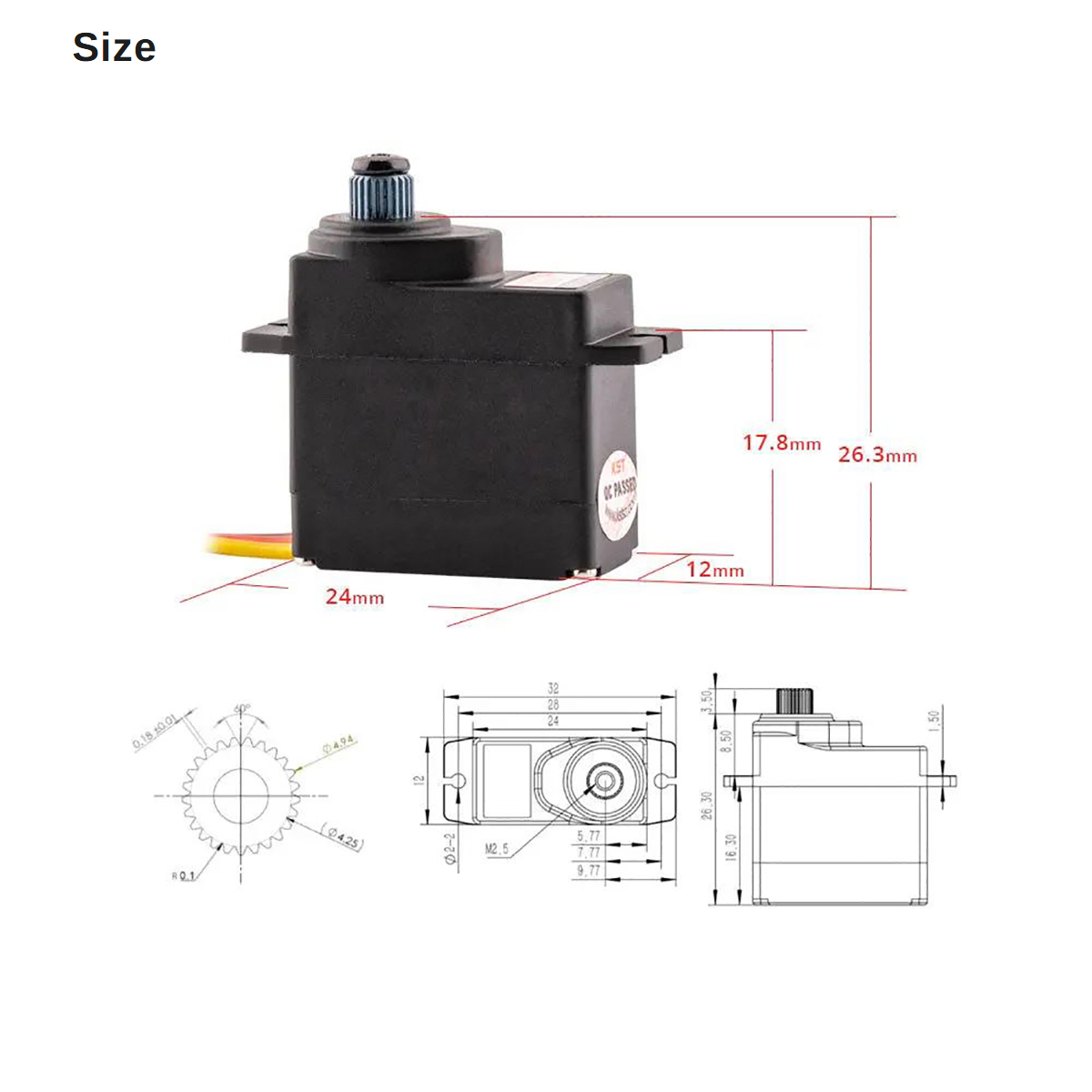

Case Dimensions: 24mm*12mm* 26.3mm±0.2mm
Weight: 12g±10%

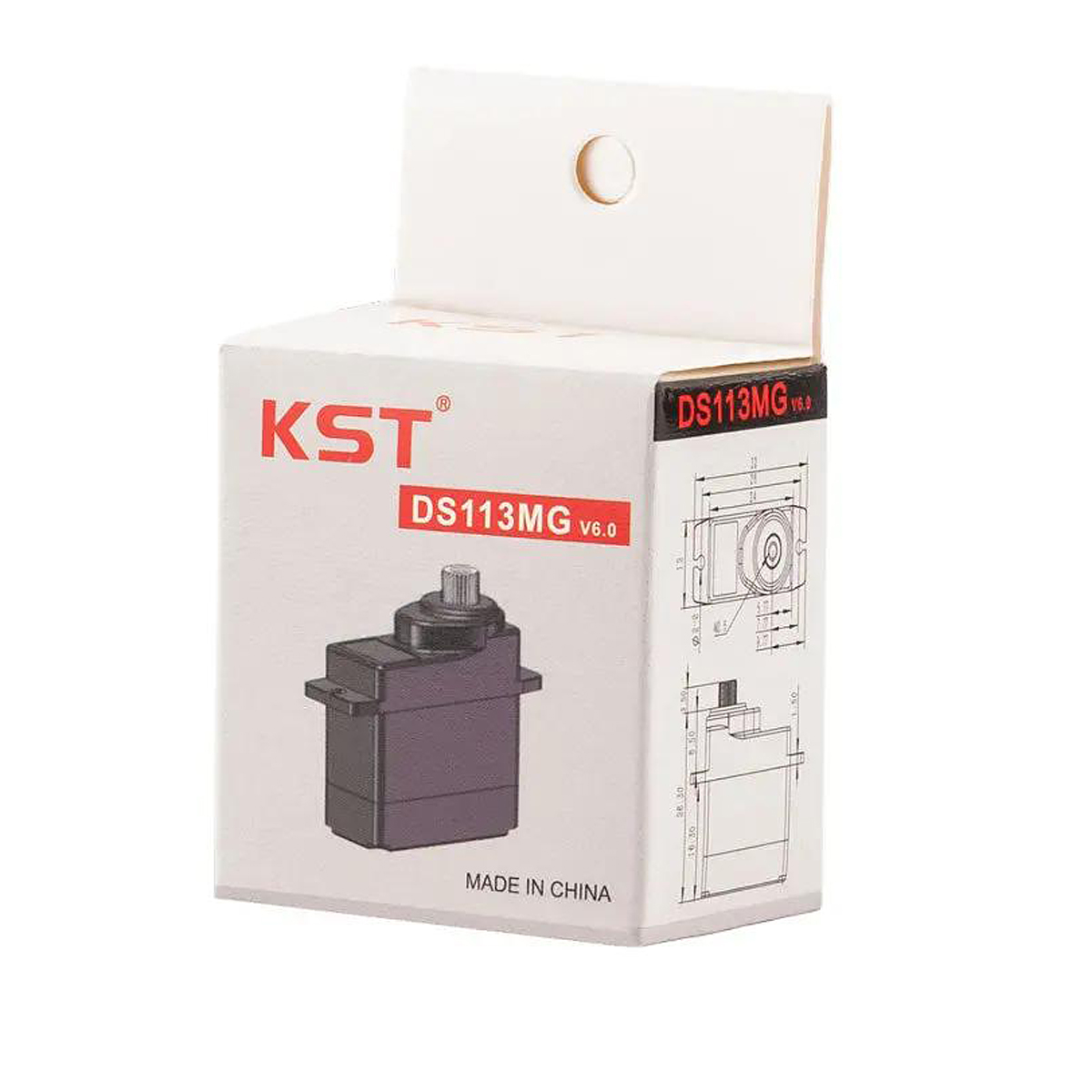

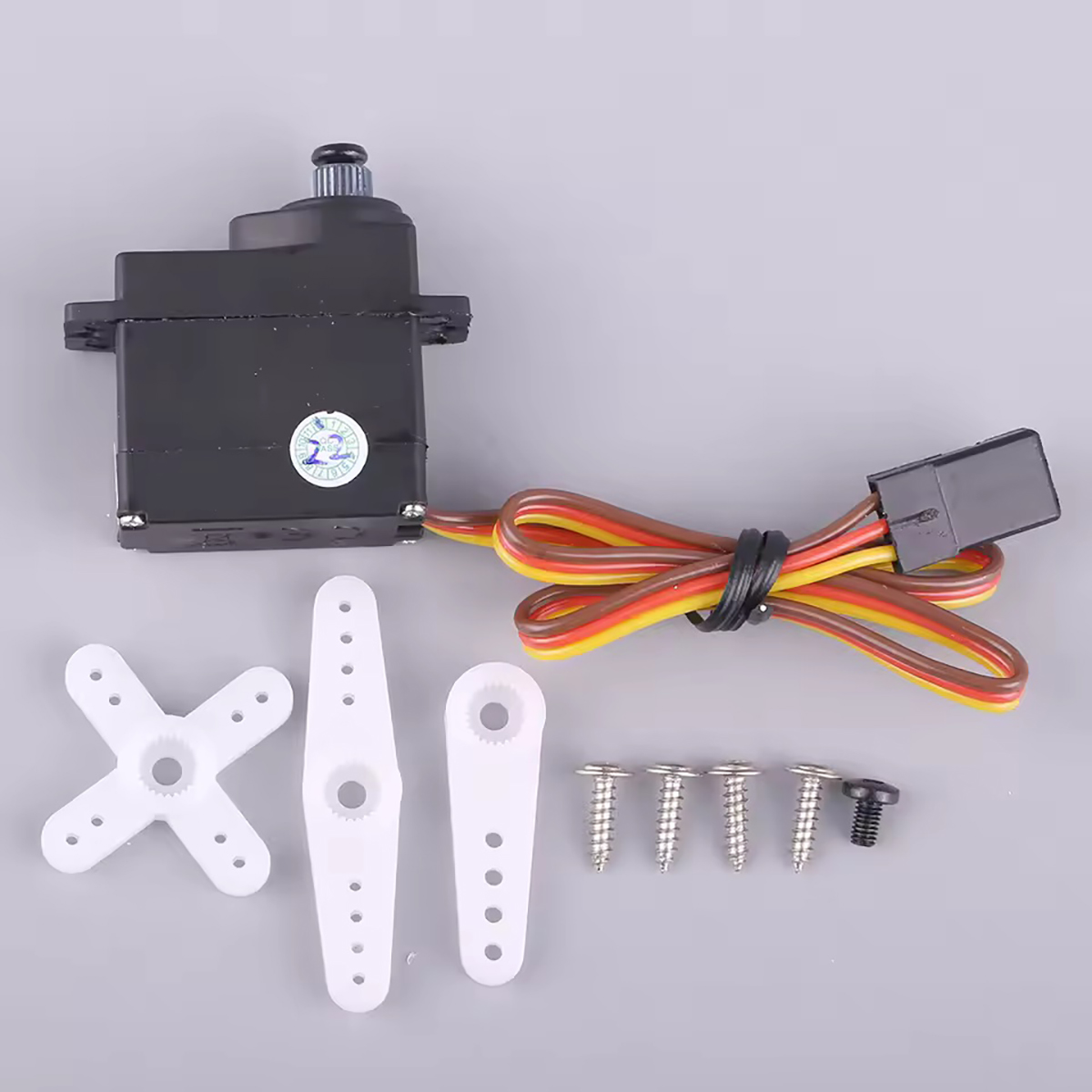

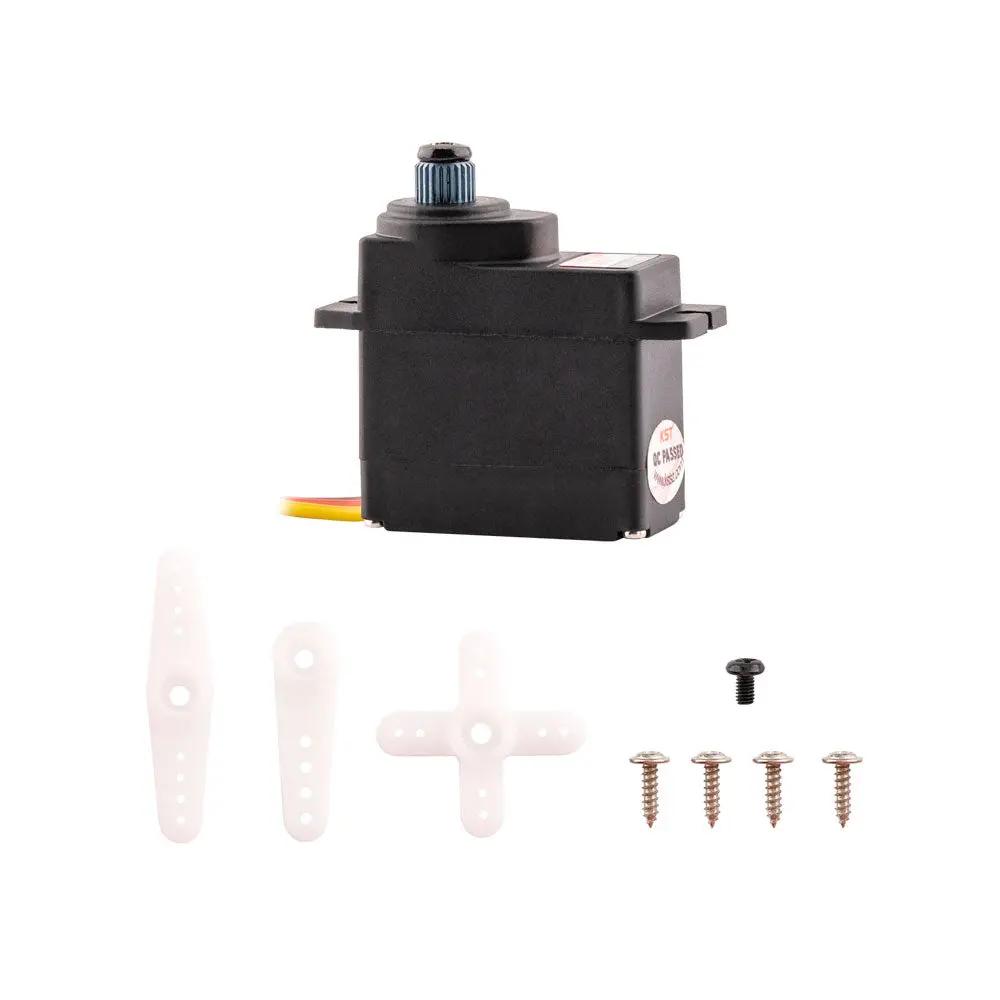

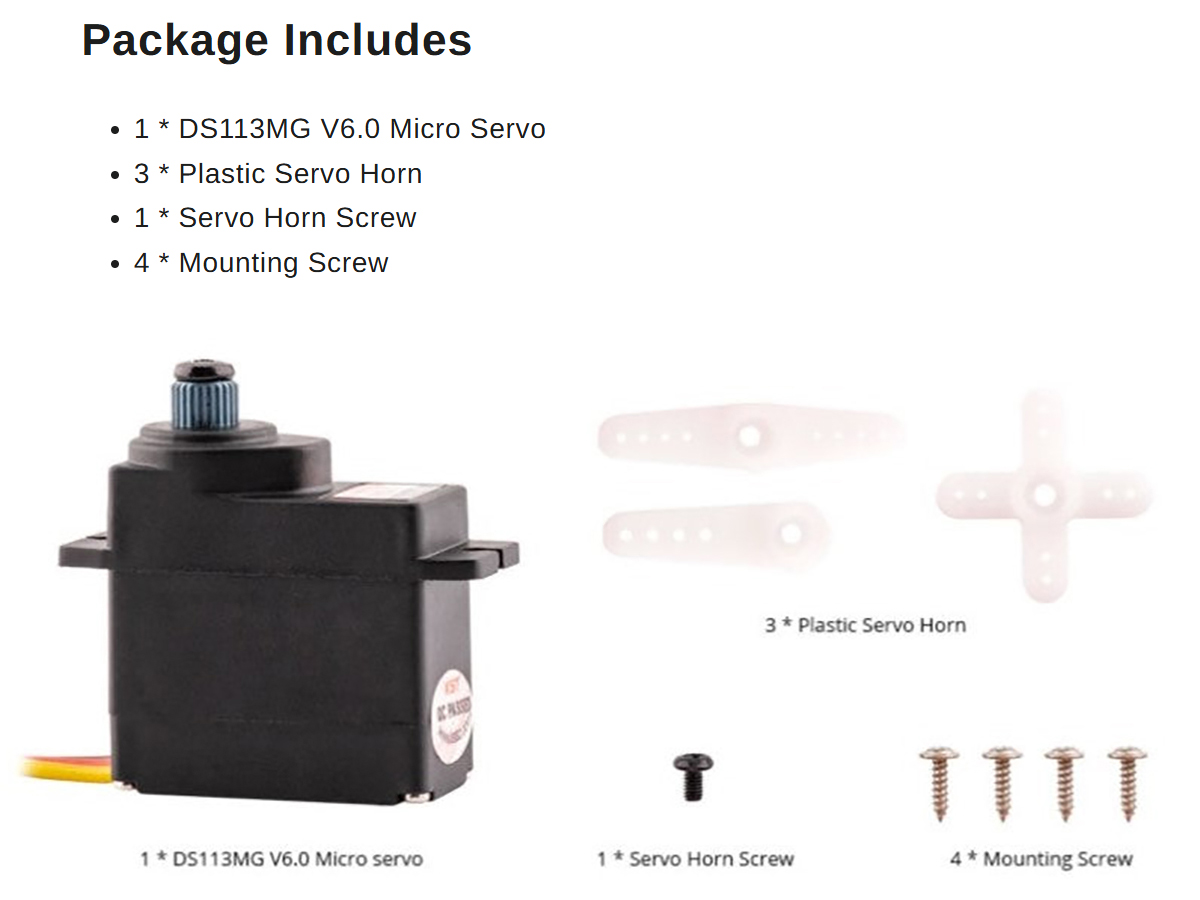

DS113MG V6.0 Micro Servo x1
Plastic Servo Horn x3
Servo Horn Screw x1
Mounting Screw x4
