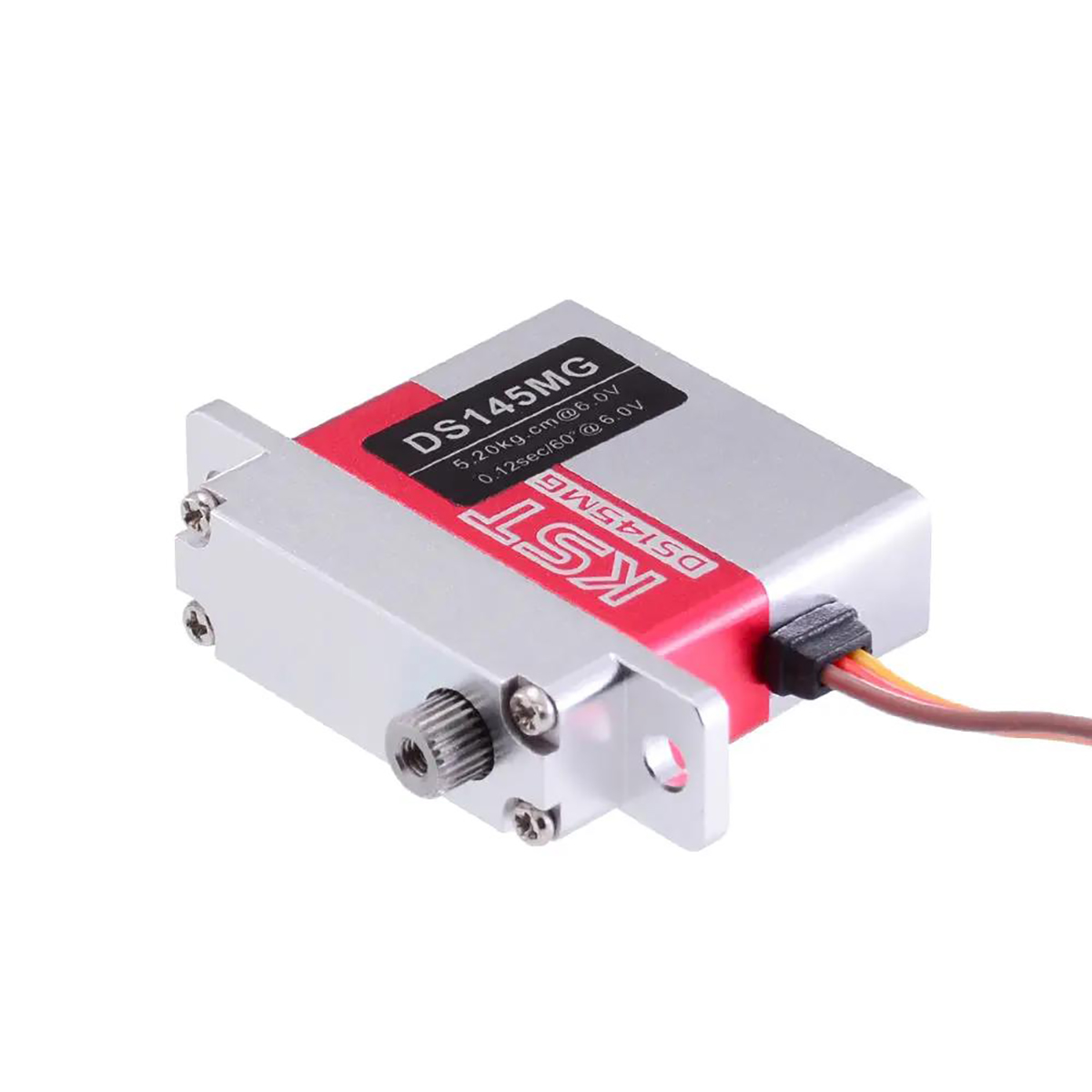

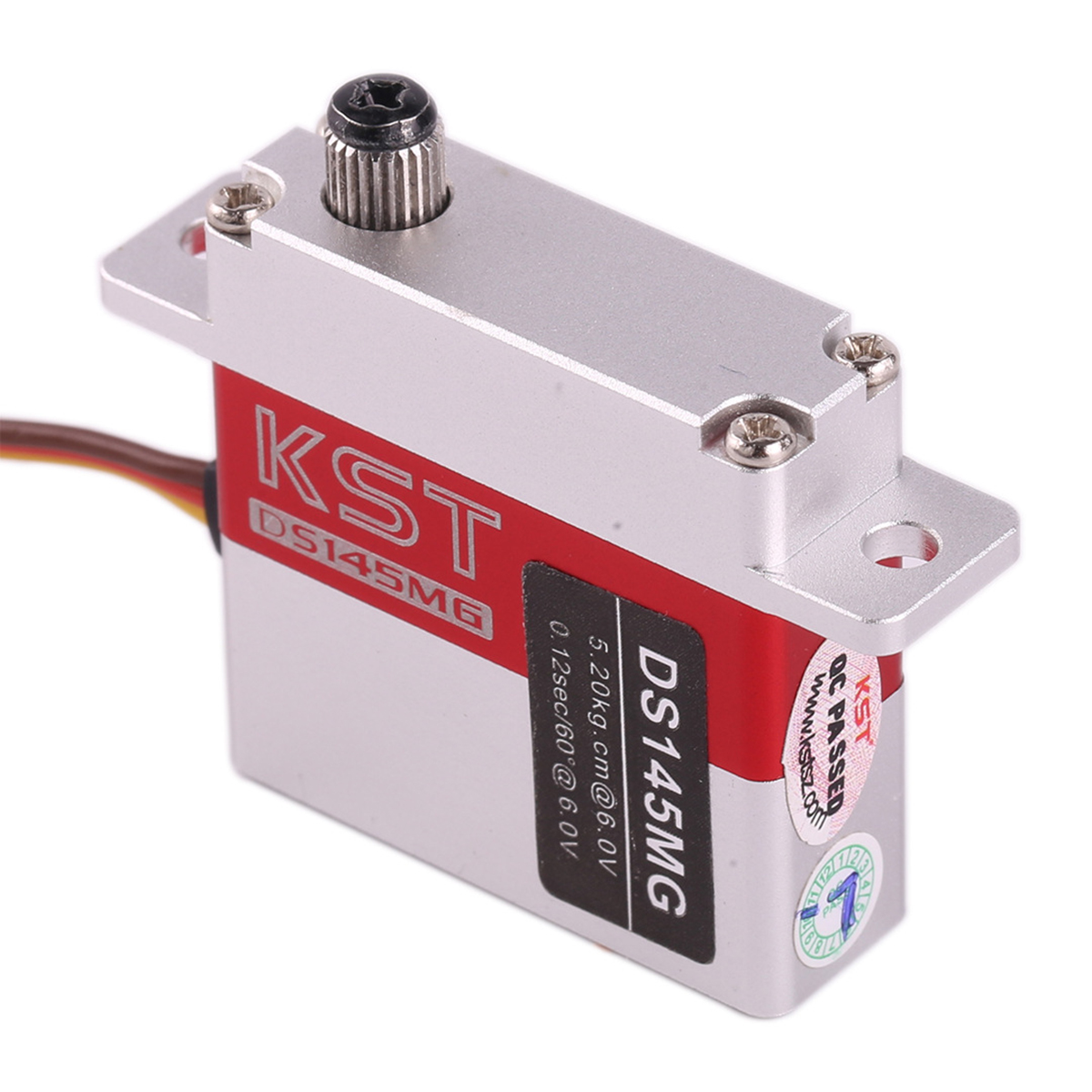

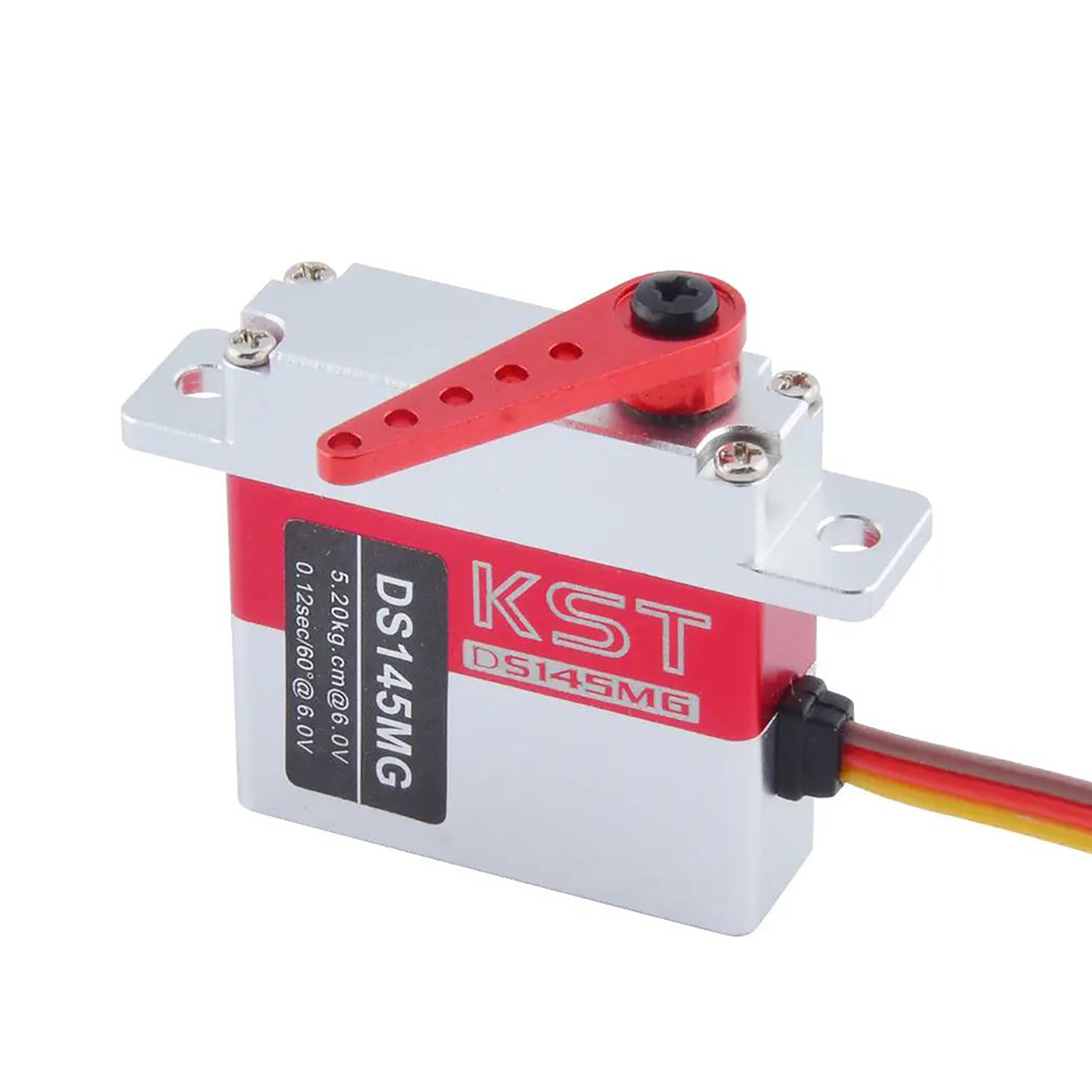

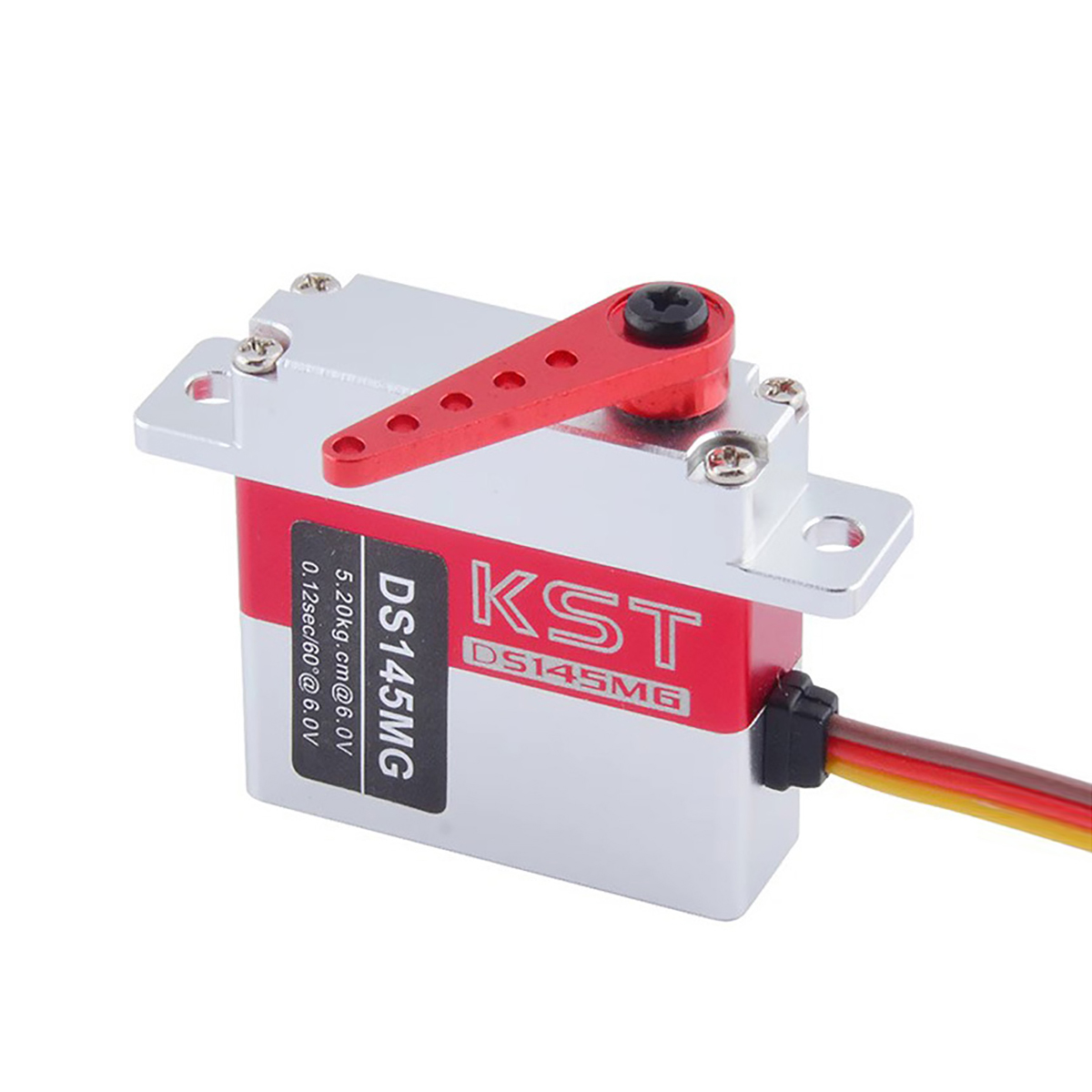

KST DS145MG Digital Metal Gear Servo 10mm 5.20Kg.cm 0.12sec for RC Glider Helicopter Fixed Wing
KST DS145MG Digital Metal Gear Servo 10mm 5.20Kg.cm 0.12sec for RC Glider Helicopter Fixed Wing

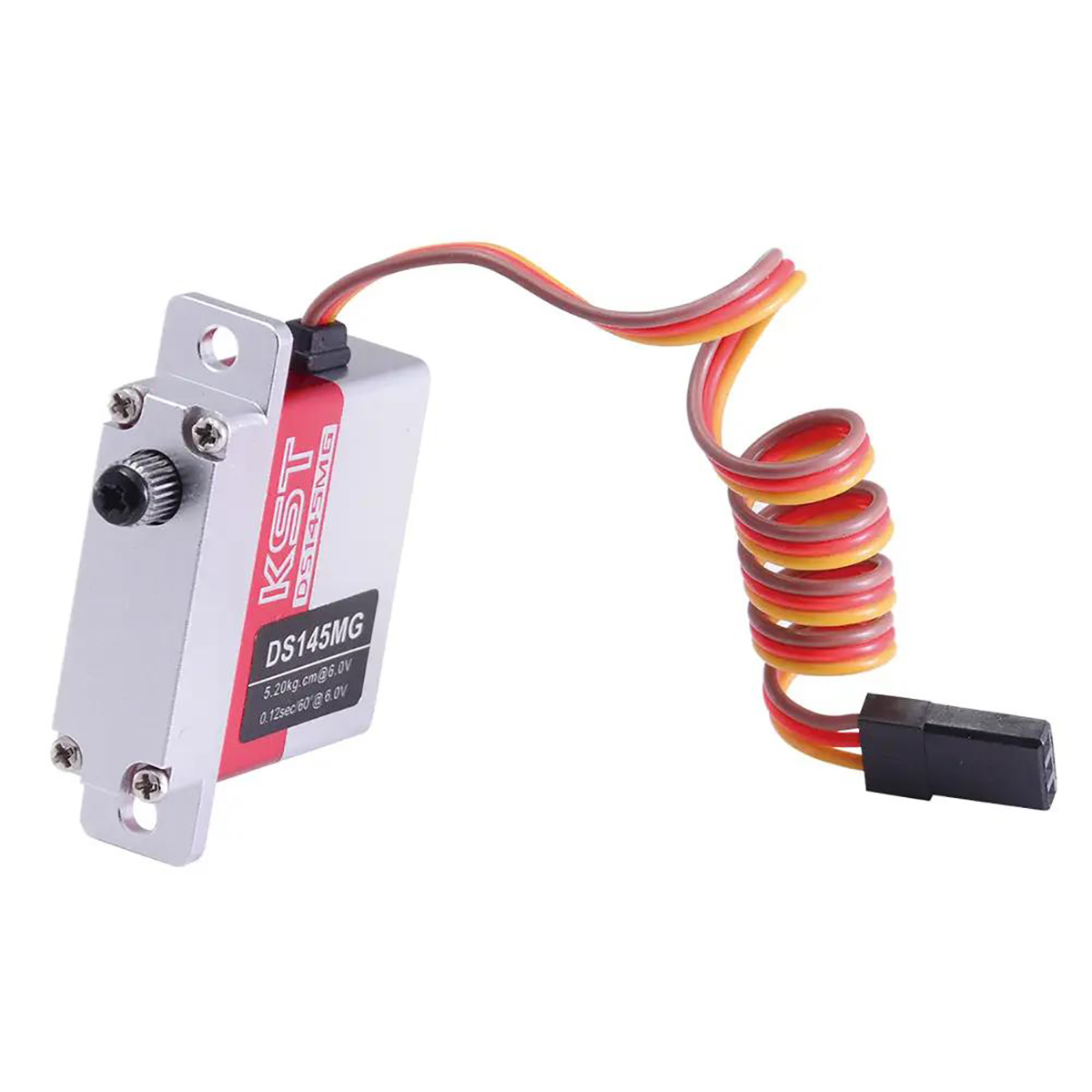

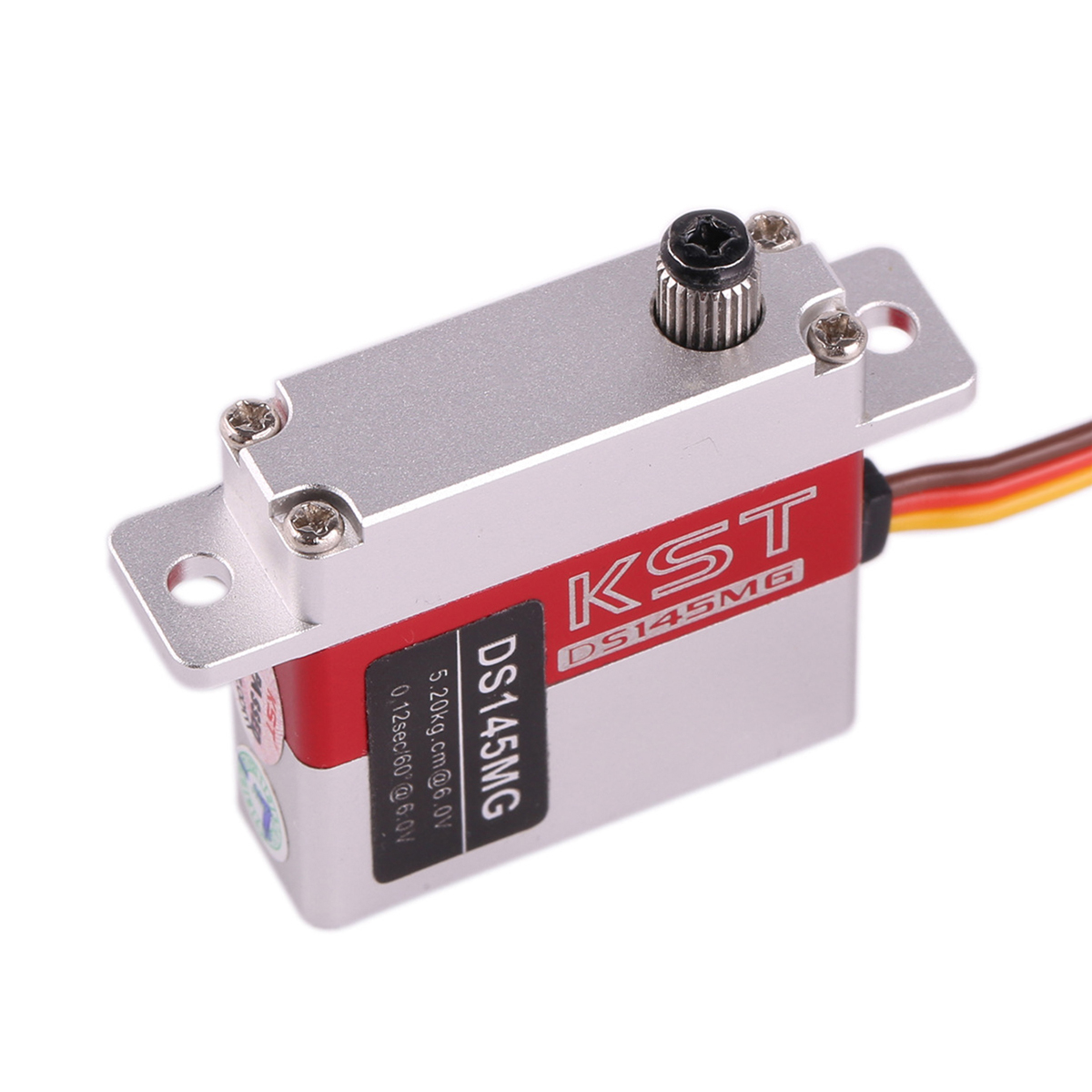

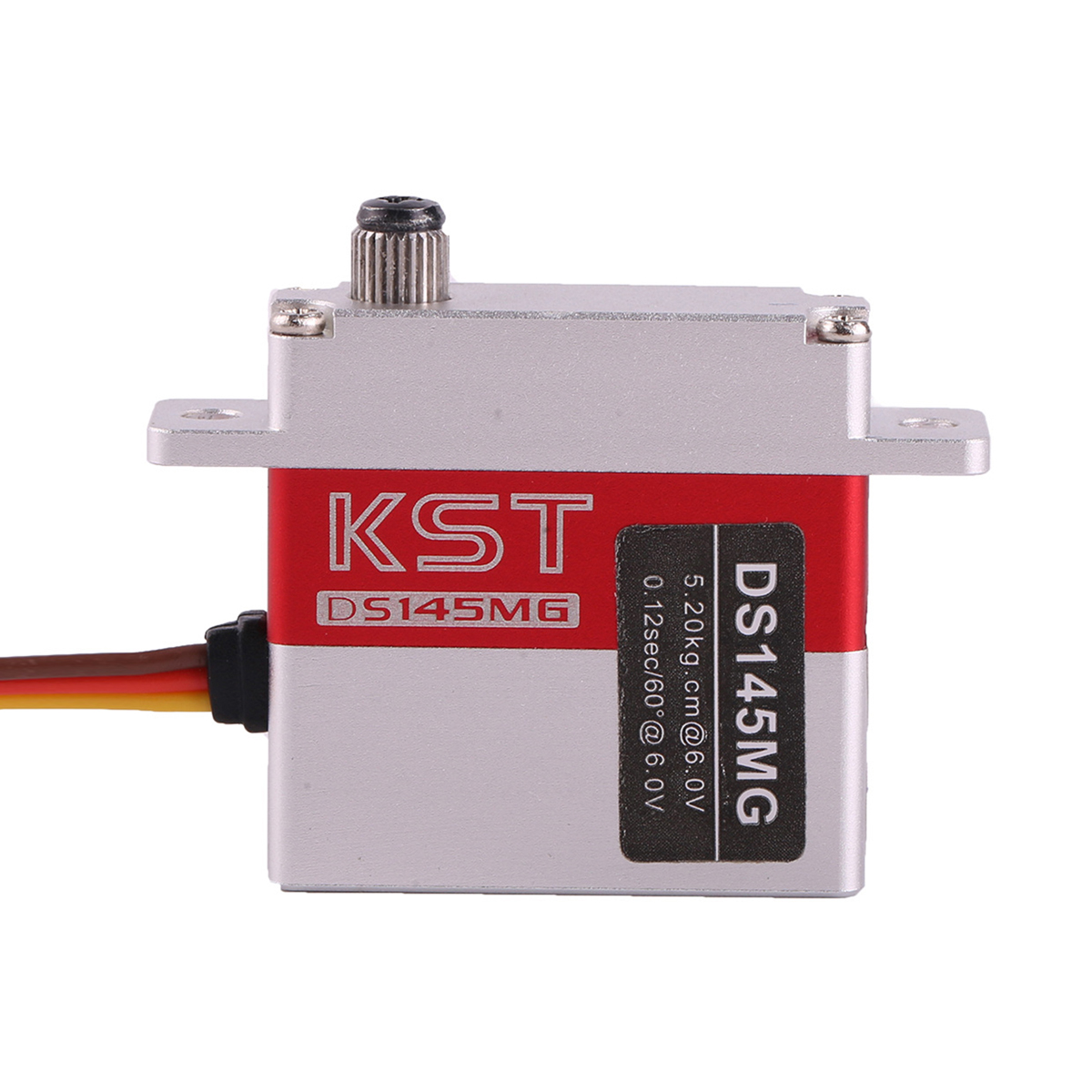

The KST DS145MG is an amazingly good metal cased servo, suitable for glider fuselages, and helis, and all RC models. It is exactly the same size and has 90% of the performance and build quality of the market leader, for 40% less. Like the more expensive servo it has no geartrain slop.
At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.4Kgf.cm torque, the KST DS145 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, 450 and larger helicopters and jets.
Features
Extreme torque and Excellent speed
CNC aluminium case
Two Ball Bearing
Programmable
Model: DS145MG Digital Metal Gear Servo
Rated Voltage: DC4.8V
Operating Voltage: DC4.8V-6.0V
Size: 30*10*30mm
Torque: 5.20Kg.cm @ 6.0V / 4.30Kg.cm @ 4.8V
Speed: 0.12sec/60deg @ 6.0V / 0.15sec/60deg @ 4.8V
Default Travel Angle: ±50° = 100° Total
Operating Temperature Range：-10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor

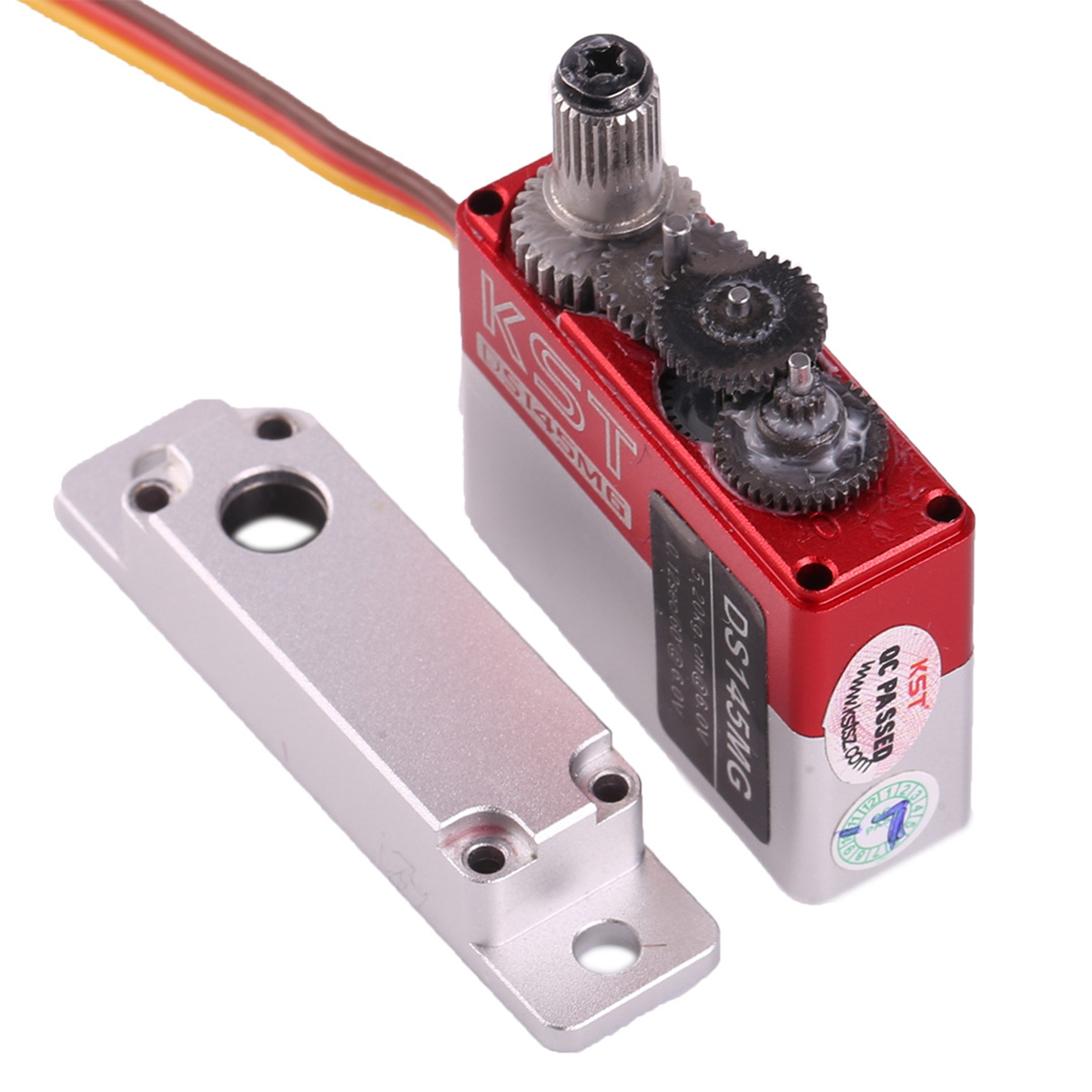

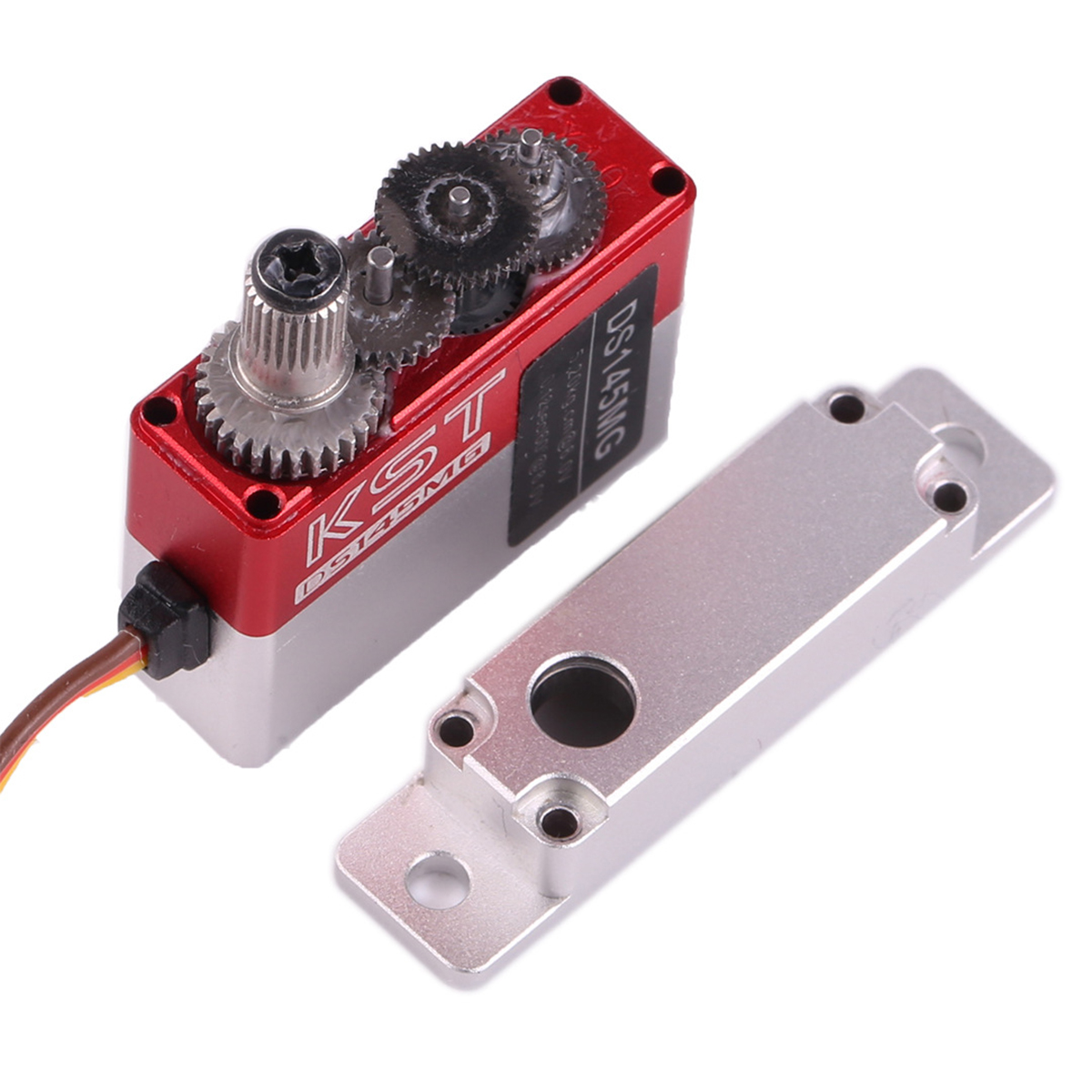

Gear Set Material: Hardened Steel
Position Sensor: Potentiometer

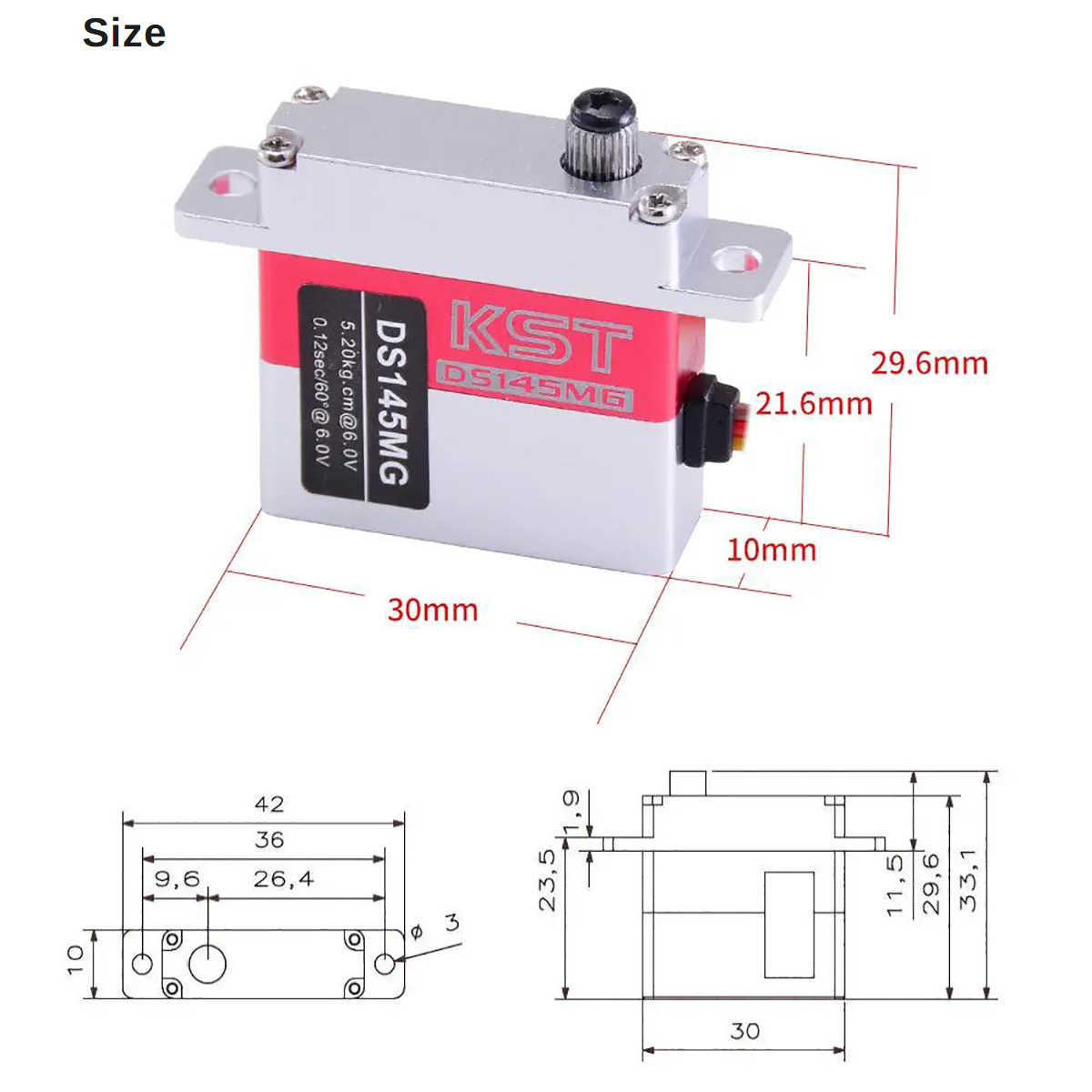

Case Dimensions: 30mm*10mm*29.6mm±0.2mm
Weight: 23g±10%

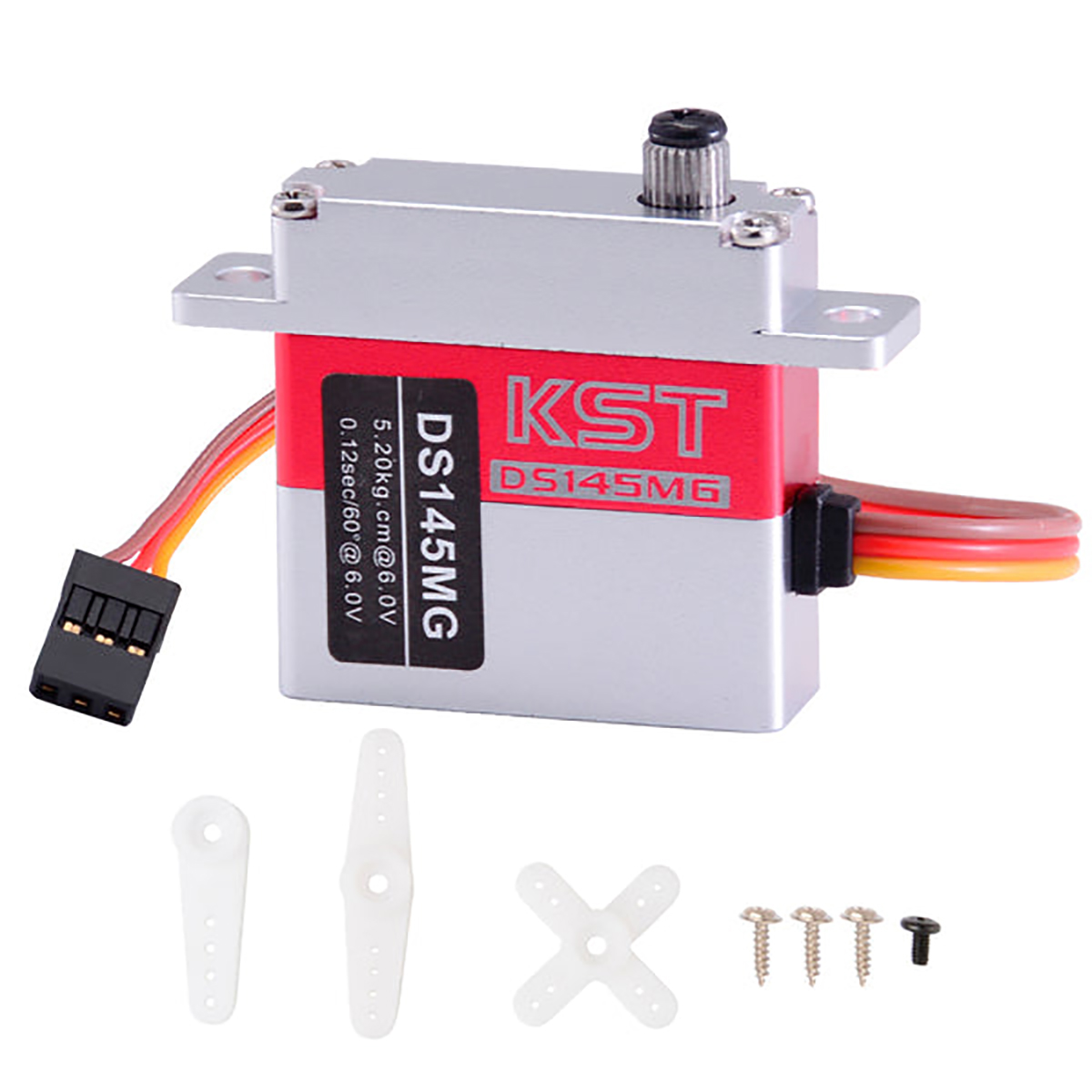

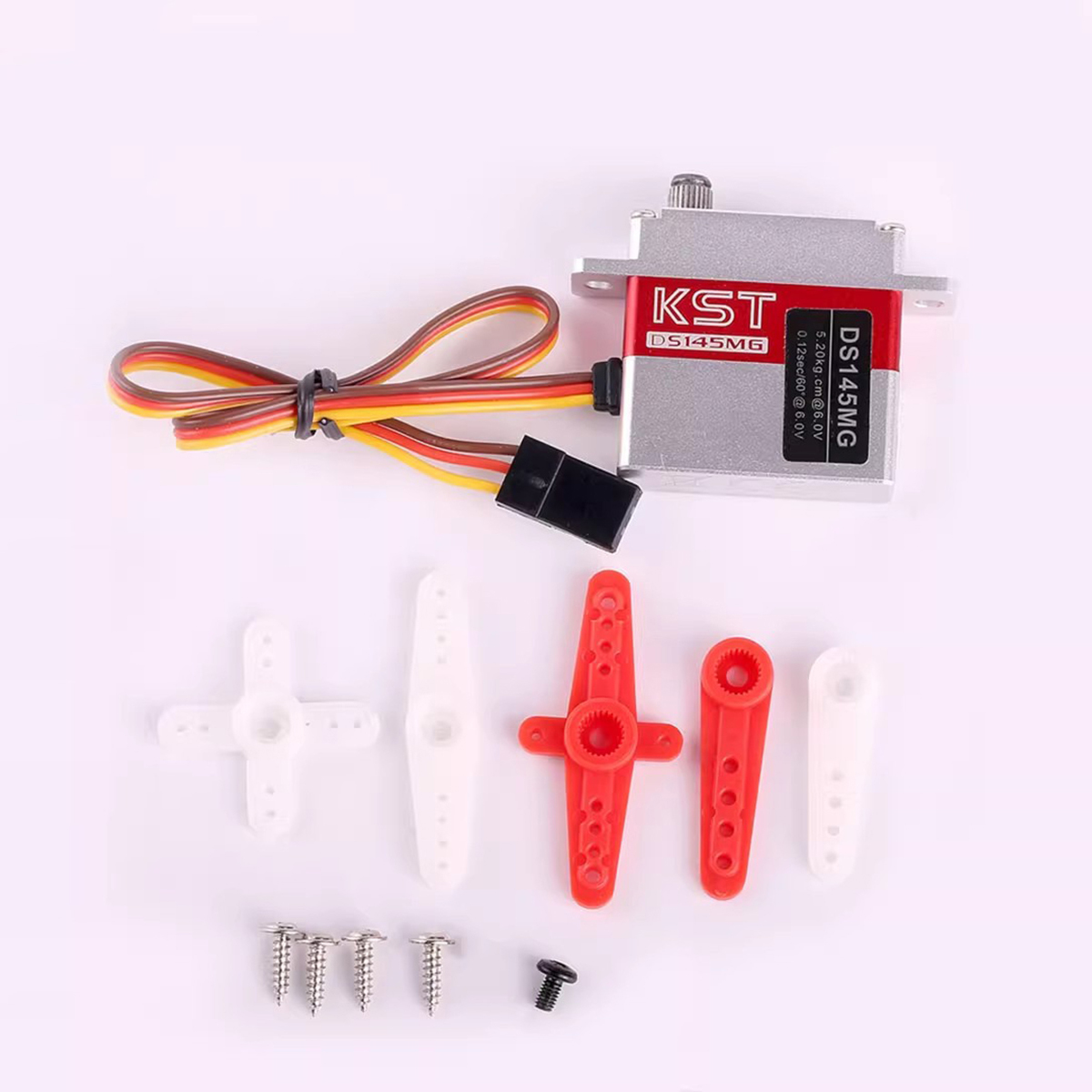

DS145MG Digital Metal Gear Servo x1
pack of accessories x1
