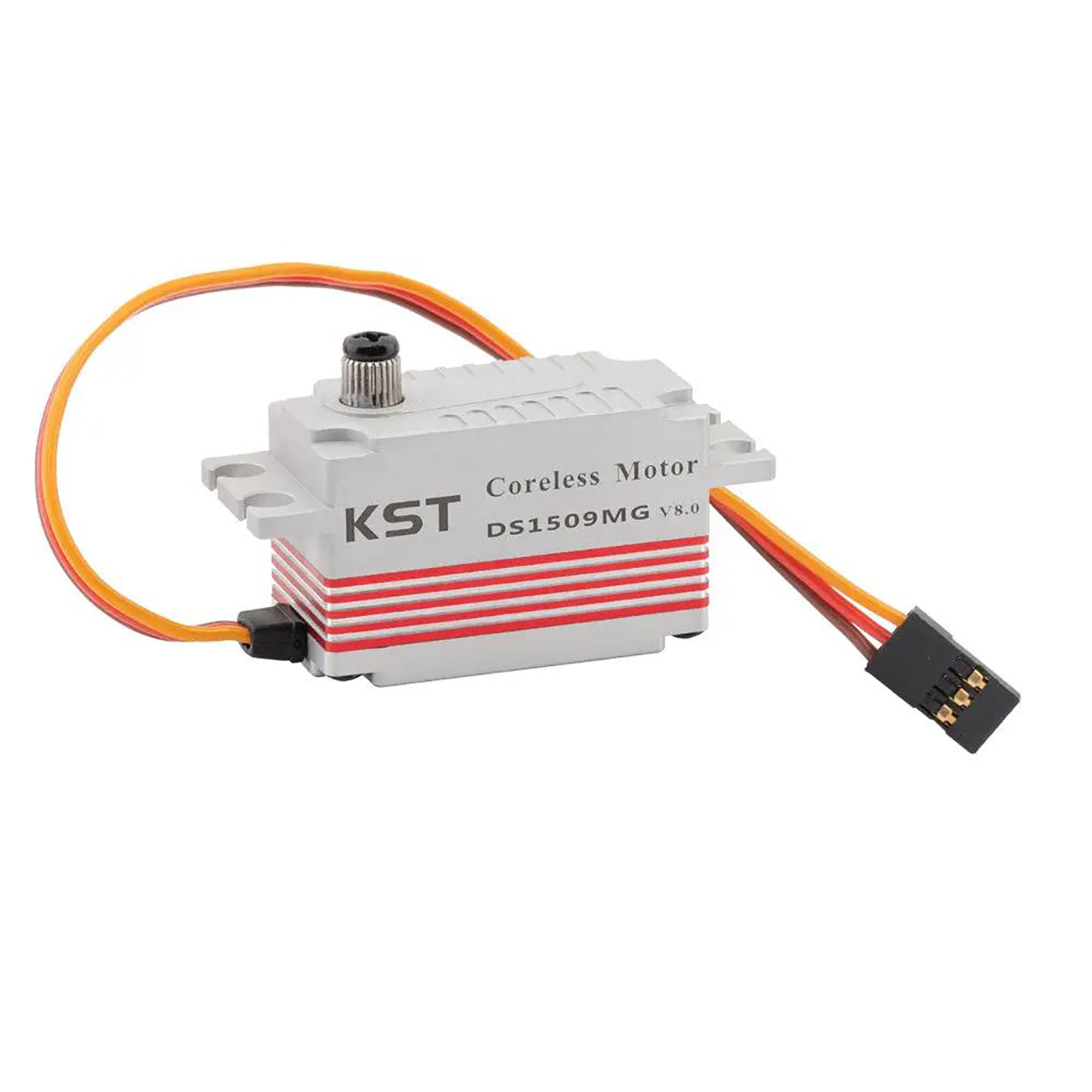

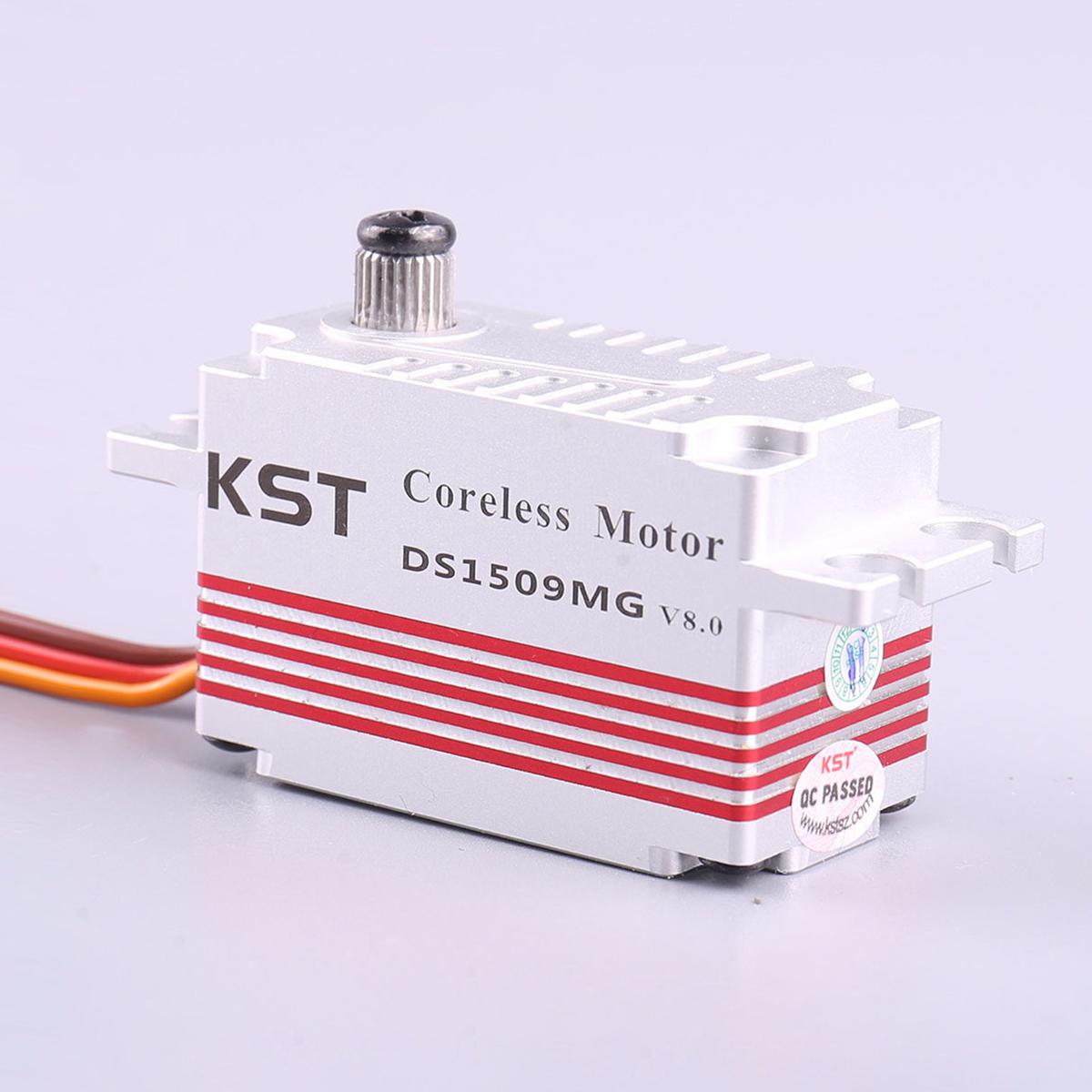

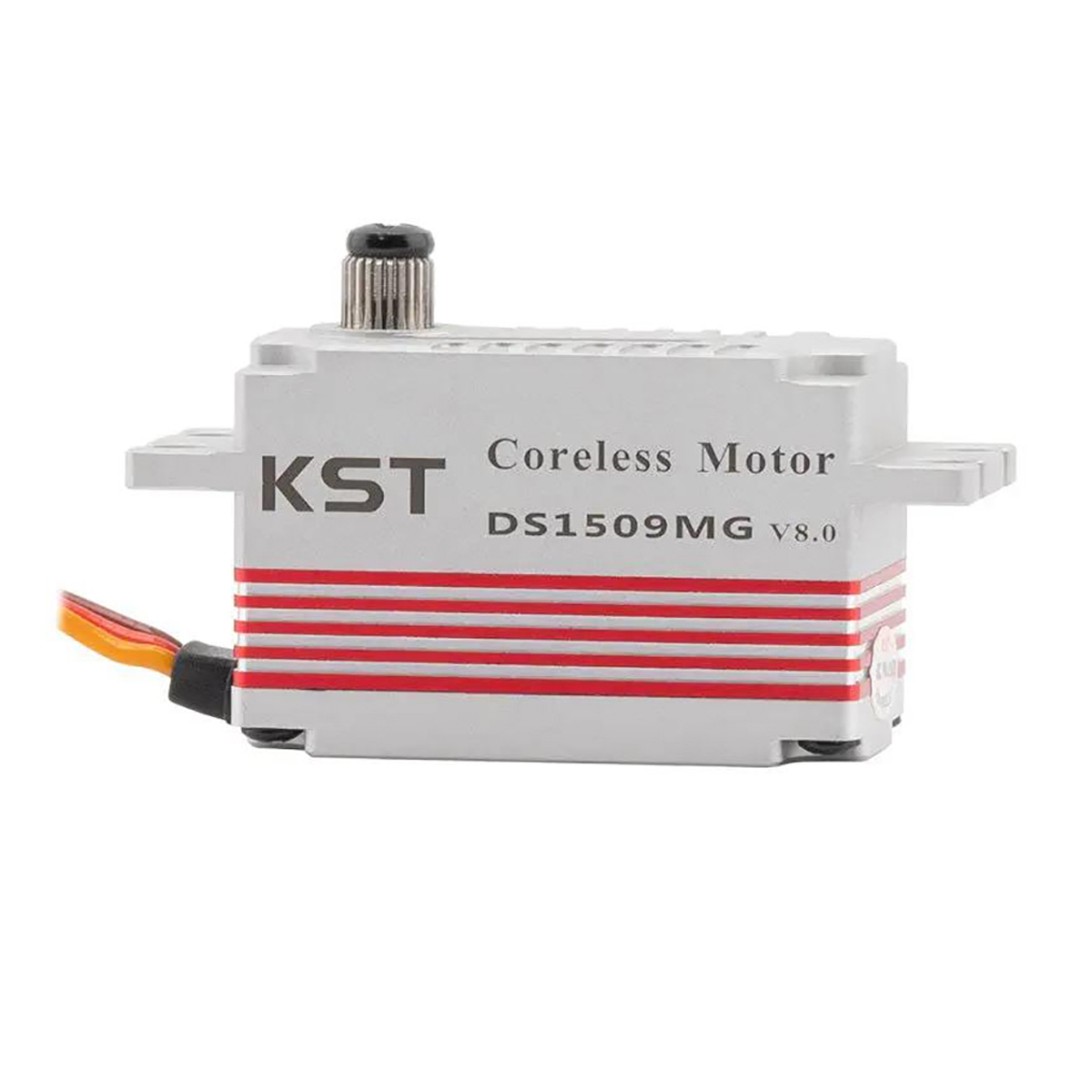

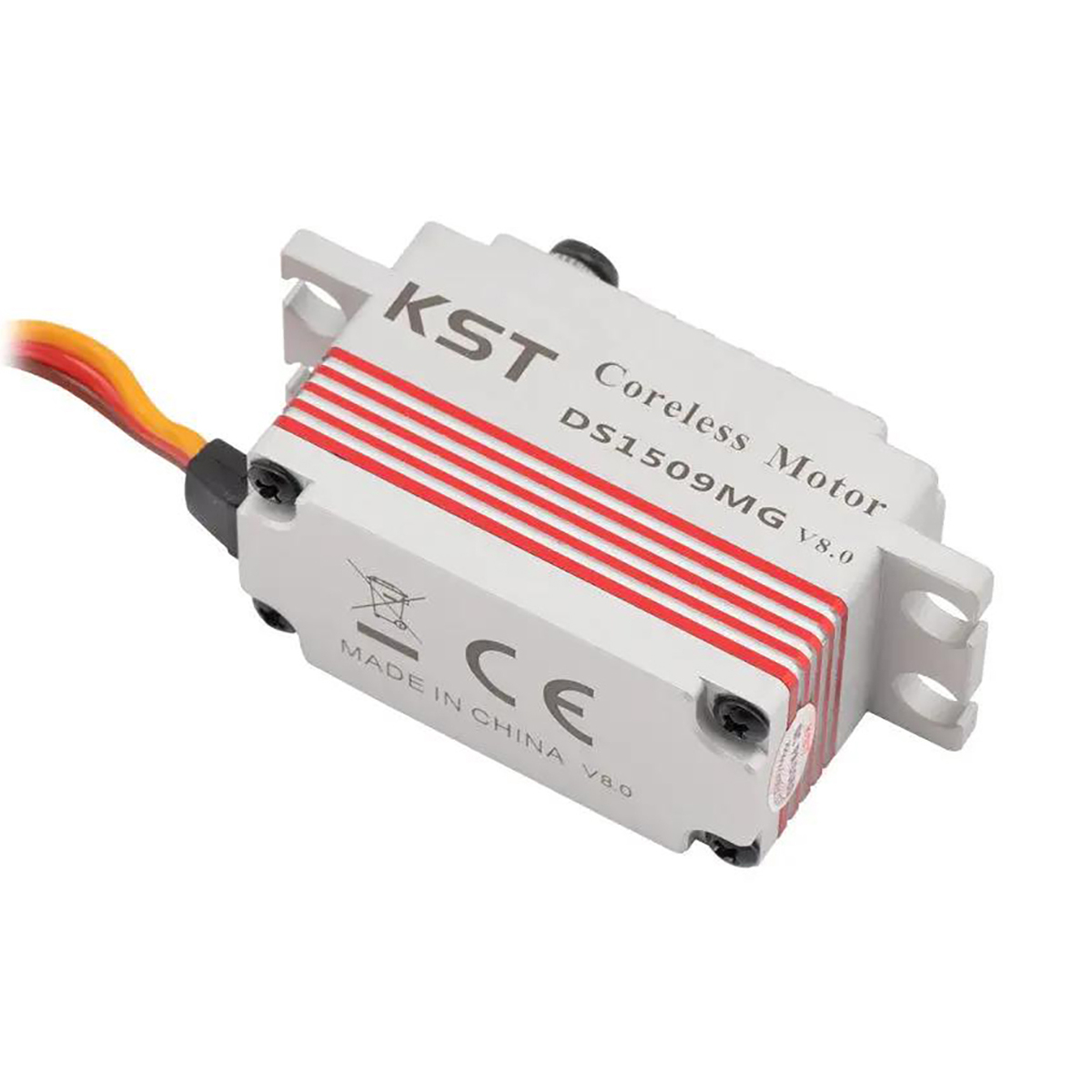

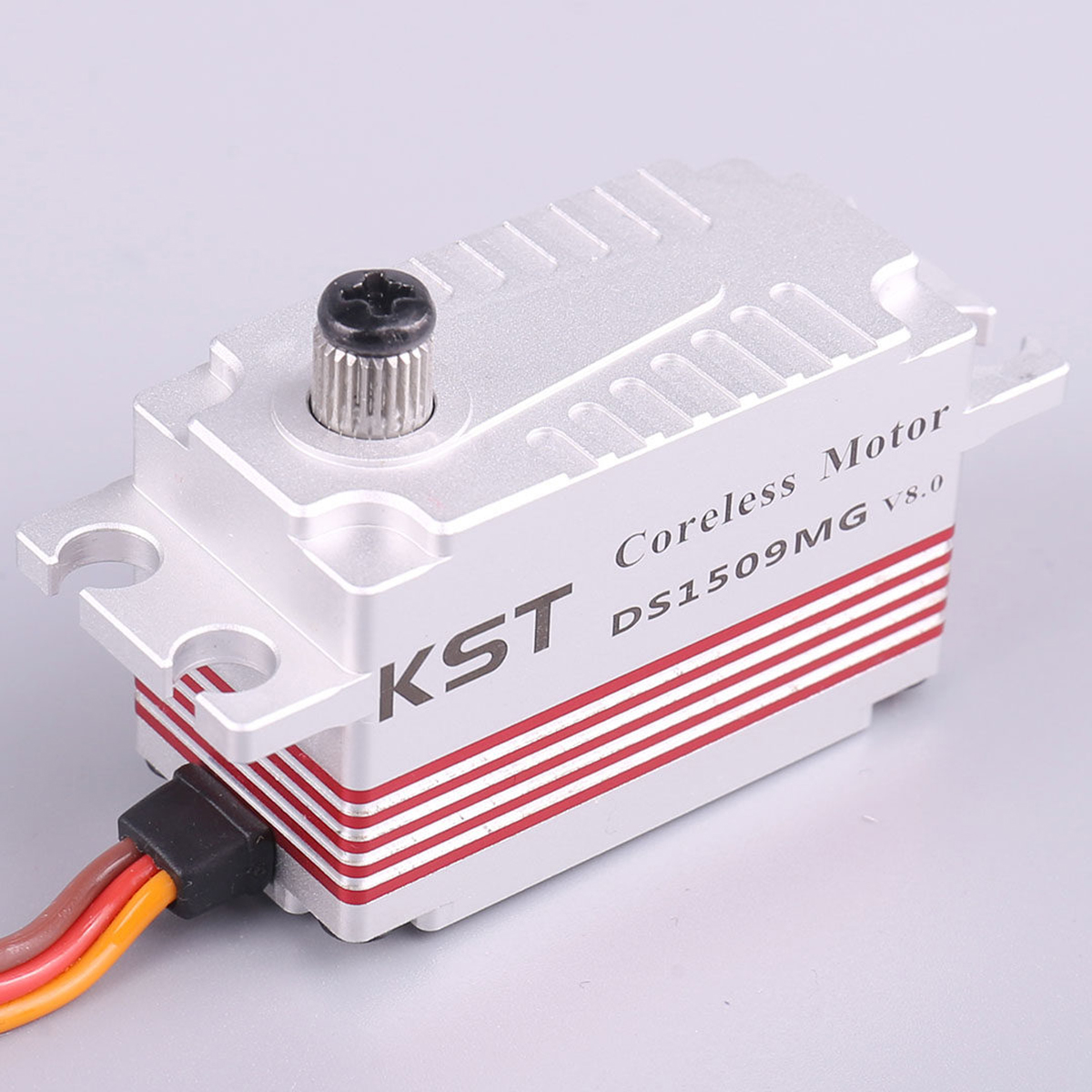

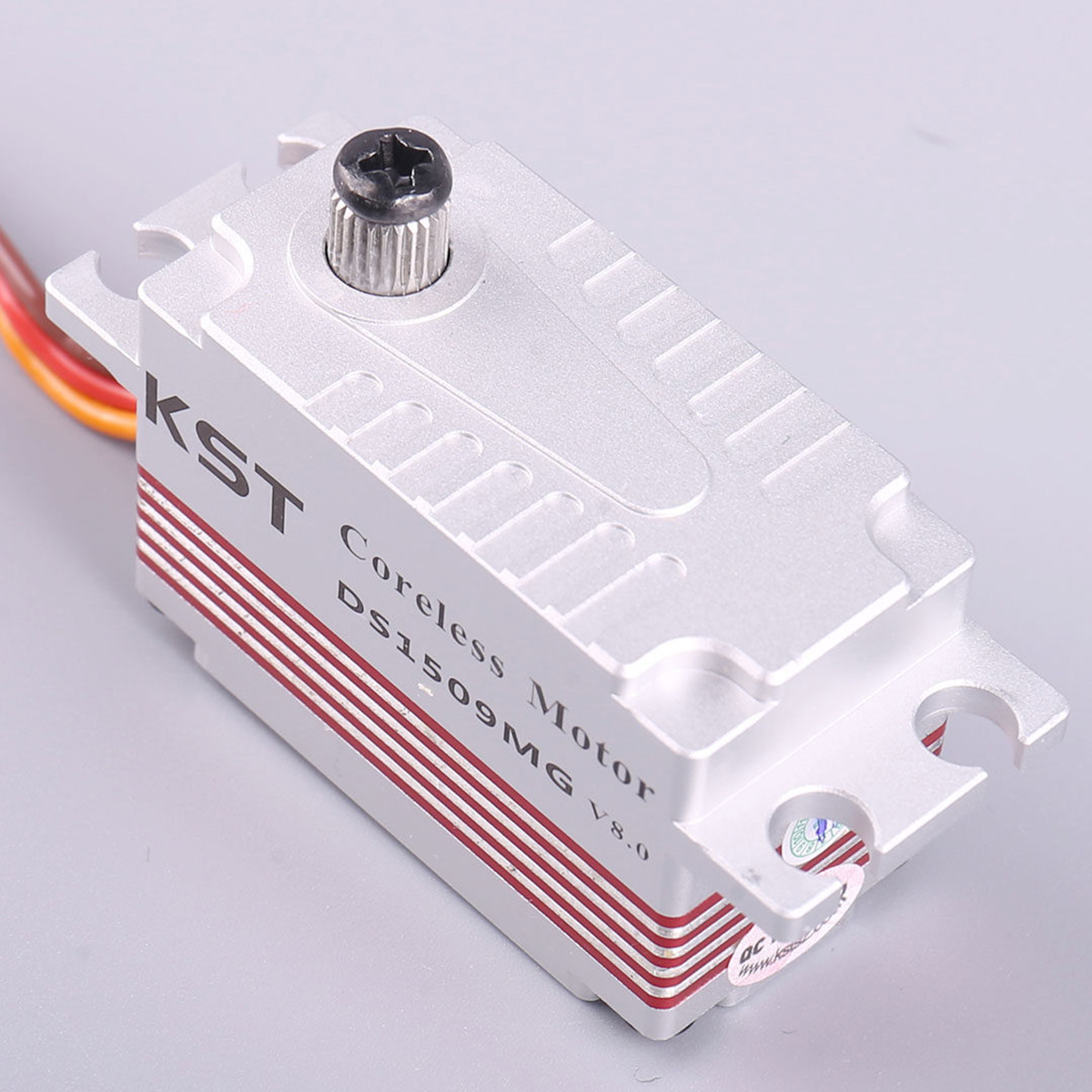

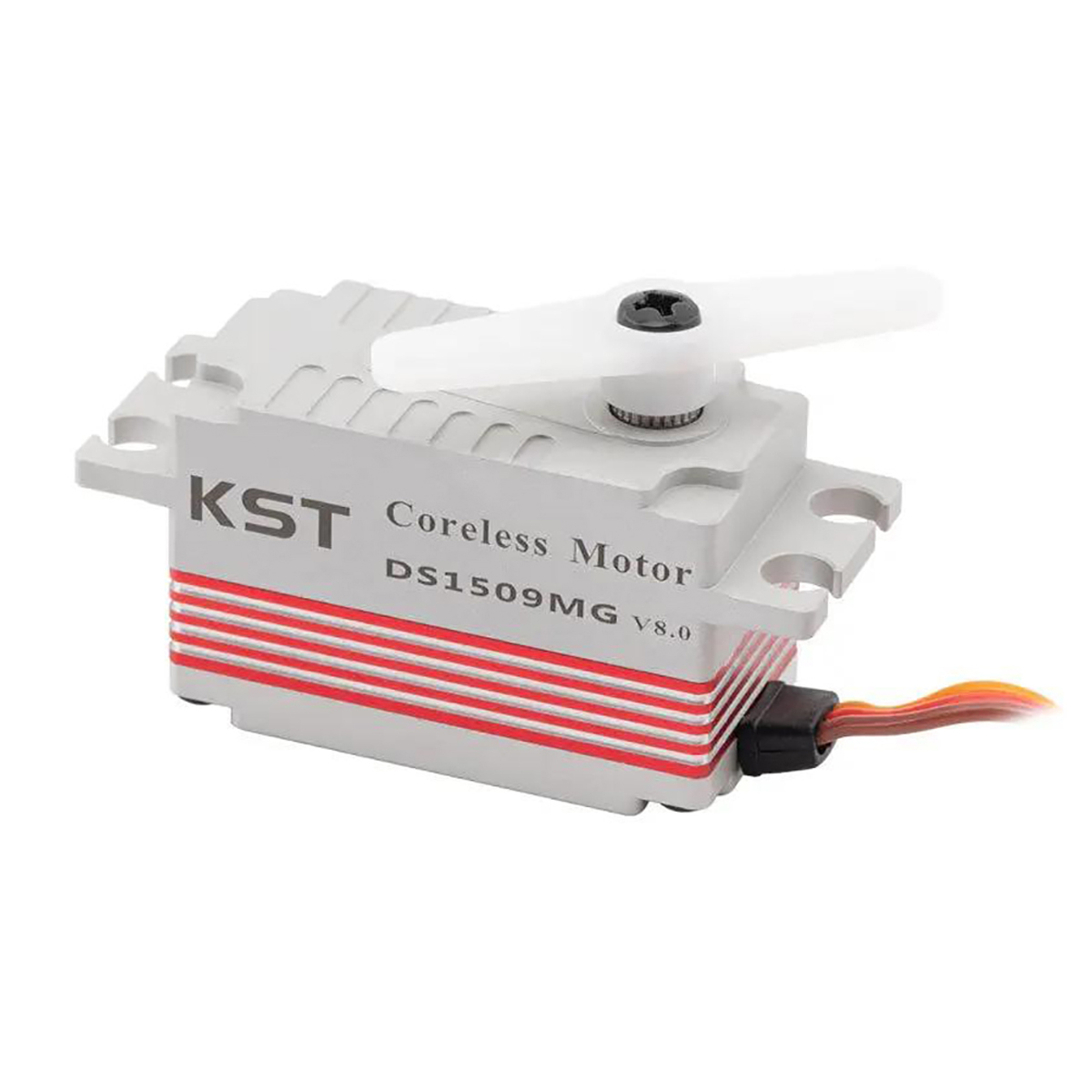

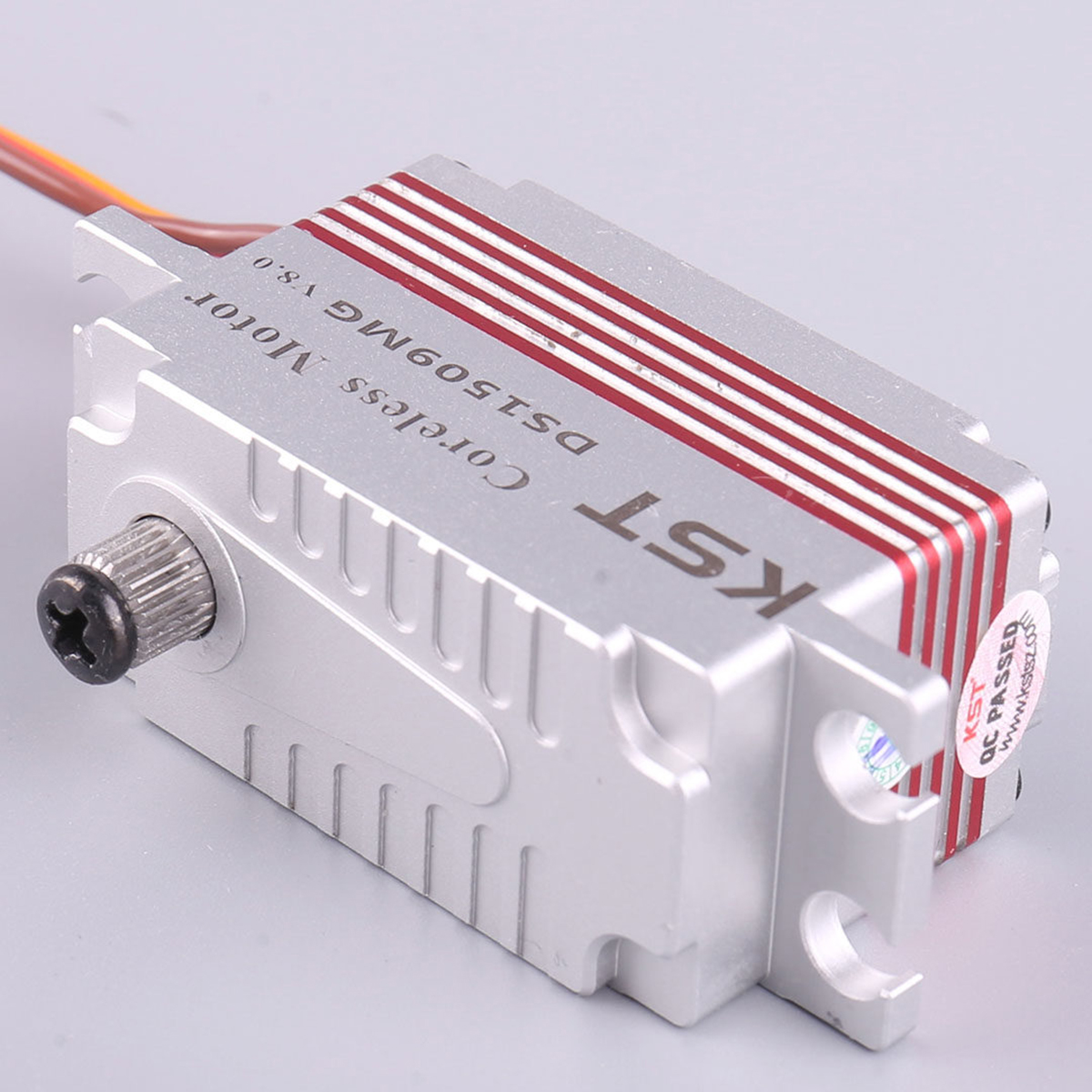

KST DS1509MG Metal Gear Coreless Digital Low Profile Servo 12.8Kgf.cm 0.07sec for RC Aircraft Plane RC Car
KST DS1509MG Metal Gear Coreless Digital Low Profile Servo 12.8Kgf.cm 0.07sec for RC Aircraft Plane RC Car
DS1509MG low profile digital Servo, featured with 12.8Kgf.cm high torque and 0.07sec fast positioning speed. It is a great choice of steering servo for RC cars and aircraft models. It offers a wide voltage range of 4.8 – 7.4 Volt and is therefore universally applicable due to the low profile construction.
Features
Extreme Torque and Excellent Speed

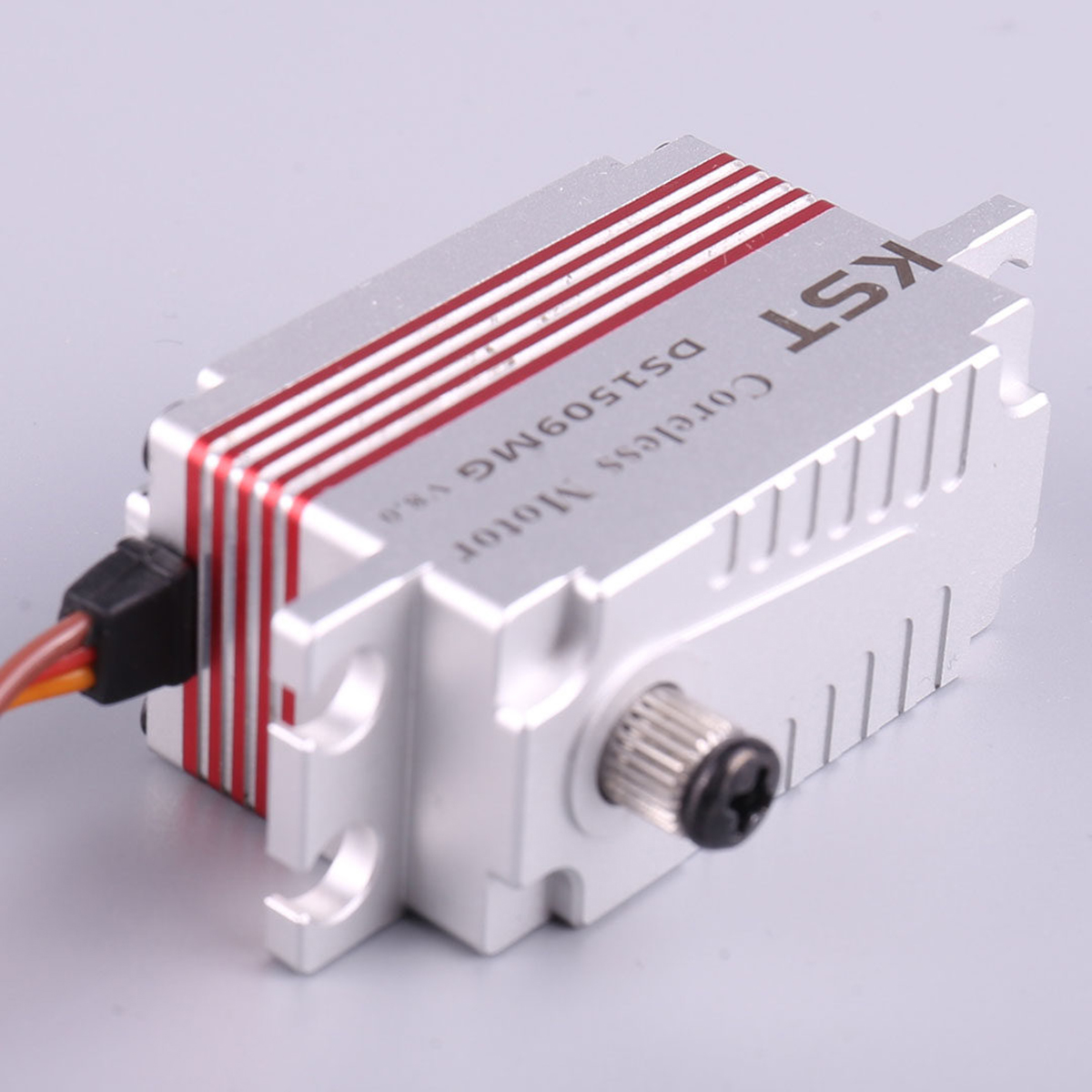

CNC Aluminium Case
Two Ball Bearings
Low Profile Size
Programmable

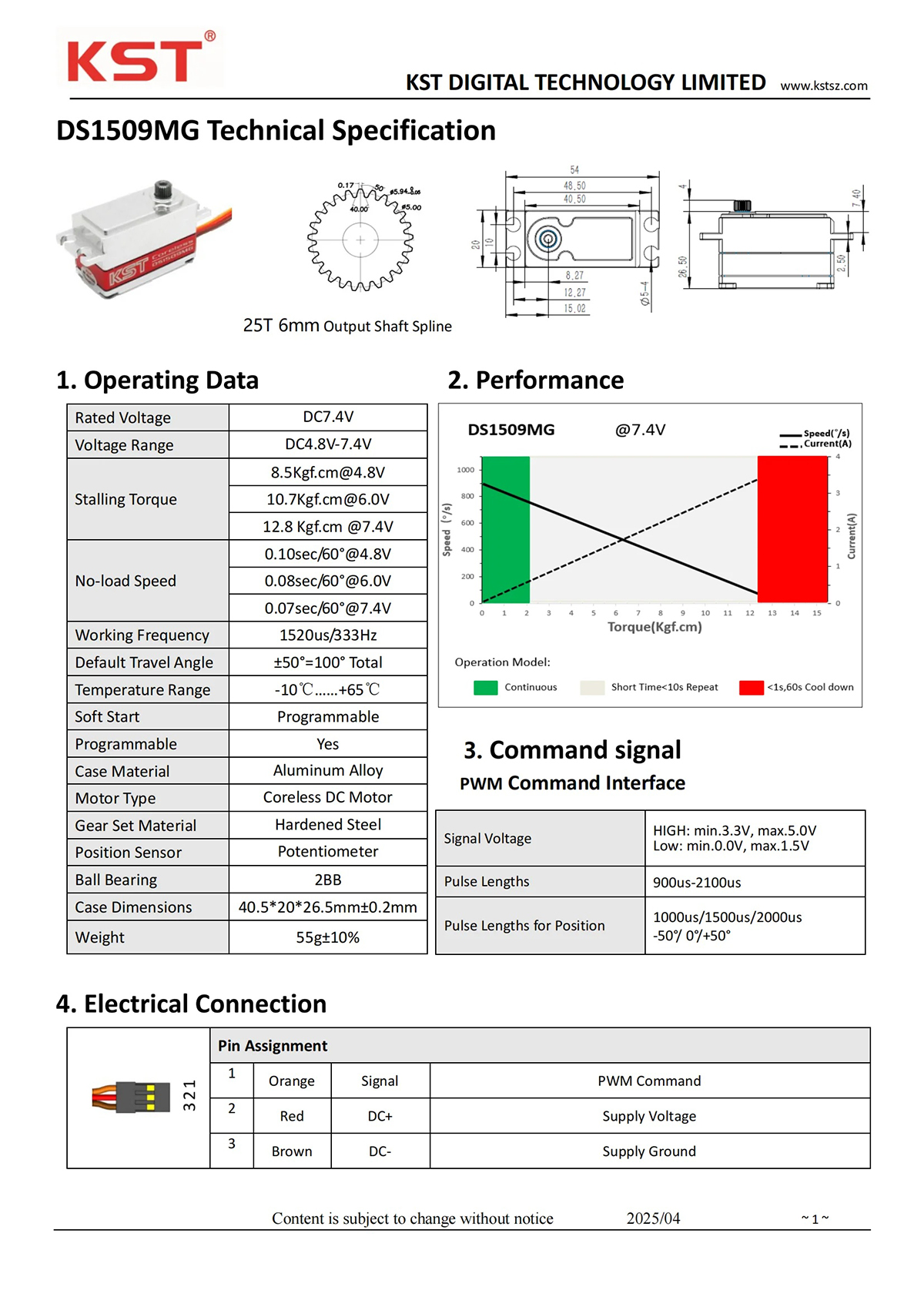

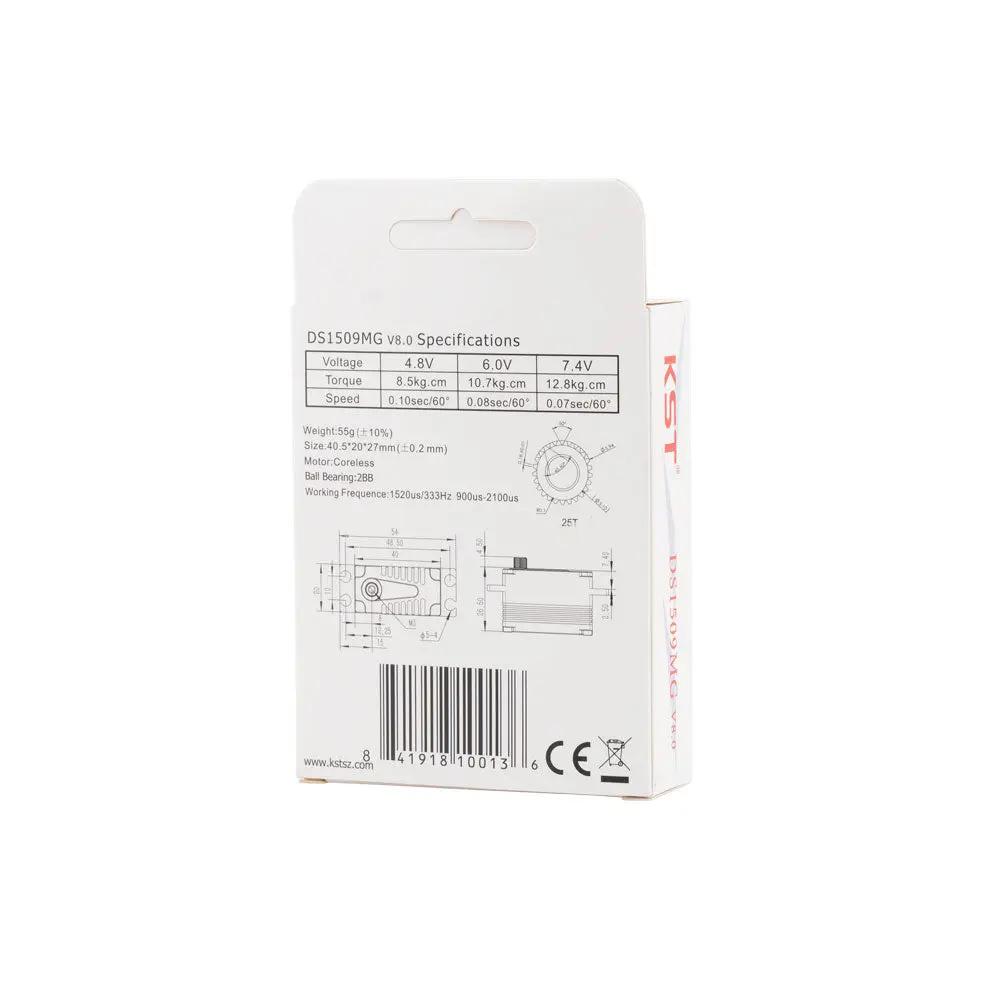

Model: DS1509MG Coreless Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-7.4V
Stalling Torque:
8.5Kgf.cm@4.8V
10.7Kgf.cm@6.0V
12.8Kgf.cm@7.4V
No-load Speed:
0.10sec/60°@4.8V
0.08sec/60°@6.0V
0.07sec/60°@7.4V
Working Frequency: 1520μs/333Hz

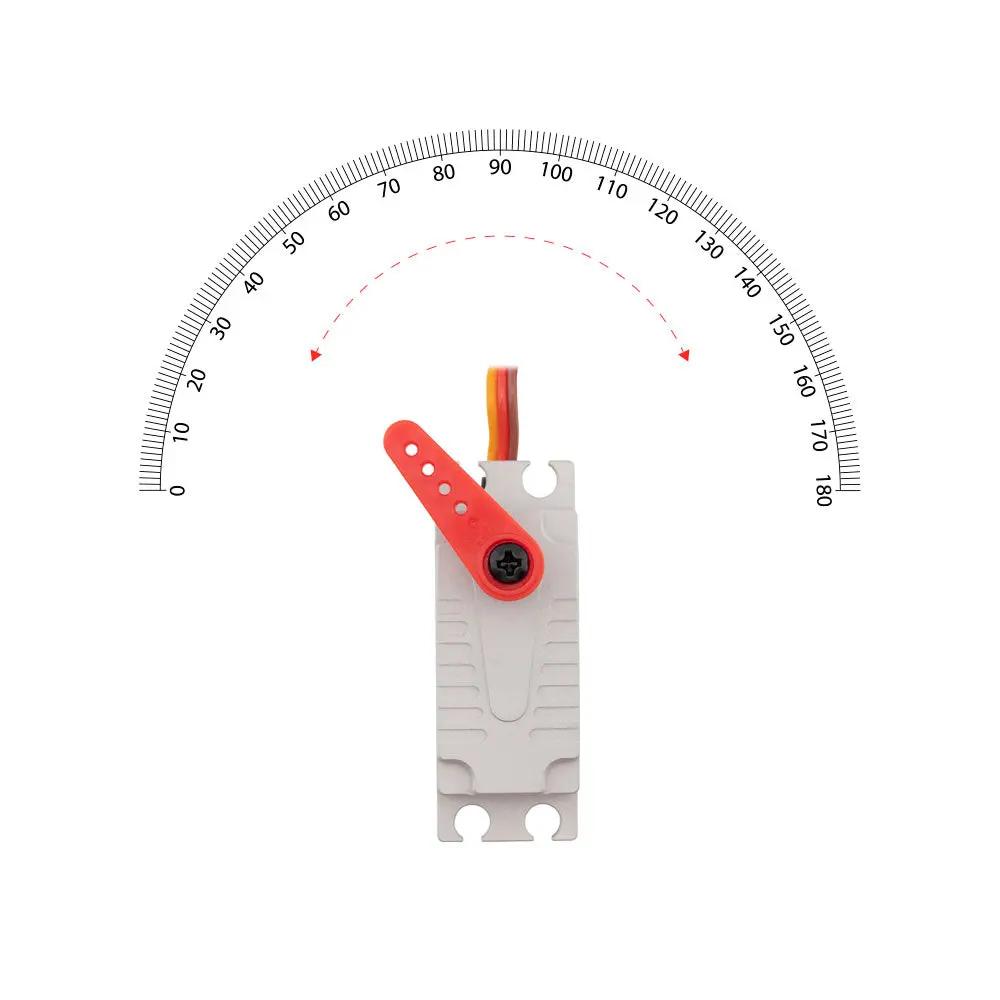

Default Travel Angle: ±50°=100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

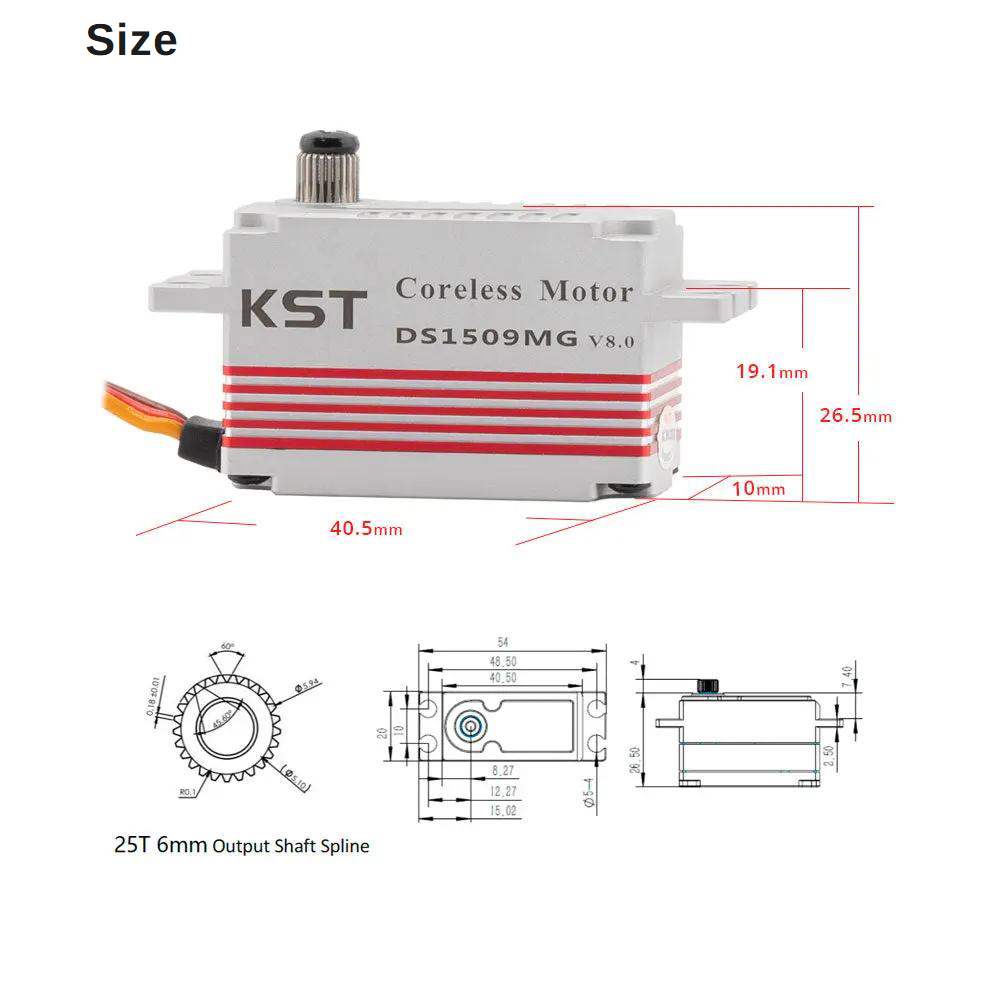

Case Dimensions: 40.5mm*20mm*26.5mm±0.2mm
Weight: 55g±10%

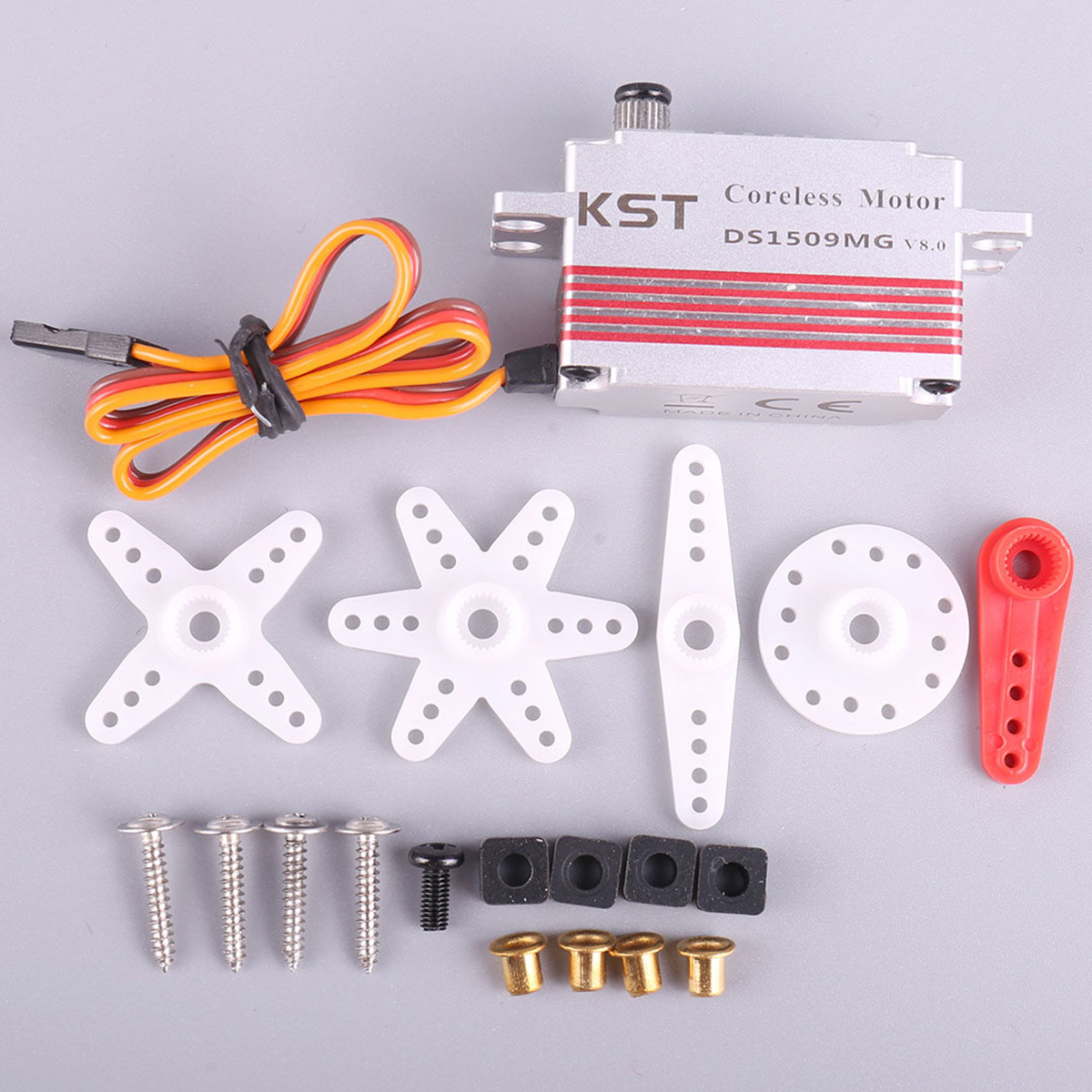

Accessories: Metal Gear Set, 25T-6B Aluminum Servo Arm

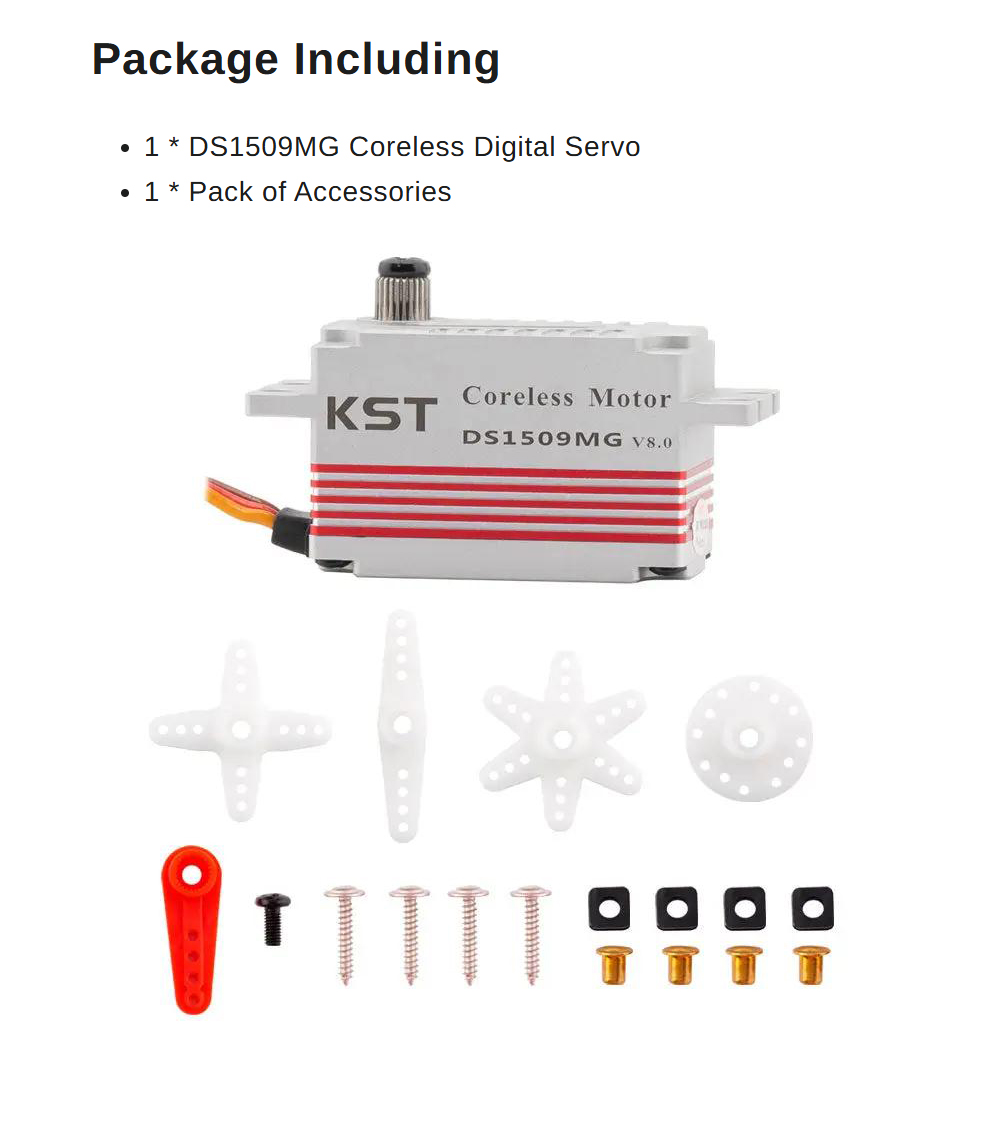

DS1509MG Coreless Digital Servo x1
Pack of Accessories x1
