KST DS3509MG 35kg 0.13sec Digital HV Metal Gear Servo For RC Robot Arm Car Boat Helicopter Airplane UAV
KST DS3509MG 35kg 0.13sec Digital HV Metal Gear Servo For RC Robot Arm Car Boat Helicopter Airplane UAV
KST DS3509MG 35kg 0.13sec Digital HV Metal Gear Servo For RC Robot Arm Car Boat Helicopter Airplane UAV
Operating Voltage: DC 6.0V-8.4V

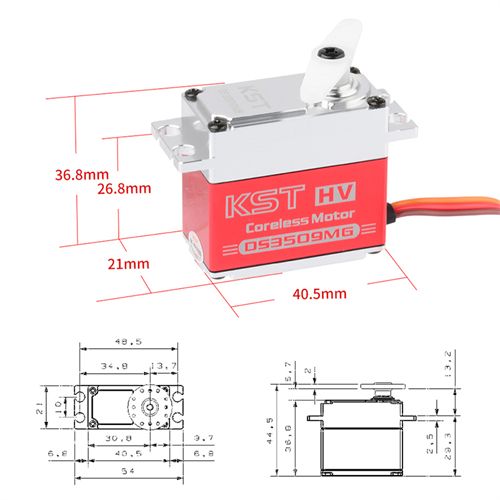

Size: 40.50*21*38mm
Torque:
35Kg.cm @ 8.4V
32Kg.cm @ 7.4V
30Kg.cm @ 6.0V
Speed:
0.12sec/60° @ 8.4V
0.13sec/60° @ 7.4V
0.14sec/60° @ 6.0V
Weight: 78g
Working Frequency: 1520us/333Hz, 900us-2100us
Motor: Φ20mm Coreless Ball Bearing: 2BB

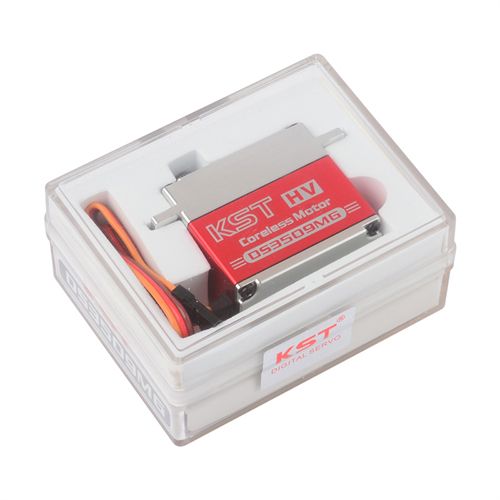

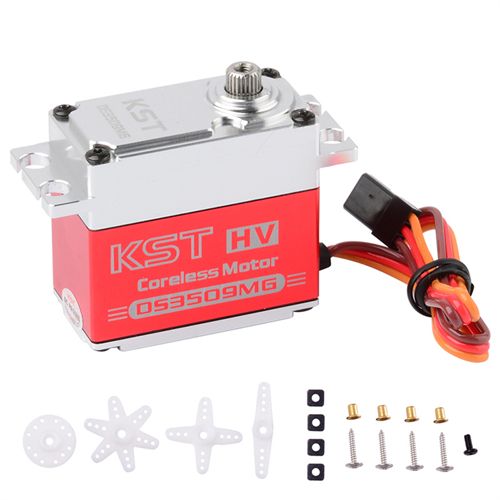

KST DS3509MG Servo x1
