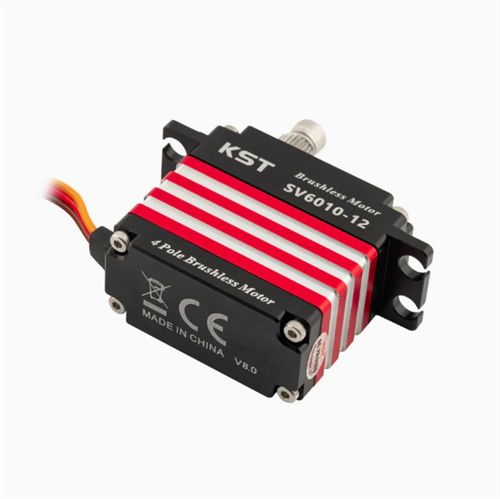

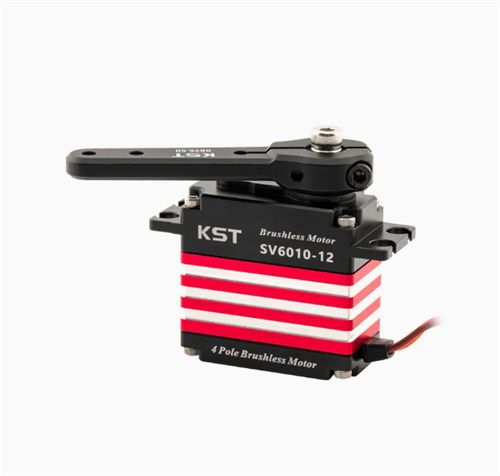

KST SV6010-12 HV Brushless Metal Gear 70Kgf.cm Digital Servo for Large Scale RC Cars & RC Planes
KST SV6010-12 HV Brushless Metal Gear 70Kgf.cm Digital Servo for Large Scale RC Cars & RC Planes
*Rated DC 12V High Voltage or Up to 3S LiPo Battery Direct Drive
*Support 8-13V High Voltage
*Ultra High Torque & Excellent Speed
*Programmable
*8mm Spline Design
*Dual Ball Bearings
*Brushless DC Motor
*Aluminium Servo Horn
*Ideal for large-scale RC Cars & RC Planes
Item: SV6010-12 Servo
Rated Voltage: DC12V
Voltage Range: DC8.0V-13.0V
Torque: 50Kgf.cm@8.4V / 60Kgf.cm@12V / 70Kgf.cm@13V
Speed: 0.13sec/60°@8.4V / 0.10sec/60°@12V / 0.09sec/60°@13V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±100° =200° Total
Temperature Range: -10℃…….+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Ball Bearing: 2BB
Case Dimensions: 40*20*40mm±0.2mm
Weight: 75g±10%

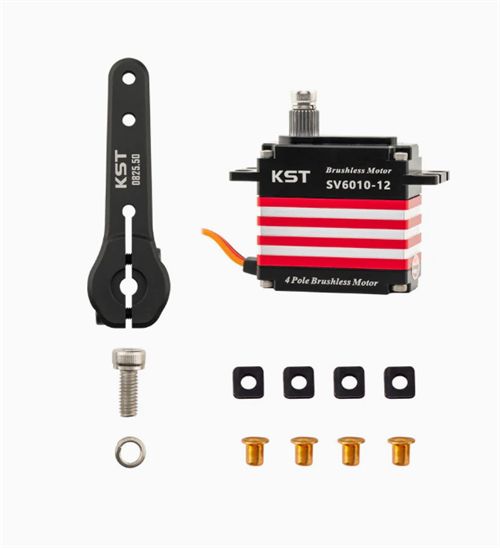

KST SV6010-12 x1
